How to Install the ABS Control Module on Dodge Viper?

Before installing the Electronic Brake Control Module, use four CAB mounting bolts to fix the CAB on the HCU, then make sure each bolt is securely tightened to 2 Nm (17 in. lbs.). After that, secure the wires from the pump/motor wiring connector and insert the connector into the CAB after putting the seal securely in the 24-way connector. Place the 24-way connector into the CAB socket and push it down all the way. After that, click the connector lock to lock it in place. After placing the access panel in the left wheel well's forward section, install the tire and wheel assembly and tighten the wheel mounting nuts according to the correct sequence to 135 Nm (100 ft. lbs.). Set the vehicle's body lower, attach the negative battery cable back and test to verify there are no faults.

How to Service the ABS Control Module on Dodge Viper?

Before starting to service the Electronic Brake Control Module, first remove the negative battery terminal. Then, ensure the vehicle is steady and after that, remove the left front tire and wheel assembly. Afterwards, remove the piece at the front of the left wheel arch. Release the 24-way connector from the CAB by pushing inward on the lock. Also, pull the connector that goes to the pump/motor wiring harness at the CAB. After all of that, take out the four mounting bolts and pull the CAB away from the HCU to remove it.

OEM Dodge Viper ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 ABS Control Modules found

View related parts

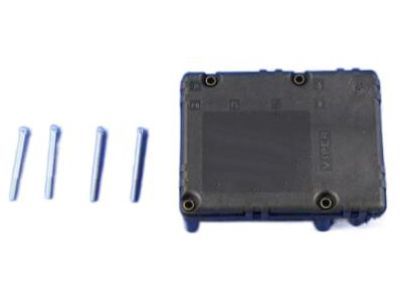

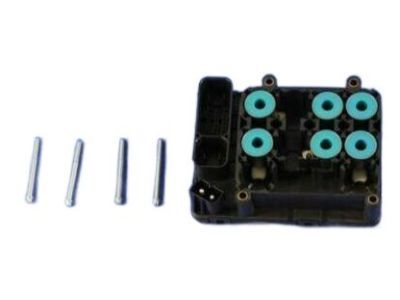

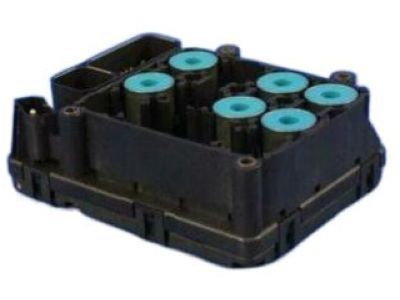

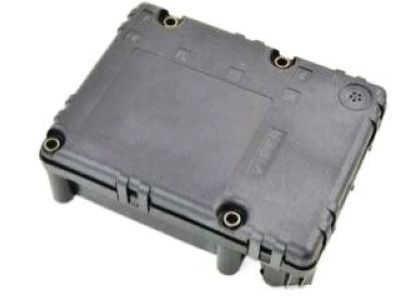

Dodge Viper Control Module Part Number: 5066605AA
$730.51 MSRP: $864.00
You Save: $133.49 (16%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010, 2003-2006 Dodge Viper | SRT-10, SRT-10 ACR | 10 Cyl 8.3 L GAS, 10 Cyl 8.4 L GAS
View related parts

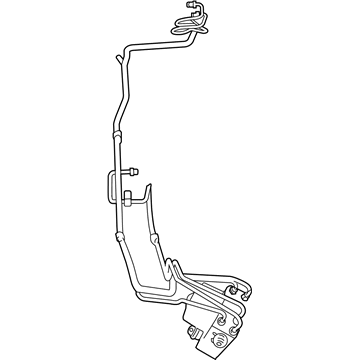

Dodge Viper ABS Control Unit Part Number: 5093035AA
$644.64 MSRP: $760.00
You Save: $115.36 (16%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Modulator - Anti-Lock Brake System; ABS Control Module; Hydraulic Unit; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010, 2003-2006 Dodge Viper | SRT-10, SRT-10 ACR | 10 Cyl 8.3 L GAS, 10 Cyl 8.4 L GAS
View related parts

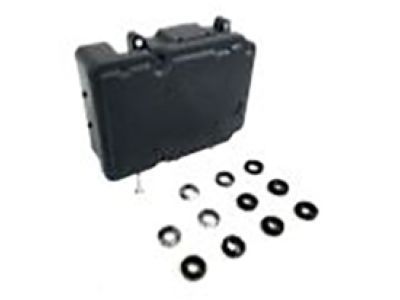

Dodge Viper Control Module Part Number: 68224802AC
$551.89 MSRP: $804.00
You Save: $252.11 (32%)
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module; Module Anti-Lock Brake System
- Replaces: 68224802AA, 68224802AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2017 Dodge Viper | ACR, Base, GT, GTC, GTS | 10 Cyl 8.4 L GAS, 8.4L V10
View related parts
Dodge Viper ABS Control Unit, Front Part Number: 68224799AC
$516.40 MSRP: $752.00
You Save: $235.60 (32%)
Product Specifications
- Other Name: Modulator - Anti-Lock Brake; ABS Hydraulic Assembly, Front; ABS Control Module; Control Unit Anti-Lock Brake
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2015-2017 Dodge Viper | ACR, Base, GT, GTC, GTS | 10 Cyl 8.4 L GAS
View related parts

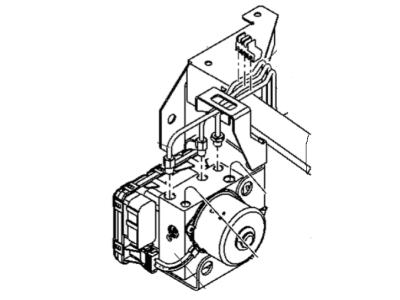

Dodge Viper Control Module Part Number: 5017905AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Lower Gasket Kit; Module; Module Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Dodge Viper | ACR, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Axle Shafts Part Number: 5016566AA
Product Specifications
- Other Name: Modulator - Anti-Lock Brake System; ABS Control Module; Differential Case; Hydraulic Unit; Modulator; Hydraulic Control Unit Anti-Lock Brake System
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002, 1992-1996 Dodge Viper | ACR, Base, GTS, R/T-10 | 10 Cyl 8.0 L GAS

Dodge Viper ABS Control Module

Choose OEM ABS Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each ABS Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Viper matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Viper parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

ABS Control Module is an important component in the anti-lock braking system (ABS) of Dodge Viper cars which have been manufactured famous for their reliability and efficiency. This is a very crucial module in improving vehicle safety because it ensures that the wheels do not lock when applying very strong brakes which are likely to cause the vehicle to skids off the road on different types of ground. The ABS Control Module is coupled with the wheels by means of speed sensors, valves, and a pump and is responsible for real-time modulation of the brake pressure needed for proper braking. Used with models of the Viper, we have this ABS Control Module and enhances the control of the vehicle and also brings shorter stopping distance, making it an essential feature for the Dodge Viper owners. Also, contemporary versions of the ABS Control Module may include features such as the ESC and TCS to enhance on car safety. That's why, the Detachable Hard Tops' ABS Control Module is impeccable, embodying reliability and the concept of engineering in the automotive market, combined with the raw power of Dodge Viper. Being a part of efficiency and safety at the same time the ABS Control Module proves the inventive character of the Dodge brand, keeping the excitement of the Viper driving while making it secure for everyone.

Dodge Viper ABS Control Module Parts and Q&A

Control Module
5066605AA
Q: How to Install the ABS Control Module on Dodge Viper?
A:
Before installing the Electronic Brake Control Module, use four CAB mounting bolts to fix the CAB on the HCU, then make sure each bolt is securely tightened to 2 Nm (17 in. lbs.). After that, secure the wires from the pump/motor wiring connector and insert the connector into the CAB after putting the seal securely in the 24-way connector. Place the 24-way connector into the CAB socket and push it down all the way. After that, click the connector lock to lock it in place. After placing the access panel in the left wheel well's forward section, install the tire and wheel assembly and tighten the wheel mounting nuts according to the correct sequence to 135 Nm (100 ft. lbs.). Set the vehicle's body lower, attach the negative battery cable back and test to verify there are no faults.
ABS Control Unit
5093035AA
Q: How to Service the ABS Control Module on Dodge Viper?
A:
Before starting to service the Electronic Brake Control Module, first remove the negative battery terminal. Then, ensure the vehicle is steady and after that, remove the left front tire and wheel assembly. Afterwards, remove the piece at the front of the left wheel arch. Release the 24-way connector from the CAB by pushing inward on the lock. Also, pull the connector that goes to the pump/motor wiring harness at the CAB. After all of that, take out the four mounting bolts and pull the CAB away from the HCU to remove it.
