How to Replace a Brake Line and What Tools Are Needed on Dodge Viper?

Only double wall steel tubing of size 4.75mm (3/16 inch) and matching tube nuts should be used to replace hydraulic brake tubes. Proper bending and flaring instruments should be used during brake tube repairs and tubes must not be exposed to sharp angles or near moving elements. All tubes hole clips should be provided as recommended for all mounting positions. Using a brake tubing cutter, trim the seat or old tubing just above the damage and then get rid of any burrs inside the tubing before inserting the new flared end. Apply the tube nut to the tubing before you flare it. For double inverted flares, use Flaring Tool Kit or Special tool C-4254 or the equivalent, open the wing nuts of the flaring bar and insert the tubing through the proper hole. Slide the remaining length of the tubing into place, fix the wing nuts, push the flare adapter stem in and put the flaring yoke over the bar and adapter. Screw the adapter down onto the flaring bar, let go of the screw when the adapter is flat and then unscrew the adapter. Lower the flaring tip over the center hole in the bell-shaped tubing while you tighten the screw to make the double inverted flare, then ease the screw to remove the flaring yoke. When flaring for ISO flares, use some 4.75 mm metric tubing with metric ISO tube flaring devices. Open the assembly's locking jaws, set them around the tubing and then clamp them in place to prevent movement. Insert the proper-size adaptor onto the feed screw, coat the area with lube, center the adapter and yoke over the tubing and tighten until the adaptor is in place. Turn the feed screw quietly, remove the flaring tool, take out the flaring bars and take away the ISO flared tube.

What Are the Inspection Requirements and Potential Issues for Brake Line Flexible Rubber Hoses on Dodge Viper?

The flexible rubber hoses for braking are installed both in the front and rear systems, so look for any damage as part of each brake servicing or routine oil change. Surface cracking, scuffed areas, spots of wear and obvious damage are signs that hydraulic brake hoses should be replaced. You must replace the rubber hose immediately if the casing is visible through cracks or scrapes in the rubber cover, as the inner lining may erode and cause it to burst later. Problems related to the installation can bring about twisting and disturb the operation of the wheel, tire or chassis. The brake tubing made from steel should be checked periodically for evidence of corrosion, any kind of damage or contact with parts that move or become hot while the car is running.

OEM Dodge Viper Brake Line

Brake Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Brake Lines found

View related parts
Dodge Viper Vacuum Hose Part Number: 5030711AF
$37.58 MSRP: $55.95
You Save: $18.37 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - Brake Booster Vacuum; Brake Vacuum Hose; Brake Booster Vacuum Hose; Hose Brake Booster Vacuum
- Replaces: 5030711AD, 5030711AE, 5030711AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | ACR, Base, GT, GTC, GTS | 10 Cyl 8.4 L GAS, 8.4L V10
View related parts

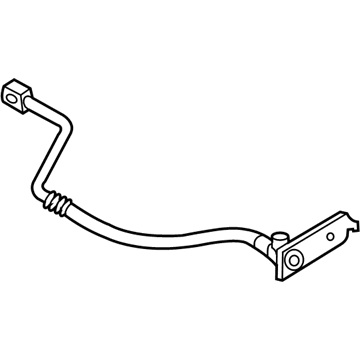

Dodge Viper Flex Hose, Rear Driver Side Part Number: 5290113AF
$40.56 MSRP: $60.40
You Save: $19.84 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Line, Rear Left; Hydraulic Hose; Brake Hose; Brake Line; Hose And Tube Assembly Brake Rear
- Position: Rear Driver Side
- Replaces: 5290113AE, 5290113AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | ACR, Base, GT, GTC, GTS | 10 Cyl 8.4 L GAS, 8.4L V10
View related parts
Dodge Viper Flex Hose, Rear Driver Side Part Number: 5290113AC
$42.92 MSRP: $63.00
You Save: $20.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Hose, Rear Left; Brake Hose; Brake Line; Hose And Tube Brake; Hydraulic Hose
- Position: Rear Driver Side
- Replaces: 5290113AB, 5290113AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Dodge Viper
- 2003-2006 Dodge Viper | 8.3L V10
View related parts

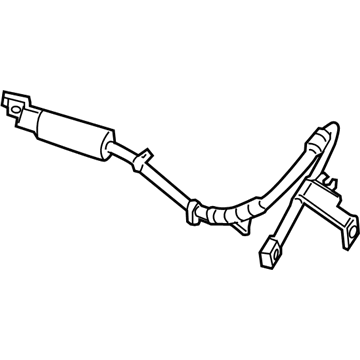

Dodge Viper Flex Hose, Front Passenger Side Part Number: 5290044AA
$19.33 MSRP: $24.50
You Save: $5.17 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - Front Wheel Disc; Brake Hydraulic Hose, Front Right; Brake Hose; Brake Line; Hose Front Wheel Disc; Hydraulic Hose
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Flex Hose, Front Driver Side Part Number: 5290043AA
$19.33 MSRP: $24.50
You Save: $5.17 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - Front Wheel Disc; Brake Hydraulic Hose, Front Left; Brake Hose; Brake Line; Hose Front Wheel Disc; Hydraulic Hose
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Flex Hose, Rear Passenger Side Part Number: 5290112AC
$31.23 MSRP: $39.60
You Save: $8.37 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Hose, Rear Right; Brake Hose; Brake Line; Hose And Tube Brake; Hydraulic Hose
- Position: Rear Passenger Side
- Replaces: 5290112AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Dodge Viper | SRT-10, SRT-10 ACR | 10 Cyl 8.4 L GAS
View related parts

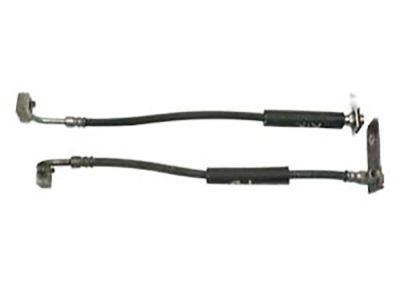

Dodge Viper Flex Hose Part Number: 5290069AB
Product Specifications
- Other Name: Line - Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose; Hose Brake Rear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Dodge Viper | ACR, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts

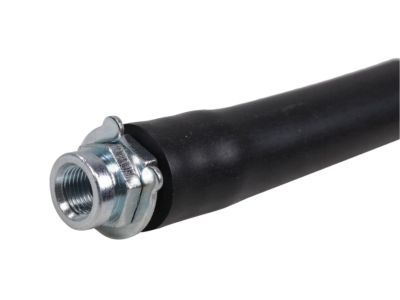

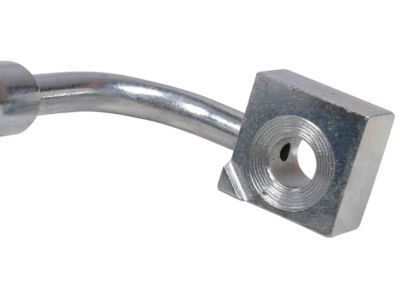

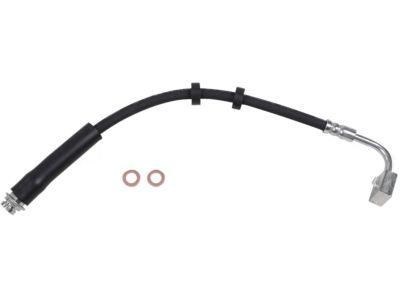

Dodge Viper Flex Hose Part Number: 5290068AB
Product Specifications
- Other Name: Line - Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose; Hose Brake Rear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Dodge Viper | ACR, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts

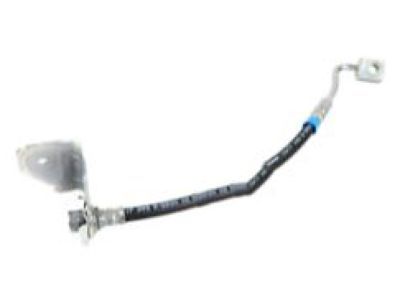

Dodge Viper Flex Hose Part Number: 4642229
Product Specifications
- Other Name: Hose - Front Disc Brake Left; Hydraulic Hose; Brake Hose; Brake Line; Hose Assembly, Front Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-1995 Dodge Viper | Base | 10 Cyl 8.0 L GAS
View related parts

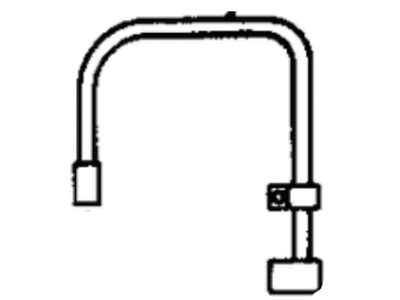

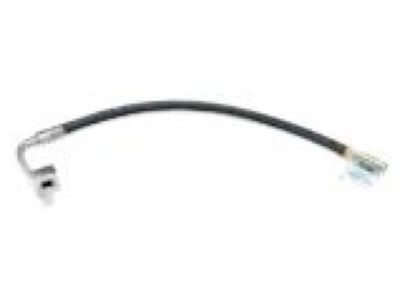

Dodge Viper Flex Hose Part Number: 4642228
Product Specifications
- Other Name: Hose - Front Disc Brake Right; Hydraulic Hose; Brake Hose; Brake Line; Hose Assembly, Front Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-1995 Dodge Viper | Base | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Flex Hose, Rear Passenger Side Part Number: 5290112AF
$33.93 MSRP: $49.00
You Save: $15.07 (31%)
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Line, Rear Right; Hydraulic Hose; Brake Hose; Brake Line; Hose And Tube Assembly Brake Rear
- Position: Rear Passenger Side
- Replaces: 5290112AD, 5290112AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | ACR, Base, GT, GTC, GTS | 10 Cyl 8.4 L GAS, 8.4L V10
View related parts
Dodge Viper Flex Hose, Front Driver Side Part Number: 5290043AC
$44.31 MSRP: $64.00
You Save: $19.69 (31%)
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Hose, Front Left; Brake Hydraulic Line, Front Left; Brake Hose; Brake Line; Hose And Tube Assembly Brake Left Front; Hydraulic Hose
- Position: Front Driver Side
- Replaces: 5290043AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | 8.4L V10
- 2008-2010 Dodge Viper | 8.4L V10
View related parts
Dodge Viper Flex Hose, Front Passenger Side Part Number: 5290044AC
$45.41 MSRP: $65.55
You Save: $20.14 (31%)
Product Specifications
- Other Name: Tube - Brake; Brake Hydraulic Hose, Front Right; Brake Hydraulic Line, Front Right; Brake Hose; Brake Line; Hose And Tube Assembly Brake Right Front; Hydraulic Hose
- Position: Front Passenger Side
- Replaces: 5290044AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2013-2017 Dodge Viper | 8.4L V10
- 2008-2010 Dodge Viper | 8.4L V10
View related parts
Dodge Viper Flex Hose Part Number: 4642231
Product Specifications
- Other Name: Line - Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose; Hose Assembly, Rear Brake, Right; Hose Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-2000 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Flex Hose Part Number: 4642230
Product Specifications
- Other Name: Line - Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose; Hose Assembly, Rear Brake, Right; Hose Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-2000 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts
Dodge Viper Flex Hose, Front Part Number: 4763155AB
Product Specifications
- Other Name: Line - Front Wheel Disc; Hydraulic Hose; Brake Hose; Brake Line; Hose Front Wheel Disc
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2002 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS
View related parts

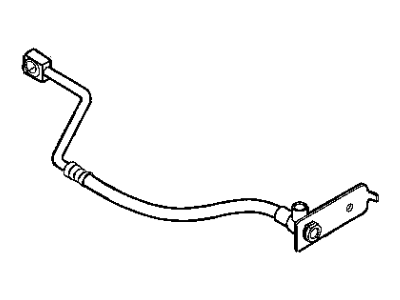

Dodge Viper Flex Hose Part Number: 5290112AA
Product Specifications
- Other Name: Line - Brake; Hydraulic Hose; Brake Hose; Brake Line; Hose Brake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Dodge Viper | SRT-10 | 10 Cyl 8.3 L GAS
View related parts
Dodge Viper Flex Hose, Front Part Number: 4763154AB
Product Specifications
- Other Name: Line - Front Wheel Disc; Hydraulic Hose; Brake Hose; Brake Line; Hose Front Wheel Disc
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2002 Dodge Viper | ACR, Base, GT2, GTS, R/T-10 | 10 Cyl 8.0 L GAS

Dodge Viper Brake Line

Choose OEM Brake Line that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Brake Line follows strict manufacturing steps to lock in quality and fit. If your Dodge Viper matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Viper parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Dodge Viper Brake Line plays a critical role of conveying the brake fluid from the master cylinder of the Viper to the brake caliper pistons. The Dodge Viper Brake Line is considered to be one of the best brake parts that can provide more reliability and performance on the road that is why it is upgrade for car enthusiasts for better safety. Designed to fit most of the Viper models, this Brake Line solves such problems as corrosion and impact that result in fluid leakage and poor braking. The kits come with corrosion-resistant stainless steel prebent brake line that's likely to last long and easy to install, you also have an added package that allows you to upgrade to braided stainless steel brake hoses can improving substantially the pedal feel, very useful for a spirited drive. This is especially significant since it improves the driver-cab connexion; thus, admits of finer control. It not only adds to the performance of the Viper but it also proves extremely significant as far as safety of the vehicle is concerned. Specifically, the Dodge Viper Brake Line has innovative design and strong material evidence that permits to emphasize the specific features of the Dodge Viper as a sign of American performance and engineering.

Dodge Viper Brake Line Parts and Q&A

Flex Hose, Front
4763154AB
Q: How to Replace a Brake Line and What Tools Are Needed on Dodge Viper?
A:
Only double wall steel tubing of size 4.75mm (3/16 inch) and matching tube nuts should be used to replace hydraulic brake tubes. Proper bending and flaring instruments should be used during brake tube repairs and tubes must not be exposed to sharp angles or near moving elements. All tubes hole clips should be provided as recommended for all mounting positions. Using a brake tubing cutter, trim the seat or old tubing just above the damage and then get rid of any burrs inside the tubing before inserting the new flared end. Apply the tube nut to the tubing before you flare it. For double inverted flares, use Flaring Tool Kit or Special tool C-4254 or the equivalent, open the wing nuts of the flaring bar and insert the tubing through the proper hole. Slide the remaining length of the tubing into place, fix the wing nuts, push the flare adapter stem in and put the flaring yoke over the bar and adapter. Screw the adapter down onto the flaring bar, let go of the screw when the adapter is flat and then unscrew the adapter. Lower the flaring tip over the center hole in the bell-shaped tubing while you tighten the screw to make the double inverted flare, then ease the screw to remove the flaring yoke. When flaring for ISO flares, use some 4.75 mm metric tubing with metric ISO tube flaring devices. Open the assembly's locking jaws, set them around the tubing and then clamp them in place to prevent movement. Insert the proper-size adaptor onto the feed screw, coat the area with lube, center the adapter and yoke over the tubing and tighten until the adaptor is in place. Turn the feed screw quietly, remove the flaring tool, take out the flaring bars and take away the ISO flared tube.
Flex Hose, Rear Passenger Side
5290112AC
Q: What Are the Inspection Requirements and Potential Issues for Brake Line Flexible Rubber Hoses on Dodge Viper?
A:
The flexible rubber hoses for braking are installed both in the front and rear systems, so look for any damage as part of each brake servicing or routine oil change. Surface cracking, scuffed areas, spots of wear and obvious damage are signs that hydraulic brake hoses should be replaced. You must replace the rubber hose immediately if the casing is visible through cracks or scrapes in the rubber cover, as the inner lining may erode and cause it to burst later. Problems related to the installation can bring about twisting and disturb the operation of the wheel, tire or chassis. The brake tubing made from steel should be checked periodically for evidence of corrosion, any kind of damage or contact with parts that move or become hot while the car is running.
