How to Service and Repair a Brake Proportioning Valve on Jeep Wrangler?

To service or repair the combination valve, stop the lines between the master cylinder and the combination valve and then remove the lines linking the combination valve to both the front and rear brakes. Following this, remove the wire from the combination valve switch area by unlocking the lock tabs on both ends. Take off the nuts holding the combination valve bracket to the booster studs and then withdraw the bracket from the engine. While fitting the valve, attach the bracket to the booster studs and tighten the bolts to 20 Nm (15 ft. lbs.). Seat the connectors in both the master cylinder and the combination valve at the same time and tighten the nuts by hand until the brake connector calibrates; next, tighten the brake line fittings on each connecter to 19 Nm (14 ft lbs.) After that, run the wire to the differential pressure switch in the combination valve and flush out any residue in the base brake lines.

OEM Jeep Wrangler Brake Proportioning Valve

Proportioning Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Brake Proportioning Valves found

View related parts

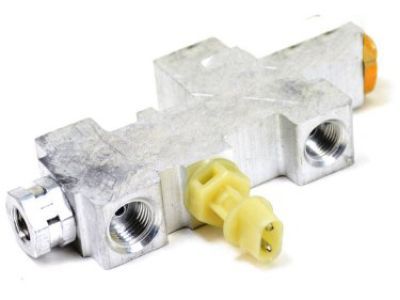

Jeep Wrangler Valve Part Number: 56052227AA
Product Specifications
- Other Name: Valve - Proportioning; Brake Proportioning Valve; Valve Proportioning
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Jeep Wrangler | Unlimited | 6 Cyl 4.0 L GAS
View related parts
Jeep Wrangler Pressure Metering Valve Part Number: 5083808AA
Product Specifications
- Other Name: Valve - Proportioning; Brake Proportioning Valve; Valve; Valve Proportioning
- Replaces: 52009115
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2006 Jeep Wrangler | 65th Anniversary Edition, Rubicon, SE, Sahara, Sport, Unlimited, Unlimited Rubicon, X | 2.4L L4, 2.5L L4, 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 4.0L L6, 6 Cyl 4.0 L GAS
- 1994-1995 Jeep Wrangler | 2.5L L4, 4.0L L6
View related parts
Jeep Wrangler Pressure Metering Valve Part Number: 5083807AA
Product Specifications
- Other Name: Valve - Proportioning; Brake Proportioning Valve; Valve; Valve Proportioning
- Replaces: 52008549
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2006 Jeep Wrangler | Rubicon, SE, Sahara, Sport, Unlimited, Unlimited Rubicon, X | 2.4L L4, 2.5L L4, 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 4.0L L6, 4.0L V6, 6 Cyl 4.0 L GAS
View related parts
Jeep Wrangler Pressure Metering Valve Part Number: 52126173AA
Product Specifications
- Other Name: Valve - Proportioning; Brake Proportioning Valve; Valve; Valve Proportioning
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Jeep Wrangler | 65th Anniversary Edition, Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | 4 Cyl 2.4 L GAS, 6 Cyl 4.0 L GAS
View related parts
Jeep Wrangler Pressure Metering Valve Part Number: 52126171AA
Product Specifications
- Other Name: Valve - Proportioning; Brake Proportioning Valve; Valve; Valve Proportioning
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Jeep Wrangler | 65th Anniversary Edition, Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | 4 Cyl 2.4 L GAS, 6 Cyl 4.0 L GAS

Jeep Wrangler Brake Proportioning Valve

Choose OEM Brake Proportioning Valve that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Brake Proportioning Valve follows strict manufacturing steps to lock in quality and fit. If your Jeep Wrangler matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Wrangler parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The use of the Brake Proportioning Valve in Jeep Wrangler automobiles assist in the braking system to regulate or control the proportion of fluid pressures required to stop the vehicle. Its main role is to control the amount of pressure exerted on the front disc brakes and the rear drum brakes in a bid to avoid front brakes locking up, and rear ones engaging in a sudden stop. This is done by being able to regulate the brake fluid pressure supplied to the rear brakes which inevitably improves vehicle control and safety. Different models of Jeep Wrangler vehicles have used several types of Brake Proportioning Valves in the course of the years, all of these being specifically tailored to meet the braking requirements of the given model. The main difference that differentiates these types from one another is in their capacity for changing pressure according to the difference needs of a disc and a drum brake.

Jeep Wrangler Brake Proportioning Valve Parts and Q&A

Pressure Metering Valve
5083808AA
Q: How to Service and Repair a Brake Proportioning Valve on Jeep Wrangler?
A:
To service or repair the combination valve, stop the lines between the master cylinder and the combination valve and then remove the lines linking the combination valve to both the front and rear brakes. Following this, remove the wire from the combination valve switch area by unlocking the lock tabs on both ends. Take off the nuts holding the combination valve bracket to the booster studs and then withdraw the bracket from the engine. While fitting the valve, attach the bracket to the booster studs and tighten the bolts to 20 Nm (15 ft. lbs.). Seat the connectors in both the master cylinder and the combination valve at the same time and tighten the nuts by hand until the brake connector calibrates; next, tighten the Brake Line fittings on each connecter to 19 Nm (14 ft lbs.) After that, run the wire to the differential pressure switch in the combination valve and flush out any residue in the base brake lines.
