How to Remove the ABS Control Module's Hydraulic Control Unit (HCU) on 2009 Dodge Durango?

Before removing the Hydraulic Control Unit (HCU) for the antilock brakes, take off the negative battery cable and put in a brake prop rod. When the master cylinder is siphoned, cut the brake lines that go to the HCU at both their points: from the master cylinder and from the chassis. After that, unplug the electrical harness connector. Remove the assembly nuts from the HCU, support the vehicle off the ground, take the left front wheel from the assembly and make sure to preserve the pins as you take them out. Finally, lift out the HCU assembly from the bracket and remove it through the left wheel well.

OEM 2009 Dodge Durango ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 ABS Control Modules found

View related parts

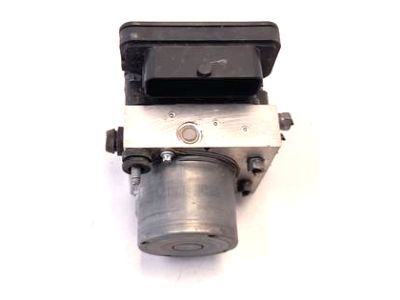

2009 Dodge Durango Control Module Part Number: 68043460AA
Product Specifications
- Other Name: Control - Anti-Lock Brake; ABS Hydraulic Assembly; ABS Control Module; Modulator; Control Unit Anti-Lock Brake
- Item Weight: 6.30 Pounds
- Item Dimensions: 9.6 x 7.8 x 6.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68043460AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Durango Submodels:
- Limited, Limited Hybrid, SE, SLT | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 5.7 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.7 L GAS
View related parts
2009 Dodge Durango Modulator Valve Part Number: 68043463AB
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Module
- Replaces: 68043463AA
- Item Weight: 2.10 Pounds
- Item Dimensions: 5.5 x 5.6 x 6.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68043463AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Durango Submodels:
- Limited, Limited Hybrid, SE, SLT | 3.7L V6, 4.7L V8, 5.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 5.7 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.7 L GAS

2009 Dodge Durango ABS Control Module Parts and Q&A

Q: How to Remove the ABS Control Module's Hydraulic Control Unit (HCU) on 2009 Dodge Durango?
A: Before removing the Hydraulic Control Unit (HCU) for the antilock brakes, take off the negative battery cable and put in a brake prop rod. When the master cylinder is siphoned, cut the brake lines that go to the HCU at both their points: from the master cylinder and from the chassis. After that, unplug the electrical harness connector. Remove the assembly nuts from the HCU, support the vehicle off the ground, take the left front wheel from the assembly and make sure to preserve the pins as you take them out. Finally, lift out the HCU assembly from the bracket and remove it through the left wheel well.
