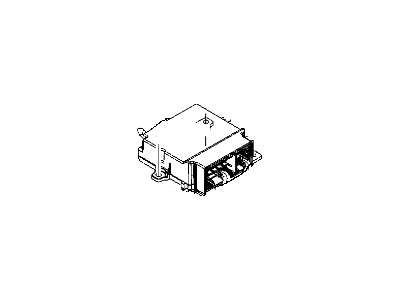

OEM 2009 Dodge Journey Air Bag Control Module

2009 Dodge Journey Air Bag Control Module Parts and Q&A

• Q: How to Install an Air Bag Control Module for the Occupant Restraint Controller Safely on 2009 Dodge Journey?

  A: First, switch off electric power to the air bags before installing the Occupant Restraint Controller by unplugging the battery cable and waiting at least two minutes till the system capacitor discharges. Angle the Orc so the arrow on the label is facing forward and the pins locate in holes of the bracket welded onto the floor panel transmission tunnel. Tighten the three screws in the Orc to 12.5 Nm (9 ft. lbs.). Before putting in the wire harness connectors for the Orc, make sure the lever arms are loose. First, reattach the body wire harness connector to the Orc, making sure the latches are firmly closed and then do the same for the instrument panel wire harness. Set the mini console in place onto the top of the floor panel transmission tunnel. This is important: Do not attach the negative battery cable until after a verification test is done after any service on the Srs. Vehicle Orc modules shipped as replacement parts are locked, so you must unlock them using the fault code Orc Unlocked - All Deployment Disabled which a diagnostic scan tool will display; once unlocked, initialize the module with the Module Initialization procedure to remove the fault and reset the Orc.
