How to Remove the Air Bag Sensor from the Front-Mounted Left Satellite Acceleration Unit on Chrysler PT Cruiser?

Before you remove the front-mounted left front satellite acceleration sensor, cut off the battery remote terminal and wait two minutes to ensure that the air bag system is discharged, because deploying the air bag could cause a serious or fatal accident. After that, take out the front lower grille, cut off its power supply and use a screwdriver to unfasten the two screws at the SAS from the side radiator support. Do the same first steps for the right front satellite acceleration sensor: remove the negative battery cable, make sure the capacitor discharges, open the front lower grille, take out the electrical connector and remove both screws to remove the SAS from the side radiator support. With the side-mounted sensor, again pull out and separate the black battery cable and give time for the capacitor to drain. Remove the trim on the lower B-pillar, detach the electrical connector for SAS and take out the SAS screws to separate the sensor from the car.

How to Install an Air Bag Sensor for Optimal Safety for Front on Chrysler PT Cruiser?

Attach the SAS firmly to the side radiator support, fastening it with two screws to a torque of 10.5 Nm (92 in. lbs.), then make the SAS electrical connector connections. After that, fit the front lower grille. Before using the right front satellite acceleration sensor, attach SAS to the side radiator support, attach two retaining screws, tighten these to 10.5 Nm (92 in. lbs.), then do the electrical connector and set the front lower grille in place. Set the electrical connector down, use retaining nuts to tighten it to 8 Nm (70 in. lbs.), join the electrical connector from the side-mounted SAS and add the lower B-pillar trim. Make sure you do not link together the negative cable on the battery until you've performed the system test for safety reasons.

OEM Chrysler PT Cruiser Air Bag Sensor

Air Bag Impact Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Air Bag Sensors found

View related parts
Chrysler PT Cruiser Impact Sensor, Front Part Number: 4671779AC
$48.02 MSRP: $103.00
You Save: $54.98 (54%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Impact; Air Bag Impact Sensor, Center, Front; Air Bag Sensor; Front Impact Sensor; Side Impact Sensor; Airbag Impact Sensor.
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Impact Sensor, Front Part Number: 4896059AA
Product Specifications
- Other Name: Sensor - Air Bag; Air Bag Impact Sensor, Front; Air Bag Sensor; Front Impact Sensor; Front Sensor; Side Impact Sensor; Side Sensor; Sensor; Sensor Air Bag
- Position: Front
- Replaces: 4896023AA, 4686957AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

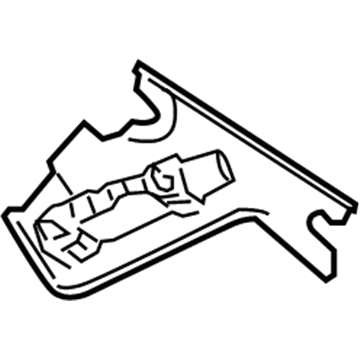

Chrysler PT Cruiser Side Impact Sensor, Driver Side Part Number: 4671885AC
Product Specifications
- Other Name: Sensor - Side Airbag Impact; Air Bag Impact Sensor, Left; Air Bag Sensor; Side Sensor; Sensor Side Airbag Impact
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chrysler PT Cruiser | Base, GT, Limited, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Side Impact Sensor, Passenger Side Part Number: 4671884AC
Product Specifications
- Other Name: Sensor - Side Airbag Impact; Air Bag Impact Sensor, Right; Air Bag Sensor; Side Sensor; Sensor Side Airbag Impact
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chrysler PT Cruiser | Base, GT, Limited, Touring | 4 Cyl 2.4 L GAS

Chrysler PT Cruiser Air Bag Sensor

Choose OEM Air Bag Sensor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Air Bag Sensor follows strict manufacturing steps to lock in quality and fit. If your Chrysler PT Cruiser matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine PT Cruiser parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Chrysler PT Cruiser Air Bag Sensor is one of the components that reflect true-to-life dependable safety features in automobiles. This sensor termed as crash sensor is vital in sensing impacts during an accident which makes the air bags inflate immediately to safeguard the occupants. Some of the flamboyant models that can be associated with the Chrysler PT Cruiser are the fashionable and versatile Red Headed Edition models, their practical features are evident through the improved efficiency of the Air Bag Sensor regardless of the PT Cruiser model. Thus, the compatibility proves the relevance of the sensor in enhancing safety features across the PT Cruiser models. Communication of the Air Bag Sensor with the vessels of the vehicle control light increases the safety of the Chrysler PT Cruiser model, that is why users who are looking forward to guaranteeing the safety of their passengers prefer according model. Interestingly, the air Bag Sensor is incorporated to give early signals on times of air bag deployment, this being very essential in cases of an emergency. The model Chrysler PT Cruiser it is possible to draw attention to the car design which reflects some memories, as well as to the firm's concern for security which is described by Air Bag Sensor. The Chrysler PT Cruiser, manufactured over a million units, is credited to offer the right proportions of the classic car look and feel and the effectiveness of modern safety technologies and thus the Air Bag Sensor is a vital piece of the PT Cruiser's story in the automotive industry.

Chrysler PT Cruiser Air Bag Sensor Parts and Q&A

Impact Sensor, Front
4671779AC
Q: How to Remove the Air Bag Sensor from the Front-Mounted Left Satellite Acceleration Unit on Chrysler PT Cruiser?
A:
Before you remove the front-mounted left front satellite acceleration sensor, cut off the battery remote terminal and wait two minutes to ensure that the air bag system is discharged, because deploying the air bag could cause a serious or fatal accident. After that, take out the front lower Grille, cut off its power supply and use a screwdriver to unfasten the two screws at the SAS from the side Radiator Support. Do the same first steps for the right front satellite acceleration sensor: remove the negative Battery Cable, make sure the capacitor discharges, open the front lower grille, take out the electrical connector and remove both screws to remove the SAS from the side radiator support. With the side-mounted sensor, again pull out and separate the black battery cable and give time for the capacitor to drain. Remove the trim on the lower B-pillar, detach the electrical connector for SAS and take out the SAS screws to separate the sensor from the car.
Impact Sensor, Front
4896059AA
Q: How to Install an Air Bag Sensor for Optimal Safety for Front on Chrysler PT Cruiser?
A:
Attach the SAS firmly to the side Radiator Support, fastening it with two screws to a torque of 10.5 Nm (92 in. lbs.), then make the SAS electrical connector connections. After that, fit the front lower Grille. Before using the right front satellite acceleration sensor, attach SAS to the side radiator support, attach two retaining screws, tighten these to 10.5 Nm (92 in. lbs.), then do the electrical connector and set the front lower grille in place. Set the electrical connector down, use retaining nuts to tighten it to 8 Nm (70 in. lbs.), join the electrical connector from the side-mounted SAS and add the lower B-pillar trim. Make sure you do not link together the negative cable on the battery until you've performed the system test for safety reasons.
