OEM Chrysler PT Cruiser Cruise Control Switch

Chrysler PT Cruiser Cruise Control Switch Parts and Q&A

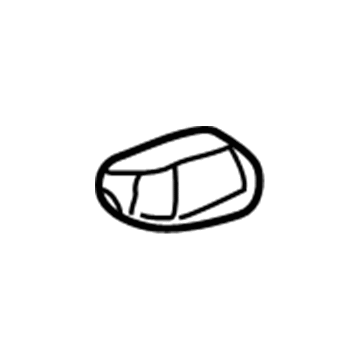

• Cruise Switch
  4671573AC
  Q: How Should the Cruise Control Switch Be Managed During Service and Repair on Chrysler PT Cruiser?

  A:

  During servicing or repair, one must treat the speed control switch on the Steering Wheel which is wired through the clock spring below the Air Bag module, with caution. Take off the air cleaner lid, detach the inlet air temperature sensor and makeup air hose and afterward, take away the negative Battery Cable. It is important to shut off the ignition switch before handing the air bag. Take out the upper mounting screw, then position the steering wheel at 6 O'clock and unscrew the two screws on the back of the speed control switch. Connected to a cable, remove the electrical connector and take out the switch. When installing, connect the wiring, put in the switch and screw it in to a tightness of 1.6 Nm (15 in. lbs.). Be sure the rubber seal is firmly around the switch. After that, install the air bag, replace the negative battery cable and finally, fit the air cleaner lid and both sensors.
• Cruise Switch
  4671929AC
  Q: How to Safely Remove the Cruise Control Switch from the Steering Wheel on Chrysler PT Cruiser?

  A:

  You should take care when removing the speed control switch, as it is located in the Steering Wheel and attached via the clock spring gadget under the Air Bag module. The first thing to do is disconnect the inlet air temperature sensor and take off the lid of the air cleaner. After that, detach the negative Battery Cable and turn off the engine. Any time you need to take out the air bag, make sure you do it according to the proper guidelines. Remove the top screw after that and position the switch with the car so that it is horizontal. After that, remove the screws from the back of the speed control switch, take out the electrical connector and take out the switch.
