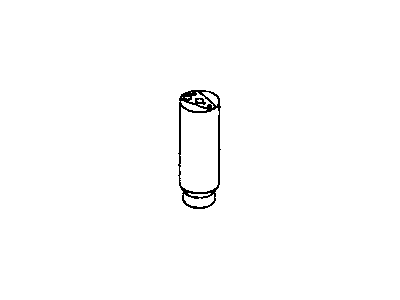

OEM Chrysler Sebring A/C Accumulator

Chrysler Sebring A/C Accumulator Parts and Q&A

• Dehydrator
  5058824AA
  Q: What Role Does the A/C Accumulator Play in Preventing System Malfunction and Compressor Damage on Chrysler Sebring?

  A:

  When you service the A/C refrigerant system, make sure the refrigerant oil is at the proper level to stop any problems with the A/C and protect the compressor. A damaged A/C compressor requires the replacement of the accumulator to guarantee there is no more damage to the compressor. Look at the Refrigerant Oil Capacities chart whenever you replace several A/C components to know how much oil should be added. In case you're only replacing the A/C accumulator, be sure to fill it with 20 milliliters (0.7 fluid ounce) of recommended refrigerant oil. Be sure to change the rubber seals and metal gaskets in the refrigerant line any time it is detached, to prevent refrigerant from leaking out. Fit the accumulator mounting bracket (10) first and tighten all retaining bolts to 9 Nm (80 in. lbs.). Take out the tape or plugs at the fittings and the ports of the accumulator, then massage oils meant for refrigerants onto new rubber O-rings. Put the O-rings together with the new gaskets at the suction line and accumulator fittings. Attach the upper A/C suction line (2) to the accumulator inlet tube (4) and fasten the retaining nut (3) until you reach a tightness of 25 Nm (18 ft. lbs.). Fix the accumulator (1) to the bracket using the retaining band (6) and bolt (5) and tighten the bolt to 8 Nm (71 in. lbs.). Screw the lower A/C suction line (8) onto the accumulator outlet tube (9), then tighten the holding nut (7) to 25 Nm (18 ft. lbs.) Put the front of the right front wheel house splash shield (3) on top of the body (4) and place and tighten the three push-pin retainers (1), plus the three screws (2). Put on the front wheel, raise the vehicle and attach the negative Battery Cable again. Do not attempt to run the engine while there is onboard vacuum or with an active vacuum pump hooked up to prevent compressor damage. After emptying the refrigerant system, add 20 milliliters (0.7 fluid ounce) of refrigerant oil if you're replacing the accumulator and check the Refrigerant Oil Capacities chart for more replacements. After you complete all other steps, charge the freon in the refrigerant system.
• Dehydrator
  5189376AA
  Q: How to Remove the A/C Accumulator on Chrysler Sebring?

  A:

  Before touching the HVAC accumulator, first turn off and unhook the negative Battery Cable and then drain the refrigerant from the refrigeration system. Support the vehicle and then take off the right front wheel. Then, take out the three push-pin clips and the three screws fastening the right front splash shield to the body and set that shield aside so you can reach the A/C accumulator. Pull out the nut holding the lower A/C suction line to the accumulator outlet tube and disconnect the suction line connection. Afterward, remove the retaining band and bolt that hold the A/C accumulator in place. Afterward, take out the nut holding the upper A/C suction line to the accumulator inlet tube and separate this suction line. Should it be necessary, take off the mounting bracket for the accumulator from the car body. After that, get rid of the O-ring seals and gaskets, then seal or put plugs in all the open refrigerant line fittings and accumulator ports.
