OEM Dodge Magnum Blower Motor

Dodge Magnum Blower Motor Parts and Q&A

• Blower Motor
  68037308AA
  Q: How to Install a Blower Motor on Dodge Magnum?

  A:

  Place the blower motor into the HVAC housing and hold it in place with the four screws, tightened to 2.2 Nm (20 in. lbs.). Lock in the wire harness connector to the blower motor and install the retainers onto the motor next. After that, attach the instrument panel silencer on the left side of the panel next to the passenger door. Once everything else is done, put on the negative Battery Cable.

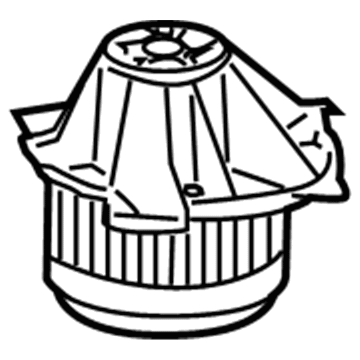

• Blower Motor
  5061091AB
  Q: How to Service and Repair a Blower Motor on Dodge Magnum?

  A:

  On cars with air bags, begin the repair or service of the blower motor by removing and isolating the negative Battery Cable. Then wait two minutes for the air bag capacitor to completely discharge. Start by taking off the instrument panel silencer at the passenger side of the dashboard. After that, push in the locking tab on the wire harness connector and pull the wire harness connector (1) off the blower motor (2). Using a screwdriver, unscrew the four screws (3) holding the blower motor to the rest of the HVAC housing (4) and remove the motor. The blower motor (2) should be placed in the HVAC housing (4) and locked with the four screws (3), making sure the torque is 2.2 N.m (20 in. lbs.). Knock out the HVAC wire harness retainers first, then fit and lock in the wire harness connector on the blower motor before installing all the retainers. When this is done, screw in the instrument panel silencer and reconnect the negative battery cable.
