How to Service and Repair an Engine Mount on the Right Side on Dodge Neon?

First, take off the accessory drive belts, crankshaft damper and upper and lower engine torque struts, next place a suitable jack under the engine to support it. Then, take out the bolt access cover and the bolt joining the right engine mount to the bracket and finally the right engine mount bracket. Before you loosen the bolts securing the mount, mark the proper position with a permanent marker, because the engine mount holes are a little larger than actually needed. Once the marks are done, remove the bolts that hold the mount to the engine body and carefully remove the mount with the position of the engine if needed. Restore the mount to the initial place on the body frame rail and ensure that it is set up correctly during installation. If the post was not properly set or the frame rail is new, place a new post loosely, bring the four holes into position and secure them there with marks. After the mount is properly placed, bolts must be installed and tightened to 28 Nm (250 in. lbs.) and the bracket and bolt bolting the right engine mount to the bracket to 118 Nm (87 ft. lbs.). After that, take away the support under the engine, put back the upper and lower engine torque struts, the crankshaft damper and the drive belts for accessories.

How to Service and Repair a Left Engine Mount on Dodge Neon?

Life the vehicle up by 30.5 cm (12 inches) to begin working on the left engine mount. Get rid of the air cleaner assembly, the battery and the tray and then lift the transaxle up with a proper jack. Take out the left front wheel and the splash shield, then remove the through bolt access plug on the left outer frame side. Following this, take off the mount bolt and unhook the transaxle shift cable on the left mount from the transaxle linkage. First, unmount the left mount bracket to its connected screws in the body frame rail, then remove the bolts from the mount and finally remove the mount. During installation, set the new mount in place and attach the bolts, tightening them to 68 Nm (50 ft. lbs.). Attach the engine mount bracket to the body frame rail and tighten its fasteners to 2.8 kg. cm (250 in. lbs.). Set the alignment for the engine/transaxle before installing and tightening the through bolt to 118 Nm (87 ft. lbs.). Remove the jack from below the transaxle, replace the through bolt access plug and place on the left splash shield and wheel. Connect the shift cable from the engine mount to the transaxle linkage, put the battery back in the tray and then attach the air cleaner assembly. Now, bring the vehicle down.

OEM Dodge Neon Engine Mount

Engine Motor Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Engine Mounts found

View related parts
Dodge Neon Engine Support, Passenger Side Part Number: 4668902AD
$94.15 MSRP: $141.00
You Save: $46.85 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount, Right; Engine Mount Bracket; Motor Mount; Front Support; Support; Mount; Support Engine Mount
- Position: Passenger Side
- Replaces: 4668462AC, 5085184AC, 4668902AB, 5273550AC, 5085184AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2005 Dodge Neon | SRT-4 | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Dodge Neon Transmission Support Part Number: 5086709AC
$77.60 MSRP: $119.00
You Save: $41.40 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount; Engine Mount Bracket; Transfer Case Mount; Transmission Mount; Motor Mount; Support; Mount
- Replaces: 4668192AD, 5086709AB, 5086709AA, 4668192AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2005 Dodge Neon | ACR, Base, ES, High Line, R/T, SE, SRT-4, SXT | 2.0L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

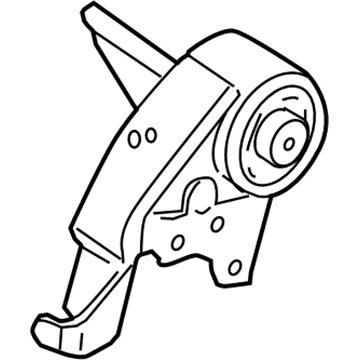

Dodge Neon Transmission Mount Part Number: 5274952AA
$121.10 MSRP: $157.00
You Save: $35.90 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Engine Mount; Automatic Transmission Mount; Torque Strut; Bracket; Transfer Case Mount; Motor Mount; Bracket; Support Engine Mount
- Replaces: 4668626AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2005 Dodge Neon | R/T, SE, SXT | 4 Cyl 2.0 L GAS
- 2001 Dodge Neon | 2.0L L4
View related parts

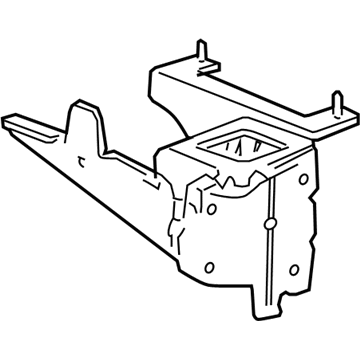

Dodge Neon Engine Support Part Number: 4668526AE
$58.85 MSRP: $67.50
You Save: $8.65 (13%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Bracket; Support Engine Mount
- Replaces: 4668526AD, 4668526AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2005 Dodge Neon | ACR, Base, ES, High Line, R/T, SE, SXT | 2.0L L4, 4 Cyl 2.0 L GAS
View related parts

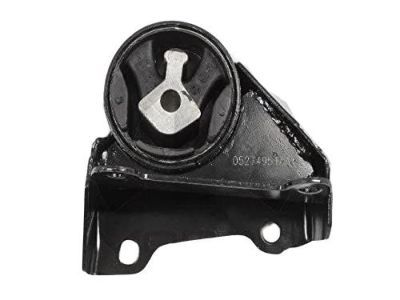

Dodge Neon Transmission Mount Part Number: 5274951AA
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount Torque Strut; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Bracket; Mount; Support Engine Mount
- Replaces: 4668530AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2005 Dodge Neon | ACR, Base, ES, High Line, R/T, SE, SRT-4, SXT | 2.0L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Neon Bracket Part Number: 4668364AE
Product Specifications
- Other Name: Bracket - Engine Mount; Accessory Drive Belt Tensioner Assembly; Serpentine Belt Drive Kit; Automatic Belt Tensioner.; Tensioner
- Replaces: 4668364AC, 4668364AB, 4668364AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2005 Dodge Neon | ACR, Base, ES, High Line, R/T, SE, SXT | 2.0L L4, 4 Cyl 2.0 L GAS
View related parts
Dodge Neon Side Mount Part Number: 4668200
Product Specifications
- Other Name: Support - Engine Mount - Right; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Rear Mount; Bracket; Insulator; Support Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 4 Cyl 2.0 L GAS
View related parts
Dodge Neon Damper Part Number: 4668171AA
Product Specifications
- Other Name: Damper - Engine Roll
- Replaces: 4668171
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 2.0L L4, 4 Cyl 2.0 L GAS
View related parts

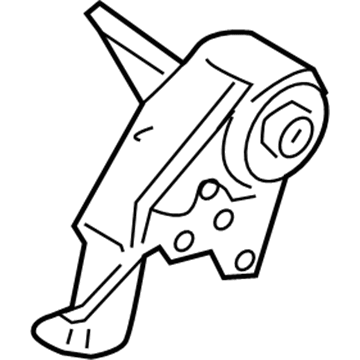

Dodge Neon Support Part Number: 5037978AB
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount; Engine Mount Bracket; Motor Mount; Mount; Support Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2005 Dodge Neon | SRT-4 | 4 Cyl 2.4 L GAS
View related parts
Dodge Neon Front Mount Part Number: 4668183
Product Specifications
- Other Name: Insulator - Engine Mgt - Front; Engine Mount Bracket; Engine Mount Bushing; Engine Mount; Motor Mount; Mount; Insulator; Insulator Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 4 Cyl 2.0 L GAS
View related parts
Dodge Neon Front Mount Part Number: 4668182
Product Specifications
- Other Name: Insulator - Engine Mount - Front; Engine Mount Bracket; Engine Mount Bushing; Motor Mount; Mount; Insulator; Insulator Engine Mount; Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 4 Cyl 2.0 L GAS
View related parts
Dodge Neon Side Mount Part Number: 4668259AB
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Rear Mount; Support; Bracket
- Replaces: 4668259
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 2.0L L4, 4 Cyl 2.0 L GAS
View related parts
Dodge Neon Side Mount Part Number: 4668257
Product Specifications
- Other Name: Support - Engine Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Rear Mount; Support; Bracket; Support Engine Mount
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Neon | ACR, Base, High Line, R/T, Sport | 4 Cyl 2.0 L GAS

Dodge Neon Engine Mount

Choose OEM Engine Mount that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Engine Mount follows strict manufacturing steps to lock in quality and fit. If your Dodge Neon matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Neon parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Engine Mount in Dodge Neon vehicles serves two primary functions: it reduces noise and vibration coming from the engine while at the same time locating and supporting the engine and transaxle within the chassis. This isolation is important so as to provide comfort while operating the vehicle and ensuring that the vehicle components area does not get exposed to certain forces. Additional, Dodge Neon models have used different types of Engine Mounts depending on the Model Year, these include Rubber Mounts, Fluid Filled Hydraulic mounts, and the latest and much complex type of mounts, the Electronic Active Mounts. Conventional bearings made up of metal parts with rubber spacers are less effective whereas hydro mounts are more effective against vibrations. The latest active mounts regulate its rate of stiffness according to the revolutions per minute with the premier efficiency. These Engine Mounts can deteriorate with time, heat or when they get in contact with fluids and this will lead to noise and vibrations thus require inspection for replacement.

Dodge Neon Engine Mount Parts and Q&A

Transmission Support
5086709AC
Q: How to Service and Repair an Engine Mount on the Right Side on Dodge Neon?
A:
First, take off the accessory Drive Belts, crankshaft damper and upper and lower engine torque struts, next place a suitable jack under the engine to support it. Then, take out the bolt access cover and the bolt joining the right engine mount to the bracket and finally the right engine mount bracket. Before you loosen the bolts securing the mount, mark the proper position with a permanent marker, because the engine mount holes are a little larger than actually needed. Once the marks are done, remove the bolts that hold the mount to the engine body and carefully remove the mount with the position of the engine if needed. Restore the mount to the initial place on the body frame rail and ensure that it is set up correctly during installation. If the post was not properly set or the frame rail is new, place a new post loosely, bring the four holes into position and secure them there with marks. After the mount is properly placed, bolts must be installed and tightened to 28 Nm (250 in. lbs.) and the bracket and bolt bolting the right engine mount to the bracket to 118 Nm (87 ft. lbs.). After that, take away the support under the engine, put back the upper and lower engine torque struts, the crankshaft damper and the drive belts for accessories.
Engine Support
4668526AE
Q: How to Service and Repair a Left Engine Mount on Dodge Neon?
A:
Life the vehicle up by 30.5 cm (12 inches) to begin working on the left engine mount. Get rid of the air cleaner assembly, the battery and the tray and then lift the transaxle up with a proper jack. Take out the left front wheel and the splash shield, then remove the through bolt access plug on the left outer frame side. Following this, take off the mount bolt and unhook the transaxle shift cable on the left mount from the transaxle linkage. First, unmount the left mount bracket to its connected screws in the body frame rail, then remove the bolts from the mount and finally remove the mount. During installation, set the new mount in place and attach the bolts, tightening them to 68 Nm (50 ft. lbs.). Attach the engine mount bracket to the body frame rail and tighten its fasteners to 2.8 kg. cm (250 in. lbs.). Set the alignment for the engine/transaxle before installing and tightening the through bolt to 118 Nm (87 ft. lbs.). Remove the jack from below the transaxle, replace the through bolt access plug and place on the left splash shield and wheel. Connect the shift cable from the engine mount to the transaxle linkage, put the battery back in the tray and then attach the air cleaner assembly. Now, bring the vehicle down.
