OEM Dodge Neon Speed Sensor

Dodge Neon Speed Sensor Parts and Q&A

• Speed Sensor
  4800879
  Q: How to Service and Repair a Front Wheel Speed Sensor on Dodge Neon?

  A:

  For wheel speed sensor repair or service at the front, raise the vehicle and unhook the cable connector for the sensor from the harness above the front suspension crossmember, pulling the locking tab back first. With the left front sensor, take out the speed sensor cable clipped to the frame rail's brake tube. Also, remove the speed sensor cable grommet on the outside of the frame rail from the brake hose holding bracket. After that, remove the bolt that fastens the wheel speed sensor to the Steering Knuckle, avoiding putting pliers on the sensor head and damaging it; if the sensor won't turn, tap the edge of the sensor head ear gently with a hammer and punch as you wiggle it side-to-side. Carefully take the sensor head off of the steering knuckle and then remove the screw attaching the wheel speed sensor to the back of the strut to take the sensor out. Install the wheel speed sensor on the strut with its mounting screw and place the head on the steering knuckle, then tighten it with the mounting bolt to 12 Nm (105 inch lbs.). Tuck the sensor cable above and then below the frame rail and then attach the grommet for the speed sensor cable to the bracket fixed to the brake hose. Wrap the wheel speed sensor cable at the base of the frame rail, then link it to the wiring harness connector and remember to place the locking tab inside the frame rail. Whenever installing a left front sensor, run the speed sensor cable through the brake tube under the frame rail, lower the vehicle and check both the base brakes and the ABS during a road test.

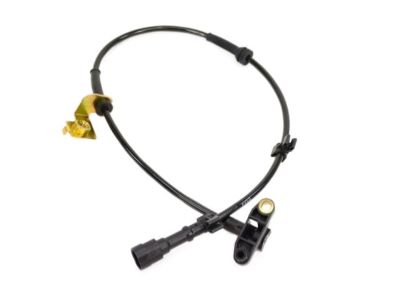

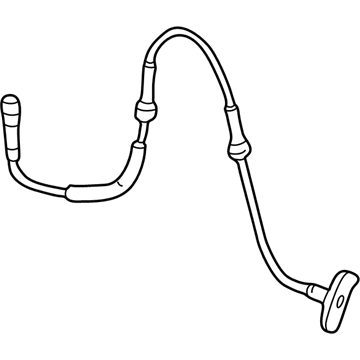

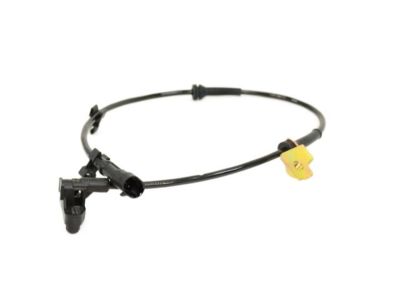

• ABS Sensor, Front Driver Side
  5273333AF
  Q: How to Maintain a Speed Sensor on the Front Wheel on Dodge Neon?

  A:

  First, sit the vehicle on jacks, then disconnect the cable connector from the front suspension crossmember wiring harness after pulling the locking tab. For a left front sensor, take off the speed sensor cable from the brake hose under the rail. Unplug the speed sensor cable from the retaining bracket hooked to the brake hose at the outside frame rail and remove the bolt holding the sensor head to the Steering Knuckle; don't use pliers on the sensor head to prevent damage and if the sensor won't come out, tap the edge of its ear, moving it back and forth with the hammer and punch until it's loose. Remove the sensor head from the steering knuckle, then get rid of the screw holding the wheel speed sensor to the back of the strut and pull out the sensor. For the installation, first secure the wheel speed sensor to the strut with its mounting screw and then install the sensor's head in the steering knuckle, attaching it with the mounting bolt tightening it to 12 Nm (105 in. lbs.). Feed the sensor cable up and down on the outside edge of the frame rail from the sensor bracket on the strut and place the grommet onto the retaining bracket on the brake hose outside the frame rail. Wrap the wheel speed sensor cable around the lower end of the frame rail, connect it to the frame wiring connector and make sure the locking tab is pressed in. Installing the left front sensor. Then clip the speed sensor cable onto the brake tube above the frame rail, lower the vehicle and verify that the ABS and base brake work.
