How to Remove a Heater Core on Dodge Ram 3500?

First, remove the negative battery cable to turn off the air bag system, then let the system sit for two minutes so its capacitor drains. Opening the housing for this guide is not required. The first step is taking out the HVAC housing. Once done, peel away the plastic cover on the heater core tubes. On a vehicle with a dual zone heating-A/C system, uninstall the linkage rod to get to the heater core. Thereafter, unscrew the bracket holding the heater core tube to the housing and remove it. Ease the heater core out from the HVAC housing front and examine all the foam seals, putting in new ones if they are worn or cracked.

How to Effectively Service and Repair a Heater Core on Dodge Ram 3500?

The first step to service or repair your heater core is to remove the HVAC housing from your vehicle. After that, use a screwdriver to remove both the screws and any retainers joining the heater core to the HVAC housing. Pull the heater core straight from inside the heater-A/C housing. For putting it in, place the heater core in the HVAC housing, install the retainers above the heater core tubes, secure both with screws and tighten them to 2.2 N.m (20 in. lbs.). Afterwards, place the HVAC housing back into your car.

OEM Dodge Ram 3500 Heater Core

HVAC Heater Core

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Heater Cores found

View related parts

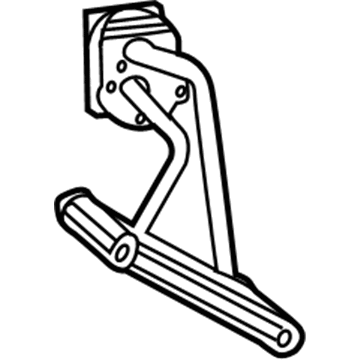

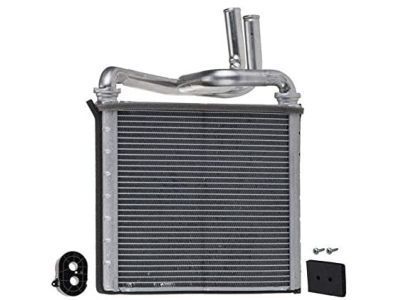

Dodge Ram 3500 Heater Core Part Number: 68048895AA
$269.65 MSRP: $400.00
You Save: $130.35 (33%)
ADD TO CART
Product Specifications

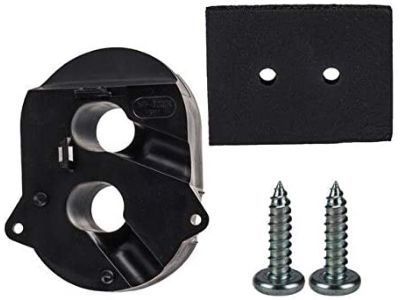

- Other Name: Core - Heater; HVAC Heater Core; Core Heater Includes: Screws, Seals, Clamp
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Laramie, SLT, ST | 6 Cyl 6.7 L DIESEL
View related parts

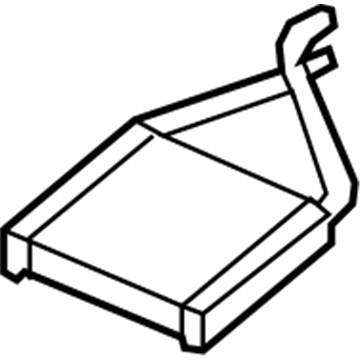

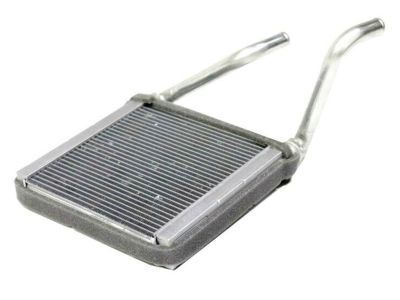

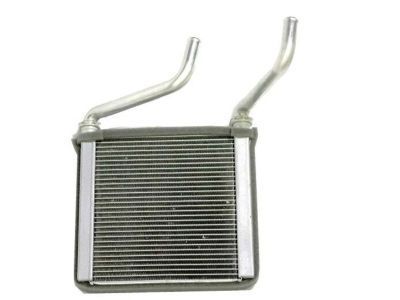

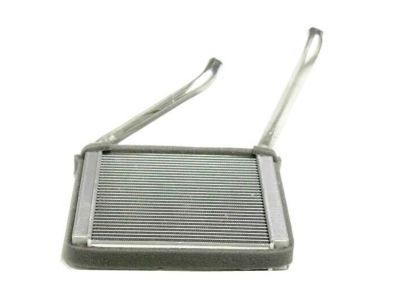

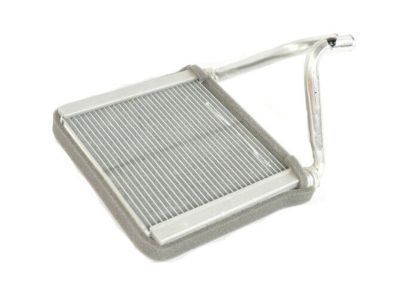

Dodge Ram 3500 Heater Core Part Number: 68004228AB
$162.95 MSRP: $237.00
You Save: $74.05 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Heater Includes: Tubes, Clamp, Screw; Core Heater Includes Tubes And Clamp
- Replaces: 5073971AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport, TRX4 | 10 Cyl 8.0 L GAS, 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 8 Cyl 5.7 L GAS, 8.0L V10
View related parts
Dodge Ram 3500 Heater Core Part Number: 4720008
Product Specifications
- Other Name: Core - Heater; HVAC Heater Core; Core Assembly, Heater; Core Assembly; Core, Heater; Core Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-2002 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS

Dodge Ram 3500 Heater Core

Choose OEM Heater Core that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Heater Core follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Heater core on Dodge Ram 3500 vehicles is part and parcel of climate control system to supply hot air to the cabin during heating operation. Like the radiator in a vehicle, the Heater Core uses a blend of water and anti-freeze to take extra heat from the engine and circulate it inside the car. It is made from aluminum or brass and has fins to increase heat transfer rate, the coolants that circulate through it flows from the engine while air is forcibly passed through by a fan of the vehicle. Some of the possible factual sites of temperature manipulation in Dodge Ram 3500 models are a valve that allows the control of coolant circulation and electromechalcial systems with actuators for setting the temperature finely. However, the Heater Core contributors to general warming of the cabin and can also contribute to engine cooling and in improving the effects of air dehumidification in air conditioned autos. Symptoms that hint at Heater Core problems include when it clogs, when its sealed units are leaking or when it has rusted and this is bad news because the dashboard requires a lot of disassembly when making repairs to a Heater Core.

Dodge Ram 3500 Heater Core Parts and Q&A

Heater Core
68004228AB
Q: How to Remove a Heater Core on Dodge Ram 3500?
A:
First, remove the negative Battery Cable to turn off the air bag system, then let the system sit for two minutes so its capacitor drains. Opening the housing for this guide is not required. The first step is taking out the HVAC housing. Once done, peel away the plastic cover on the heater core tubes. On a vehicle with a dual zone heating-A/C system, uninstall the linkage rod to get to the heater core. Thereafter, unscrew the bracket holding the heater core tube to the housing and remove it. Ease the heater core out from the HVAC housing front and examine all the foam seals, putting in new ones if they are worn or cracked.
Heater Core
4720008
Q: How to Effectively Service and Repair a Heater Core on Dodge Ram 3500?
A:
The first step to service or repair your heater core is to remove the HVAC housing from your vehicle. After that, use a screwdriver to remove both the screws and any retainers joining the heater core to the HVAC housing. Pull the heater core straight from inside the heater-A/C housing. For putting it in, place the heater core in the HVAC housing, install the retainers above the heater core tubes, secure both with screws and tighten them to 2.2 N.m (20 in. lbs.). Afterwards, place the HVAC housing back into your car.
