OEM Dodge Sprinter 3500 Timing Chain Guide

Engine Timing Chain Guide
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Timing Chain Guides found

  • Dodge Sprinter 3500 Timing Chain Guide - 5080099AA
    Dodge Sprinter 3500 Timing Chain Guide - 5080099AA
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 5080099AA
    View related parts

    Dodge Sprinter 3500 Chain Guide Part Number: 5080099AA

    $10.68 MSRP: $21.70
    You Save: $11.02 (51%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide; Timing Chain Guide; Guide Timing Chain
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2003-2006 Dodge Sprinter 3500 | Base | 5 Cyl 2.7 L DIESEL
  • Dodge Sprinter 3500 Timing Chain Guide - 68013904AA

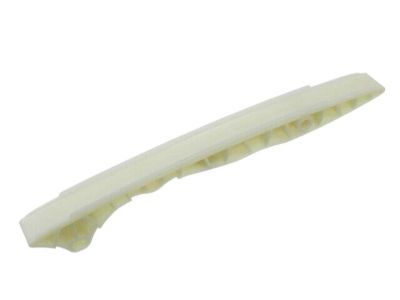

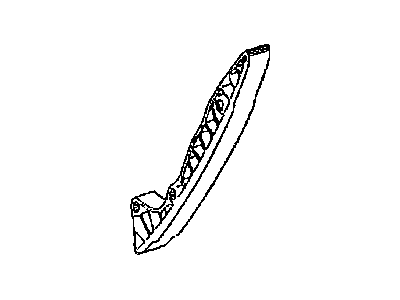

    Dodge Sprinter 3500 Timing Chain Guide - 68013904AA
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 68013904AA
    View related parts

    Dodge Sprinter 3500 Chain Guide Part Number: 68013904AA

    $13.16 MSRP: $23.85
    You Save: $10.69 (45%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide; Guides, Timing Chain; Timing Chain Guide; Guide Timing Chain
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2007-2008 Dodge Sprinter 3500 | Base | 6 Cyl 3.5 L GAS
  • Dodge Sprinter 3500 Timing Chain Guide - 5174768AA
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 5174768AA
    View related parts

    Dodge Sprinter 3500 Tensioner Part Number: 5174768AA

    $254.15 MSRP: $385.00
    You Save: $130.85 (34%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Guide - Chain; Engine Timing Chain Tensioner; Engine Timing Chain Kit; Timing Belt Kit; Tensioner Chain
    • Replaces: 5080104AA, 5080102AB, 5080102AA, 5080106AA, 5080103AA, 5080109AA
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2002-2006 Dodge Sprinter 3500 | Base | 2.7L L5, 5 Cyl 2.7 L DIESEL
  • Dodge Sprinter 3500 Timing Chain Guide - 68013907AA

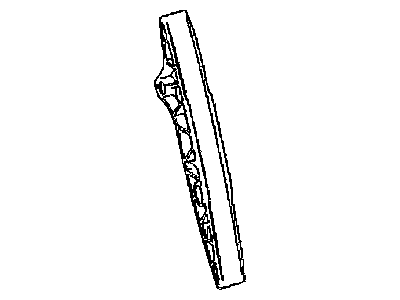

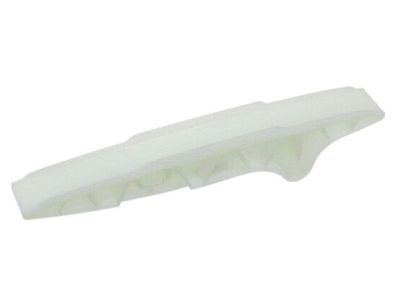

    Dodge Sprinter 3500 Timing Chain Guide - 68013907AA
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 68013907AA
    View related parts

    Dodge Sprinter 3500 Chain Guide Part Number: 68013907AA

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide; Guides, Timing Chain; Timing Chain Guide; Guide Timing Chain
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2007-2008 Dodge Sprinter 3500 | Base | 6 Cyl 3.5 L GAS
  • Dodge Sprinter 3500 Timing Chain Guide - 68013906AA

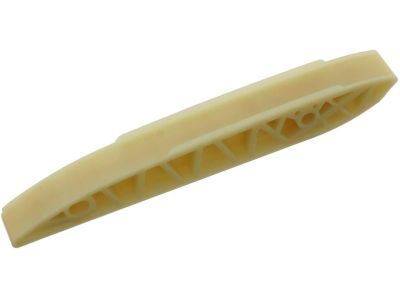

    Dodge Sprinter 3500 Timing Chain Guide - 68013906AA

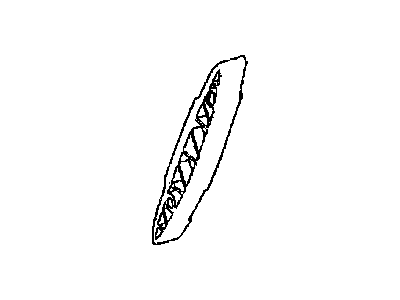

    Dodge Sprinter 3500 Timing Chain Guide Diagram - 68013906AA
    View related parts

    Dodge Sprinter 3500 Chain Guide Part Number: 68013906AA

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide; Guides, Timing Chain; Timing Chain Guide; Guide Timing Chain
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2007-2008 Dodge Sprinter 3500 | Base | 6 Cyl 3.5 L GAS
  • Dodge Sprinter 3500 Timing Chain Guide - 68013902AA

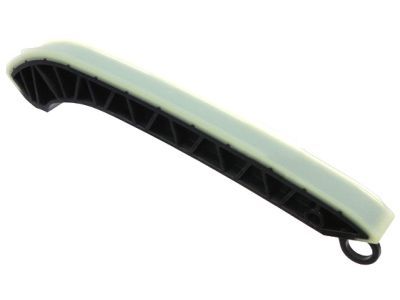

    Dodge Sprinter 3500 Timing Chain Guide - 68013902AA

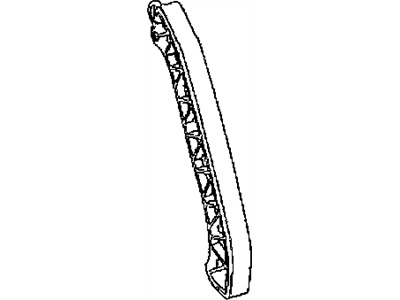

    Dodge Sprinter 3500 Timing Chain Guide Diagram - 68013902AA
    View related parts

    Dodge Sprinter 3500 Tensioner Part Number: 68013902AA

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Tensioner; Guides, Timing Chain; Timing Belt Kit; Guide Timing Chain
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2007-2008 Dodge Sprinter 3500 | Base | 6 Cyl 3.5 L GAS
  • Dodge Sprinter 3500 Timing Chain Guide - 5080100AA

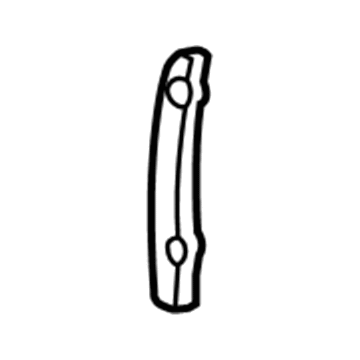

    Dodge Sprinter 3500 Timing Chain Guide Diagram - 5080100AA
    View related parts

    Dodge Sprinter 3500 Chain Guide, Lower Part Number: 5080100AA

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide, Lower; Timing Chain Guide; Guide Timing Chain; Engine Timing Chain Guide
    • Position: Lower
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2003-2006 Dodge Sprinter 3500 | Base | 5 Cyl 2.7 L DIESEL
  • Dodge Sprinter 3500 Timing Chain Guide - 5080101AA
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 5080101AA
    View related parts

    Dodge Sprinter 3500 Chain Guide, Upper Part Number: 5080101AA

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide, Upper; Timing Chain Guide; Guide Timing Chain; Engine Timing Chain Guide
    • Position: Upper
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2003-2006 Dodge Sprinter 3500 | Base | 5 Cyl 2.7 L DIESEL

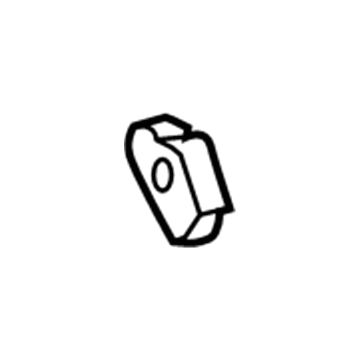

  • Dodge Sprinter 3500 Timing Chain Guide - 68028691AB
    Dodge Sprinter 3500 Timing Chain Guide Diagram - 68028691AB
    View related parts

    Dodge Sprinter 3500 Chain Guide Part Number: 68028691AB

    Product Specifications
    • Other Name: Guide - Timing Chain; Engine Timing Chain Guide; Engine Timing Chain Guide Set; Timing Chain Guide
    • Replaces: 5175511AA, 68028691AA
    • Warranty: This genuine part is guaranteed by Mopar's factory warranty.
    Fits the following Vehicles:
    • 2007-2009 Dodge Sprinter 3500 | Base | 3.0L V6, 6 Cyl 3.0 L DIESEL

Dodge Sprinter 3500 Timing Chain Guide

Choose OEM Timing Chain Guide that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Timing Chain Guide follows strict manufacturing steps to lock in quality and fit. If your Dodge Sprinter 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sprinter 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Dodge Sprinter 3500 Timing Chain Guide is one of the highly sort out parts that speak a lot about the Dodge Sprinter 3500 cars' reliability and performance. This Timing Chain Guide secures the position of the timing chain to guarantee that it is under the right tension to avoid an excessive vibration, also for the proper running of an engine. The Timing Chain Guide of these vehicle models from Dodge Sprinter 3500 manufactured from 2003 to 2009 is suitable for different models and can also help in improving the overall performance and safety of the automobile, that is, the overall lifespan of the automotive part in question. Dodge Sprinter 3500's were bullishly built, with a 2.7 L I5 for the early models and the later ones came with a 3.0-liter turbodiesel V6 thus ideal for business use. The Timing Chain Guide is significant in decision of the performance of the engine; this part ensures that the timing chain is in order and in harmonized teamwork with the silencer. This not only enhances the rate of fuel economy which is about twenty five miles per gallon but also aids in achieving a towing capacity of 5000 lbs. Dodge Sprinter 3500 Timing Chain Guide enjoys its demand in the automotive market because its design covers different configurations of the 3500 Sprinter while keeping each car in its optimal working conditions. This Dodge Sprinter 3500 Timing Chain Guide has earned its place for being one of the most durable and efficient parts of the Dodge Sprinter 3500 series.

Dodge Sprinter 3500 Timing Chain Guide Parts and Q&A

  • Dodge Sprinter 3500 Timing Chain Guide - 68013902AA Tensioner Tensioner
    68013902AA
    Q: What is the Proper Way to Service Timing Chain Guides on Dodge Sprinter 3500?
    A:
    Service both the upper and lower timing chain guides in sets of two. The first step should be to disconnect the negative Battery Cable. You need to remove the cylinder head covers on the left and right and then the timing chain cover after that. Once the chain is back in place, take out the Timing Chain Tensioner (3). Take out the lower bolt from the right side of the camshaft drive gear, then turn the engine back to Top Dead Center and examine the marks on the balance shaft, camshaft gear and crankshaft gear. Take out the last two right camshaft drive gear retaining bolts and cut the right camshaft drive gear chain from the camshaft, then remove the gear from the engine. Make sure the chain is fastened so it has some slack at each timing chain guide and stays on the crankshaft gear. Eliminate a short shaft from the tubing, 25 mm (1 inch) in length, so that the inner diameter of the shaft is bigger than the guide pin's outer diameter. Set the tube over the guide pin in the timing chain and push a bolt through the pin in the cylinder head on the right. Then tighten the bolt until you take out the guide pin. Unfasten the bolt of the upper timing chain and pull the left cylinder's upper timing chain guide out as well. After that, take out the bolt for the right upper timing chain and the upper timing chain guide in the right cylinder head.
  • Dodge Sprinter 3500 Timing Chain Guide - 68013904AA Chain Guide Chain Guide
    68013904AA
    Q: How to Remove and Replace a Timing Chain Guide on Dodge Sprinter 3500?
    A:
    Timing Chain guides should be put back in the same number, so replace them in matching pairs. Disconnect the negative terminal on the battery first, then remove the covers over both cylinder heads and finally the timing chain cover. After that, detach the Timing Chain Tensioner and turn the engine to take out the right camshaft drive gear lower bolt. Move the engine to top dead center again and check the alignment marks at the balance shaft, camshaft gear and crankshaft gear. After that, unbolt and remove the remaining right camshaft drive gear retaining bolts, separate the right camshaft drive gear and chain from the camshaft and remove the right camshaft drive gear. Lock the chain tightly to allow a little space between the timing chain guides and the crankshaft gear. Get a 25 mm (1 inch) piece of tubing that is larger on the inside than the outer diameter of the timing chain guide pin. Put the tube on the timing chain guide pin and thread a bolt into the hole near the right cylinder head, fasten it until the guide pin is taken out. Unbolt the chain guide for both upper timing chains from the left and right cylinder heads, then pull the guides out from the heads and remove the bolts.
