How to install a Battery Tray on Jeep Liberty?

You need to start with cleaning and examining the battery tray before setting it in place (1). After that, place the battery tray (1) onto the weld studs at the front edge of the left front wheelhouse inner panel. To install the battery tray (1), first tighten the nuts (2) onto the weld studs, until they reach a torque of 7 Nm (65 in. lbs.). Following securing the tray, fit the PDC onto the battery tray and lay the battery onto the tray.

How to remove a battery tray on Jeep Liberty?

You should begin by disconnecting and isolating the battery's negative cable when preparing to take out the battery tray. After that, take out the battery. Gasoline engine vehicles need the purge solenoid vacuum hose and electrical connector to be disconnected. Using a suitable flat bladed instrument, detach the mounting clip and lift the solenoid from the battery tray, then open the Totally Integrated Power Module cover. After removing the TIPM positive cable retaining nut, take the cable off from the mounting stud. Depress the four clips on the blades with your tool to release and remove the TIPM housing from its bracket mounting tabs. Remove all seven wire harnesses from the opening beneath the TIPM and bring the TIPM to a safe location outside the vehicle. Remove the TIPM bracket retaining screws and gently slide the bracket toward the rear so that the tabs come loose, then take out the bracket from the battery tray. Next, with the three left inner fender nuts out, raise the battery tray out of the engine compartment and take the tray from your car.

OEM Jeep Liberty Battery Tray

Battery Box

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Battery Trays found

View related parts

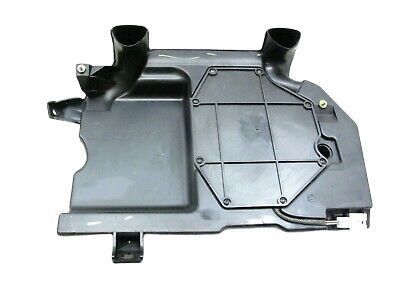

Jeep Liberty Battery Tray Part Number: 55360654AB
$46.84 MSRP: $59.38
You Save: $12.54 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Battery; Vehicle Battery; Support Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Jeep Liberty | Limited, Sport | 4 Cyl 2.8 L DIESEL
View related parts

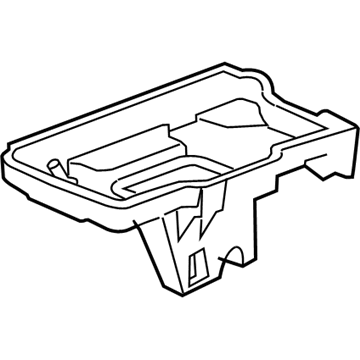

Jeep Liberty Battery Tray Part Number: 55360874AD
$87.11 MSRP: $146.00
You Save: $58.89 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tray - Battery; Tray Battery
- Replaces: 55360874AC, 55360874AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2012 Jeep Liberty | Jet, Limited, Renegade, Sport | 3.7L V6, 6 Cyl 3.7 L GAS
View related parts
Jeep Liberty Battery Tray Part Number: 55360084AD
$38.27 MSRP: $50.25
You Save: $11.98 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Support - Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002 Jeep Liberty | Limited, Renegade, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.7 L GAS
View related parts

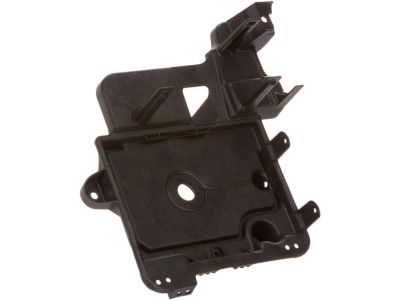

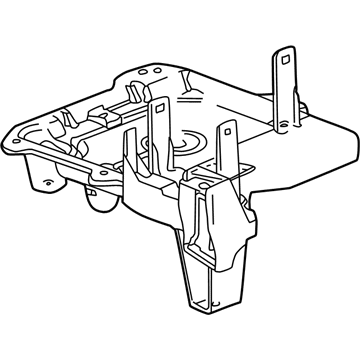

Jeep Liberty Battery Tray Part Number: 55360639AA
Product Specifications
- Other Name: Support - Battery Tray; Vehicle Battery; Support Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2005 Jeep Liberty | Limited, Renegade, Rocky Mountain Edition, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.7 L GAS
View related parts

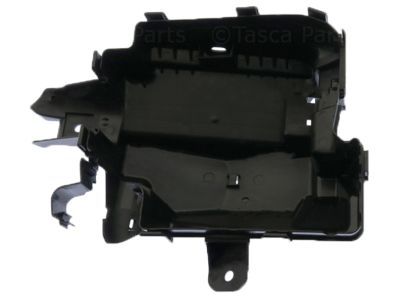

Jeep Liberty Battery Tray Part Number: 55360639AB
Product Specifications
- Other Name: Support - Battery; Support Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2007 Jeep Liberty | 65th Anniversary Edition, Limited, Renegade, Sport | 6 Cyl 3.7 L GAS
View related parts
Jeep Liberty Battery Tray Part Number: 55360654AA
Product Specifications
- Other Name: Support - Battery; Vehicle Battery; Support Battery
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005 Jeep Liberty | Limited, Sport | 4 Cyl 2.8 L DIESEL

Jeep Liberty Battery Tray

Choose OEM Battery Tray that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Battery Tray follows strict manufacturing steps to lock in quality and fit. If your Jeep Liberty matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Liberty parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Battery Tray is absolutely essential and captures the essence of the Jeep Liberty undergoing production from 2002 to 2012. Used for fixing the battery securely in the car, the Battery Tray safeguards it from shock vibrations to enhance performance on different roads. This stability is very important to sustain the battery's health and ensures efficiency and safety of the jeep liberty. Designed to be used with both generations of the Liberty, the Battery Tray contributes to the improvement of the car's performance by offering a stable base for the battery upgrade kit. Significantly, the Battery Tray is designed to cope with the sometimes aggressive conditions during off-road driving or other tough climate conditions and regular driving. It also strongly built and accurately fitted to the battery thus making it long lasting and this results to little chances of failure while at the same time it make the driving experience to be more enjoyable. Furthermore, similar to the Jeep Liberty, the Battery Tray establishment reflects the Jeep's strength and reliability among Jeep lovers and oblivious zombies. Since the Battery Tray is a structural component that holds the battery and is a major part of the Liberty's operation, it is indeed a critical component for any Liberty owner, fulfilling a functional and safety-oriented role.

Jeep Liberty Battery Tray Parts and Q&A

Battery Tray
55360639AB
Q: How to install a Battery Tray on Jeep Liberty?
A:
You need to start with cleaning and examining the battery tray before setting it in place (1). After that, place the battery tray (1) onto the weld studs at the front edge of the left front wheelhouse inner panel. To install the battery tray (1), first tighten the nuts (2) onto the weld studs, until they reach a torque of 7 Nm (65 in. lbs.). Following securing the tray, fit the PDC onto the battery tray and lay the battery onto the tray.
Battery Tray
55360874AD
Q: How to remove a battery tray on Jeep Liberty?
A:
You should begin by disconnecting and isolating the battery's negative cable when preparing to take out the battery tray. After that, take out the battery. Gasoline engine vehicles need the purge solenoid vacuum hose and electrical connector to be disconnected. Using a suitable flat bladed instrument, detach the mounting clip and lift the solenoid from the battery tray, then open the Totally Integrated Power Module cover. After removing the TIPM positive cable retaining nut, take the cable off from the mounting stud. Depress the four clips on the blades with your tool to release and remove the TIPM housing from its bracket mounting tabs. Remove all seven wire harnesses from the opening beneath the TIPM and bring the TIPM to a safe location outside the vehicle. Remove the TIPM bracket retaining screws and gently slide the bracket toward the rear so that the tabs come loose, then take out the bracket from the battery tray. Next, with the three left inner fender nuts out, raise the battery tray out of the engine compartment and take the tray from your car.
