How to Safely Remove and Repair a Blend Door Actuator on Jeep Liberty?

Before you start working on the Air Door Actuator/Motor, disconnect the negative battery cable, wait two minutes for the capacitor to empty and then disable the air bag system on cars that have them. Pull out the instrument panel from the vehicle to start. After that, take out the vacuum line harness connector from the recirculation door actuator. Undo the latch keeping the recirculation door actuator (2) attached to the top of the housing (3) and disconnect the actuator. Disconnect the recirculation door actuator from the recirculation door lever (4) and take out the actuator from the vehicle.

How to Install a Blend Door Actuator on Jeep Liberty?

Place the blend door actuator on the driver-side mounting bracket in the air distribution housing, so that the actuator's shaft fits into the linkage and if the splines need to be aligned, slightly turn the actuator. Attach the blend door actuator to the actuator mounting bracket by screwing them in with two screws and tightening them gently to reach 1.2 Nm (10 in lbs.). Attach the harness of the connector to the blend door actuator. Should your vehicle support a silencer, it should go below the driver's side of the instrument panel. Attach the negative battery cable again and access the Actuator Calibration function in a scan tool.

OEM Jeep Liberty Blend Door Actuator

Air Blend Door Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Blend Door Actuators found

View related parts
Jeep Liberty Actuator Part Number: 68004016AA
$122.36 MSRP: $182.00
You Save: $59.64 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator - A/C And Heater; HVAC Air Inlet Door Actuator; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Actuator A/C And Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2012 Jeep Liberty | Jet, Limited, Renegade, Sport | 6 Cyl 3.7 L GAS
View related parts
Jeep Liberty Actuator Part Number: 5066519AA
$123.53 MSRP: $185.00
You Save: $61.47 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator - A/C And Heater; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Actuator A/C And Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2005 Jeep Liberty | Limited, Renegade, Rocky Mountain Edition, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.7 L GAS
View related parts

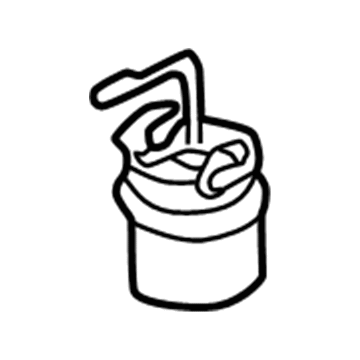

Jeep Liberty Actuator Part Number: 5066510AA
$101.11 MSRP: $128.18
You Save: $27.07 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator - A/C And Heater; HVAC Defrost Mode Door Actuator; HVAC Heater Blend Door Actuator; HVAC Blend Door Actuator; Actuator A/C And Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2007 Jeep Liberty | 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.7 L GAS
View related parts
Jeep Liberty Actuator Part Number: 5174382AA
Product Specifications
- Other Name: Actuator - A/C And Heater; HVAC Blend Door Actuator; HVAC Heater Blend Door Actuator; Actuator A/C And Heater
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2007 Jeep Liberty | 65th Anniversary Edition, Limited, Renegade, Sport | 4 Cyl 2.8 L DIESEL, 6 Cyl 3.7 L GAS
View related parts
Jeep Liberty Floor Duct Part Number: 5066518AA
Product Specifications
- Other Name: Actuator - A/C And Heater; HVAC Air Inlet Door Actuator; HVAC Heater Blend Door Actuator; Actuator; A/C and Heater Floor and Defrost Door.
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2007 Jeep Liberty | 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition, Sport | 4 Cyl 2.4 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.7 L GAS

Jeep Liberty Blend Door Actuator

Choose OEM Blend Door Actuator that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Blend Door Actuator follows strict manufacturing steps to lock in quality and fit. If your Jeep Liberty matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Liberty parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Jeep Liberty Blend Door Actuator Parts and Q&A

Actuator
5066510AA
Q: How to Safely Remove and Repair a Blend Door Actuator on Jeep Liberty?
A:
Before you start working on the Air Door Actuator/Motor, disconnect the negative Battery Cable, wait two minutes for the capacitor to empty and then disable the air bag system on cars that have them. Pull out the instrument panel from the vehicle to start. After that, take out the vacuum line harness connector from the recirculation door actuator. Undo the latch keeping the recirculation door actuator (2) attached to the top of the housing (3) and disconnect the actuator. Disconnect the recirculation door actuator from the recirculation door lever (4) and take out the actuator from the vehicle.
Actuator
68004016AA
Q: How to Install a Blend Door Actuator on Jeep Liberty?
A:
Place the blend door actuator on the driver-side mounting bracket in the air distribution housing, so that the actuator's shaft fits into the linkage and if the splines need to be aligned, slightly turn the actuator. Attach the blend door actuator to the actuator mounting bracket by screwing them in with two screws and tightening them gently to reach 1.2 Nm (10 in lbs.). Attach the harness of the connector to the blend door actuator. Should your vehicle support a silencer, it should go below the driver's side of the instrument panel. Attach the negative Battery Cable again and access the Actuator Calibration function in a scan tool.
