How to Safely Remove a Deployed Air Bag on 2009 Chrysler PT Cruiser?

If you want to remove a deployed seat air bag, the seat back and all its damaged components must be changed. Always change a nondeployed seat air bag only when it is defective or has been found to be faulty. Start by pushing the front seat all the way forward and lift the hood. After taking out the battery negative cable, wait two minutes for the air bag system reserve capacitor to drain so that the air bags do not deploy accidentally. After that, take the front seat out of your vehicle. Release the seat back trim cover J-strap from the front, rear and air bag side of the seat back by taking off the back panel. Take the yellow locking tab down to open the connector, then push on the side tabs and pull the connector straight out of the module. Take out the nuts and the bracket that secure the seat air bag. Lift the upper air bag area of the seat back trim and pull it away from the seat frame so that removing the air bag doesn't cause any damage to either the trim cover or the cushion. Unhook the seat air bag studs from the nylon sleeve and gently take out the air bag to avoid any tears in the sleeve or this could affect the air bag's function.

OEM 2009 Chrysler PT Cruiser Air Bag

Air Bag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Bags found

View related parts
2009 Chrysler PT Cruiser Side Air Bag, Front Part Number: 4645986AC
$132.56 MSRP: $196.00
You Save: $63.44 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Airbag - Seat; Seat Air Bag, Front; Air Bag Seat
- Position: Front
- Replaces: 4645986AB
- Item Weight: 3.20 Pounds
- Item Dimensions: 14.2 x 5.6 x 5.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 4645986AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Chrysler PT Cruiser Submodels:
- Base, Classic, Couture Edition, LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
2009 Chrysler PT Cruiser Driver Inflator Module, Beige/Taupe, Driver Side Part Number: ZE64DK5AF
$405.33 MSRP: $590.00
You Save: $184.67 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Airbag - Driver; Steering Wheel Air Bag; Driver Air Bag; Air Bag Driver
- Position: Driver Side
- Replaces: ZE64DK5AE
- Item Weight: 2.40 Pounds
- Item Dimensions: 13.0 x 8.5 x 5.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: ZE64DK5AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Chrysler PT Cruiser Submodels:
- Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts

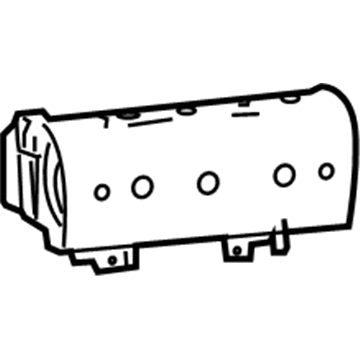

2009 Chrysler PT Cruiser Passenger Air Bag, Upper Passenger Side Part Number: 52029311AD
$569.07 MSRP: $829.00
You Save: $259.93 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Airbagg - Passenger; Instrument Panel Air Bag, Upper; Passenger Inflator Module; Air Bag Passenger
- Position: Upper Passenger Side
- Replaces: 52029311AC, 52029311AB
- Item Weight: 7.60 Pounds
- Item Dimensions: 19.4 x 11.6 x 7.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 52029311AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Chrysler PT Cruiser Submodels:
- Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
2009 Chrysler PT Cruiser Driver Inflator Module, Gray, Driver Side Part Number: ZE64XDHAF
$1036.23 MSRP: $1515.00
You Save: $478.77 (32%)
ADD TO CART
Product Specifications
- Other Name: Airbag - Driver; Steering Wheel Air Bag; Driver Air Bag; Air Bag Driver
- Position: Driver Side
- Replaces: ZE64XDHAE
- Item Weight: 3.70 Pounds
- Item Dimensions: 18.7 x 10.5 x 7.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: ZE64XDHAF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Chrysler PT Cruiser Submodels:
- Base, Classic, Couture Edition, GT, LX, Limited, Touring | 4 Cyl 2.4 L GAS
View related parts
2009 Chrysler PT Cruiser Control Module, Front Part Number: 4645986AA
Product Specifications
- Other Name: Airbag - Seat; Seat Heater Control Module, Front; Seat Heater Control Module; Seat Air Bag, Front; Side Impact Inflator Module; Side Air Bag; Module; Air Bag Seat
- Position: Front
- Replaces: 5175666AA, 52029313AA, 52029312AA
- Item Weight: 2.40 Pounds
- Item Dimensions: 14.5 x 5.8 x 5.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 4645986AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Chrysler PT Cruiser Submodels:
- Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS

2009 Chrysler PT Cruiser Air Bag Parts and Q&A

Q: How to Safely Remove a Deployed Air Bag on 2009 Chrysler PT Cruiser?
A: If you want to remove a deployed seat air bag, the seat back and all its damaged components must be changed. Always change a nondeployed seat air bag only when it is defective or has been found to be faulty. Start by pushing the front seat all the way forward and lift the hood. After taking out the battery negative cable, wait two minutes for the air bag system reserve capacitor to drain so that the air bags do not deploy accidentally. After that, take the front seat out of your vehicle. Release the seat back trim cover J-strap from the front, rear and air bag side of the seat back by taking off the back panel. Take the yellow locking tab down to open the connector, then push on the side tabs and pull the connector straight out of the module. Take out the nuts and the bracket that secure the seat air bag. Lift the upper air bag area of the seat back trim and pull it away from the seat frame so that removing the air bag doesn't cause any damage to either the trim cover or the cushion. Unhook the seat air bag studs from the nylon sleeve and gently take out the air bag to avoid any tears in the sleeve or this could affect the air bag's function.
