How to Remove and Replace the ABS Control Module on 2009 Dodge Dakota?

Be sure the Anti-Lock Brake Module (ABM) is completely separate from the Hydraulic Control Unit (HCU) by at least 1.5 in. before you remove and replace the Electronic Brake Control Module to avoid damaging the pressure sensor or Pump Motor and the need to replace the HCU. ToString make sure the equipment remains safe, do not touch the HCU sensor terminals or the contact pads on the ABM. MoTorbook will handle moving from the ABR to ABM. Simply update the new module with the type of rear axle and the tire revolutions per mile, with axle information in the Differential and Driveline section and tire information in the Maintenance/Wheels and Tires/Tires/Specifications section. Programming the ABM should be done using the Appropriate Diagnostic Service Information. Fix the module onto the HCU, drive in the screws and tighten them to 6 Nm with a screwdriver, followed by hooking up the pump's electrical connector. After that, plug in the scan tool and perform the ABS Verification Test to set up the ABM.

OEM 2009 Dodge Dakota ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 ABS Control Modules found

View related parts

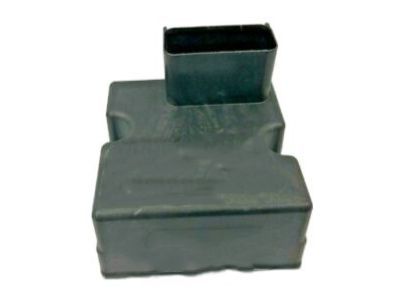

2009 Dodge Dakota Control Module Part Number: 52010411AQ
Product Specifications
- Other Name: Module - Anti-Lock Brake; ABS Hydraulic Assembly; ABS Control Module; Modulator; Control Unit Anti-Lock Brake
- Item Weight: 2.20 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 52010411AQ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2009 Dodge Dakota Submodels:
- Big Horn, Laramie, Lone Star, SLT, ST, SXT, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX
View related parts
2009 Dodge Dakota Control Module Part Number: 68048346AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Hydraulic Control Unit; Module Anti-Lock Brake System
- Item Weight: 1.40 Pounds
- Item Dimensions: 8.5 x 6.2 x 3.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68048346AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Dakota Submodels:
- Big Horn, Laramie, Lone Star, ST, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX
View related parts
2009 Dodge Dakota Control Module Part Number: 68029173AA
Product Specifications
- Other Name: Module - Anti-Lock Brake System; ABS Control Module; Hydraulic Control Unit; Module Anti-Lock Brake System; Module Anti-Lock Brakes
- Item Weight: 1.00 Pounds
- Item Dimensions: 8.5 x 6.6 x 3.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 68029173AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2009 Dodge Dakota Submodels:
- Big Horn, Laramie, Lone Star, SLT, ST, SXT, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX
View related parts
2009 Dodge Dakota Control Module Part Number: 52010404AU
Product Specifications
- Other Name: Module - Anti-Lock Brake; ABS Hydraulic Assembly; ABS Control Module; Modulator; Control Unit Anti-Lock Brake
- Item Weight: 5.00 Pounds
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 52010404AU
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following 2009 Dodge Dakota Submodels:
- Big Horn, Laramie, Lone Star, ST, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX

2009 Dodge Dakota ABS Control Module Parts and Q&A

Q: How to Remove and Replace the ABS Control Module on 2009 Dodge Dakota?
A: Be sure the Anti-Lock Brake Module (ABM) is completely separate from the Hydraulic Control Unit (HCU) by at least 1.5 in. before you remove and replace the Electronic Brake Control Module to avoid damaging the pressure sensor or Pump Motor and the need to replace the HCU. ToString make sure the equipment remains safe, do not touch the HCU sensor terminals or the contact pads on the ABM. MoTorbook will handle moving from the ABR to ABM. Simply update the new module with the type of rear axle and the tire revolutions per mile, with axle information in the Differential and Driveline section and tire information in the Maintenance/Wheels and Tires/Tires/Specifications section. Programming the ABM should be done using the Appropriate Diagnostic Service Information. Fix the module onto the HCU, drive in the screws and tighten them to 6 Nm with a screwdriver, followed by hooking up the pump's electrical connector. After that, plug in the scan tool and perform the ABS Verification Test to set up the ABM.
