How to Prepare for Brake Drum Installation on Chrysler Sebring?

First, check the brake lining for any signs of wear, make sure they are aligned properly and remove contamination if found. Handle the problem by repair or replacement as needed. If rust or something other than the usual is found on the hub, drum or wheel mating parts, wipe them with a wet wire brush before putting them together. Take care to remove all buildup around the outer braking area of the drum. Measure the worn brake shoes to determine and set their distance from the drum with a brake shoe gauge. Insert the brake drum (4) onto the wheel mounting studs that are part of the hub and bearing (5). Assemble the wheel and tire, placing the tire on the suspension and then tighten the wheel mounting nuts (3) to 135 Nm (100 ft. lbs.). Lower your car onto the ground and drive it to a road, stopping a couple of times forward and backward, while the automatic-adjuster controls the braking pressure.

How to Properly Measure and Repair a Brake Drum on Chrysler Town & Country?

To start servicing the brake drum, measure the rear brake diameter and runout with reliable tools, confirming that the drum diameter is constant (does not vary by more than 0.090 mm or 0.004 inch) and the runout is not larger than 0.15 mm or 0.006 inch. Should either of the measurements go beyond the limits, the drum must be refaced. For best outcomes, cut no more than 0.13 mm (0.005 inch) off your drums each time. After the braking surface is clean, cut it 0.0254 mm (0.001 inch) more to get a good drum surface, on the condition that the resurfacing equipment is accurate enough. Any cuts must be for deep score removal; the drum face may be reduced by no more than a total of 1.52 mm (0.060 inch). The maximum diameter for each drum is displayed as Maximum Diameter 251.55 mm (9.90 inch) which allows for 0.76 mm (0.030 inch) more wear after 1.52 mm (0.060 inch) has been refaced.

OEM Chrysler Brake Drum

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Brake Drums found

View related parts

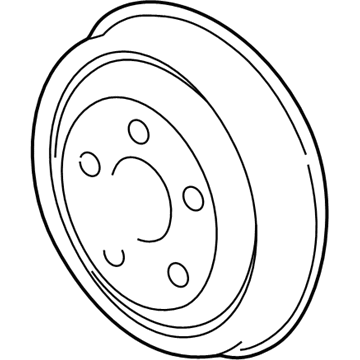

Chrysler Drum, Rear Part Number: 5273209AA
$112.55 MSRP: $235.00
You Save: $122.45 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake; Brake Drum
- Position: Rear
Fits the following Chrysler Models:
- PT Cruiser | 2004-2009 | Base, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts

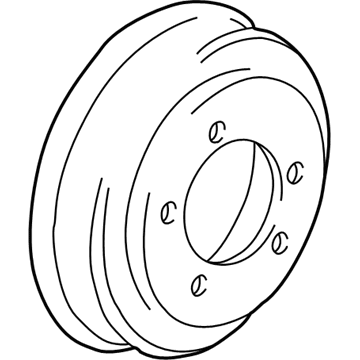

Chrysler Drum, Black, Rear Part Number: 4877433AG
$154.63 MSRP: $325.00
You Save: $170.37 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake
- Position: Rear
- Replaces: 5019407AA, 4877263AD, 4877433AF, 4877263AF, 4877263AG
Fits the following Chrysler Models:
- Grand Voyager | 2000 | Base, SE | 3.0L V6, 3.3L V6, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
- Town & Country | 1996-2007 | Base, EL, EX, LX, LXi, Limited, SX, Touring | 3.3L V6, 3.5L V6, 3.8L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2000-2003 | Base, Ec, LX, SE | 2.4L L4, 3.0L V6, 3.3L V6, 3.8L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View More
View related parts
Chrysler Brake Drum, Rear Part Number: 5105617AC
$118.83 MSRP: $166.00
You Save: $47.17 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum
- Position: Rear
- Replaces: 5105617AB, 68032618AA
Fits the following Chrysler Models:
- Sebring | 2007-2009 | Base, LX, Limited, Touring | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
View related parts
Chrysler Hub & Drum Part Number: 4423370
$216.78 MSRP: $283.42
You Save: $66.64 (24%)
ADD TO CART
Product Specifications
- Other Name: Hub; Drum; Hub And Drum Assembly, Rear Wheel Brake
Fits the following Chrysler Models:
- Town & Country | 1991-1995 | Base | 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Drum Part Number: 4877262
$95.84 MSRP: $121.49
You Save: $25.65 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub; Brake Drum; Hub And Drum Assembly; Drum Brake
Fits the following Chrysler Models:
- Grand Voyager | 2000 | Base, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
- Town & Country | 1996-2000 | Base, LX, LXi, Limited, SX | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2000 | Base, SE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View More
View related parts
Chrysler Hub & Drum Part Number: 4313760
Product Specifications
- Other Name: Hub; Wheel Hub Repair Kit; Brake Drum; Wheel Hub; Drum; Rear Wheel Brake, 9X2.5", Standard W/14" Wheels; Hub And Drum Assembly, Standard (Bkc)
Fits the following Chrysler Models:
- Town & Country | 1990-1995 | Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts

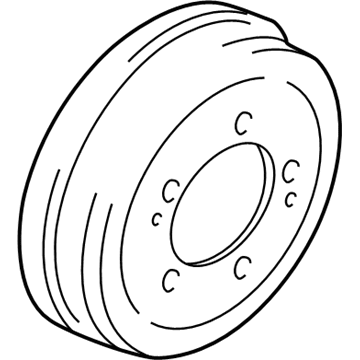

Chrysler Drum, Rear Part Number: MB895659
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum, Rear Brake (9'); Drum Brake
- Position: Rear
Fits the following Chrysler Models:
- Sebring | 2001-2005, 1995-1999 | Base, LX, LXi, Limited | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts

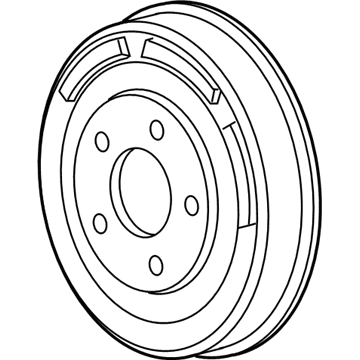

Chrysler Drum, Rear Part Number: 4779286AA
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake; Brake Drum
- Position: Rear
Fits the following Chrysler Models:
- Sebring | 2003-2006 | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Drum Part Number: 4616236
Product Specifications
- Other Name: Brake Drum; Drum, Rear Brake; Drum Brake
Fits the following Chrysler Models:
- Concorde | 1993-1997 | Base, LX, LXi | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
- LHS | 1994-1997 | Base | 6 Cyl 3.5 L GAS
- New Yorker | 1994-1996 | Base | 6 Cyl 3.5 L GAS
View More
View related parts
Chrysler Drum, Rear Part Number: 4509676
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Assembly, Rear Wheel Brake; Drum Brake; Brake Drum
- Position: Rear
Fits the following Chrysler Models:
- PT Cruiser | 2005, 2001-2003 | Base, Dream, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
- Sebring | 1996-2000 | JX, JXi | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chrysler Drum Part Number: 4423371
Product Specifications
- Other Name: Brake Drum; Hub And Drum Assembly, Rear Wheel Brake
Fits the following Chrysler Models:
- Town & Country | 1991-1995 | Base | 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Hub & Drum Part Number: 4383117
Product Specifications
- Other Name: Hub - Rear Wheel Brake (Assembly Purchased); Wheel Hub Repair Kit; Brake Drum; Wheel Hub; Hub; Drum; Rear Wheel Brake, 9X2.5", Standard W/14" Wheels
Fits the following Chrysler Models:
- Town & Country | 1990-1995 | Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Drum Part Number: 4695732AB
Product Specifications
- Other Name: Drum - Brake
Fits the following Chrysler Models:
- Cirrus | 1995-2000 | LX, LXi | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS

Chrysler Brake Drum

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler Brake Drum for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler Brake Drum Parts and Q&A

Brake Drum, Rear
5105617AC
Q: How to Prepare for Brake Drum Installation on Chrysler Sebring?
A:
First, check the brake lining for any signs of wear, make sure they are aligned properly and remove contamination if found. Handle the problem by repair or replacement as needed. If rust or something other than the usual is found on the hub, drum or wheel mating parts, wipe them with a wet wire brush before putting them together. Take care to remove all buildup around the outer braking area of the drum. Measure the worn brake shoes to determine and set their distance from the drum with a brake shoe gauge. Insert the brake drum (4) onto the wheel mounting studs that are part of the hub and bearing (5). Assemble the wheel and tire, placing the tire on the suspension and then tighten the wheel mounting nuts (3) to 135 Nm (100 ft. lbs.). Lower your car onto the ground and drive it to a road, stopping a couple of times forward and backward, while the automatic-adjuster controls the braking pressure.
Drum, Black, Rear
4877433AG
Q: How to Properly Measure and Repair a Brake Drum on Chrysler Town & Country?
A:
To start servicing the brake drum, measure the rear brake diameter and runout with reliable tools, confirming that the drum diameter is constant (does not vary by more than 0.090 mm or 0.004 inch) and the runout is not larger than 0.15 mm or 0.006 inch. Should either of the measurements go beyond the limits, the drum must be refaced. For best outcomes, cut no more than 0.13 mm (0.005 inch) off your drums each time. After the braking surface is clean, cut it 0.0254 mm (0.001 inch) more to get a good drum surface, on the condition that the resurfacing equipment is accurate enough. Any cuts must be for deep score removal; the drum face may be reduced by no more than a total of 1.52 mm (0.060 inch). The maximum diameter for each drum is displayed as Maximum Diameter 251.55 mm (9.90 inch) which allows for 0.76 mm (0.030 inch) more wear after 1.52 mm (0.060 inch) has been refaced.
