How to remove and replace the fuel pump module from the fuel tank on Chrysler PT Cruiser?

Relieve the system fuel pressure, then remove the fuel tank. Disconnect the fuel supply hose and the electrical connector from the fuel pump module by squeezing the two locking tabs together to detach the hose and pulling out the locking tab to unlock the electrical connector. Before removing the fuel pump module, make an alignment mark on top of the fuel tank, right underneath the fuel outlet pipe to ensure correct realignment during installation. Unscrew the fuel pump module locknut using large water pump pliers or a hammer and brass drift, taking care not to use a steel drift to avoid sparks. Carefully withdraw the fuel pump module from the fuel tank, ensuring not to bend or damage the float level arm or the fuel pump filter. If replacing the fuel pump or the fuel level sending unit, separate the two components. While the pump is removed, inspect the pump filter for clogs or damage; if dirty, wash it in clean solvent, and if still clogged, replace it. Installation is the reverse of removal, ensuring the fuel pump module locknut is tightened securely.

How to check Fuel Pressure Regulator and Fuel Pump on Chrysler Cirrus?

These vehicles use a 'returnless' fuel system in which the fuel pressure regulator is mounted within the fuel pump assembly which is installed in the fuel tank. Fuel pump operates when the engine is cranking or running only if the PCM receives ignition reference pulse from electronic ignition system; otherwise, the pump turns off after about second. To check fuel pressure a fuel pressure gauge and adapter set is necessary given the fact that V6 engines do not come equipped with a fuel pressure test port, thus, an adapter has to be fitted in between the fuel supply line and the fuel rail. If you find that fuel delivery seems to be low, you should start by checking all fuel hoses and hoses for signs of leakage, And if you turn the ignition to the 'On' position, you should hear a 'whirring' noise at the fuel filler neck. If no sound is produced, one ought to examine the fuses affecting the pump, the pump itself, the relay and such circuits. Complete the fuel pressure relief procedure, connect the gauge to the test port on 4-cyl, engines or use the special adapter on 6-cyl. intake manifolds they are fast and easy. Lower pressure should be noted when the engine is started and key turn is off, kinks or restrictions in the fuel lines should be checked, fuel pressure regulator should be replaced if required and the fuel filter also. If no fuel pressure is reading, check the fuel pump and the relays. You can know this because to check for the leaks, one has to add pressure in the system and when one puts off the fuel injectors, if it loses pressure, then there is a leakage at the set injectors. If the pressure does not change, fuel pressure regulator could have to be replaced. Following the test, release fuel pressure and reconnection all the fittings. If the fuel pump does not operate then inspect the fuel pump relay to ensure that it gets the proper voltage of the battery. ASD and fuel pump relays will have to be checked to see if they are functioning correctly and this can be done by using a voltmeter to check for the presence of battery voltage on several terminals and using an ohm meter to test for resistance and continuity. If there are areas that went wrong, make the necessary swap of the parts that did not work as planned.

OEM Chrysler Fuel Pump

Gas Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

77 Fuel Pumps found

View related parts
Chrysler Fuel Pump Part Number: 68367539AA
$361.34 MSRP: $548.00
You Save: $186.66 (35%)
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump Assembly; Fuel Sending Unit.; Fuel Pump/Level Unit Kit: Fuel Pump Module, Sending Unit, O-Ring.
Fits the following Chrysler Models:
- 300 | 2018-2019 | C, Limited, S, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS
View related parts

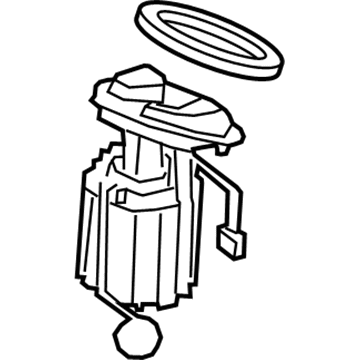

Chrysler Module - Fuel Pump/Level Unit Part Number: 68643777AB
$403.04 MSRP: $587.00
You Save: $183.96 (32%)
ADD TO CART
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
Fits the following Chrysler Models:
- 300 | 2020-2023 | C, Limited, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS
View related parts
Chrysler Fuel Pump Part Number: 68109894AE
$453.05 MSRP: $684.00
You Save: $230.95 (34%)
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Electric Fuel Pump; Fuel Pump Module Assembly; Fuel Sending Unit; Fuel Pump Module; Module Fuel Pump/Level Unit
- Replaces: 68109894AB, 68109894AC, 68109894AD
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Chrysler Module Kit - Fuel Pump/Level Unit Part Number: 68656921AA
$460.09 MSRP: $649.00
You Save: $188.91 (30%)
ADD TO CART
Product Specifications
- Other Name: FUEL PUMP/LEVEL UNIT
- Replaces: 68217192AB, 68217192AA, 68217192AD, 68217192AE, 68217192AC
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Chrysler Module - Fuel Pump/Level Unit Part Number: 68166589AD
$668.53 MSRP: $1015.00
You Save: $346.47 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
- Replaced by: 68166589AE
- Replaces: 68166589AC, 68166589AA, 68166589AB
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

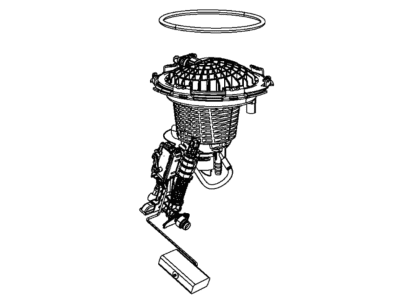

Chrysler Module - Pickup / Level Unit Part Number: 68494735AB
$236.80 MSRP: $348.00
You Save: $111.20 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MODULE-PICKUP / LEVEL UNIT
Fits the following Chrysler Models:
- 300 | 2020-2023 | C, Limited, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Fuel Pump Part Number: 5161377AI
$314.93 MSRP: $480.00
You Save: $165.07 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Electric Fuel Pump and Sender Assembly; Strainer Set; Fuel Module Assembly.; Fuel Pump Assembly
- Replaces: 5161377AF, 5161377AA, 5161377AB, 5161377AE, 5161377AH, 5161377AC, 5161377AD, 5161377AG, RL161377AE
Fits the following Chrysler Models:
- PT Cruiser | 2005-2010 | Base, Classic, Couture Edition, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

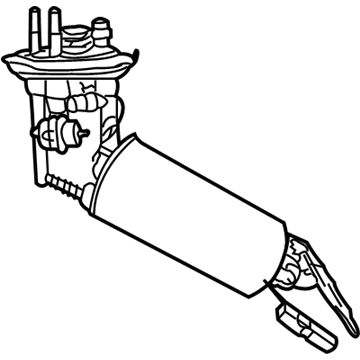

Chrysler Fuel Pump Assembly Part Number: 5101830AC
$334.82 MSRP: $511.00
You Save: $176.18 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Electric Fuel Pump; Fuel Pump Module Assembly; Fuel Pump
- Replaces: 5018875AB, 5101830AB, 5101830AA, RL101830AB, RL101830AC
Fits the following Chrysler Models:
- Town & Country | 2001-2003 | Base, EL, EX, LX, LXi, Limited | 3.3L V6, 6 Cyl 3.3 L FLEX
- Voyager | 2001-2003 | Base, LX | 3.3L V6, 6 Cyl 3.3 L FLEX
View related parts
Chrysler Fuel Pump Part Number: MR508283
$304.69 MSRP: $386.24
You Save: $81.55 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Ki Fuel Pump/Level; Fuel Pump and Sender Assembly; Fuel Pump Assembly; Pump Fuel
Fits the following Chrysler Models:
- Sebring | 2001-2002 | LX, LXi | 6 Cyl 3.0 L GAS
View related parts
Chrysler Fuel Pump, Passenger Side Part Number: 5101805AE
$352.50 MSRP: $538.00
You Save: $185.50 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Electric Fuel Pump, Right; Fuel Module Assembly; Fuel Level Sensor.; Fuel Gauge Sending Unit; Fuel Pump Assembly; Module Kit Fuel Pump/Level Unit
- Position: Passenger Side
- Replaces: 5101805AD
Fits the following Chrysler Models:
- Pacifica | 2007-2008 | Base, LX, Limited, Touring | 3.8L V6, 4.0L V6, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Fuel Pump Part Number: 4797885
$154.63 MSRP: $196.02
You Save: $41.39 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Package - Fuel
Fits the following Chrysler Models:
- Town & Country | 1990 | Base | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
View related parts

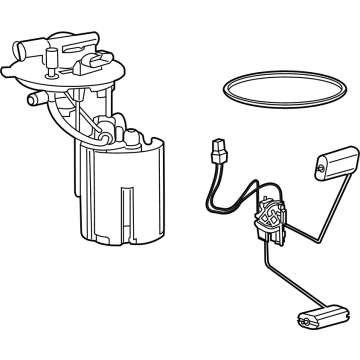

Chrysler Fuel Gauge Sending Unit Part Number: 52029953AA
$360.68 MSRP: $531.00
You Save: $170.32 (33%)
ADD TO CART
Product Specifications
- Other Name: Package Part - Fuel Pump/Level Unit; Fuel Pump and Sender Assembly; Fuel Pump; Fuel Pump Assembly
Fits the following Chrysler Models:
- Pacifica | 2021-2025 | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Select, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
- Voyager | 2021-2025 | L, LX, LXi | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

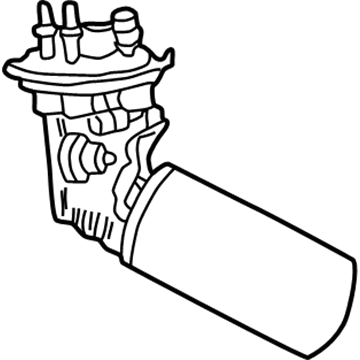

Chrysler Fuel Pump Part Number: RL086650AC
$338.72 MSRP: $516.00
You Save: $177.28 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Kit - Fuel Pump/Level Unit; Electric Fuel Pump Assembly; Fuel Sending Unit.
- Replaces: 5086650AC
Fits the following Chrysler Models:
- PT Cruiser | 2003-2004 | GT | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Fuel Pump Part Number: 68030923AE
$565.76 MSRP: $859.00
You Save: $293.24 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Package - Fuel Pump/Level Unit; Fuel Sender Assembly; Fuel Pump Module; Fuel Level Sensor.; Fuel Pump Assembly; Level Indicator; Seat Back Pad
- Replaced by: 68030923AF
- Replaces: 68030923AD, 68030923AB, 68030923AC, 68030923AA
Fits the following Chrysler Models:
- Town & Country | 2008-2013 | LX, Limited, S, Touring, Touring L, Touring Plus, Walter P. Chrysler Signature Series | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Module Kit Level Unit Part Number: 68319397AA
$48.38 MSRP: $71.90
You Save: $23.52 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Level Unit
Fits the following Chrysler Models:
- Pacifica | 2021-2025, 2017-2018 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus, Touring Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
- Voyager | 2021-2025 | L, LX, LXi | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Fuel Pump Part Number: 68551013AA
$387.01 MSRP: $564.00
You Save: $176.99 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Fuel Pump and Sender Assembly; Fuel Pump and Strainer Set; Fuel Sending Unit; Fuel Pump Assembly
- Replaced by: 68551013AB
- Replaces: 68319395AA, 68319395AB
Fits the following Chrysler Models:
- Pacifica | 2017-2025 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Module - Fuel Pump/Level Unit Part Number: 68103913AF
$424.80 MSRP: $619.00
You Save: $194.20 (32%)
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
Fits the following Chrysler Models:
- 300 | 2012-2016 | SRT8, SRT8 Core | 6.4L V8, 8 Cyl 6.4 L GAS
View related parts
Chrysler Fuel Gauge Sending Unit, Driver Side Part Number: 68217193AE
$167.68 MSRP: $252.00
You Save: $84.32 (34%)
Product Specifications
- Other Name: Module - Level Unit; Fuel Sender/Hanger; Tank Sending (Left); Transfer Unit; Level Sensor; Pump; Level Indicator; Gauge Unit
- Position: Driver Side
- Replaces: 68217193AA, 68217193AC, 68217193AB, 68217193AD
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Chrysler Fuel Pump, Driver Side Part Number: 68028056AB
$424.80 MSRP: $624.00
You Save: $199.20 (32%)
Product Specifications
- Other Name: Module - Fuel Pump/Level Unit; Electric Fuel Pump, Left; Fuel Sending Unit; Assembly.
- Position: Driver Side
- Replaces: 68028056AA, 5101803AB, 5101803AD, 5101803AC
Fits the following Chrysler Models:
- Pacifica | 2004-2006 | Base, Limited, Touring | 3.5L V6, 3.8L V6, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Module - Fuel Pump/Level Unit Part Number: 68027988AE
$422.51 MSRP: $615.00
You Save: $192.49 (32%)
Product Specifications
- Other Name: MODULE-FUEL PUMP/LEVEL UNIT
Fits the following Chrysler Models:
- Aspen | 2008-2009 | Limited | 4.7L V8, 5.7L V8, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS

| Page 1 of 4 |Next >

1-20 of 77 Results

Chrysler Fuel Pump

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler Fuel Pump for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler Fuel Pump forces gasoline fast into the tank in order to provide power immediately. The cars come with a solid feel, ride all the way, and instill confidence in their drivers. Since 1925, Chrysler has been building cars that combine Floating Power engine mounts that keep vibration down to a level that soothes the wallet, with Airflow shapes that slice the wind and roomy cabins that beckon the family. Fair prices have kept ownership happy and the buying process less stressful. Over decades, Chrysler continued to perfect interior space, road comfort, and daily practicality to ensure that trips to the store, long vacations, and city commutes remain stress-free as clever design creations create stretch-out room, long-lasting materials shake off wear, and easy-to-read gauges make decision-making easy to discern. Slow, steady improvement is better than short-lived gimmicks when the real drivers require the reassurance they impose. The Fuel Pump inside the tank is an electrical motor spinning to give constant pressure, after which it forces a clean stream onwards as injectors spray accurately in support of quick starts, stable idle, and sharp throttle response regardless of whether the thermometer is indicating freezing dawn or gridlock heat afternoon. Some carburetor setups in older Chrysler vehicles are still powered by a mechanical Fuel Pump as its camshaft-driven diaphragm lifts up to 130 gallons per hour to keep the classic engines fed during steep climbs and runs, and whose simple design allows the owner to troubleshoot the voltage or flow without the use of tools. For working installs, an electric Fuel Pump upgrade provides flow and pressure that are electronically controlled, preventing vapor lock in extreme conditions that meet crash shutoff requirements and comparable real-time needs like ensuring fuel economy at all levels and providing horsepower when the pedal is released.

Chrysler Fuel Pump Parts and Q&A

Fuel Pump
5161377AI
Q: How to remove and replace the fuel pump module from the fuel tank on Chrysler PT Cruiser?
A:
Relieve the system fuel pressure, then remove the fuel tank. Disconnect the fuel supply hose and the electrical connector from the fuel pump module by squeezing the two locking tabs together to detach the hose and pulling out the locking tab to unlock the electrical connector. Before removing the fuel pump module, make an alignment mark on top of the fuel tank, right underneath the fuel outlet pipe to ensure correct realignment during installation. Unscrew the fuel pump module locknut using large water pump pliers or a hammer and brass drift, taking care not to use a steel drift to avoid sparks. Carefully withdraw the fuel pump module from the fuel tank, ensuring not to bend or damage the float level arm or the fuel pump filter. If replacing the fuel pump or the fuel level sending unit, separate the two components. While the pump is removed, inspect the pump filter for clogs or damage; if dirty, wash it in clean solvent, and if still clogged, replace it. Installation is the reverse of removal, ensuring the fuel pump module locknut is tightened securely.
Fuel Pump
4897420AB
Q: How to check Fuel Pressure Regulator and Fuel Pump on Chrysler Cirrus?
A:
These vehicles use a 'returnless' fuel system in which the fuel pressure regulator is mounted within the fuel pump assembly which is installed in the fuel tank. Fuel pump operates when the engine is cranking or running only if the PCM receives ignition reference pulse from electronic ignition system; otherwise, the pump turns off after about second. To check fuel pressure a fuel pressure gauge and adapter set is necessary given the fact that V6 engines do not come equipped with a fuel pressure test port, thus, an adapter has to be fitted in between the fuel supply line and the fuel rail. If you find that fuel delivery seems to be low, you should start by checking all fuel hoses and hoses for signs of leakage, And if you turn the ignition to the 'On' position, you should hear a 'whirring' noise at the fuel filler neck. If no sound is produced, one ought to examine the fuses affecting the pump, the pump itself, the relay and such circuits. Complete the fuel pressure relief procedure, connect the gauge to the test port on 4-cyl, engines or use the special adapter on 6-cyl. intake manifolds they are fast and easy. Lower pressure should be noted when the engine is started and key turn is off, kinks or restrictions in the fuel lines should be checked, fuel pressure regulator should be replaced if required and the fuel filter also. If no fuel pressure is reading, check the fuel pump and the relays. You can know this because to check for the leaks, one has to add pressure in the system and when one puts off the fuel injectors, if it loses pressure, then there is a leakage at the set injectors. If the pressure does not change, fuel pressure regulator could have to be replaced. Following the test, release fuel pressure and reconnection all the fittings. If the fuel pump does not operate then inspect the fuel pump relay to ensure that it gets the proper voltage of the battery. ASD and fuel pump relays will have to be checked to see if they are functioning correctly and this can be done by using a voltmeter to check for the presence of battery voltage on several terminals and using an ohm meter to test for resistance and continuity. If there are areas that went wrong, make the necessary swap of the parts that did not work as planned.
