How to Install a Speed Sensor for Your Transmission on Chrysler Pacifica?

First, confirm that the o-ring 2 is put in the proper spot during installation. After that, fit and tighten the output speed sensor 1 to have a torque of 27 Nm (20 ft. lbs.). After you fasten the sensor, join the speed sensor cable and at last, reconnect the battery negative cable.

How to Remove and Service a Wheel Speed Sensor on Chrysler Pacifica?

The first step in servicing and repairing the wheel speed sensor is to remove the front brake rotor. Remove the wire harness (1) from the connector that goes to the wheel speed sensor (2). Sound the wheel speed sensor connector (2) from the frame rail outer reinforcement and then open and remove the cable from the routing clip (3). After that, take out screw (2) which holds the wheel speed sensor routing bracket (3) to the strut assembly (1). Release the routing clip at the knuckle and take the wheel speed sensor cable out (3) or disconnect the clip from the knuckle. Before removing anything, clean the site around the sensor to keep oil and dirt away from your bearings. Lastly, remove screw (1) that fastens the speed sensor head (4) to the hub and bearing (2) and remove the wheel speed sensor from the hub and bearing.

OEM Chrysler Pacifica Speed Sensor

Speed Control Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Speed Sensors found

View related parts

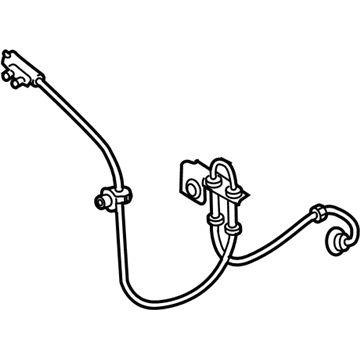

Chrysler Pacifica ABS Sensor, Rear Passenger Side Part Number: 68020487AC
$12.48 MSRP: $191.00
You Save: $178.52 (94%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit - Anti-Lock Brakes; ABS Wheel Speed Sensor, Front Left, Front Right, Rear Left, Rear Right; Front Speed Sensor
- Position: Rear Passenger Side
- Replaces: 4721014AA, 68020487AA, 68020487AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, LX, Limited, Touring | 3.8L V6, 4.0L V6, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts

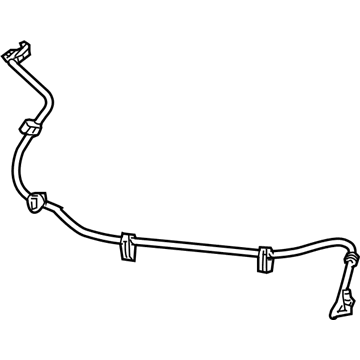

Chrysler Pacifica ABS Sensor, Rear Passenger Side Part Number: 5166545AB
$52.60 MSRP: $102.00
You Save: $49.40 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Rear Left, Rear Right; ABS Wheel Speed Sensor; Rear Speed Sensor
- Position: Rear Passenger Side
- Replaces: 5103087AA, 5166545AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chrysler Pacifica | Base, Limited, Touring | 3.5L V6, 3.8L V6, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Pacifica ABS Sensor, Front Part Number: 68515603AB
$57.87 MSRP: $86.80
You Save: $28.93 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Front
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2025 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica ABS Sensor, Rear Passenger Side Part Number: 68020488AB
$149.36 MSRP: $224.00
You Save: $74.64 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Front Left, Front Right, Rear Left, Rear Right
- Position: Rear Passenger Side
- Replaces: 4721015AA, 68020488AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chrysler Pacifica | Base, Limited, Touring | 3.8L V6, 4.0L V6, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Pacifica Rear Speed Sensor Part Number: 68312418AD
$56.87 MSRP: $85.25
You Save: $28.38 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Rear; ABS Sensor; Sensor Kit Anti-Lock Brakes
- Position: Rear
- Replaces: 68312418AC, 68312418AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chrysler Pacifica | Hybrid Limited, Hybrid Platinum, Hybrid Premium, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica ABS Sensor, Front Part Number: 68312281AE
$60.49 MSRP: $90.45
You Save: $29.96 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Front; Front Speed Sensor
- Position: Front
- Replaces: 68312281AD, 68312281AB, 68312281AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Pacifica ABS Sensor, Front Driver Side Part Number: 5166544AC
$4.40 MSRP: $5.70
You Save: $1.30 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Front Left, Front Right; ABS Wheel Speed Sensor; Front Speed Sensor
- Position: Front Driver Side
- Replaces: 5166544AA, 5166544AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chrysler Pacifica | Base, Limited, Touring | 3.5L V6, 3.8L V6, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Pacifica ABS Sensor, Rear Part Number: 68312453AD
Product Specifications
- Other Name: Sensor - Anti-Lock Brakes; ABS Wheel Speed Sensor, Rear; Rear Speed Sensor; Sensor Kit Anti-Lock Brakes Rear; Sensor Kit Anti-Lock Brakes
- Position: Rear
- Replaces: 68312453AB, 68312453AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2017-2025 Chrysler Pacifica | AWD Launch Edition, Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, L, LX, Limited, Pinnacle, Select, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)

Chrysler Pacifica Speed Sensor

Choose OEM Speed Sensor that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Speed Sensor follows strict manufacturing steps to lock in quality and fit. If your Chrysler Pacifica matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Pacifica parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Chrysler Pacifica Speed Sensor is an important unit that plays a great role of improving the credibility and functionality of Chrysler Pacifica cars. It supplies data essential to computer and modules that control systems like the engine, and the anti-lock brake and speed/ wipe system, about the vehicle's speed and each wheel's rotation rate. The Chrysler Pacifica cars go with advanced passive and active speed sensors, which have stepped up to meet the complexities of progressive functions while guaranteeing optimal performance under various speed-related conditions. The Chrysler Pacifica Speed Sensor is highly reliable and distinguished in the market for automaker due to its advanced features regarding the Signal Output Technology and it plays a significant role in making cars safer. The fact that this Speed Sensor fits a range of Pacifica models that stretch across the gasoline and a plug-in hybrid classification make this a great choice for the efficiency and performance oriented motorist. These sensors are incorporated into the vehicle to enhance the general performance of the vehicle in its operations while at the same time ensuring safety by monitoring the efficiency of the ABS. Some of the achievements it has received include the "optimal Minivan of 2016 "and the "2020 optimal Family Car" making the Chrysler Pacifica the optimal choice and its Speed Sensor is a clear indication of what Chrysler has to offer. All in all, the Chrysler Pacifica Speed Sensor is an essential component of the vehicle that plays a role of making the vehicle safer and more efficient.

Chrysler Pacifica Speed Sensor Parts and Q&A

ABS Sensor, Rear Passenger Side
68020487AC
Q: How to Install a Speed Sensor for Your Transmission on Chrysler Pacifica?
A:
First, confirm that the o-ring 2 is put in the proper spot during installation. After that, fit and tighten the output speed sensor 1 to have a torque of 27 Nm (20 ft. lbs.). After you fasten the sensor, join the speed sensor cable and at last, reconnect the battery negative cable.
ABS Sensor, Rear Passenger Side
68020488AB
Q: How to Remove and Service a Wheel Speed Sensor on Chrysler Pacifica?
A:
The first step in servicing and repairing the wheel speed sensor is to remove the front brake rotor. Remove the wire harness (1) from the connector that goes to the wheel speed sensor (2). Sound the wheel speed sensor connector (2) from the frame rail outer reinforcement and then open and remove the cable from the routing clip (3). After that, take out screw (2) which holds the wheel speed sensor routing bracket (3) to the strut assembly (1). Release the routing clip at the knuckle and take the wheel speed sensor cable out (3) or disconnect the clip from the knuckle. Before removing anything, clean the site around the sensor to keep oil and dirt away from your bearings. Lastly, remove screw (1) that fastens the speed sensor head (4) to the hub and bearing (2) and remove the wheel speed sensor from the hub and bearing.
