How to Service and Repair a Timing Belt Tensioner on Chrysler Sebring?

Don't attempt repairs on the timing belt tensioner unless you have taken out the timing belt and idler pulley first. With Special Tool 6847 to hold the camshaft sprocket, loosen and remove the bolt above the camshaft. After that, take out the cam sprockets. Following that, remove the fasteners on the rear timing belt cover and lift the cover off the engine. Separate the lower bolt connecting the timing belt tensioner assembly to the engine and take out the tensioner assembly as one item. To install the timing belt tensioner, align it with the engine and fit the lower mounting bolt, but don't make it tight. One of the M10 engine bracket bolts should be threaded completely into the tensioner's upper mounting location, no less than 5 and no more than 7 turns. Tighten the tensioner's lower mounting bolt to 61 Nm (45 ft. lbs.) and then remove the upper bolt for alignment. After that, put on the rear timing belt cover and fasteners and install the timing belt idler pulley by applying 61 Nm (46 ft. lbs.) torque on its bolt. Once done, put in the two camshaft sprockets using Special Tool 6847, tighten them to 101 Nm (75 ft. lbs.) and install the timing belt.

How to Maintain and Fix a Timing Belt Tensioner on Chrysler Sebring?

Step 1 is to remove the timing belt and the timing belt idler pulley. Support the camshaft sprocket with Special Tool 6847 when removing the bolt and after the bolt, take out both cam sprockets. Following that, undo all the rear timing belt cover fasteners and take the cover from the engine. Detach the timing belt tensioner assembly from the engine by removing the lower bolt and then uninstall the whole assembly. Place the timing belt tensioner assembly close to the engine and push in the lower bolt loosely. Set the tensioner assembly correctly by screwing in one M10 engine mounting bolt 5 to 7 turns into the tensioner's upper end. Turn the lower tensioner bolt to 61 Nm (45 ft. lbs.) and then take out the bolt at the top used for setting alignment. Set the rear timing belt cover into place and screw on the fasteners to the required values. Install the timing belt idler pulley and fasten the bolt securely using 61 Nm of turning force (45 ft. lbs.). After that, use Special Tool 6847 to install the camshaft sprockets and tighten the bolts to 85 ft. lbs. (115 Nm). Now you can install the timing belt.

OEM Chrysler Sebring Timing Belt Tensioner

Engine Timing Belt Tensioner

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Timing Belt Tensioners found

View related parts
Chrysler Sebring Belt Tensioner Part Number: 4892109AA
$145.99 MSRP: $219.00
You Save: $73.01 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tensioner - Belt; Engine Timing Belt Tensioner; Serpentine Belt Drive Kit; Timing Tensioner; Tensioner; Tensioner Belt; Timing Belt Tensioner
- Replaces: 4573347AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Limited | 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Belt Tensioner Part Number: 4781570AB
$147.11 MSRP: $221.00
You Save: $73.89 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tensioner - Belt; Engine Timing Belt Tensioner; Serpentine Drive Kit; Timing Belt Kit; Tensioner Pulley; Tensioner Pulley Bracket; Tensioner; Tensioner Belt; Timing Belt Tensioner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts

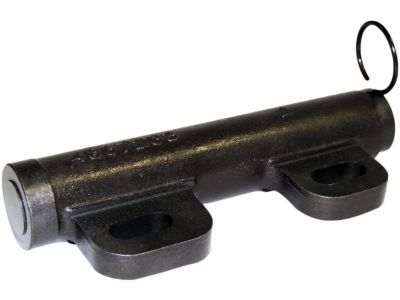

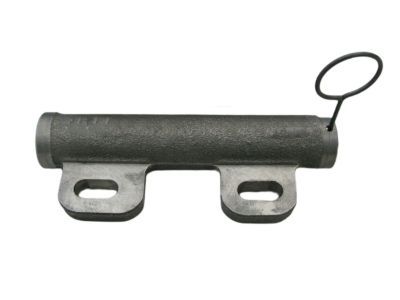

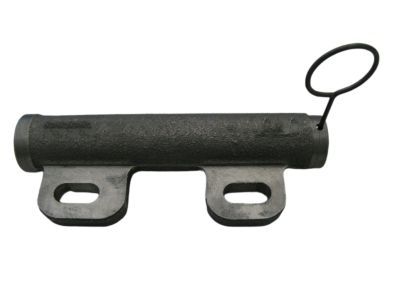

Chrysler Sebring Belt Tensioner Part Number: 4667283
$88.21 MSRP: $111.82
You Save: $23.61 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tensioner - Belt; Engine Timing Belt Tensioner Hydraulic Assembly; Timing Belt Kit; Tensioner; Tensioner, Timing Belt; Tensionor, Timing Belt; Tensioner Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chrysler Sebring | LX | 4 Cyl 2.0 L GAS
View related parts

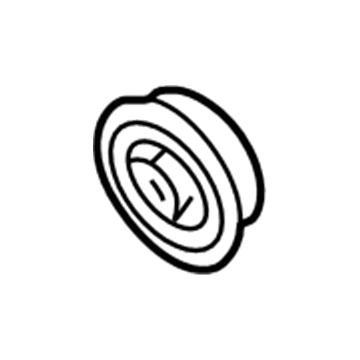

Chrysler Sebring Belt Tensioner Part Number: MD352473
$45.33 MSRP: $64.85
You Save: $19.52 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tensioner - Belt; Tension Pulley; Tensioner; Tensioner Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Belt Tensioner Part Number: 1145A070
$104.28 MSRP: $146.90
You Save: $42.62 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Guide - Timing Belt Tensioner; Engine Timing Belt Tensioner; Serpentine Belt Drive Kit; Timing Belt Kit; Tensioner
- Replaces: 1145A062, MD341830
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-2005 Chrysler Sebring | JX, JXi, LX, LXi, Limited | 3.0L V6, 6 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Belt Tensioner Part Number: 4621455
$95.14 MSRP: $120.61
You Save: $25.47 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Tensioner - Belt; Serpentine Belt Drive Kit; Timing Belt Kit; Tensioner; Tensioner, Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chrysler Sebring | JX, JXi | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Belt Tensioner Part Number: 5018399AA
Product Specifications
- Other Name: Tensioner - Belt; Timing Belt Tensioner; Timing Belt Kit; Tensioner Pulley Bracket; Tensioner
- Replaces: 4777395AC, 5016523AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-1999 Chrysler Sebring | LX | 4 Cyl 2.0 L GAS

Chrysler Sebring Timing Belt Tensioner

Choose OEM Timing Belt Tensioner that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Timing Belt Tensioner follows strict manufacturing steps to lock in quality and fit. If your Chrysler Sebring matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sebring parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Sebring Timing Belt Tensioner is an important part recognized for quality and durability, designed mostly to provide the right tension of the timing belt. This makes sure that the timing belt is always tight and hence no slippage which is very essential to the efficiency of the timing system in an engine. The Timing Belt Tensioner developed by Chrysler fits Sebring coupes, convertibles, and sedans manufactured from 1995 up to 2010. This versatility is good for the Chrysler Sebring car' overall effectiveness and safety because the belt is significant in the efficiency of the car's performance. The Timing Belt Tensioner can be ordered singularly or in multi-component packages as per use in the fans, alternators and the air conditioning systems. However, there is a certain Chrysler Sebring Timing Belt Tensioner that is influencing the market through its heavy and accurate design that ensures its durability. Moreover, the use of new kinds of materials and the integration of more elaborate design elements guarantee that the tensioner can stand the clear stress that any car's environment puts to it as well as require as little service as possible. Gaining from such features the Chrysler Sebring Timing Belt Tensioner not only boosts the performance of the car but also strengthens the safety aspect which has put the Sebring among the favorite car among drivers. In conclusion, one could also observe that the Chrysler Sebring Timing Belt Tensioner stands for quality presence and innovation of this car brand.

Chrysler Sebring Timing Belt Tensioner Parts and Q&A

Belt Tensioner
MD352473
Q: How to Service and Repair a Timing Belt Tensioner on Chrysler Sebring?
A:
Don't attempt repairs on the Timing Belt tensioner unless you have taken out the timing belt and idler pulley first. With Special Tool 6847 to hold the camshaft sprocket, loosen and remove the bolt above the camshaft. After that, take out the cam sprockets. Following that, remove the fasteners on the rear timing belt cover and lift the cover off the engine. Separate the lower bolt connecting the timing belt tensioner assembly to the engine and take out the tensioner assembly as one item. To install the timing belt tensioner, align it with the engine and fit the lower mounting bolt, but don't make it tight. One of the M10 engine bracket bolts should be threaded completely into the tensioner's upper mounting location, no less than 5 and no more than 7 turns. Tighten the tensioner's lower mounting bolt to 61 Nm (45 ft. lbs.) and then remove the upper bolt for alignment. After that, put on the rear timing belt cover and fasteners and install the Timing Belt Idler Pulley by applying 61 Nm (46 ft. lbs.) torque on its bolt. Once done, put in the two camshaft sprockets using Special Tool 6847, tighten them to 101 Nm (75 ft. lbs.) and install the timing belt.
Belt Tensioner
4781570AB
Q: How to Maintain and Fix a Timing Belt Tensioner on Chrysler Sebring?
A:
Step 1 is to remove the Timing Belt and the Timing Belt Idler Pulley. Support the camshaft sprocket with Special Tool 6847 when removing the bolt and after the bolt, take out both cam sprockets. Following that, undo all the rear timing belt cover fasteners and take the cover from the engine. Detach the timing belt tensioner assembly from the engine by removing the lower bolt and then uninstall the whole assembly. Place the timing belt tensioner assembly close to the engine and push in the lower bolt loosely. Set the tensioner assembly correctly by screwing in one M10 engine mounting bolt 5 to 7 turns into the tensioner's upper end. Turn the lower tensioner bolt to 61 Nm (45 ft. lbs.) and then take out the bolt at the top used for setting alignment. Set the rear timing belt cover into place and screw on the fasteners to the required values. Install the timing belt idler pulley and fasten the bolt securely using 61 Nm of turning force (45 ft. lbs.). After that, use Special Tool 6847 to install the camshaft sprockets and tighten the bolts to 85 ft. lbs. (115 Nm). Now you can install the timing belt.
