How to Remove a Timing Cover on Chrysler Sebring?

Lift the engine cover upward to separate the engine timing cover from the engine. After that, drain the fuel pressure and unhook the negative battery lead. Take out the coolant recovery bottle and move the power steering reservoir to its proper position. After taking the accessory drive belt and hold down hose off, remove the three bolts holding the pump in the pulley and reposition it. Remove the cylinder cover and disconnect all the ignition coils. Lift up the car, then uncover the side part of the right splash shield. Be sure the engine is at Top Dead Center (TDC) and, if your car has it, disconnect and remove the lower A/C compressor bolts and mount. Let go of the lower idler pulley for the accessory drive belt and next, the crankshaft damper. Take away the water pump's pulley and three bolts, then remove the lower bolt on the engine mount bracket from the right and the lower bolts from the timing chain's cover. Put the vehicle on lower ground and lift the engine using an appropriate jack. Release the retaining bolts for the right mount bracket, remove both the bolts and the nuts and rotate the mount bracket. First, remove the upper idler pulley, then the right upper engine mount bracket and afterwards the accessory drive belt tensioner. After that, remove the two bolts securing the cover and use a pry tool to separate the cover as it comes out from underneath the vehicle.

How to install a timing cover on Chrysler Sebring?

Before putting on the engine timing cover, clean the sealing surfaces of everything, making sure they are free from oil and grease and apply Mopar(R) engine sealant RTV (or equivalent) to the cylinder head to seal both the ladder frame and oil pan/block area and both the oil pan and engine block itself by creating a 2 mm bead. Put the timing cover beneath the car, raise it upwards and hold it in place by attaching the top bolts. Tighten the M6 retaining bolts to 9 Nm and the M8 bolts to 26 Nm. Place the tensioner in the accessory drive belt and tighten its bolt to 24 Nm and then fit the right engine mount bracket and tighten the bolts to 50 Nm. After that, fit the accessory drive belt upper idler pulley and fasten the bolt to 48 Nm and attach the engine mount adapter with the bolts and nuts, securing both to 30 Nm. With the rest of the bolts set to 50 Nm, pull out the jack and raise the vehicle off of the engine. Tighten the oil pan to timing chain cover lower retaining bolts as you should with 9 Nm. Then, install the water pump pulley with three bolts tightened to 9 Nm. Add the crankshaft damper, tighten the lower or accessory drive belt idler pulley to 48 Nm and tighten the lower A/C compressor mounting bracket bolts to 24 Nm. Fix the A/C compressor using bolts tightened to 25 Nm, next put in the right lower splash screw and lower the vehicle. Attach the cylinder head cover and the ignition coils, put the power steering pump in place and tighten the three bolts to 26 Newton-meters. Attach the power steering hose hold down, the accessory drive belt, the reservoir of the power steering pump with a tightened mounting screw of 12 Nm and use 10 Nm for the bolts of the coolant recovery reservoir. After that, add the clean air hose and air cleaner housing, hook up the negative battery cable, turn on the engine and check that it is running properly at normal temperature, inspect the oil for leaks and correct the fluid amounts and add the engine cover.

OEM Chrysler Sebring Timing Cover

Engine Timing Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

27 Timing Covers found

View related parts
Chrysler Sebring Front Cover, Upper Part Number: MD378731
$35.82 MSRP: $65.85
You Save: $30.03 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Upper; Upper Cover; Cover Timing Belt; Timing Cover
- Position: Upper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Timing Cover Part Number: MD356728
$30.51 MSRP: $48.00
You Save: $17.49 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Front Cover; Upper Timing Cover; Cover Timing Belt
- Replaces: MD340874
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chrysler Sebring | JX, JXi | 2.5L V6, 6 Cyl 2.5 L GAS
View related parts
Chrysler Sebring Timing Cover, Lower Outer Part Number: 4892138AB
$217.86 MSRP: $327.00
You Save: $109.14 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover, Outer Lower; Front Cover; Outer Timing Cover; Cover Timing Case
- Position: Lower Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Limited | 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Timing Cover, Inner Part Number: 4781593AA
$98.76 MSRP: $138.00
You Save: $39.24 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover, Inner; Front Cover; Inner Cover; Inner Timing Cover; Cover Timing Belt; Cover Timing Case
- Position: Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Front Cover, Lower Outer Part Number: 4663459
$36.49 MSRP: $46.26
You Save: $9.77 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt Outer - Lower; Outer Timing Cover; Cover, Timing Belt - Outer Lower; Cover Timing Belt
- Position: Lower Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chrysler Sebring | JX, JXi | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Timing Cover Part Number: 4648934AA
$41.75 MSRP: $52.93
You Save: $11.18 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Upper Cover; Outer Timing Cover; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Front Cover, Driver Side Part Number: MD376390
$44.84 MSRP: $56.85
You Save: $12.01 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Front; Rear Cover; Cover Timing Belt
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Timing Cover Part Number: 4884466AF
$199.41 MSRP: $296.00
You Save: $96.59 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Front Cover; Cover Timing Case
- Replaces: 4884466AB, 4884466AD, 4884895AA, 4884466AC, 4884466AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

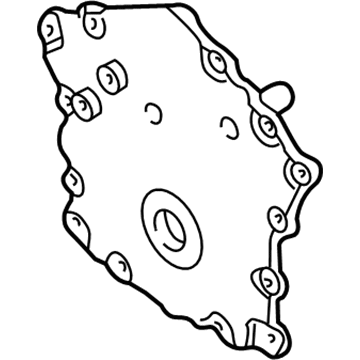

Chrysler Sebring Timing Cover Part Number: 4792604AA
$222.22 MSRP: $281.71
You Save: $59.49 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover; Front Cover; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, TSi, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Timing Cover, Upper Outer Part Number: 4892136AC
$840.29 MSRP: $1075.00
You Save: $234.71 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover, Inner, Outer Upper; Front Cover; Inner Timing Cover; Cover Timing Case
- Position: Upper Outer
- Replaces: 4892136AA, 4892136AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Limited | 3.5L V6, 6 Cyl 3.5 L GAS
View related parts
Chrysler Sebring Timing Cover, Lower Outer Part Number: 5093131AA
Product Specifications
- Other Name: Cover Package - Timing; Engine Timing Cover, Lower Outer; Lower Cover; Outer Timing Cover; Cover Package Timing
- Position: Lower Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Chrysler Sebring | GTC, LX, LXi, Limited | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Front Cover, Lower Part Number: MD363100
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Lower; Lower Cover; Cover Timing Belt
- Position: Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | Base, LX | 4 Cyl 2.4 L GAS
View related parts
Chrysler Sebring Front Cover, Lower Part Number: MD325374
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Front Lower; Lower Cover; Cover Timing Belt; Timing Cover
- Position: Front Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Sebring Timing Cover Part Number: MD303705
Product Specifications
- Other Name: Cover - Timing Belt; Front Cover; Lower Timing Cover; Cover, Timing Belt; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996-2000 Chrysler Sebring | JX, JXi | 6 Cyl 2.5 L GAS
View related parts

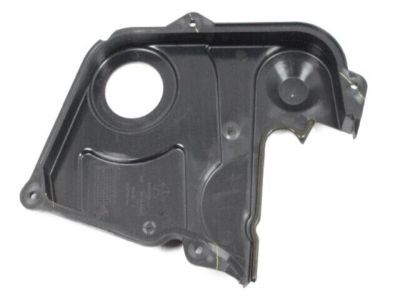

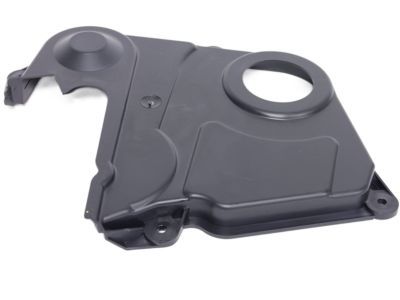

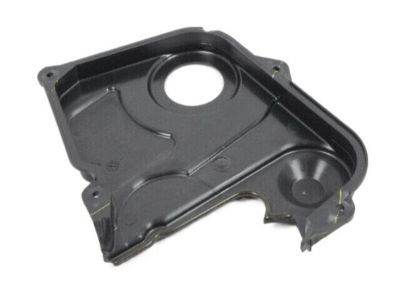

Chrysler Sebring Timing Cover Part Number: 4663459AD
Product Specifications
- Other Name: Cover - Timing Belt; Lower Cover; Outer Timing Cover; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chrysler Sebring | Base, GTC, LX, LXi, Limited, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts

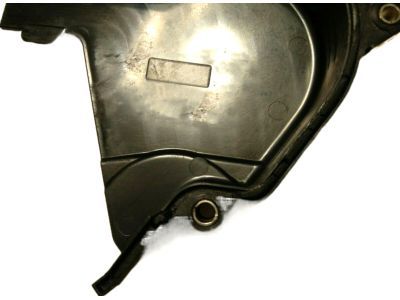

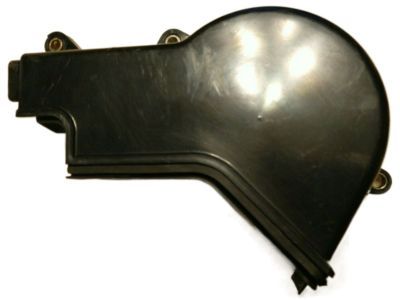

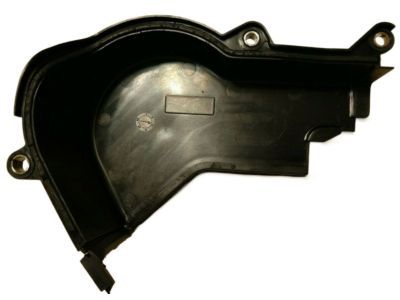

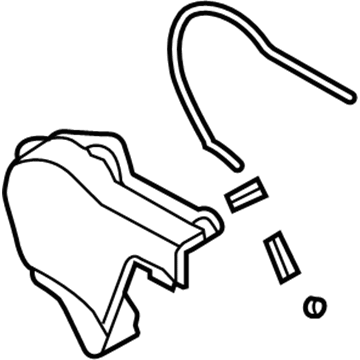

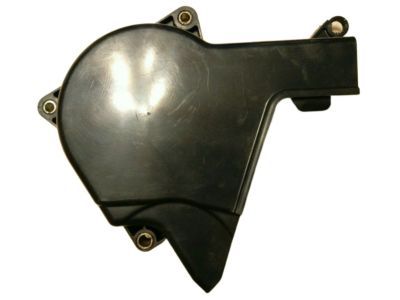

Chrysler Sebring Front Cover, Passenger Side Part Number: MD376392
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Front; Cover Timing Belt
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2005 Chrysler Sebring | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts

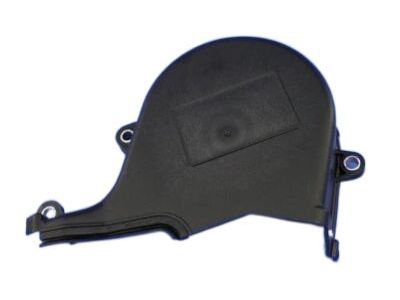

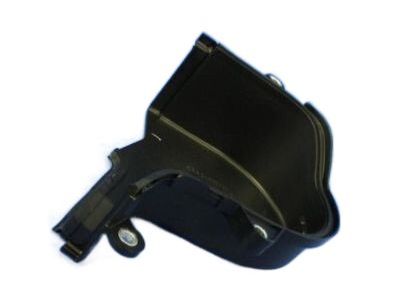

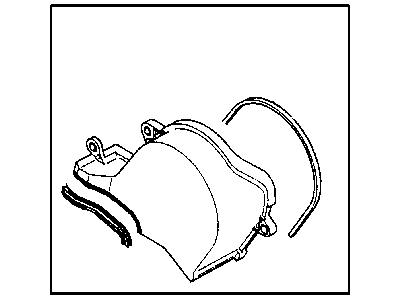

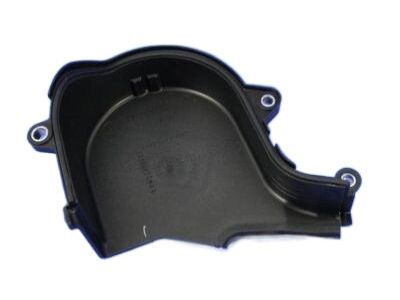

Chrysler Sebring Timing Cover Part Number: MD356729
Product Specifications
- Other Name: Cover - Timing Belt; Front Cover; Upper Timing Cover; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chrysler Sebring | JX, JXi | 6 Cyl 2.5 L GAS
View related parts

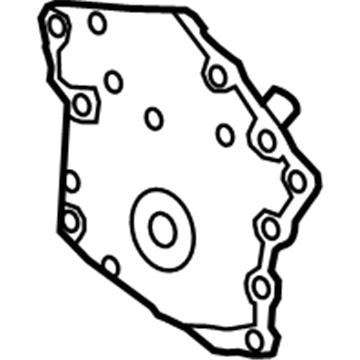

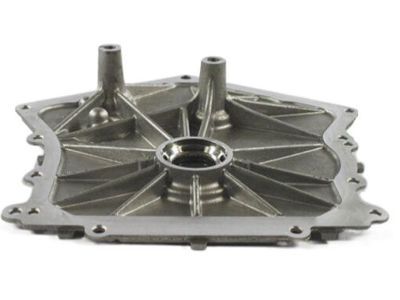

Chrysler Sebring Timing Cover Part Number: 4892056AB
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Front Cover; Cover Timing Case
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Chrysler Sebring | Base, LX, Limited, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Sebring Timing Cover Part Number: 4777522AB
$17.23 MSRP: $24.75
You Save: $7.52 (31%)
Product Specifications
- Other Name: Cover - Timing Belt; Front Cover; Inner Cover
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chrysler Sebring | LX | 4 Cyl 2.0 L GAS
View related parts

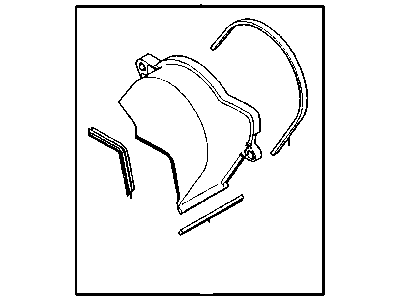

Chrysler Sebring Timing Cover Part Number: MD343876
Product Specifications
- Other Name: Cover - Timing Belt; Upper Timing Cover; Cover Timing Belt
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2000 Chrysler Sebring | LX, LXi | 6 Cyl 2.5 L GAS

| Page 1 of 2 |Next >

1-20 of 27 Results

Chrysler Sebring Timing Cover

Choose OEM Timing Cover that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Timing Cover follows strict manufacturing steps to lock in quality and fit. If your Chrysler Sebring matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Sebring parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Timing Cover of Chrysler Sebring vehicles play an important part in protecting the vehicles' engine timing mechanism that often comprises of a timing belt, timing chain or cam belt. Made of aluminum, plastic or steel, the Timmg Cover shields these parts from debris which is capable of marring the fine teeth of the parts. A majority of Chrysler Sebring Timing Covers are designed with gaskets that offer added shield to the timing belt. However, Timing Covers can develop some problems and, therefore, require immediate replacement for the safe operation of vehicles. In the course of the Chrysler Sebring production years, a number of Timing Covers and styles have been used and, although all serve to perform the necessary protective role, may vary in material or construction. Most Chrysler Sebring vehicles have experiences some issues with their Timing Cover thus requires regular maintenance and any issue fixed as soon as possible.

Chrysler Sebring Timing Cover Parts and Q&A

Timing Cover, Lower Outer
4892138AB
Q: How to Remove a Timing Cover on Chrysler Sebring?
A:
Lift the engine cover upward to separate the engine timing cover from the engine. After that, drain the fuel pressure and unhook the negative battery lead. Take out the coolant recovery bottle and move the Power Steering Reservoir to its proper position. After taking the accessory Drive Belt and hold down hose off, remove the three bolts holding the pump in the pulley and reposition it. Remove the cylinder cover and disconnect all the Ignition Coils. Lift up the car, then uncover the side part of the right splash shield. Be sure the engine is at Top Dead Center (TDC) and, if your car has it, disconnect and remove the lower A/C compressor bolts and mount. Let go of the lower idler pulley for the accessory drive belt and next, the crankshaft damper. Take away the water pump's pulley and three bolts, then remove the lower bolt on the engine mount bracket from the right and the lower bolts from the timing chain's cover. Put the vehicle on lower ground and lift the engine using an appropriate jack. Release the retaining bolts for the right mount bracket, remove both the bolts and the nuts and rotate the mount bracket. First, remove the upper idler pulley, then the right upper engine mount bracket and afterwards the accessory drive Belt Tensioner. After that, remove the two bolts securing the cover and use a pry tool to separate the cover as it comes out from underneath the vehicle.
Timing Cover
4884466AF
Q: How to install a timing cover on Chrysler Sebring?
A:
Before putting on the engine timing cover, clean the sealing surfaces of everything, making sure they are free from oil and grease and apply Mopar(R) engine sealant RTV (or equivalent) to the cylinder head to seal both the ladder frame and Oil Pan/block area and both the oil pan and engine block itself by creating a 2 mm bead. Put the timing cover beneath the car, raise it upwards and hold it in place by attaching the top bolts. Tighten the M6 retaining bolts to 9 Nm and the M8 bolts to 26 Nm. Place the tensioner in the accessory Drive Belt and tighten its bolt to 24 Nm and then fit the right engine mount bracket and tighten the bolts to 50 Nm. After that, fit the accessory drive belt upper idler pulley and fasten the bolt to 48 Nm and attach the engine mount adapter with the bolts and nuts, securing both to 30 Nm. With the rest of the bolts set to 50 Nm, pull out the jack and raise the vehicle off of the engine. Tighten the oil pan to timing chain cover lower retaining bolts as you should with 9 Nm. Then, install the water pump pulley with three bolts tightened to 9 Nm. Add the crankshaft damper, tighten the lower or accessory drive belt idler pulley to 48 Nm and tighten the lower A/C compressor mounting bracket bolts to 24 Nm. Fix the A/C compressor using bolts tightened to 25 Nm, next put in the right lower splash screw and lower the vehicle. Attach the cylinder head cover and the Ignition Coils, put the Power Steering Pump in place and tighten the three bolts to 26 Newton-meters. Attach the power steering hose hold down, the accessory drive belt, the reservoir of the power steering pump with a tightened mounting screw of 12 Nm and use 10 Nm for the bolts of the coolant recovery reservoir. After that, add the clean air hose and air cleaner housing, hook up the negative Battery Cable, turn on the engine and check that it is running properly at normal temperature, inspect the oil for leaks and correct the fluid amounts and add the engine cover.
