How to Remove and Replace an Intake Manifold for Upper on Chrysler Town & Country?

Before you lift out and replace the upper intake manifold, take off the lower cover and clean the gasket surfaces. Inspect the gasket of the manifold; if it does not have any damage, it can be used once more. Set gasket 6 in the seal channel and gently press it down, doing this for every position in the manifold. After that, place the upper manifold 4 on top of the lower manifold. Use Mopar(R) Lock AND Seal Adhesive (Medium Strength Threadlocker) on every top intake manifold bolt before installing and tightening them in the correct sequence to 105 in. lbs. The use of hand screwing is essential for attaching composite manifold elements, as overheating could damage the threads; however, an oversize repair screw is present as a substitute if the regular screws do become damaged. Secure the Manifold Absolute Pressure (MAP) sensor 1 with fasteners torqued to 1.7 Nm (15 in. lbs.), after which connect the MAP sensor's electrical connector. Link the brake booster hose to the intake manifold as you did for the injector hose. Then, install the EGR tube and check that you do not lose those special EGR mounting screws or end up stripping them if you apply pressure with the hand tools. Assemble 1 to the step 2 is to ensure the EVAP port is installed properly. Place the air cleaner and air inlet hose assembly, insert the Inlet Air Temperature (IAT) sensor's electrical connector and once you finish, attach the battery ground connector, tightening it to 5 NM (45 in. lbs.).

How Is the Upper Intake Manifold Installed on Chrysler Town & Country?

The first step in installing the upper intake manifold is to inspect and clean the places where the gaskets will seal and then place a new gasket. Should installation require it, attach the throttle body to the upper intake. After that, place the upper intake manifold and begin hand start all the attaching bolts. Begin by tightening the bolts tightly in the center, moving outward until you get 12 Nm (105 in. lbs.) of torque. Fit the brackets at the front and rear of the intake manifold and then add the oil level indicator and oil fill tube to the intake manifold bolts. Insert the EGR tube and use vacuum lines to join the Positive Crankcase Ventilation (PCV) Valve, EVAP Purge Solenoid and Power Brake Booster. Set up the alternator support bracket and match the electrical cables to the Manifold Tuning Valve (MTV), Exhaust Gas Recirculation (EGR), Throttle Position Sensor (TPS), Idle Air Control (IAC) and Manifold Absolute Pressure (MAP). Begin by installing the throttle body's ETC connector, followed by the air cleaner housing and inlet hose and finally the engine cover. Be sure to finally connect the negative battery cable as well.

OEM Chrysler Town & Country Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Intake Manifolds found

View related parts
Chrysler Town & Country Intake Manifold, Upper Part Number: 5184693AE
$381.29 MSRP: $560.00
You Save: $178.71 (32%)
ADD TO CART
Product Specifications
- Other Name: Manifold - Intake Manifold; Engine Intake Manifold, Upper; Intake Plenum; Plenum; Plenum Intake Manifold
- Position: Upper
- Replaces: 68621090AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chrysler Town & Country | 30th Anniversary Edition, LX, Limited, Limited Platinum, S, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Town & Country Intake Manifold, Lower Part Number: 5184199AF
$381.29 MSRP: $560.00
You Save: $178.71 (32%)
ADD TO CART
Product Specifications
- Other Name: Manifold - Intake; Engine Intake Manifold, Lower; Intake Plenum; Manifold Intake; Engine Intake Manifold
- Position: Lower
- Replaces: 5184199AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chrysler Town & Country | 30th Anniversary Edition, LX, Limited, Limited Platinum, S, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Town & Country Intake Manifold, Upper Part Number: 4781578AP
$282.12 MSRP: $421.00
You Save: $138.88 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Plenum - Intake Manifold; Engine Intake Manifold, Upper; Intake Plenum Gasket; Plenum Gasket; Intake Plenum; Plenum; Plenum Intake Manifold See Important Note
- Position: Upper
- Replaces: 4781578AM, 4781578AL
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chrysler Town & Country | LX, Touring, Touring Plus, Walter P. Chrysler Signature Series | 3.8L V6, 6 Cyl 3.8 L GAS
View related parts
Chrysler Town & Country Intake Plenum Part Number: 5096100AB
$128.53 MSRP: $148.00
You Save: $19.47 (14%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Plenum - Intake Manifold
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chrysler Town & Country | Base, EL, EX, LX, LXi, Limited, Touring | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts

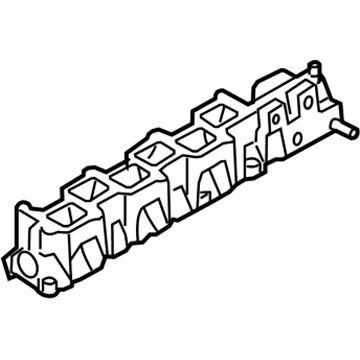

Chrysler Town & Country Intake Manifold, Lower Part Number: 4892233AA
Product Specifications
- Other Name: Manifold - Intake; Engine Intake Manifold, Lower; Manifold Intake
- Position: Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Chrysler Town & Country | Limited | 6 Cyl 4.0 L GAS
View related parts

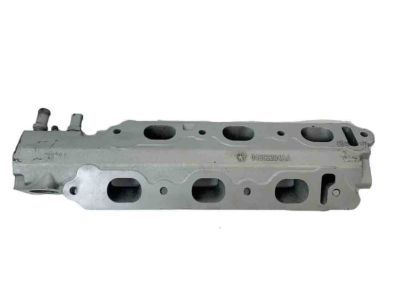

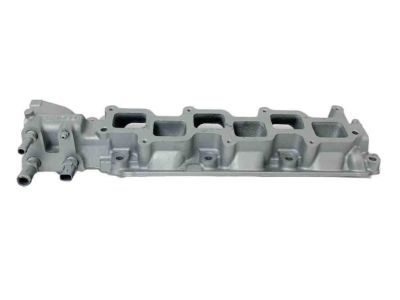

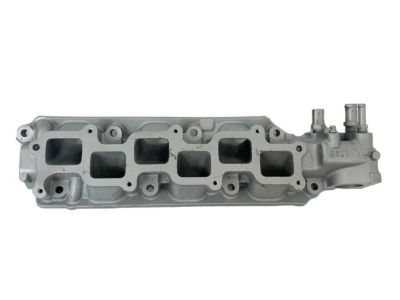

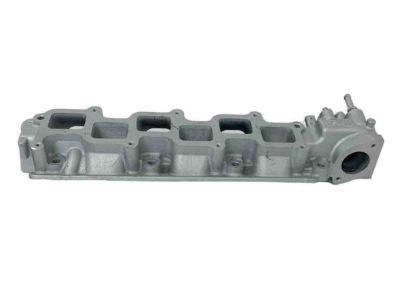

Chrysler Town & Country Intake Manifold, Lower Part Number: 4892233AB
Product Specifications
- Other Name: Manifold - Intake; Engine Intake Manifold, Lower; Manifold Intake
- Position: Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Chrysler Town & Country | Limited, Touring, Touring Plus | 6 Cyl 4.0 L GAS
View related parts

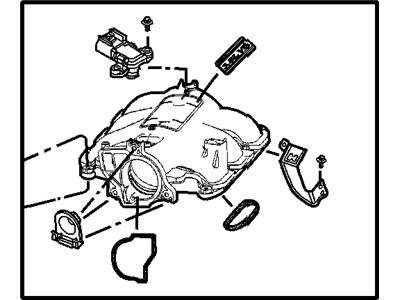

Chrysler Town & Country Intake Plenum Part Number: 4781578AG
Product Specifications
- Other Name: Plenum - Intake Manifold; Plenum; Plenum Intake Manifold See Notes; Plenum Intake Manifold
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chrysler Town & Country | Limited, Touring | 6 Cyl 3.8 L GAS
View related parts
Chrysler Town & Country Intake Manifold Part Number: 4781035AF
Product Specifications
- Other Name: Manifold - Intake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Chrysler Town & Country | LX, Touring | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts

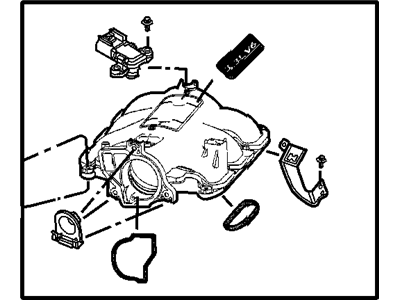

Chrysler Town & Country Intake Plenum Part Number: 4781577AF
Product Specifications
- Other Name: Plenum - Intake Manifold; Plenum Intake Manifold
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chrysler Town & Country | Base, LX, Limited, Touring | 6 Cyl 3.3 L GAS
View related parts

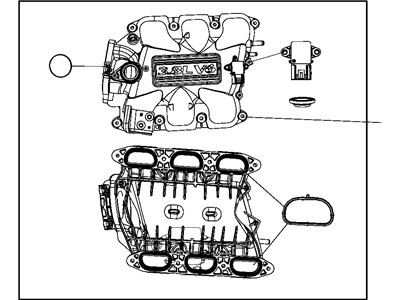

Chrysler Town & Country Intake Manifold Part Number: 4781577AM
Product Specifications
- Other Name: Manifold - Intake Manifold; Plenum Intake Manifold See Important Note
- Replaces: 4781577AL
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chrysler Town & Country | LX | 3.3L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts
Chrysler Town & Country Intake Plenum Part Number: 5083032AA
Product Specifications
- Other Name: Plenum - Intake Manifold; Plenum Intake Manifold See Notes; Plenum Intake Manifold
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Chrysler Town & Country | EL, LX, LXi | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts
Chrysler Town & Country Intake Plenum Part Number: 4781578AF
Product Specifications
- Other Name: Plenum - Intake Manifold; Plenum Intake Manifold
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005 Chrysler Town & Country | LX, Limited, Touring | 6 Cyl 3.8 L GAS
View related parts
Chrysler Town & Country Intake Plenum Part Number: 4621376
Product Specifications
- Other Name: Manifold - California Intake Plenum; Plenum; Manifold Assembly, Intake Plenum
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996 Chrysler Town & Country | Base, LX | 6 Cyl 3.3 L GAS
View related parts
Chrysler Town & Country Intake Manifold Part Number: 4648958AA
Product Specifications
- Other Name: Manifold - Intake; Manifold Intake
- Replaces: 4781035AE, 4781035AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2007 Chrysler Town & Country | Base, EL, EX, LX, LXi, Limited, Touring | 3.8L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Chrysler Town & Country Intake Manifold Part Number: 4667173
Product Specifications
- Other Name: Manifold - Intake; Manifold, Intake
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1991 Chrysler Town & Country | Base | 6 Cyl 3.3 L GAS
View related parts

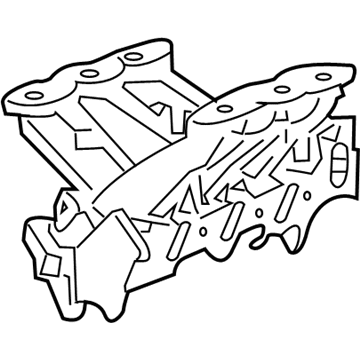

Chrysler Town & Country Intake Manifold Part Number: 4781035AQ
Product Specifications
- Other Name: Manifold - Intake; Manifold Intake
- Replaces: 4781035AM, 4781035AL, 4781035AO
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chrysler Town & Country | LX, Touring, Touring Plus, Walter P. Chrysler Signature Series | 3.3L V6, 3.8L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.8 L GAS
View related parts

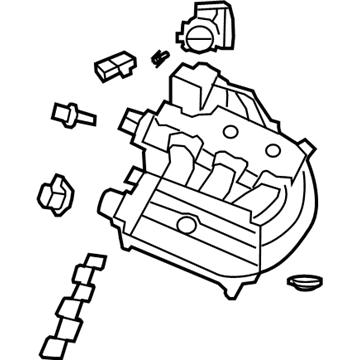

Chrysler Town & Country Intake Manifold, Upper Part Number: 4593578AD
Product Specifications
- Other Name: Plenum - Intake Manifold; Engine Intake Manifold, Upper; Intake Plenum; Plenum; Plenum Intake Manifold
- Position: Upper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chrysler Town & Country | Limited, Touring, Touring Plus | 6 Cyl 4.0 L GAS

Chrysler Town & Country Intake Manifold

Choose OEM Intake Manifold that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Intake Manifold follows strict manufacturing steps to lock in quality and fit. If your Chrysler Town & Country matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Town & Country parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler Town & Country Intake Manifold is an essential component that is responsible for the distribution of the air or air/fuel mixture to the several intake ports of cylinder heads thus influencing the engine power and performance. It works through drawing air from the throttle body or carburetor depending on the type of engine one is using. For example, carbureter and throttle body injected engine mix fuel inside the manifold area, but multiport fuel injected engines use single injectors, and most modernized models inject only air in Gasoline Direct Injection models. Chrysler Town & Country intake manifolds in the past were made of cast iron or aluminum, but new generation manufactured from lighter composite plastic material to save fuel and for heat build up. Some models uses Variable Length Intake Manifolds (VLIM) as a special type of intake manifold is variable in length depending on the load that is being exerted by the engine.

Chrysler Town & Country Intake Manifold Parts and Q&A

Intake Manifold, Upper
4781578AP
Q: How to Remove and Replace an Intake Manifold for Upper on Chrysler Town & Country?
A:
Before you lift out and replace the upper intake manifold, take off the lower cover and clean the gasket surfaces. Inspect the gasket of the manifold; if it does not have any damage, it can be used once more. Set gasket 6 in the seal channel and gently press it down, doing this for every position in the manifold. After that, place the upper manifold 4 on top of the lower manifold. Use Mopar(R) Lock AND Seal Adhesive (Medium Strength Threadlocker) on every top intake manifold bolt before installing and tightening them in the correct sequence to 105 in. lbs. The use of hand screwing is essential for attaching composite manifold elements, as overheating could damage the threads; however, an oversize repair screw is present as a substitute if the regular screws do become damaged. Secure the Manifold Absolute Pressure (MAP) sensor 1 with fasteners torqued to 1.7 Nm (15 in. lbs.), after which connect the MAP Sensor's electrical connector. Link the brake booster hose to the intake manifold as you did for the injector hose. Then, install the EGR Tube and check that you do not lose those special EGR mounting screws or end up stripping them if you apply pressure with the hand tools. Assemble 1 to the step 2 is to ensure the EVAP port is installed properly. Place the air cleaner and air inlet hose assembly, insert the Inlet Air Temperature (IAT) sensor's electrical connector and once you finish, attach the battery ground connector, tightening it to 5 NM (45 in. lbs.).
Intake Manifold, Upper
4593578AD
Q: How Is the Upper Intake Manifold Installed on Chrysler Town & Country?
A:
The first step in installing the upper intake manifold is to inspect and clean the places where the gaskets will seal and then place a new gasket. Should installation require it, attach the Throttle Body to the upper intake. After that, place the upper intake manifold and begin hand start all the attaching bolts. Begin by tightening the bolts tightly in the center, moving outward until you get 12 Nm (105 in. lbs.) of torque. Fit the brackets at the front and rear of the intake manifold and then add the oil level indicator and oil fill tube to the intake manifold bolts. Insert the EGR Tube and use vacuum lines to join the Positive Crankcase Ventilation (PCV) Valve, EVAP Purge Solenoid and Power Brake Booster. Set up the alternator support bracket and match the electrical cables to the Manifold Tuning Valve (MTV), Exhaust Gas Recirculation (EGR), Throttle Position Sensor (TPS), Idle Air Control (IAC) and Manifold Absolute Pressure (MAP). Begin by installing the throttle body's ETC connector, followed by the air cleaner housing and inlet hose and finally the engine cover. Be sure to finally connect the negative battery cable as well.
