OEM Dodge Brake Drum

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Brake Drums found

View related parts
Dodge Drum, Rear Part Number: 52013438AF
$432.64 MSRP: $569.00
You Save: $136.36 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake Rear; Drum Brake; Brake Drum
- Position: Rear
- Replaces: 52013438AE
Fits the following Dodge Models:
- Dakota | 2005-2010 | Big Horn, Laramie, Lone Star, SLT, ST, SXT, Sport, TRX, TRX4 | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Dodge Drum, Rear Part Number: 52009938AA
$146.95 MSRP: $233.00
You Save: $86.05 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Brake Drum
- Position: Rear
Fits the following Dodge Models:
- Dakota | 1991-1999 | Base, LE, R/T, S, SE, SLT, Sport, WS | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Brake Drum, Rear Part Number: 5105617AC
$118.83 MSRP: $166.00
You Save: $47.17 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum
- Position: Rear
- Replaces: 5105617AB, 68032618AA
Fits the following Dodge Models:
- Avenger | 2007-2009 | R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS
- Caliber | 2007-2012 | Express, Heat, Mainstreet, R/T, Rush, SE, SRT-4, SXT, SXT Plus, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Hub & Drum Part Number: 4423370
$216.78 MSRP: $283.42
You Save: $66.64 (24%)
ADD TO CART
Product Specifications
- Other Name: Hub; Drum; Hub And Drum Assembly, Rear Wheel Brake
Fits the following Dodge Models:
- Caravan | 1991-1995 | Base, C/V, ES, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L CNG, 6 Cyl 3.3 L GAS
- Grand Caravan | 1991-1995 | Base, ES, LE, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Dodge Drum Part Number: 4616236
Product Specifications
- Other Name: Brake Drum; Drum, Rear Brake; Drum Brake
Fits the following Dodge Models:
- Intrepid | 1993-1997 | Base, ES | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
View related parts
Dodge Drum, Rear Part Number: 52009595AE
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake; Brake Drum
- Position: Rear
Fits the following Dodge Models:
- Dakota | 2003-2004 | Base, R/T, SLT, SLT Plus, SXT, Sport, Sport Plus | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Drum, Rear Part Number: 5273983AB
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake
- Position: Rear
Fits the following Dodge Models:
- Neon | 1995-2005 | ACR, Base, ES, High Line, R/T, SE, SRT-4, SXT, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Drum Part Number: 4695732AB
Product Specifications
- Other Name: Drum - Brake
Fits the following Dodge Models:
- Stratus | 1995-2000 | Base, ES, SE | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
View related parts
Dodge Hub & Drum Part Number: 53007766
Product Specifications
- Other Name: Hub And Drum; Wheel Hub Repair Kit; Brake Drum; Wheel Hub
Fits the following Dodge Models:
- D250 | 1991-1993 | Base | 6 Cyl 3.9 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D350 | 1991-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- W250 | 1991-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- W350 | 1991-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More
View related parts
Dodge Hub & Drum Part Number: 4383117
Product Specifications
- Other Name: Hub - Rear Wheel Brake (Assembly Purchased); Wheel Hub Repair Kit; Brake Drum; Wheel Hub; Hub; Drum; Rear Wheel Brake, 9X2.5", Standard W/14" Wheels
Fits the following Dodge Models:
- Caravan | 1990-1995 | Base, C/V, ES, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L CNG, 6 Cyl 3.3 L GAS
- Grand Caravan | 1990-1995 | Base, ES, LE, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Dodge Hub & Drum, Rear Part Number: 4383429
Product Specifications
- Other Name: Hub And Drum, W/12X2.5" Brakes, W/5500 Lb. Rear Axle; Wheel Hub Repair Kit; Brake Drum; Wheel Hub; Drum; Hub And Drum, Brake; Hub And Drum
- Position: Rear
Fits the following Dodge Models:
- D100 | 1988-1989 | Custom | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D150 | 1988-1993 | Base, S | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D250 | 1988-1993 | Base | 6 Cyl 3.9 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D350 | 1988-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- Ramcharger | 1990-1993 | Base, Canyon Sport, Royal SE | 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- W100 | 1988-1989 | Custom | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- W150 | 1988-1993 | Base, S | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- W250 | 1988-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- W350 | 1988-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More
View related parts
Dodge Drum Part Number: 4423371
Product Specifications
- Other Name: Brake Drum; Hub And Drum Assembly, Rear Wheel Brake
Fits the following Dodge Models:
- Caravan | 1991-1995 | Base, C/V, ES, LE, SE | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
- Grand Caravan | 1991-1995 | Base, ES, LE, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts
Dodge Drum, Rear Part Number: 4779286AA
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake; Brake Drum
- Position: Rear
Fits the following Dodge Models:
- Avenger | 2000 | Base, ES | 6 Cyl 2.5 L GAS
- Stratus | 2003-2006 | ES, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts

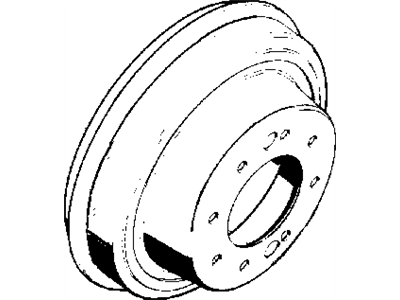

Dodge Drum Part Number: 52007902
Product Specifications
- Other Name: Brake Drum; Drum, Rear Brake; Drum Brake
Fits the following Dodge Models:
- Ram 1500 | 1994-1999 | Base, LT, Laramie, SS/T 5.9L, ST, Sport, WS | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 | 1994-1999 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 3500 | 1994-1999 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More
View related parts
Dodge Drum, Rear Part Number: 52008593
Product Specifications
- Other Name: Drum Assembly - Rear Wheel; Brake Drum, Rear; Drum, Brake; Drum Brake; Brake Drum
- Position: Rear
Fits the following Dodge Models:
- B1500 | 1996-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B2500 | 1996-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B350 | 1994 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B3500 | 1995-1998 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- Ram 1500 Van | 1999 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 Van | 1999 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 3500 Van | 1999 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
View More
View related parts

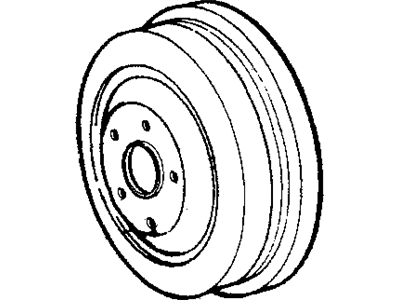

Dodge Brake Drum Part Number: 52009800AA
Product Specifications
- Other Name: Drum; Drum Brake
Fits the following Dodge Models:
- Ram 1500 | 2000-2001 | Laramie, SLT, ST, Sport, WS | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 | 2000-2001 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- Ram 3500 | 2000-2001 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More
View related parts
Dodge Drum, Rear Part Number: MB895659
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum, Rear Brake (9'); Drum Brake
- Position: Rear
Fits the following Dodge Models:
- Avenger | 1995-1999 | Base, ES | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
- Stratus | 2001-2005 | R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS
View related parts
Dodge Brake Drum Part Number: MB950951
Product Specifications
- Other Name: Drum - Brake; Drum
Fits the following Dodge Models:
- Power Ram 50 | 1985-1986 | Custom, Royal, Sport | 4 Cyl 2.3 L DIESEL, 4 Cyl 2.6 L GAS
- Raider | 1987-1989 | Base | 4 Cyl 2.6 L GAS, 6 Cyl 3.0 L GAS
- Ram 50 | 1984-1993 | Base, Custom, LE, Royal, SE, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.3 L DIESEL, 4 Cyl 2.4 L GAS, 4 Cyl 2.6 L GAS, 6 Cyl 3.0 L GAS
View More
View related parts
Dodge Drum, Rear Part Number: 52009541AD
Product Specifications
- Other Name: Drum - Brake; Brake Drum, Rear; Drum Brake; Brake Drum
- Position: Rear
- Replaces: 52009541AB
Fits the following Dodge Models:
- B1500 | 1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B2500 | 1998 | Base | 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- Ram 1500 Van | 1999-2002 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 Van | 1999-2002 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- Ram 3500 Van | 2000-2002 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View More
View related parts
Dodge Brake Drum, Rear Part Number: 52008325
Product Specifications
- Other Name: Drum - Rear Wheel Brake; Brake Drum, Rear; Drum; Drum, Brake; Drum Brake
- Position: Rear
Fits the following Dodge Models:
- B150 | 1984-1994 | Base | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS
- B1500 | 1995-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B250 | 1984-1994 | Base | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B2500 | 1995-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B350 | 1984-1994 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B3500 | 1995-1998 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- D100 | 1984-1989 | Custom | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D150 | 1984-1989 | Base | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D250 | 1984-1993 | Base | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D350 | 1984-1993 | Base | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More

| Page 1 of 2 |Next >

1-20 of 26 Results

Dodge Brake Drum

OEM parts sourced directly from Dodge deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Dodge Brake Drum for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Dodge Brake Drum bites friction quickly, changing kinetic heft to smooth deceleration. Dodge has been welding muscle to steel since 1914 with the muscle that cars can punch above weight. The brothers jumped off machining gears, made bodies, and went after the roads with body shells that were harder than anybody anticipated. Dodge continues to stuff horsepower into weekdays in commuters with throaty HEMI blasts, snarling Viper, and new Fratzonic thunder. Its electric prototypes have a top speed of 126 decibels in sport mode but can be whisper quiet in optional Stealth mode. People wait in lines as Dodge does not sell fluff on brochures but attitude that gets things moving, and it does not surrender easily. The brand shorthand is made of steel bones, loud lungs, and a daredevil badge to go everywhere unapologetically fast. The Brake Drum is applied in each of the rear wheels, and it rotates along with the axle until a pedal press initiates the showdown. Cast-iron walls draw heat away and shake off gouges, and the Brake Drum remains solid when making panic stops or even runs down the side of the mountain. Hydraulic force causes shoes to slam against the inner ring of the Brake Drum, blasting friction, transforming motion to energy, scrubbing the speed in milliseconds and maintaining contact on the circle. The balanced mass helps to avoid the foot from shaking, thus providing consistent feel and no-fade power in urban loops and highway long stretches.

Dodge Brake Drum Parts and Q&A

Drum, Rear
52009595AC
Q: How to Prevent Taper and Surface Variation When Machining a Brake Drum on a Drum Lathe for a Dodge Durango?
A:
Brake drums may need to be machined on a drum lathe whenever needed and the first cuts should not exceed 0.12 - 0.20 mm (0.005 - 0.008 inch) to avoid tapering or changes in the surface. Use a final finish cut between 0.025 and 0.038 mm (0.001 and 0.0015 in) for the best looking and feeling surface. Always mount the drum securely on the lathe and fasten a damper strap on it to lessen vibration and stop chatter marks. The permitted largest diameter of the drum braking surface is stamped or cast into the outer edge of the drum and a replacement drum is required if machining makes the diameter greater than this maximum.
Drum, Rear
52013438AF
Q: How Can Brake Drums Be Machined to Ensure Optimal Surface Finish and Prevent Taper on Dodge Dakota?
A:
If brake drums are machined on a lathe, the initial cuts can be no more than 0.12 - 0.20 mm (0.005 - 0.008 in.) at a time, so taper or unevenness does not occur. An optimal surface finish is achieved when final finishes are between 0.025 and 0.038 mm (0.001 to 0.0015 in.). Check that the drum is properly held in the lathe before you start and fit a damper strap around it to keep vibration under control. The allowed diameter of the drum surface is marked just outside the drum's rim and replacement is needed if machining could violate that mark.
