How to Service and Repair an Air Bag Control Module on Dodge Caliber?

First, lift the hood and quash the air bag control module by removing the negative battery cable. Allow two minutes for the air bag system reserve capacitor to discharge so there isn't a chance of the air bags going off by accident and injuring you. After that, pull out the floor shifter bezel. Pull the jute covered panel only partway back to see the controls inside, do not remove it completely. Take off the mounting bolts and unplug both of the ORC connectors. Last, take the ORC off the vehicle.

How to Safely Install the Air Bag Control Module to Ensure Proper Functionality on Dodge Caliber?

It is important to put the ORC covering panel in place when putting the Air Bag Control Module in, since contact between the shifter cables and the ORC might cause false ORC DTCs. Remove the ORC cover panel and put the ORC inside, after that attach the two connectors and confirm they are securely locked. Lay the ORC on the dash with the arrow facing the front until you hear it click onto the floor bracket and studs, then install and tighten the three retaining nuts to 9 Nm (79.5 in. lbs.). Then put on the floor shifter bezel. You should not connect your battery's negative wire until you have completed the system test.

OEM Dodge Caliber Air Bag Control Module

SRS Airbag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Air Bag Control Modules found

View related parts

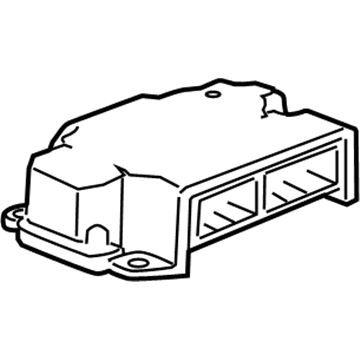

Dodge Caliber Control Module Part Number: 56054200AG
$109.73 MSRP: $256.00
You Save: $146.27 (58%)
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module
- Replaces: 56054200AE, 56054200AF, 56054200AD, 56054200AC, 56054200AB, 56054200AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, SXT Plus, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 56054204AG
$134.35 MSRP: $219.59
You Save: $85.24 (39%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module
- Replaces: 56054204AD, 56054204AC, 56054204AF, 56054204AE, 56054204AA, 56054204AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, Uptown | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 4896621AE
$242.46 MSRP: $360.00
You Save: $117.54 (33%)
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module; Module Occupant Restraint
- Replaces: 4896621AC, 4896621AD, 4896621AA, 4896621AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 56054201AG
$66.12 MSRP: $98.90
You Save: $32.78 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module
- Replaces: 56054201AC, 56054201AE, 56054201AF, 56054201AD, 56054201AA, 56054201AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Caliber | Express, Heat, Mainstreet, R/T, Rush, SE, SXT, SXT Plus, Uptown | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 4896622AE
$89.70 MSRP: $135.00
You Save: $45.30 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module; Module Occupant Restraint
- Replaces: 4896622AD, 4896622AB, 4896622AA, 4896622AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Caliber | R/T, SE, SRT-4, SXT | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

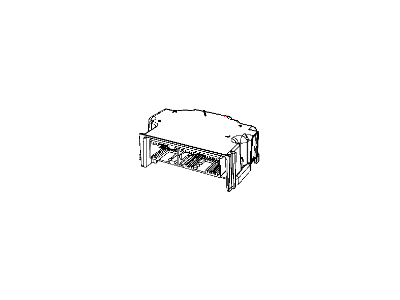

Dodge Caliber Diagnostic Module Part Number: 4672603AH
$72.23 MSRP: $107.00
You Save: $34.77 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint
- Replaces: 4672603AG, 4672603AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 4672604AH
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module
- Replaces: 4672604AF, 4672604AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008 Dodge Caliber | R/T, SE, SRT-4, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 4672602AC
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Module Occupant Restraint
- Replaces: 4672602AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Dodge Caliber Control Module Part Number: 4672501AE
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Module
- Replaces: 4672501AB, 4672501AD, 4672501AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Caliber | R/T, SE, SXT | 1.8L L4, 2.0L L4, 2.4L L4, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS

Dodge Caliber Air Bag Control Module

Choose OEM Air Bag Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Air Bag Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Caliber matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Caliber parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Supplemental restraint systems in Dodge Calibers depend on the reliable performance of their Air Bag Control Module. Motor control modules regularly check the collision sensors to activate airbags during critical collisions that shield occupants from harm. Throughout the production period from 2007 to 2012 the Dodge Caliber incorporated this advanced Air Bag Control Module across all its models for improved safety and performance. The automotive market values the Air Bag Control Module because this device enables post-accident evaluations through its capability to store both diagnostic information and crash data. Safety ratings of the Dodge Caliber come from the Insurance Institute for Highway Safety's good crash test results that can be credited to the dependable Air Bag Control Module. The airbag electronic control unit (ECU) belongs to this module and demonstrates modern technology standards which makes it stand out as a unique feature throughout the Dodge Caliber vehicles. Standard side airbags and optional curtain airbags can be found in all vehicles that use the Air Bag Control Module because this system supports different Caliber models. The Dodge Caliber Air Bag Control Module showcases the automaker's dedication to passenger safety through vehicle performance thus it remains a fundamental component of driving operations.

Dodge Caliber Air Bag Control Module Parts and Q&A

Control Module
4672501AE
Q: How to Service and Repair an Air Bag Control Module on Dodge Caliber?
A:
First, lift the hood and quash the air bag control module by removing the negative Battery Cable. Allow two minutes for the air bag system reserve capacitor to discharge so there isn't a chance of the air bags going off by accident and injuring you. After that, pull out the floor shifter bezel. Pull the jute covered panel only partway back to see the controls inside, do not remove it completely. Take off the mounting bolts and unplug both of the ORC connectors. Last, take the ORC off the vehicle.
Control Module
4672602AC
Q: How to Safely Install the Air Bag Control Module to Ensure Proper Functionality on Dodge Caliber?
A:
It is important to put the ORC covering panel in place when putting the Air Bag Control Module in, since contact between the shifter cables and the ORC might cause false ORC DTCs. Remove the ORC cover panel and put the ORC inside, after that attach the two connectors and confirm they are securely locked. Lay the ORC on the dash with the arrow facing the front until you hear it click onto the floor bracket and studs, then install and tighten the three retaining nuts to 9 Nm (79.5 in. lbs.). Then put on the floor shifter bezel. You should not connect your battery's negative wire until you have completed the system test.
