How to Install A/C Hose Underbody Extension Lines on Dodge Journey?

Before installing the A/C underbody extension lines, adjust the amount of refrigerant oil to avoid system problems and protect the compressor. Check the Refrigerant Oil Capacities chart to determine how much oil to use when changing many air conditioning components together. Each time you disconnect an underbody refrigerant line, remember to put in new O-ring seals inside the lines. Before you do anything else, remove any tape or plugs near the ends of the refrigerant extension lines. Apply clean refrigerant oil to new rubber O-ring seals and place them on the fittings, using only the O-ring types and oil that come with the R-134a refrigerant and were recommended for the A/C compressor. Feed the front A/C underbody lines into the engine compartment and click them onto the front A/C liquid and suction lines. Tighten the fitting nuts to achieve 23 Nm or 17 ft. lbs. Lift and keep the vehicle on firm supports, then take off the tape or plugs over the underbody refrigerant fittings. Instead of the old O-ring, use a new one after applying oil and put the top cooling hose on the radiator outlet, just like you did earlier. Dirve the extension lines into the front underbody refrigerant line bracket and then place the bracket retainer. Adjust the vehicle so it sits lower, attach the negative cable to the battery, empty the refrigerant system, bring the refrigerant oil up to the right level and add some refrigerant as required.

How to Remove the A/C Hose Liquid Line on Dodge Journey?

Before anything else, detach and isolate the negative battery cable and afterwards, use a recovery tool to take out the refrigerant liquid line. Raise the vehicle so that you can lift the splash shield of the right front wheelhouse to see the receiver/drier sender. Take out the nut securing the A/C liquid line to the receiver/drier and detach this section from the receiver/drier, throwing away its O-ring and gasket. Then, take the lower part of the A/C suction line and disconnect it from the A/C liquid and suction line assembly and quickly remove the bolt holding the rear of the suction line to the right front frame rail. Drop the vehicle down, then, if your vehicle includes a heat shield, loosen the top nut from the stud on the dash panel by using the slots provided for this purpose. If required, grab the two nuts below the engine and loosen them from the engine studs on the dash panel. Then gently rotate and remove the heat shield at the dash. Place the engine coolant reservoir and the power steering reservoir where they won't be in the way, but do not drain their fluids yet. Pull the engine coolant reservoir from the right side of the engine compartment and remove the power steering fluid reservoir from the right front strut tower. When ABS is installed, unplug and remove the ABS control module and pump assembly and adjust the brake lines where necessary. Remove the wire harness connector from the A/C pressure transducer on the A/C liquid line and take out the transducer if that's what you need to do. If rear A/C is included, remove the rear A/C extension lines from the connections on the A/C liquid and suction line assembly. Unscrew the nut holding the refrigerant line bracket to the right front strut tower, then the nut supporting the A/C liquid and suction line on the A/C expansion valve. Release the A/C liquid and suction line assembly from the A/C expansion valve and throw away the O-rings, before taking out the assembly from the car. After all of the above, wrap plugs in or seal over every fitting on the refrigerant, expansion valve and receiver/drier lines with tape.

OEM Dodge Journey A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

25 A/C Hoses found

View related parts

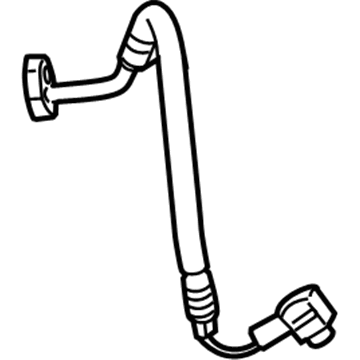

Dodge Journey Discharge Line Part Number: 5058581AC
$4.43 MSRP: $28.10
You Save: $23.67 (85%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Discharge; A/C Refrigerant Liquid Hose; A/C Hose
- Replaces: 5058581AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Dodge Journey | Base, SE | 2.7L V6, 4 Cyl 2.4 L GAS
View related parts

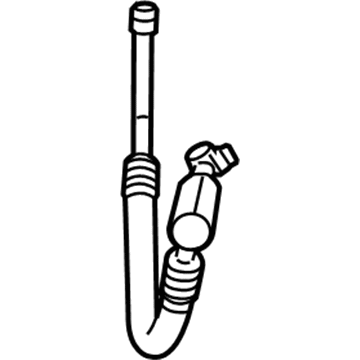

Dodge Journey Suction Hose Part Number: 5058501AB
$76.66 MSRP: $170.00
You Save: $93.34 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Dodge Journey | Crew, R/T, SXT | 6 Cyl 3.5 L GAS
View related parts
Dodge Journey Suction Hose Part Number: 5058535AB
$25.13 MSRP: $52.85
You Save: $27.72 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2012 Dodge Journey | AVP, Base, Express, SE, SXT | 4 Cyl 2.4 L GAS
View related parts
Dodge Journey Liquid Line Part Number: 68154351AC
$250.39 MSRP: $372.00
You Save: $121.61 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction And Liquid; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose
- Replaces: 68154351AA, 68154351AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2020 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, R/T, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

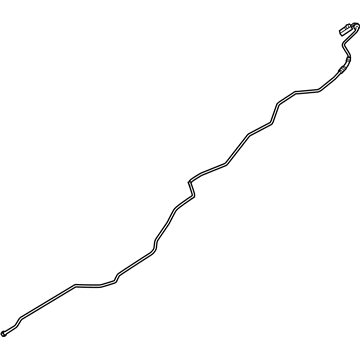

Dodge Journey Suction Hose Part Number: 68040493AB
$247.52 MSRP: $377.00
You Save: $129.48 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Replaces: 68040493AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2011 Dodge Journey | Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Liquid Line Part Number: 68302645AA
$446.42 MSRP: $679.00
You Save: $232.58 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction And Liquid; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Line A/C Suction And Liquid
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020 Dodge Journey | Crossroad, SE Value | 4 Cyl 2.4 L GAS
View related parts

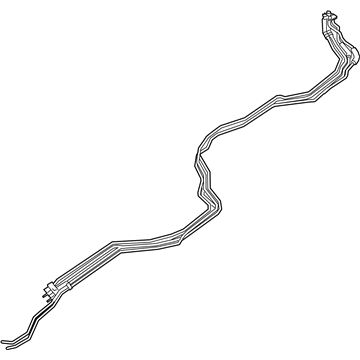

Dodge Journey Rear A/C Line Part Number: 68140014AF
$828.75 MSRP: $1250.00
You Save: $421.25 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C & Heater Underbody; A/C Refrigerant Liquid Hose; A/C Hose
- Replaces: 68140014AB, 68140014AE, 68140014AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2020 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, R/T, SE, SE Value, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

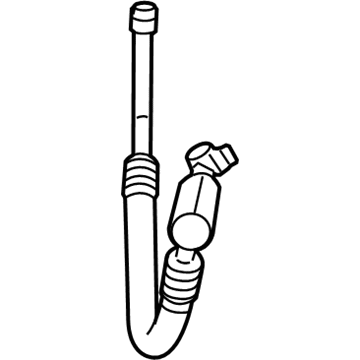

Dodge Journey Suction Hose Part Number: 5058535AD
$65.17 MSRP: $97.75
You Save: $32.58 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Replaces: 5058535AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2020 Dodge Journey | AVP, Crossroad, Express, SE, SE Value, SXT | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Dodge Journey Discharge Hose Part Number: 5058539AD
$86.58 MSRP: $131.00
You Save: $44.42 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Discharge; A/C Refrigerant Discharge Hose; A/C Refrigerant Liquid Hose; A/C Hose; Discharge Line; Line A/C Discharge
- Replaces: 5058539AC, 5058539AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2020 Dodge Journey | AVP, Base, Crossroad, Express, SE, SE Value, SXT | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

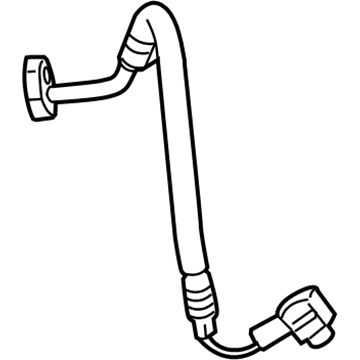

Dodge Journey Discharge Hose Part Number: 5058876AD
$73.66 MSRP: $164.00
You Save: $90.34 (56%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Discharge; A/C Refrigerant Discharge Hose; A/C Refrigerant Liquid Hose; A/C Hose; Discharge Line; Line A/C Discharge
- Replaces: 5058876AB, 5058876AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2019 Dodge Journey | Crew, Crossroad, GT, Limited, Lux, Mainstreet, R/T, SE, SXT | 3.6L V6, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Suction Hose Part Number: 5058877AE
$139.38 MSRP: $211.00
You Save: $71.62 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Replaces: 5058877AB, 5058877AC, 5058877AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2020 Dodge Journey | Crew, Crossroad, GT, Limited, Lux, Mainstreet, R/T, SE, SE Value, SXT | 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Liquid Line Part Number: 68140013AD
$180.15 MSRP: $269.00
You Save: $88.85 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - Auxiliary A/C Liquid; A/C Refrigerant Liquid Hose; A/C Hose; Line Auxiliary A/C Liquid Jumper
- Replaces: 68140013AB, 68140013AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2018 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Suction Hose Part Number: 5058650AE
$182.41 MSRP: $272.00
You Save: $89.59 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Replaces: 5058650AD, 5058650AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2020 Dodge Journey | AVP, Crossroad, SE, SE Value, SXT | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

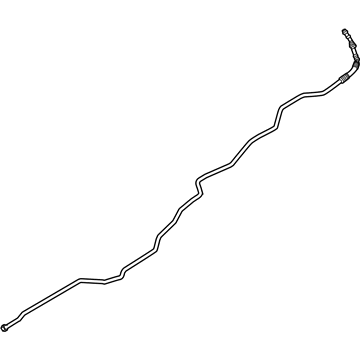

Dodge Journey Liquid Line Part Number: 68040494AB
$205.51 MSRP: $307.00
You Save: $101.49 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Liquid; A/C Refrigerant Liquid Hose; A/C Hose; Line A/C Liquid
- Replaces: 68040494AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2011 Dodge Journey | Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Suction Hose Part Number: 68140012AC
$102.51 MSRP: $226.00
You Save: $123.49 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - Auxiliary A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line Auxiliary A/C Suction Jumper
- Replaces: 68140012AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2018 Dodge Journey | AVP, Crew, Crossroad, GT, Limited, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Dodge Journey Liquid Line Part Number: 68247737AE
$542.73 MSRP: $794.00
You Save: $251.27 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Line - A/C Suction And Liquid; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Line A/C Suction And Liquid
- Replaces: 68247737AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2016-2019 Dodge Journey | Crossroad, GT, SE, SXT | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts

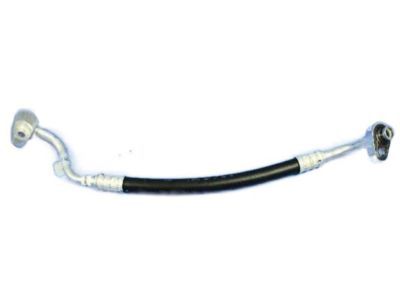

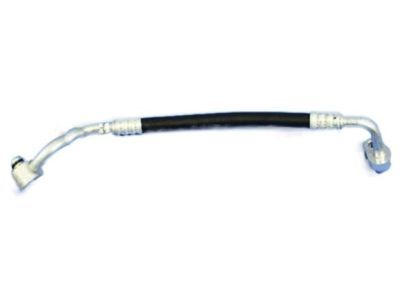

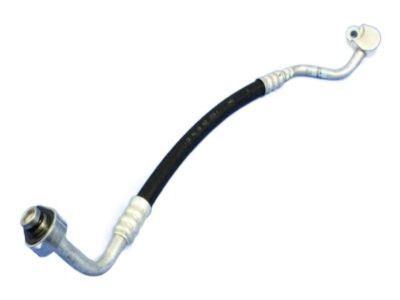

Dodge Journey Discharge Hose Part Number: 5058582AB
Product Specifications
- Other Name: Line - A/C Discharge; A/C Refrigerant Liquid Hose; A/C Hose; Discharge Line; Line A/C Discharge
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Dodge Journey | Crew, R/T, SXT | 6 Cyl 3.5 L GAS
View related parts

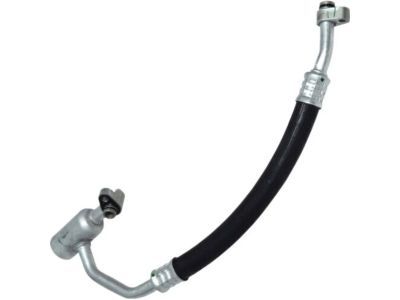

Dodge Journey Suction Hose Part Number: 5058650AB
Product Specifications
- Other Name: Line - A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line A/C Suction
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2012 Dodge Journey | AVP, Base, Express, SE, SXT | 4 Cyl 2.4 L GAS
View related parts

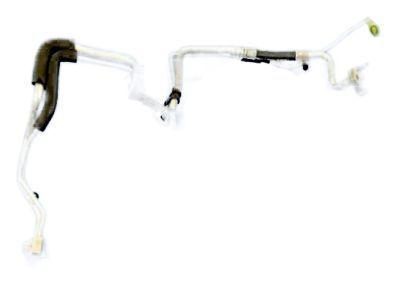

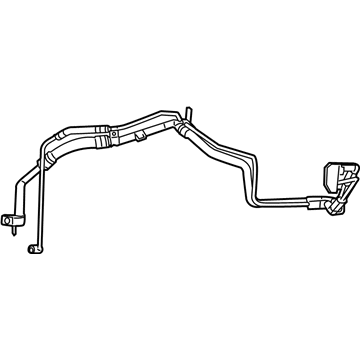

Dodge Journey Liquid Line Part Number: 68040261AA
Product Specifications
- Other Name: Line - A/C Suction And Liquid; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Line A/C Suction And Liquid
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2010 Dodge Journey | Base, Crew, R/T, SE, SXT | 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS
View related parts

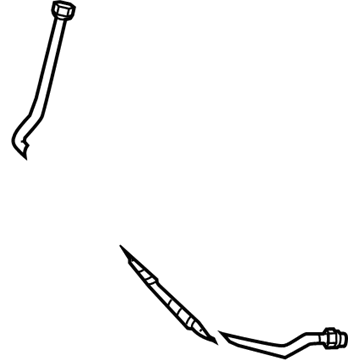

Dodge Journey Suction Hose Part Number: 5058500AF
Product Specifications
- Other Name: Line - Auxiliary A/C Suction; A/C Refrigerant Suction Hose; A/C Refrigerant Liquid Hose; A/C Hose; Suction Line; Line Auxiliary A/C Suction Jumper
- Replaces: 5058500AD, 5058500AE, 5058500AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009-2011 Dodge Journey | Base, Crew, Express, Lux, Mainstreet, R/T, SE, SXT | 2.4L L4, 2.7L V6, 3.5L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX

| Page 1 of 2 |Next >

1-20 of 25 Results

Dodge Journey A/C Hose

Choose OEM A/C Hose that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each A/C Hose follows strict manufacturing steps to lock in quality and fit. If your Dodge Journey matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Journey parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Dodge Journey A/C Hose is an important part that greatly contributes to the performance and reliability of the vehicle especially in its air conditioning system. Originally meant for transporting refrigerant from the compressor to the several areas of the A/C system, this A/C Hose is high pressure resistant with the use of aluminum fittings to avert any leakage. Due to the Dodge Journey being a three-row SUV that has provisions for a large number of passengers and luggage while remaining affordable, the A/C Hose has a very useful role as it relieves heat, thus prolonging the comfort of the cabin. A compatibility factor of this Dodge Journey A/C Hose with different Journey models in the years confirms the ability of the product to fit the needs of the model's different versions. This flexibility does not only improve the performance of the vehicle but also in the areas of safety such as improved brake system and multiple bags of air. The Dodge Journey A/C Hose is a remarkable product within an automotive marketplace because of its sturdiness and durability to guarantee customers' coziness and security. After it was discontinued in 2020, the Dodge Journey still ranks as one of the best vehicles on the market because of components like the A/C Hose. In summary, the Dodge Journey A/C Hose a fitting image of the ideal blend of quality and innovation that the brand deals in automobiles.

Dodge Journey A/C Hose Parts and Q&A

Discharge Line
5058581AC
Q: How to Install A/C Hose Underbody Extension Lines on Dodge Journey?
A:
Before installing the A/C underbody extension lines, adjust the amount of refrigerant oil to avoid system problems and protect the compressor. Check the Refrigerant Oil Capacities chart to determine how much oil to use when changing many air conditioning components together. Each time you disconnect an underbody refrigerant line, remember to put in new O-ring seals inside the lines. Before you do anything else, remove any tape or plugs near the ends of the refrigerant extension lines. Apply clean refrigerant oil to new rubber O-ring seals and place them on the fittings, using only the O-ring types and oil that come with the R-134a refrigerant and were recommended for the A/C compressor. Feed the front A/C underbody lines into the engine compartment and click them onto the front A/C liquid and suction lines. Tighten the fitting nuts to achieve 23 Nm or 17 ft. lbs. Lift and keep the vehicle on firm supports, then take off the tape or plugs over the underbody refrigerant fittings. Instead of the old O-ring, use a new one after applying oil and put the top cooling hose on the radiator outlet, just like you did earlier. Dirve the extension lines into the front underbody refrigerant line bracket and then place the bracket retainer. Adjust the vehicle so it sits lower, attach the negative cable to the battery, empty the refrigerant system, bring the refrigerant oil up to the right level and add some refrigerant as required.
Suction Hose
5058535AB
Q: How to Remove the A/C Hose Liquid Line on Dodge Journey?
A:
Before anything else, detach and isolate the negative Battery Cable and afterwards, use a recovery tool to take out the refrigerant liquid line. Raise the vehicle so that you can lift the splash shield of the right front wheelhouse to see the receiver/drier sender. Take out the nut securing the A/C liquid line to the receiver/drier and detach this section from the receiver/drier, throwing away its O-ring and gasket. Then, take the lower part of the A/C suction line and disconnect it from the A/C liquid and suction line assembly and quickly remove the bolt holding the rear of the suction line to the right front frame rail. Drop the vehicle down, then, if your vehicle includes a heat shield, loosen the top nut from the stud on the dash panel by using the slots provided for this purpose. If required, grab the two nuts below the engine and loosen them from the engine studs on the dash panel. Then gently rotate and remove the heat shield at the dash. Place the engine Coolant Reservoir and the Power Steering Reservoir where they won't be in the way, but do not drain their fluids yet. Pull the engine coolant reservoir from the right side of the engine compartment and remove the power steering fluid reservoir from the right front strut tower. When ABS is installed, unplug and remove the ABS Control Module and pump assembly and adjust the Brake Lines where necessary. Remove the wire harness connector from the A/C pressure transducer on the A/C liquid line and take out the transducer if that's what you need to do. If rear A/C is included, remove the rear A/C extension lines from the connections on the A/C liquid and suction line assembly. Unscrew the nut holding the refrigerant line bracket to the right front strut tower, then the nut supporting the A/C liquid and suction line on the A/C Expansion Valve. Release the A/C liquid and suction line assembly from the A/C expansion valve and throw away the O-rings, before taking out the assembly from the car. After all of the above, wrap plugs in or seal over every fitting on the refrigerant, expansion valve and receiver/drier lines with tape.
