How to replace the Wiper Motor and Wiper Pivot in a windshield wiper system on Jeep Grand Cherokee?

Before replacing the windshield wiper motor, pivot and linkage module, cut off the battery negative cable connection. Remove the wiper arms from the pivots, then open the hood and attach the hood to the plenum seal so the forward sections of both covers press against the grille. Release the cowl grille cover by removing its six plastic nuts and lifting up at its left end, then go underneath, where you can detach the washer supply hose from the connector attached to the cowl grille cover. Remove the cowl grille cover from the cowl plenum and cowl top panels by working with the opening between the hood and windshield. After that, unscrew the four bolts holding the wiper motor, pivot and linkage module to the cowl plenum panel, then lift the left end of the module to get to the wiper motor wire harness connector and remove the left headlamp and dash wire harness connector from the wiper motor connector receptacle. Disconnect the wiper motor pivot and linkage module from the cowl works area. Put the wiper motor, pivot and linkage module into the cowl plenum, then raise the left end to expose the wire harness connector and connect the wiper motor with the connector from the left headlamp and dash cable. Place one of the mounting screws on the pivot hole at the right, close to the edge and the module will fit into the plenum. After that, install and tighten all four screws connecting the module to the cowl plenum panel to 8 Nm (72 in. lbs.). Place the entire cowl grille cover onto the cowl plenum and cowl top panels, gently raise the left end to work on the washer plumbing and attach the washer supply hose back to the in-line connector. Mount the six plastic nuts on to the studs as directed: first, install the short nuts on the third stud from the right and the second from the left, subsequent to which attach long nuts to the right outboard stud and the left outboard stud and then finish by screwing the remaining two long nuts on the third stud from the left and the second stud from the right. First, bring the hood to the plenum seal along the back, then fit the forward flanges to the cowl grille cover and plenum panel. While the hood hinge is still open, attach the wiper arms to the pivots and connect everything back to the battery, insulating the cable.

OEM Jeep Grand Cherokee Wiper Pivot

Windshield Wiper Pivot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Wiper Pivots found

View related parts

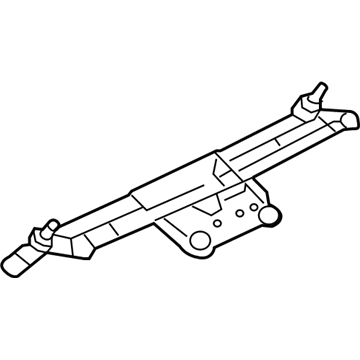

Jeep Grand Cherokee Linkage Assembly Part Number: 68194932AC
$54.09 MSRP: $79.35
You Save: $25.26 (32%)
ADD TO CART
Product Specifications
- Other Name: Linkage - Wiper; Windshield Wiper Linkage; Wiper Linkage; Front Transmission
- Replaces: 68194932AA, 68194932AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014-2015 Jeep Grand Cherokee | Laredo, Limited, Overland, SRT, Summit | 3.0L V6, 3.6L V6, 5.7L V8, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Jeep Grand Cherokee Linkage Assembly Part Number: 68301827AA
$84.18 MSRP: $128.00
You Save: $43.82 (35%)
ADD TO CART
Product Specifications
- Other Name: Linkage - Wiper; Windshield Wiper Linkage; Front Transmission; Pivot And Linkage Wiper; Wiper Linkage
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2016-2022 Jeep Grand Cherokee | 4xe, 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, SRT, Summit, Summit Reserve, Trackhawk, Trailhawk, Upland | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
View related parts
Jeep Grand Cherokee Linkage Assembly Part Number: 55079158AI
$279.57 MSRP: $423.00
You Save: $143.43 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wiper Unit - Windshield; Windshield Wiper Linkage; Wiper Linkage; Front Transmission
- Replaces: 55079158AH, 55079158AG, 55079158AC, 55079158AF, 55079158AD, 55079158AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011-2013 Jeep Grand Cherokee | Laredo, Limited, Overland, Overland Summit, SRT8 | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Jeep Grand Cherokee Linkage Assembly, Front Part Number: 68505536AA
$23.95 MSRP: $34.45
You Save: $10.50 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Linkage - Wiper; Windshield Wiper Linkage, Front; Wiper Linkage; Front Transmission
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2022-2025 Jeep Grand Cherokee | 30th Anniversary 4xe, 4xe, Altitude, Altitude X, Anniversary Edition 4xe, Laredo, Laredo X, Limited, Overland, Summit, Summit Reserve, Trailhawk | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS
View related parts
Jeep Grand Cherokee Front Motor Part Number: 55155352
Product Specifications
- Other Name: Pivot - Wiper; Wiper Motor
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Jeep Grand Cherokee | Laredo, Limited, Overland, Special Edition | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts

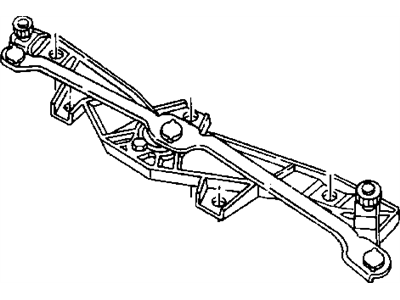

Jeep Grand Cherokee Front Transmission Part Number: 55155209
Product Specifications
- Other Name: Pivot; Wiper Linkage; Link Assembly; Pivot And Linkage Wiper; Linkage, W/Pivot
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1993-1998 Jeep Grand Cherokee | 5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi | 6 Cyl 4.0 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Jeep Grand Cherokee Link Assembly Part Number: 68040581AA
Product Specifications
- Other Name: Linkage - Wiper; Wiper Linkage; Pivot And Linkage Wiper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Jeep Grand Cherokee | Laredo, Limited, Overland, SRT8 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts
Jeep Grand Cherokee Wiper Motor Assembly Part Number: 55155092AE
Product Specifications
- Other Name: Pivot - Wiper; Windshield Wiper Motor; Wiper Motor; Front Motor
- Replaces: 55155092AB, 55155092AC, 55155092AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2004 Jeep Grand Cherokee | Laredo, Limited, Overland, Special Edition, Sport | 4.0L L6, 4.7L V8, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS

Jeep Grand Cherokee Wiper Pivot

Choose OEM Wiper Pivot that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Wiper Pivot follows strict manufacturing steps to lock in quality and fit. If your Jeep Grand Cherokee matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Grand Cherokee parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Jeep Grand Cherokee Wiper Pivot acts as an integral vehicle component which boosts reliability and performance alongside offering optimal visibility under unfavorable weather conditions. The Wiper Pivot stands out because of its durable design which acts as an essential component of the Jeep Grand Cherokee functionality by resisting constant motion effects at all speed levels. The Wiper Pivot works with different Grand Cherokee models through available options that include metal rods in addition to advanced plastic component assemblies with steel frames for maximum strength. The product range accommodates all Jeep models so Jeep owners can select the ideal components for their driver seat as well as their passenger seat. The Wiper Pivot installation follows an uncomplicated process which allows moderately skilled Jeep Grand Cherokee owners to perform replacements safely and effectively. Through its construction the Wiper Pivot helps windscreen wipers glide smoothly which directly adds quality to the operational experience of driving. Weather-resistant materials combined with precise engineering define the Jeep Grand Cherokee Wiper Pivot and distinguish it in the market through its reliable performance. The Wiper Pivot works as an essential component which helps keep the the automaker Grand Cherokee positioned as a luxury SUV through its ability to deliver superior performance along with comfort features that suit discriminating drivers.

Jeep Grand Cherokee Wiper Pivot Parts and Q&A

Wiper Motor Assembly
55155092AE
Q: How to replace the Wiper Motor and Wiper Pivot in a windshield wiper system on Jeep Grand Cherokee?
A:
Before replacing the windshield wiper motor, pivot and linkage module, cut off the battery negative cable connection. Remove the Wiper Arms from the pivots, then open the hood and attach the hood to the plenum seal so the forward sections of both covers press against the grille. Release the cowl grille cover by removing its six plastic nuts and lifting up at its left end, then go underneath, where you can detach the washer supply hose from the connector attached to the cowl grille cover. Remove the cowl grille cover from the cowl plenum and cowl top panels by working with the opening between the hood and windshield. After that, unscrew the four bolts holding the wiper motor, pivot and linkage module to the cowl plenum panel, then lift the left end of the module to get to the wiper motor wire harness connector and remove the left headlamp and dash wire harness connector from the wiper motor connector receptacle. Disconnect the wiper motor pivot and linkage module from the cowl works area. Put the wiper motor, pivot and linkage module into the cowl plenum, then raise the left end to expose the wire harness connector and connect the wiper motor with the connector from the left headlamp and dash cable. Place one of the mounting screws on the pivot hole at the right, close to the edge and the module will fit into the plenum. After that, install and tighten all four screws connecting the module to the cowl plenum panel to 8 Nm (72 in. lbs.). Place the entire cowl grille cover onto the cowl plenum and cowl top panels, gently raise the left end to work on the washer plumbing and attach the washer supply hose back to the in-line connector. Mount the six plastic nuts on to the studs as directed: first, install the short nuts on the third stud from the right and the second from the left, subsequent to which attach long nuts to the right outboard stud and the left outboard stud and then finish by screwing the remaining two long nuts on the third stud from the left and the second stud from the right. First, bring the hood to the plenum seal along the back, then fit the forward flanges to the cowl grille cover and plenum panel. While the hood hinge is still open, attach the wiper arms to the pivots and connect everything back to the battery, insulating the cable.
