How to Service a Pitman Arm on Jeep Grand Cherokee?

First, use a cotter pin and a nut to unlock the drag link attached to the pitman arm and then use a puller to remove the drag link ball stud from it. Then, unscrew the nut and washer from the steering gear shaft and use marking pen to identify the pitman shaft and pitman arm. You can then pop off the pitman arm from the steering gear with Puller C-4150A. First, mount the pitman arm onto the steering gear shaft, then add on the washer and nut, but make certain the nut is tightened to 251 Nm (185 ft. lbs.). After that, fit the drag link ball stud to the pitman arm, tighten it with a nut to 88 Nm (65 ft. lbs.) and install a new cotter pin.

How to Install and Secure a Pitman Arm on Jeep Wrangler?

Attach the pitman arm over the steering gear shaft, place the washer and nut on the shaft disc and tighten the nut until you reach 251 Nm (185 ft. lbs.). After that, add the drag link ball stud to the pitman arm and secure it using a 105 Nm (77 ft. lbs.) tightened nut. Insert the track bar into the frame and you may have to loosen the axle unit to put the track bar at the frame rail. Attach the track bar at the frame rail bracket using a nut and bolt and be sure to tighten the bolt to 169 Nm (125 ft. lbs.). After you remove the support, bring the vehicle down, top off the power steering fluid and have a look at the toe setting.

OEM Jeep Pitman Arm

Steering Pitman Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Pitman Arms found

View related parts

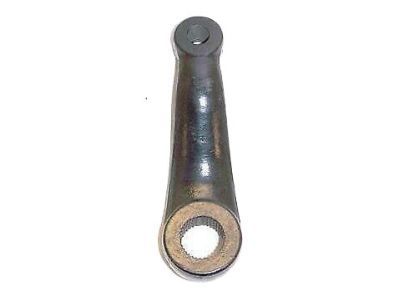

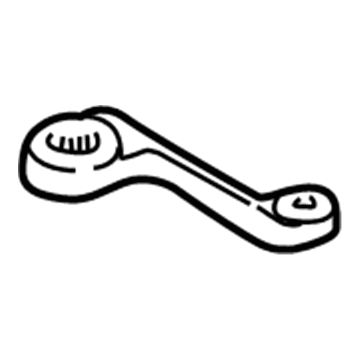

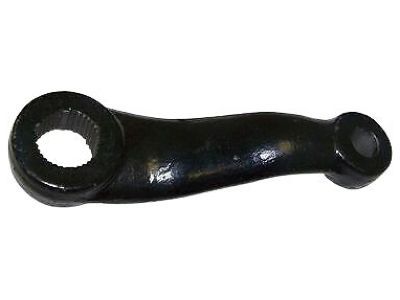

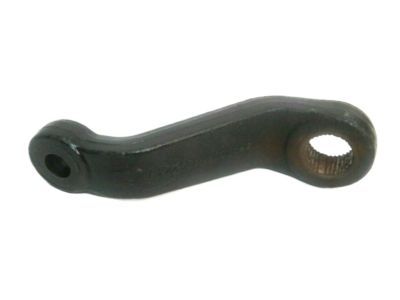

Jeep Pitman Arm Part Number: 52038337
$55.21 MSRP: $121.00
You Save: $65.79 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm - Pitman; Steering Pitman Arm; Idler Arm; Arm Pitman
Fits the following Jeep Models:
- Wrangler | 1997-2006 | 65th Anniversary Edition, Rubicon, SE, Sahara, Sport, Unlimited, Unlimited Rubicon, X | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
View related parts

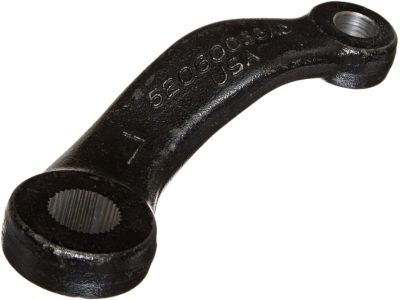

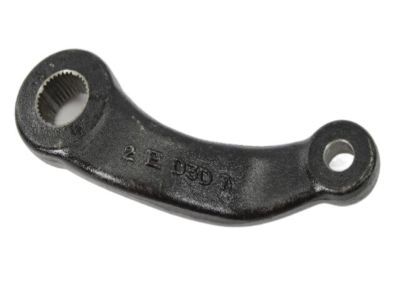

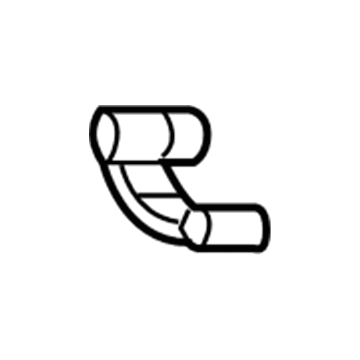

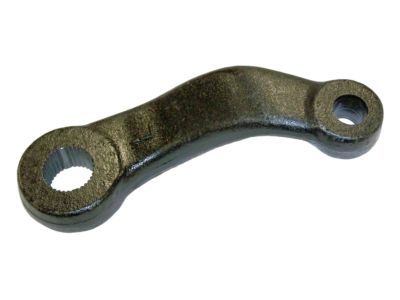

Jeep Pitman Arm Part Number: 52060056AC
$112.46 MSRP: $249.00
You Save: $136.54 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm - Pitman; Steering Pitman Arm; Idler Arm; Arm Pitman
Fits the following Jeep Models:
- Wrangler | 2007-2017 | 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X, X-S | 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS
- Wrangler JK | 2018 | Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | 6 Cyl 3.6 L GAS
View related parts

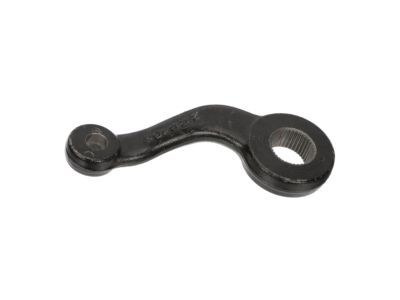

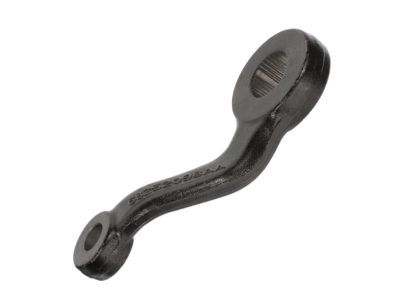

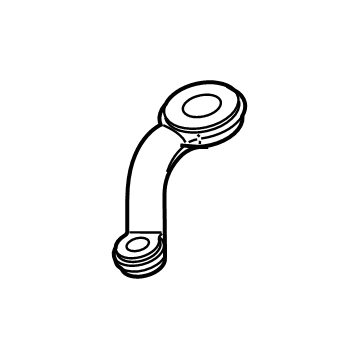

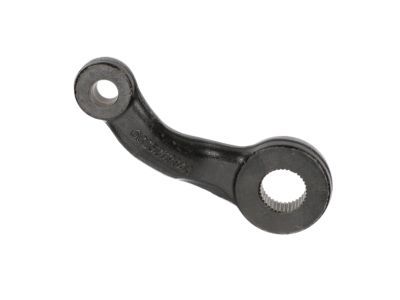

Jeep Pitman Arm Part Number: 68252098AA
$148.30 MSRP: $224.00
You Save: $75.70 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm - Pitman; Steering Pitman Arm; Idler Arm; Arm Pitman
Fits the following Jeep Models:
- Gladiator | 2020-2025 | 80th Anniversary, Altitude, Freedom, High Altitude, High Tide, Jeep Beach, Launch Edition, Mojave, Mojave X, NightHawk, Overland, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys, Willys Sport | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS
- Wrangler | 2018-2025 | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon 392, Unlimited Rubicon 4xe, Unlimited Rubicon X, Unlimited Rubicon X 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Sport S 4xe, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.4 L GAS
View related parts
Jeep Pitman Arm Part Number: 52088242
$165.69 MSRP: $210.04
You Save: $44.35 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm - Pitman; Steering Pitman Arm; Idler Arm; Arm Pitman
Fits the following Jeep Models:
- Grand Cherokee | 1999-2004 | Laredo, Limited, Overland, Special Edition, Sport | 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Jeep Pitman Arm Part Number: 68252100AA
$113.55 MSRP: $159.00
You Save: $45.45 (29%)
ADD TO CART
Product Specifications
- Other Name: Arm - Pitman; Arm Pitman
Fits the following Jeep Models:
- Wrangler | 2021-2025 | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited High Tide, Unlimited Islander, Unlimited Rubicon, Unlimited Rubicon 392, Unlimited Rubicon 4xe, Unlimited Rubicon X, Unlimited Rubicon X 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Sport S 4xe, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.4 L GAS
View related parts

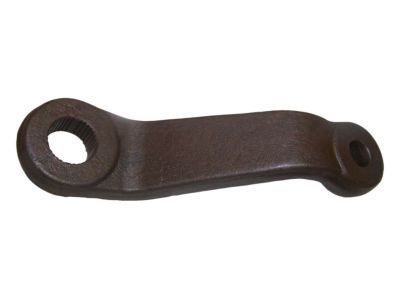

Jeep Pitman Arm Part Number: 52000616
Product Specifications
- Other Name: Arm Pitman; Arm, Pittman; Arm, Pitman
Fits the following Jeep Models:
- CJ7 | 1984-1986 | Base, Laredo, Renegade | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
- Cherokee | 1984-1993 | Base, Briarwood, Chief, Country, Laredo, Limited, Pioneer, Sport | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Comanche | 1986-1992 | Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Grand Wagoneer | 1984-1991 | Base, Limited | 6 Cyl 4.2 L GAS, 8 Cyl 5.9 L GAS
- J10 | 1984-1988 | Base | 6 Cyl 4.2 L GAS, 8 Cyl 5.9 L GAS
- J20 | 1984-1988 | Base | 8 Cyl 5.9 L GAS
- Scrambler | 1984-1986 | Base, Laredo, Renegade, SR | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
- Wagoneer | 1984-1990 | Base, Limited | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Wrangler | 1987-1991 | Base, Islander, Laredo, Renegade, S, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS, 6 Cyl 4.2 L GAS
View More
View related parts
Jeep Pitman Arm Part Number: 52040112
Product Specifications
- Other Name: Arm - Steering Str Linkage Pitman; Idler Arm; Arm, Pitman
Fits the following Jeep Models:
- Wrangler | 1987-1995 | Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS, 6 Cyl 4.2 L GAS
View related parts

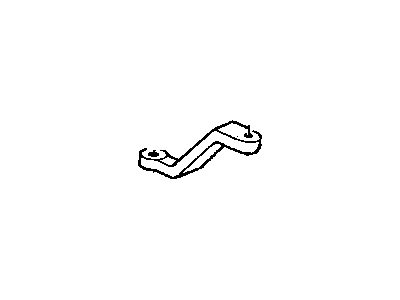

Jeep Pitman Arm Part Number: 52005285
Product Specifications
- Other Name: Arm Pitman; Idler Arm; Arm, Pitman
Fits the following Jeep Models:
- Grand Cherokee | 1993-1998 | 5.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi | 6 Cyl 4.0 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Grand Wagoneer | 1993 | Base | 8 Cyl 5.2 L GAS
View related parts
Jeep Pitman Arm Part Number: 52000615
Product Specifications
- Other Name: Arm - Pitman; Arm, Pittman; Arm, Pitman; Arm Pitman
Fits the following Jeep Models:
- CJ7 | 1984-1986 | Base, Laredo, Renegade | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
- Cherokee | 1984-2001 | Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Comanche | 1986-1992 | Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Grand Wagoneer | 1984-1991 | Base, Limited | 6 Cyl 4.2 L GAS, 8 Cyl 5.9 L GAS
- J10 | 1984-1988 | Base | 6 Cyl 4.2 L GAS, 8 Cyl 5.9 L GAS
- J20 | 1984-1988 | Base | 8 Cyl 5.9 L GAS
- Scrambler | 1984-1986 | Base, Laredo, Renegade, SR | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
- Wagoneer | 1984-1990 | Base, Limited | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Wrangler | 1987-1991 | Base, Islander, Laredo, Renegade, S, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS, 6 Cyl 4.2 L GAS
View More

Jeep Pitman Arm

OEM parts sourced directly from Jeep deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Jeep Pitman Arm for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Jeep Pitman Arm transforms the movement of the steering wheel into accurate lateral movement that pulls the wheels. Jeep developed out of its debut in 1945 as a civilian vehicle into a symbol that people rely on when the road ceases and the sky opens up. Strong frames, removable roofs, and go-anywhere position promote weekend getaway without the plea of swanky hotel parking. Inside, Jeep has become a blend of touchscreen brilliance, voice recognition, and instant over-the-air updates, therefore journeys can remain flawless and interactive. Adjustable drive modes allow the novice to work through changing terrain, yet still enable the expert to stretch, keeping campfire stories lively. Due to the fact that community is important, Jeep clubs flood trails, exchange fixes, exchange maps, and transform isolated routes into moving celebrations. On reducing steering forces down the column, the Pitman Arm of Jeep receives that rotation and pushes the drag link out to the side, cutting slack and cutting turn-in on rocky switchbacks. The Pitman Arm is made of forged steel and is resistant to flex which may scatter the alignment and chew tires on long dirt hauls. Friction is reduced by greased ball joints within the Pitman Arm, making the wheel feel light but remaining honest as the chassis is jerked by the ruts. Install a fresh Pitman Arm and the steering wheel is once more centered, dead play is gone, and trail feedback is restored.

Jeep Pitman Arm Parts and Q&A

Pitman Arm
52088242
Q: How to Service a Pitman Arm on Jeep Grand Cherokee?
A:
First, use a cotter pin and a nut to unlock the drag link attached to the pitman arm and then use a puller to remove the drag link ball stud from it. Then, unscrew the nut and washer from the steering gear shaft and use marking pen to identify the pitman shaft and pitman arm. You can then pop off the pitman arm from the steering gear with Puller C-4150A. First, mount the pitman arm onto the steering gear shaft, then add on the washer and nut, but make certain the nut is tightened to 251 Nm (185 ft. lbs.). After that, fit the drag link ball stud to the pitman arm, tighten it with a nut to 88 Nm (65 ft. lbs.) and install a new cotter pin.
Pitman Arm
52060056AC
Q: How to Install and Secure a Pitman Arm on Jeep Wrangler?
A:
Attach the pitman arm over the steering gear shaft, place the washer and nut on the shaft disc and tighten the nut until you reach 251 Nm (185 ft. lbs.). After that, add the drag link ball stud to the pitman arm and secure it using a 105 Nm (77 ft. lbs.) tightened nut. Insert the track bar into the frame and you may have to loosen the axle unit to put the track bar at the frame rail. Attach the track bar at the frame rail bracket using a nut and bolt and be sure to tighten the bolt to 169 Nm (125 ft. lbs.). After you remove the support, bring the vehicle down, top off the power steering fluid and have a look at the toe setting.
