How to Service and Repair an Oil Pan on Jeep Wrangler?

First, turn off the negative battery cable and lift the vehicle to service and repair the oil pan. Drain the oil from the engine by taking out the oil pan plug and next, remove the engine starter motor and the flywheel/torque converter cover. Place a jack stand under the engine vibration damper, placing a 2 x 2 piece of wood underneath and remove the engine mount bolts. Elevate the engine enough with the jack stand so you can work on the oil pan. Remove any transmission oil cooling lines and any oxygen sensor wiring supports that are linked to the oil pan studs and then get at the fasteners and gently lift off the oil pan and gasket. Clean all gasket surfaces on the block and pan and then use four 1/4 x 1 1/2 inch bolts without their heads to make alignment dowels, making a slot in each for easier installation and removal. Insert two dowels into the timing cover and insert two more into the cylinder block. Paint Silicone Rubber Adhesive Sealant Mopar on the corners of the rear main bearing cap and on the joint between the cylinder block and front cover. First, slip the gasket over the dowels onto the block and timing cover and afterwards, set the oil pan over the dowels onto the gasket. Attach the 1/4 inch oil pan fasteners and tighten them to 9.5 Nm (84 in. lbs.), then put in the 5/16 inch oil pan fasteners and tighten them to 15 Nm (132 in. lbs.). Get rid of the dowels, add the oil pan's final 1/4 inch fasteners and tighten them to 9.5 Nm (84 in. lbs.). Place the engine onto the mounts and tighten the through bolts, then lower the jack stand and finally remove the wood. After completing the flywheel and torque converter housing installation, put back the cover and then install the engine starter motor. Attach the exhaust pipe to both the hanger and engine exhaust manifold and then put back any transmission oil cooling lines (if there are any) and oxygen sensor wiring supports. Install the oil pan drain plug and tighten it to 34 Nm (25 ft. lbs.) torque, lower the car, reattach the negative battery cable and add oil to the oil pan so that the level is as indicated. Be very careful around the engine when it is running, so that you do not stand in line with the fan or let your hands touch pulleys, belts or the fan and also avoid wearing loose clothing. Start the engine to check if any leaks develop.

How to Remove and Replace an Oil Pan on Jeep Wrangler?

Before taking out the oil pan, disconnect the negative battery wire and pull the engine's oil level indicator tube. Then, put the vehicle up on a hoist, drain the engine oil and unscrew the oil filter (2). Remove the screws holding the structural plate cover together (1,2) and the plate, without disturbing the lower oil pan bolts. Afterward, detach the bolts (1) that hold the oil pan in place, take out the oil pan and gasket.

OEM Jeep Wrangler Oil Pan

Oil Drain Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Oil Pans found

View related parts
Jeep Wrangler Oil Pan Part Number: 4666153AC
$397.32 MSRP: $583.00
You Save: $185.68 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan - Oil; Engine Oil Pan; Upper Oil Pan; Lower Oil Pan; Pan Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2011 Jeep Wrangler | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X, X-S | 6 Cyl 3.8 L GAS
View related parts
Jeep Wrangler Oil Pan, Upper Part Number: 68313581AB
$166.20 MSRP: $249.00
You Save: $82.80 (34%)
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan, Upper; Upper Oil Pan; Pan Engine Oil Upper; Pan Engine Oil
- Position: Upper
- Replaces: 68313581AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2025 Jeep Wrangler | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon X, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport, Willys, Willys Sport | 3.6L V6, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV)
View related parts
Jeep Wrangler Oil Pan, Upper Part Number: 68078951AC
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan, Upper; Pan Engine Oil; Engine Oil Pan
- Position: Upper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2017 Jeep Wrangler | 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | 6 Cyl 3.6 L GAS
View related parts
Jeep Wrangler Oil Pan Part Number: 53020833AB
$352.66 MSRP: $519.00
You Save: $166.34 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan; Pan Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2000, 1991-1995 Jeep Wrangler | Base, Islander, Renegade, SE, Sahara, Sport | 6 Cyl 4.0 L GAS
View related parts

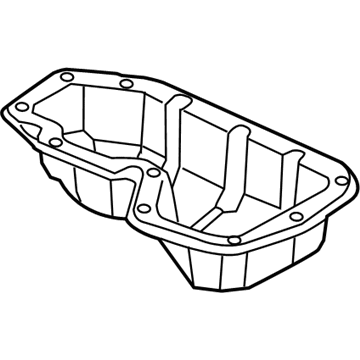

Jeep Wrangler Oil Pan, Lower Part Number: 5184546AD
$159.47 MSRP: $240.00
You Save: $80.53 (34%)
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan, Lower; Engine Oil Pan; Lower Oil Pan
- Position: Lower
- Replaces: 5184546AB, 5184546AC, 5184546AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2018 Jeep Wrangler | 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | 3.6L V6, 6 Cyl 3.6 L GAS
View related parts

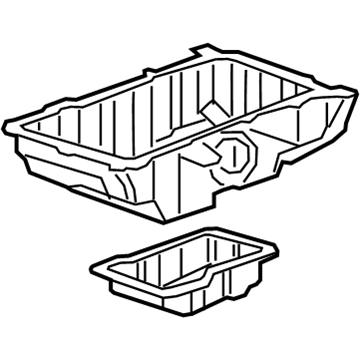

Jeep Wrangler Oil Pan Part Number: 5048692AA
$198.28 MSRP: $296.00
You Save: $97.72 (34%)
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil
- Replaces: 68279934AD, 68279934AB, 68279934AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2025 Jeep Wrangler | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited Islander, Unlimited Rubicon, Unlimited Rubicon 4xe, Unlimited Rubicon X, Unlimited Rubicon X 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Sport S 4xe, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 2.0L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

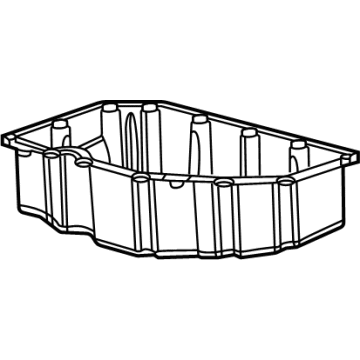

Jeep Wrangler Oil Pan, Lower Part Number: 68504392AA
$87.99 MSRP: $132.00
You Save: $44.01 (34%)
ADD TO CART
Product Specifications
- Other Name: Pan - Oil; Engine Oil Pan, Lower; Lower Oil Pan; Pan Oil Lower
- Position: Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2023 Jeep Wrangler | Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited Islander, Unlimited Rubicon, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport | 6 Cyl 3.0 L DIESEL
View related parts

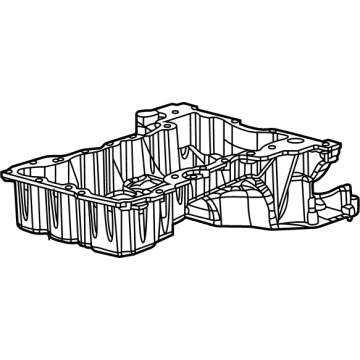

Jeep Wrangler Oil Pan, Upper Part Number: 68504218AA
$228.87 MSRP: $340.00
You Save: $111.13 (33%)
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan, Upper; Upper Oil Pan; Pan Engine Oil Upper
- Position: Upper
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020-2023 Jeep Wrangler | Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited Islander, Unlimited Rubicon, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport | 6 Cyl 3.0 L DIESEL
View related parts

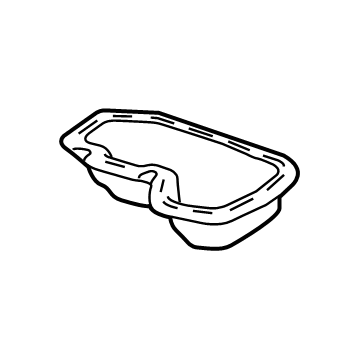

Jeep Wrangler Oil Pan, Lower Part Number: 68313584AD
$61.83 MSRP: $92.85
You Save: $31.02 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan, Lower; Lower Oil Pan; Pan Engine Oil Lower Includes Drain Plug; Pan Engine Oil Lower
- Position: Lower
- Replaces: 68313584AA, 68313584AC, 68313584AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2018-2025 Jeep Wrangler | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon X, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport, Willys, Willys Sport | 3.6L V6, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV)
View related parts
Jeep Wrangler Oil Pan Part Number: 53020831
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan; Pan, Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1987-1995 Jeep Wrangler | Base, Islander, Laredo, Rio Grande, S, SE, Sahara, Sport | 4 Cyl 2.5 L GAS
View related parts
Jeep Wrangler Oil Pan Part Number: 53010491AA
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan; Pan Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2006 Jeep Wrangler | SE | 4 Cyl 2.4 L GAS
View related parts
Jeep Wrangler Oil Pan Part Number: 53010340AB
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan; Pan Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2000-2006 Jeep Wrangler | 65th Anniversary Edition, Rubicon, SE, Sahara, Sport, Unlimited, Unlimited Rubicon, X | 6 Cyl 4.0 L GAS
View related parts

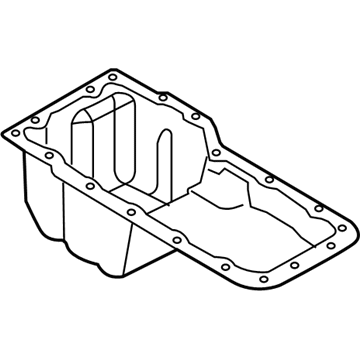

Jeep Wrangler Oil Pan Part Number: 4893207AC
$233.40 MSRP: $348.00
You Save: $114.60 (33%)
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2021-2024 Jeep Wrangler | Unlimited Rubicon 392 | 8 Cyl 6.4 L GAS
View related parts

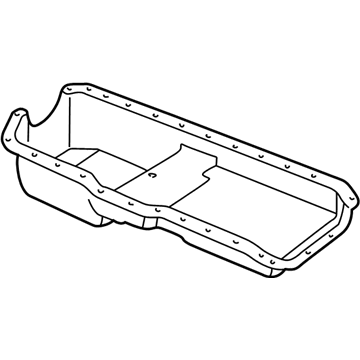

Jeep Wrangler Oil Pan Part Number: J3243152
Product Specifications
- Other Name: Pan Oil Engine Oil; Pan, Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1987-1990 Jeep Wrangler | Base, Islander, Laredo, S, Sahara, Sport | 6 Cyl 4.2 L GAS
View related parts
Jeep Wrangler Oil Pan Part Number: 53020560
Product Specifications
- Other Name: Pan - Engine Oil; Engine Oil Pan; Pan, Engine Oil; Pan Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2002 Jeep Wrangler | SE | 4 Cyl 2.5 L GAS
View related parts
Jeep Wrangler Oil Pan Part Number: 53020108
Product Specifications
- Other Name: Pan Assembly Engine Oil CP; Engine Oil Pan; Pan, Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1995 Jeep Wrangler | Renegade, SE, Sahara | 6 Cyl 4.0 L GAS
View related parts
Jeep Wrangler Upper Oil Pan Part Number: 4666154AB
Product Specifications
- Other Name: Pan - Oil; Oil Pan
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Jeep Wrangler | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X | 6 Cyl 3.8 L GAS
View related parts

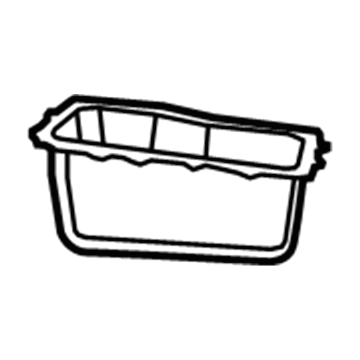

Jeep Wrangler Lower Oil Pan Part Number: 4666021AC
Product Specifications
- Other Name: Pan - Oil; Engine Oil Pan, Lower; Oil Pan
- Position: Lower
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Jeep Wrangler | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X | 6 Cyl 3.8 L GAS

Jeep Wrangler Oil Pan

Choose OEM Oil Pan that meet Jeep factory standards. Jeep designs and tests every component for precision and durability. Each Oil Pan follows strict manufacturing steps to lock in quality and fit. If your Jeep Wrangler matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Wrangler parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Oil Pan in Jeep Wrangler vehicles is used in holding the engine oil in place to facilitate adequate lubrication of the motor parts. Located at the immediate bottom of the engine, the Oil Pan acts to avoid oil from dripping off the lubrication system. It has a place for the drain plug to allow for easy draining of the oil but over-tightening of this plug causes wear of the gasket and the Oil Pan. Therefore, a variety of styles of Oil Pan have been used in the different Jeep Wrangler models in the different years. The standard design has reasonable efficiency, yet problems like oil sloshing during intense cornering for example can be noticed, which can interfere with lubrication. To eliminate these problems, other systems such as 'dry sump' are used in high performance applications using scavenge pumps for constant supply of oil.

Jeep Wrangler Oil Pan Parts and Q&A

Oil Pan
53020833AB
Q: How to Service and Repair an Oil Pan on Jeep Wrangler?
A:
First, turn off the negative battery cable and lift the vehicle to service and repair the oil pan. Drain the oil from the engine by taking out the oil pan plug and next, remove the engine Starter Motor and the Flywheel/torque converter cover. Place a jack stand under the engine vibration damper, placing a 2 x 2 piece of wood underneath and remove the Engine Mount bolts. Elevate the engine enough with the jack stand so you can work on the oil pan. Remove any transmission oil cooling lines and any oxygen sensor wiring supports that are linked to the oil pan studs and then get at the fasteners and gently lift off the oil pan and gasket. Clean all gasket surfaces on the block and pan and then use four 1/4 x 1 1/2 inch bolts without their heads to make alignment dowels, making a slot in each for easier installation and removal. Insert two dowels into the timing cover and insert two more into the cylinder block. Paint Silicone Rubber Adhesive Sealant Mopar on the corners of the rear main bearing cap and on the joint between the cylinder block and front cover. First, slip the gasket over the dowels onto the block and timing cover and afterwards, set the oil pan over the dowels onto the gasket. Attach the 1/4 inch oil pan fasteners and tighten them to 9.5 Nm (84 in. lbs.), then put in the 5/16 inch oil pan fasteners and tighten them to 15 Nm (132 in. lbs.). Get rid of the dowels, add the oil pan's final 1/4 inch fasteners and tighten them to 9.5 Nm (84 in. lbs.). Place the engine onto the mounts and tighten the through bolts, then lower the jack stand and finally remove the wood. After completing the flywheel and torque converter housing installation, put back the cover and then install the engine starter motor. Attach the Exhaust Pipe to both the hanger and engine Exhaust Manifold and then put back any transmission oil cooling lines (if there are any) and oxygen sensor wiring supports. Install the oil pan drain plug and tighten it to 34 Nm (25 ft. lbs.) torque, lower the car, reattach the negative battery cable and add oil to the oil pan so that the level is as indicated. Be very careful around the engine when it is running, so that you do not stand in line with the fan or let your hands touch pulleys, belts or the fan and also avoid wearing loose clothing. Start the engine to check if any leaks develop.
Oil Pan
4666153AC
Q: How to Remove and Replace an Oil Pan on Jeep Wrangler?
A:
Before taking out the oil pan, disconnect the negative battery wire and pull the engine's oil level indicator tube. Then, put the vehicle up on a hoist, drain the engine oil and unscrew the Oil Filter (2). Remove the screws holding the structural plate cover together (1,2) and the plate, without disturbing the lower oil pan bolts. Afterward, detach the bolts (1) that hold the oil pan in place, take out the oil pan and gasket.
