How to Disassemble and Assemble an ABS Control Module for Service and Repair on 2001 Jeep Cherokee?

Remove the pump motor connector from the Controller Antilock Brake, remove the HCU mounting screws and then take off the Controller Antilock Brake unit from the HCU. First, put the CAB onto the HCU, then tighten it down with the mounting screws to 1.8 Nm (16 inch lbs.) and finally connect the motor of the pump back to the CAB.

OEM 2001 Jeep Cherokee ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 ABS Control Module found

View related parts

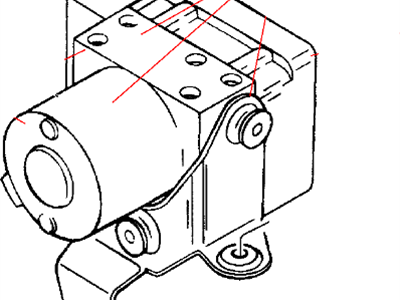

2001 Jeep Cherokee Hydraulic Unit Part Number: 52128138AE
Product Specifications
- Other Name: Control U - Anti-Lock Brake; ABS Pump And Motor Assembly; ABS Control Module; ABS Pump Assembly; Control Unit Anti-Lock Brake
- Replaces: 52128138AD
- Item Weight: 2.20 Pounds
- Item Dimensions: 8.8 x 7.6 x 6.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 52128138AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
More Info
Fits the following 2001 Jeep Cherokee Submodels:
- Classic, Country, Limited, SE, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS

2001 Jeep Cherokee ABS Control Module Parts and Q&A

Q: How to Disassemble and Assemble an ABS Control Module for Service and Repair on 2001 Jeep Cherokee?
A: Remove the pump motor connector from the Controller Antilock Brake, remove the HCU mounting screws and then take off the Controller Antilock Brake unit from the HCU. First, put the CAB onto the HCU, then tighten it down with the mounting screws to 1.8 Nm (16 inch lbs.) and finally connect the motor of the pump back to the CAB.
