How to Remove Rear Suspension Coil Springs on Chrysler PT Cruiser?

First, raise the vehicle so its suspension is rounded off the ground to replace the coil springs. After that, get rid of the wheel mounting nuts and remove the rear tire and wheel assembly on each side. Removing the bolt, nut and washer connects three the watts link bell crank to the central axle. When there is a rear stabilizer bar, take out the bolt fixing the bar's cushion retainer to the axle on both sides, then lift each retainer out of the axle so the bar is hanging freely. Put a transmission jack or its equivalent under the axle and lift it until the axle is held up. Then on each end, take out the lower bolt, nut and washer that hold the shock absorber to the car's axle. Remove the lower jack support so the coil springs can be taken out of the axle and at the end, take off the coil springs and rubber isolators.

How to Install Rear Coil Springs on Chrysler PT Cruiser?

Before installing the rear coil springs, place a rubber isolator on both ends so the rubber fingers go around the spring and the rubber abutment touches the flat part of the spring. Both dual ends of the coil spring are alike, so the spring can be oriented with the same design as the top or bottom. With the axle spring perches in place, fit the coil springs on top so the springs are facing the correct way on the car. Make sure each upper coil end is by the outside edge of the car by rotating the springs with the rubber isolators until their flat end lines up with an imaginary line parallel to the axle beam. Place a transmission jack under the coil springs, move it until the mounting bracket holes align with the shock absorber lower mounting eyes and use a jack to attach lower mounting bolts with axle adapter brackets through both. Raise the jack so that the shock absorber lower mounting bolts are ready to be inserted, connect a washer and nut to each end of them and tighten everything to 88 Nm (65 ft. lbs.). Once the jack is removed, if a rear stabilizer bar is there, place the lower ends of both stabilizer bar retainers into the slots at the rear of the axle and angle the tops upward to set in the bolts, tightening them to 61 Nm (45 ft. lbs.). When installing both the watts links and bell crank to the axle, set the bell crank so that "BACK UP" can be read from the back above the axle. Cap the watts link bell crank to the axle by putting a bolt, washer and nut in the center and tightening them to 149 Nm (110 ft. lbs.). With the vehicle on a lift, fit the tires and wheels on both sides, tightening their mount nuts to 135 Nm (100 ft. lbs.). When you lower the vehicle, check that it is at the correct height from the curb.

OEM Chrysler PT Cruiser Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

43 Coil Springs found

View related parts

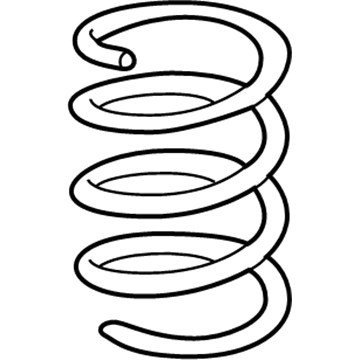

Chrysler PT Cruiser Coil Spring, Front Part Number: 4656529AD
$4.56 MSRP: $84.55
You Save: $79.99 (95%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs
- Position: Front
- Replaces: 4656529AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Spring, Front Part Number: 4656529AE
$15.24 MSRP: $96.60
You Save: $81.36 (85%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front Coil; Coil Springs
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5105052AB
$11.23 MSRP: $64.40
You Save: $53.17 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 4656523AD
$11.68 MSRP: $66.95
You Save: $55.27 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Replaces: 4656523AC, 4656523AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Rear Part Number: 5272451AB
$12.31 MSRP: $70.60
You Save: $58.29 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Replaces: 5272451AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2009 Chrysler PT Cruiser | Base, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts

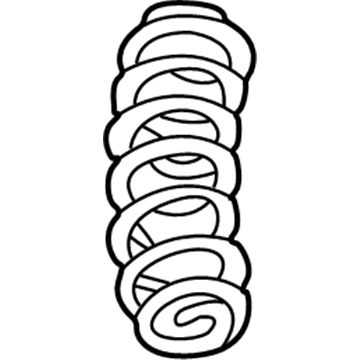

Chrysler PT Cruiser Coil Spring, Rear Part Number: 5272885AA
$13.70 MSRP: $78.60
You Save: $64.90 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2008 Chrysler PT Cruiser | Base, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 4656526AF
$19.54 MSRP: $61.95
You Save: $42.41 (69%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Front Coil; Coil Spring, Front; Coil Springs; Spring
- Position: Front
- Replaces: 4656526AC, 4656526AD, 4656526AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Rear Part Number: 4656542AC
$56.28 MSRP: $89.20
You Save: $32.92 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Replaces: 4656542AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Rear Part Number: 4656543AC
$46.60 MSRP: $66.85
You Save: $20.25 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Replaces: 4656543AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5105051AB
Product Specifications
- Other Name: Spring - Front Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5105055AB
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Spring Set; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 4656522AB
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Chrysler PT Cruiser | Base, Dream Cruiser, GT, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5272461AC
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring Front Suspension Coil
- Position: Front
- Replaces: 5272461AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5272710AB
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Spring Kit Front; Coil Spring Set; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Replaces: 5272710AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 4656528AD
Product Specifications
- Other Name: Spring - Front Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Coil
- Position: Front
- Replaces: 4656528AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 4656527AD
Product Specifications
- Other Name: Spring - Front Coil; Coil Spring, Front; Coil Spring Kit Front; Coil Spring Set; Coil Springs; Spring; Spring Front Coil
- Position: Front
- Replaces: 4656527AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chrysler PT Cruiser | 2.4L L4
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5105054AB
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Rear Part Number: 5272454AB
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2009 Chrysler PT Cruiser | Base, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Rear Part Number: 4656541AC
Product Specifications
- Other Name: Spring - Rear Coil; Coil Spring, Rear; Coil Springs; Spring; Spring Rear Coil
- Position: Rear
- Replaces: 4656541AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2010 Chrysler PT Cruiser | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler PT Cruiser Coil Spring, Front Part Number: 5105057AB
Product Specifications
- Other Name: Spring - Front Suspension Coil; Coil Spring, Front; Coil Springs; Spring; Spring Front Suspension Coil
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2008 Chrysler PT Cruiser | Base, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS

| Page 1 of 3 |Next >

1-20 of 43 Results

Chrysler PT Cruiser Coil Springs

Choose OEM Coil Springs that meet Chrysler factory standards. Chrysler designs and tests every component for precision and durability. Each Coil Springs follows strict manufacturing steps to lock in quality and fit. If your Chrysler PT Cruiser matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine PT Cruiser parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Chrysler PT Cruiser Coil Springs are part pieces that bear the weight of the car and the bumps on the surface, to tire and cause the saggins and unbalance, changing the height of the car. Coil springs vary in design and their stiffness or rate of compression which including the linear rate spring, the progressive spring, and the dual rate spring. Often times coil springs may wear out or get damaged, and by getting OEM spec replacement or even better, going for variable rate or cargo coils; the drivers stand to gains enhanced ride, better handling and correct wheel alignment. Also, there are adjustable coilovers and height adjustable springs and these are great for maintaining the adjustability of gap in between the tires and the fenders for different wheel and tires.

Chrysler PT Cruiser Coil Springs Parts and Q&A

Coil Spring, Rear
4656542AC
Q: How to Remove Rear Suspension Coil Springs on Chrysler PT Cruiser?
A:
First, raise the vehicle so its suspension is rounded off the ground to replace the coil springs. After that, get rid of the wheel mounting nuts and remove the rear tire and wheel assembly on each side. Removing the bolt, nut and washer connects three the watts link bell crank to the central axle. When there is a rear stabilizer bar, take out the bolt fixing the bar's cushion retainer to the axle on both sides, then lift each retainer out of the axle so the bar is hanging freely. Put a transmission jack or its equivalent under the axle and lift it until the axle is held up. Then on each end, take out the lower bolt, nut and washer that hold the Shock Absorber to the car's axle. Remove the lower jack support so the coil springs can be taken out of the axle and at the end, take off the coil springs and rubber isolators.
Coil Spring, Rear
4656543AC
Q: How to Install Rear Coil Springs on Chrysler PT Cruiser?
A:
Before installing the rear coil springs, place a rubber isolator on both ends so the rubber fingers go around the spring and the rubber abutment touches the flat part of the spring. Both dual ends of the coil spring are alike, so the spring can be oriented with the same design as the top or bottom. With the axle spring perches in place, fit the coil springs on top so the springs are facing the correct way on the car. Make sure each upper coil end is by the outside edge of the car by rotating the springs with the rubber isolators until their flat end lines up with an imaginary line parallel to the axle beam. Place a transmission jack under the coil springs, move it until the mounting bracket holes align with the shock absorber lower mounting eyes and use a jack to attach lower mounting bolts with axle adapter brackets through both. Raise the jack so that the shock absorber lower mounting bolts are ready to be inserted, connect a washer and nut to each end of them and tighten everything to 88 Nm (65 ft. lbs.). Once the jack is removed, if a rear stabilizer bar is there, place the lower ends of both stabilizer bar retainers into the slots at the rear of the axle and angle the tops upward to set in the bolts, tightening them to 61 Nm (45 ft. lbs.). When installing both the watts links and bell crank to the axle, set the bell crank so that "BACK UP" can be read from the back above the axle. Cap the watts link bell crank to the axle by putting a bolt, washer and nut in the center and tightening them to 149 Nm (110 ft. lbs.). With the vehicle on a lift, fit the tires and wheels on both sides, tightening their mount nuts to 135 Nm (100 ft. lbs.). When you lower the vehicle, check that it is at the correct height from the curb.
