How to service and repair the rear axle Wheel Bearings on a 248 RBI on Dodge Ram 1500 Van?

Before servicing the rear axle bearings on a 248 RBI, take off the wheel and tire and then remove the brake drum. Following this, disconnect the axle shaft and, using Socket DD-1241-JD, take out the lock wedge and adjustment nut. You can then take off the hub assembly so the outer axle bearing can be removed. Throw away the grease seal and use Installers 5064 and C-4171 to drive the grease seal and the inner bearing out of the hub and hand tighten the nut. Bearing cups are removed from the hub bore with a brass drift or the proper removal tool. Before putting the bearing cups in with Tools 8151 and Handle C-4171, use a certain cleaning solvent to clean both the axle bearings and the inside of each hub. Add Mopar wheel bearing grease or an alternative to the inner and outer bearing areas and grease the outer and inner surfaces of each bearing cup. Having installed the inner axle bearing in the hub, fit a fresh grease seal, press the seal in with Installer 8149 and Handle C-4171. Check along the bearing and seal sides of the axle tube for any roughness or burrs and remove any you find. Closely line up the hub and axle, but do not touch the grease seal to the sides of the axle tube threads as you install them. First install the outer axle bearing, then put on the hub bearing adjustment nut with DD-1241-JD, tightening it to 163 - 190 Nm (120 - 140 ft. lbs.) while you rotate the wheel. Make one or two small revolutions with the adjustment nut to obtain 0.025 - 0.250 mm (0.001 - 0.009 in.) wheel bearing end play and align the locking wedge with the keyway and nut. Then, put back the axle shaft, brake drum and wheel and tire assembly.

OEM Dodge Ram 1500 Van Wheel Bearing

Hub Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Wheel Bearings found

View related parts
Dodge Ram 1500 Van Wheel Bearing, Rear Part Number: 3507898AB
$57.95 MSRP: $87.55
You Save: $29.60 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing - Axle Shaft; Drive Axle Shaft Bearing, Rear; Differential Bearing; Axle Bearing; Axle Bearings; Bearing Assembly; Differential Cover Bearing; Bearing; Bearing Axle Shaft; Bearing Wheel
- Position: Rear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Wheel Bearing, Rear Inner Part Number: 927017
$92.58 MSRP: $117.36
You Save: $24.78 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing - Wheel; Wheel Bearing, Rear Inner; Axle Bearing; Bearings; Wheel Bearings; Rear Wheel Bearing; Axle Bearings; Bearing Cup; Cone And Roller.
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2003, 1999 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Wheel Bearing, Rear Inner Part Number: 2852729
$63.25 MSRP: $82.80
You Save: $19.55 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing - Wheel; Wheel Bearing, Rear Inner, Rear Outer; Multi-Purpose Bearing; Axle Bearing; Bearings; Wheel Bearings; Rear Wheel Bearing; Cone & Roller, Inner/Outer (Lm104949); Hub & Bearing.
- Position: Rear Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Wheel Bearing, Front Outer Part Number: 3683974
$18.25 MSRP: $23.14
You Save: $4.89 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing - Wheel Bearing Outer; Front Outer; Differential Pinion; Multi-Purpose; Race; Set; Axle.; Wheel Bearings; Outer, Except 4000 Lb. Axle; Cone And Cup, Outer Package W/ 5 Stud Hub.
- Position: Front Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Axle Bearing Part Number: 4117858
$28.36 MSRP: $35.96
You Save: $7.60 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing - Wheel; Differential Pinion Bearing; Wheel Bearing; Axle Bearings; Bearing; Bearing, Drive Shaft 1984; Bearing, Drive Shaft; Bearing Wheel
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts

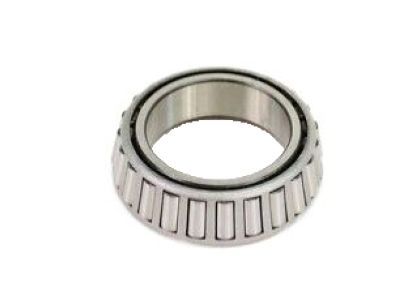

Dodge Ram 1500 Van Wheel Bearing, Front Inner Part Number: 52009574
Product Specifications
- Other Name: Bearing - Wheel; Wheel Bearing and Race Set, Front Inner; Wheel Bearing, Front Inner; Axle Bearing; Bearings; Wheel Bearings; Bearing Wheel
- Position: Front Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts

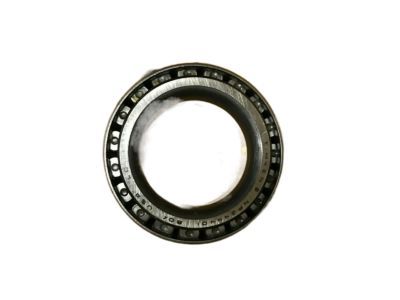

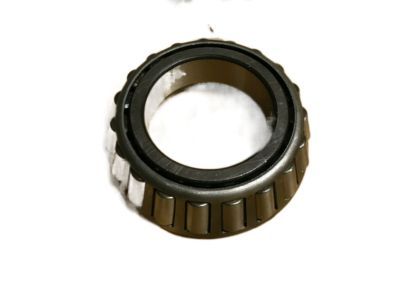

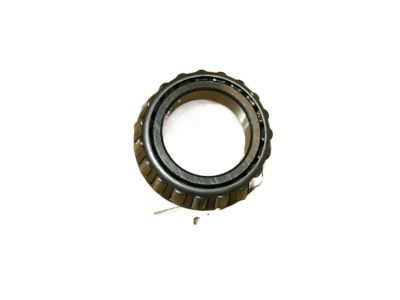

Dodge Ram 1500 Van Wheel Bearing, Front Outer Part Number: 52009573
Product Specifications
- Other Name: Bearing - Wheel; Wheel Bearing, Front Outer; Multi-Purpose Bearing; Axle Bearing; Bearings; Wheel Bearings; Bearing Wheel
- Position: Front Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2003 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Wheel Bearing, Front Inner Part Number: 1937771
Product Specifications
- Other Name: Bearing - Wheel; Front Inner Wheel Bearing and Race Set; Axle Bearing.; Wheel Bearings; Front Wheel Bearing; Differential Bearings; Inner Bearing; Cone And Roller.
- Position: Front Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Ram 1500 Van Wheel Bearing, Front Outer Part Number: 1790546
Product Specifications
- Other Name: Bearing - Wheel; Wheel Bearing, Front Outer; Axle Bearing; Bearings; Wheel Bearings; Front Outer Bearing; Cone and Cup Package, except 4000 lb. axle; 5 Stud Hub.
- Position: Front Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999 Dodge Ram 1500 Van | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS

Dodge Ram 1500 Van Wheel Bearing

Choose OEM Wheel Bearing that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Wheel Bearing follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 1500 Van matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 1500 Van parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Ram 1500 Van Wheel Bearing Parts and Q&A

Wheel Bearing, Rear
3507898AB
Q: How to service and repair the rear axle Wheel Bearings on a 248 RBI on Dodge Ram 1500 Van?
A:
Before servicing the rear axle bearings on a 248 RBI, take off the wheel and tire and then remove the brake drum. Following this, disconnect the axle shaft and, using Socket DD-1241-JD, take out the lock wedge and adjustment nut. You can then take off the hub assembly so the outer axle bearing can be removed. Throw away the grease seal and use Installers 5064 and C-4171 to drive the grease seal and the inner bearing out of the hub and hand tighten the nut. Bearing cups are removed from the hub bore with a brass drift or the proper removal tool. Before putting the bearing cups in with Tools 8151 and Handle C-4171, use a certain cleaning solvent to clean both the axle bearings and the inside of each hub. Add Mopar wheel bearing grease or an alternative to the inner and outer bearing areas and grease the outer and inner surfaces of each bearing cup. Having installed the inner axle bearing in the hub, fit a fresh grease seal, press the seal in with Installer 8149 and Handle C-4171. Check along the bearing and seal sides of the axle tube for any roughness or burrs and remove any you find. Closely line up the hub and axle, but do not touch the grease seal to the sides of the axle tube threads as you install them. First install the outer axle bearing, then put on the hub bearing adjustment nut with DD-1241-JD, tightening it to 163 - 190 Nm (120 - 140 ft. lbs.) while you rotate the wheel. Make one or two small revolutions with the adjustment nut to obtain 0.025 - 0.250 mm (0.001 - 0.009 in.) wheel bearing end play and align the locking wedge with the keyway and nut. Then, put back the axle shaft, brake drum and wheel and tire assembly.
