How to Remove and Install a Camshaft Position Sensor on Jeep Grand Cherokee?

The camshaft position sensor is fastened above the oil pump drive shaft on the street car's right side and just beside the oil filter and it only manages fuel synchronization-not the ignition timing. To pull out the sensor, unplug the electric connector, loosen the two bolts and remove it from the oil pump drive. To place the sensor effectively, attach it to the oil pump drive, tighten the two bolts to 2 Nm (15 in. lbs.) and reconnect its electrical wire. If you remove both the Cmp and the oil pump drive, be sure not to let the engine crankshaft or camshaft spin while the Cmp sensor is unattached. First, take out the sensor's electrical connector, loosen the two bolts and take off the sensor from the oil pump drive. First, find the angle of the oil pump drive as it relates to the engine housing before you unbolt and release the clamp. Be sure to observe where the pulse ring and the slot at the top of the oil pump gear point when the assembly comes out of the engine. Get rid of the oil pump drive-to-engine block gasket that is now old. For mounting, clean the hole where the oil pump drive hook fits, insert a new gasket and temporarily put a toothpick through the access hole until it fits the pulse ring. Slide the oil pump drive into the engine, checking that it fits with the oil pump slot and fasten the hold-down clamp bolt only snugly, without tightening fully. Should the engine crankshaft or camshaft rotate, take out the ignition coil rail assembly and the spark plug from cylinder number 1 and rotate the engine until both the timing index mark and the Tdc mark are in alignment. Replace the oil pump drive, checking that it touches the engine block as you slide it and then fit the sensor at the back of the engine, tighten both bolts to 2 Nm (15 in. lbs.) and restart the electrical connection. After removing the spark plug and coil rail, install them again. To make sure the oil pump drive is in the right position, mount the Drb scan tool to the data link connector in the passenger area, select Set Sync, start the engine and let it warm up. With the engine running in idle, In Range will show up on the screen, along with the 00 indicating the oil pump is in place. When you see a plus (+) or minus (-) by the degree number, release the hold-down clamp bolt and turn the oil pump drive until In Range is displayed and it is close to 0. After that, tighten the hold-down clamp bolt to 23 Nm (17 ft. lbs.).

How to Install a Camshaft Position Sensor on Jeep Wrangler?

Make sure to check the sleeve for any damage first and if you see anything wrong, replace it with a new one, lubed with clean engine oil, before putting in the new sensor. To avoid any problems, clean the old spacer from the sensor, put a New Spacer in its place and observe the instructions for sensor installation, since this helps set the proper distance of the sensor from the gear ring on the camshaft. After putting the camshaft position sensor into the chain case cover, turn it into place and push it down until it touches the camshaft gear. When the sensor is secured in position, put the retaining bolt in and tighten it to 14 Nm (125 in. lbs.). After connecting the electrical connector to the Cmp sensor, join the negative battery cable and tighten the attaching nut to 5 Nm. Performing the Cam/Crank Variation Relearn process is required after changing or replacing the flywheel, valvetrain, camshaft or crankshaft sensors.

OEM Jeep Camshaft Position Sensor

Cam Position Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Camshaft Position Sensors found

View related parts

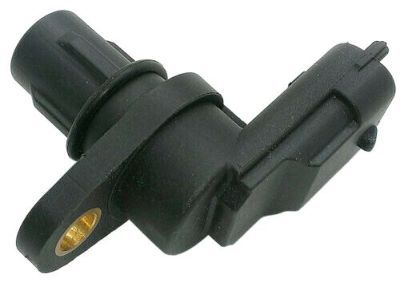

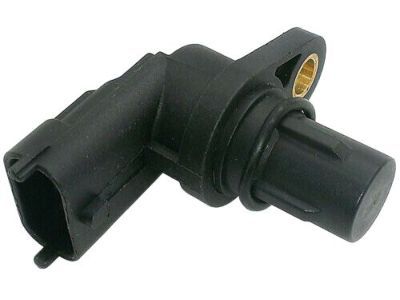

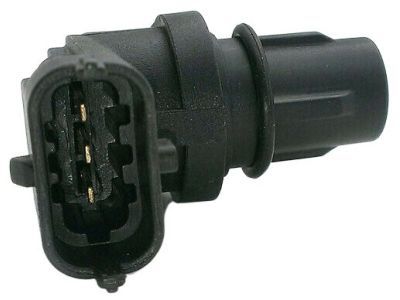

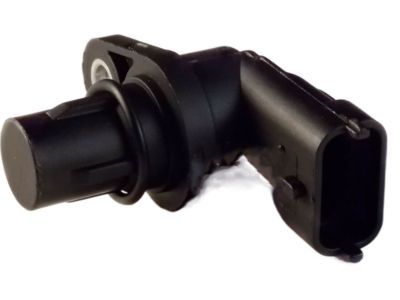

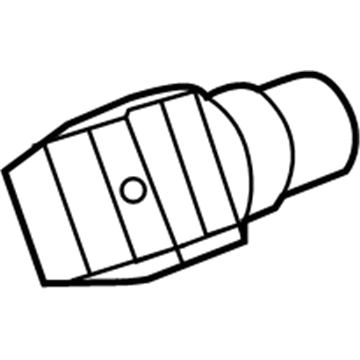

Jeep Camshaft Position Sensor Part Number: 5140332AA
$81.17 MSRP: $124.00
You Save: $42.83 (35%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
- Replaces: 5066856AB
Fits the following Jeep Models:
- Gladiator | 2021-2023 | 80th Anniversary, Altitude, High Altitude, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport | 6 Cyl 3.0 L DIESEL
- Grand Cherokee | 2014-2019 | High Altitude, Limited, Overland, Summit, Trailhawk | 6 Cyl 3.0 L DIESEL
- Liberty | 2003-2006 | Limited, Sport | 4 Cyl 2.8 L DIESEL
- Wrangler | 2020-2023 | Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited Islander, Unlimited Rubicon, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport | 6 Cyl 3.0 L DIESEL
View More
View related parts

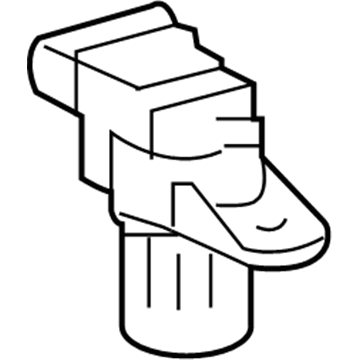

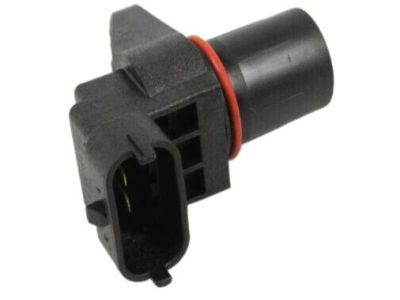

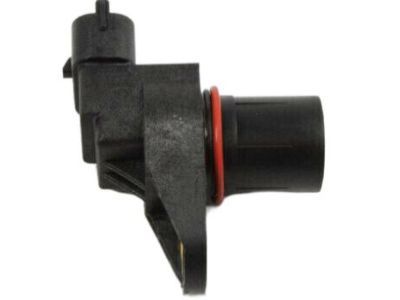

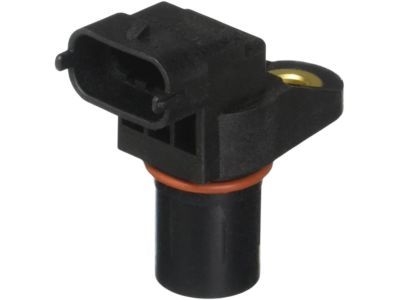

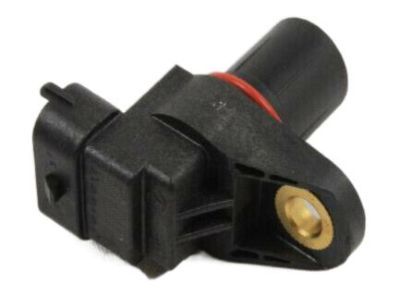

Jeep Camshaft Position Sensor Part Number: 5175762AA
$172.22 MSRP: $259.00
You Save: $86.78 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Sensor, Camshaft Positionition; Camshaft Sensor; Cam Sensor; Sensor Camshaft
Fits the following Jeep Models:
- Grand Cherokee | 2009, 2007 | Laredo, Limited, Overland | 6 Cyl 3.0 L DIESEL
View related parts
Jeep Camshaft Position Sensor Part Number: 5149141AF
$100.44 MSRP: $148.00
You Save: $47.56 (33%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
Fits the following Jeep Models:
- Cherokee | 2014-2022 | 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Latitude Plus, Limited, Overland, Sport, Trailhawk, Trailhawk Elite, Upland, X | 6 Cyl 3.2 L GAS
- Gladiator | 2020-2025 | 80th Anniversary, Altitude, Freedom, High Altitude, Launch Edition, Mojave, Mojave X, NightHawk, Overland, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys, Willys Sport | 6 Cyl 3.6 L GAS
- Grand Cherokee | 2011-2025 | 75th Anniversary, 80th Anniversary, Altitude, Altitude X, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, Overland Summit, Summit, Summit Reserve, Trailhawk, Upland | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Grand Cherokee L | 2021-2025 | Altitude, Altitude X, Laredo, Laredo X, Limited, Overland, Summit, Summit Reserve | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Grand Cherokee WK | 2022 | Laredo E, Laredo X, Limited | 6 Cyl 3.6 L FLEX
- Wrangler | 2012-2025 | 75th Anniversary, 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon X, Unlimited Sahara, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys Sport, Willys, Willys Sport | 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV)
- Wrangler JK | 2018 | Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | 6 Cyl 3.6 L GAS
View More
View related parts

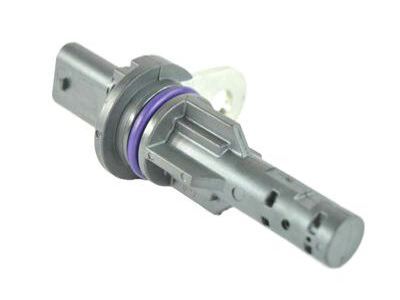

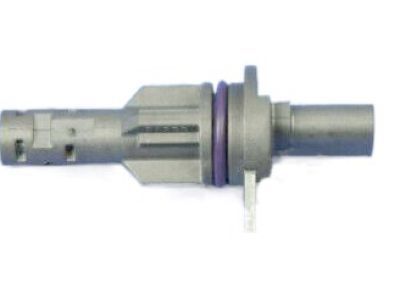

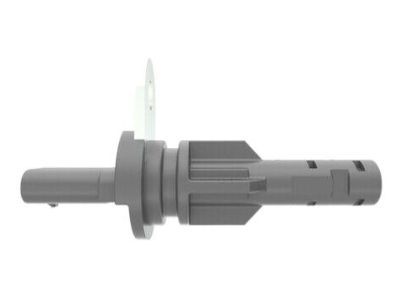

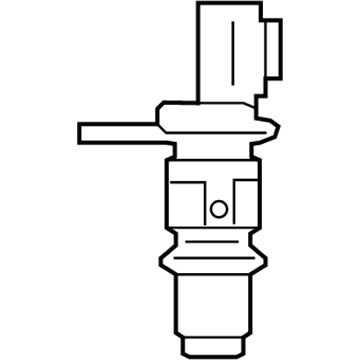

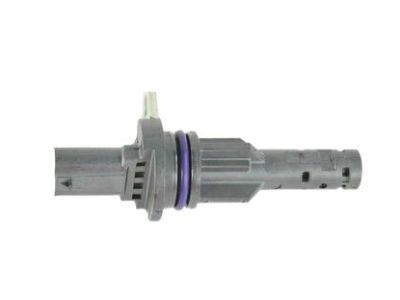

Jeep Camshaft Position Sensor Part Number: 5149054AC
$34.88 MSRP: $51.70
You Save: $16.82 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
- Replaces: 5149054AA, 5149054AB
Fits the following Jeep Models:
- Commander | 2008-2010 | Limited, Overland, Sport | 3.7L V6, 4.7L V8, 5.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
- Grand Cherokee | 2008-2023 | High Altitude, Laredo, Limited, Limited X, Overland, Overland Summit, SRT, SRT8, Summit, Summit Reserve, Trackhawk, Trailhawk | 3.7L V6, 4.7L V8, 5.7L V8, 6 Cyl 3.7 L GAS, 6.1L V8, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
- Grand Cherokee L | 2021-2024 | Overland, Summit, Summit Reserve | 8 Cyl 5.7 L GAS
- Grand Wagoneer | 2022-2023 | Base, Obsidian, Series I, Series II, Series III, Series III Obsidian | 8 Cyl 6.4 L GAS
- Liberty | 2008-2012 | Jet, Limited, Renegade, Sport | 3.7L V6, 6 Cyl 3.7 L GAS
- Wagoneer | 2022-2023 | Base, Series I, Series I Carbide, Series II, Series II Carbide, Series III, Series III Carbide | 8 Cyl 5.7 L MILD HYBRID EV-GAS (MHEV)
- Wrangler | 2021-2024 | Unlimited Rubicon 392 | 8 Cyl 6.4 L GAS
View More
View related parts

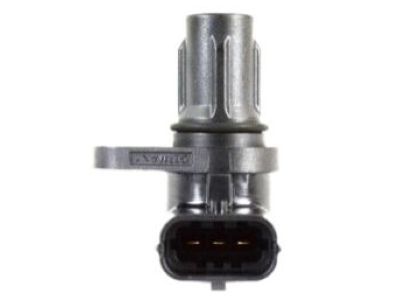

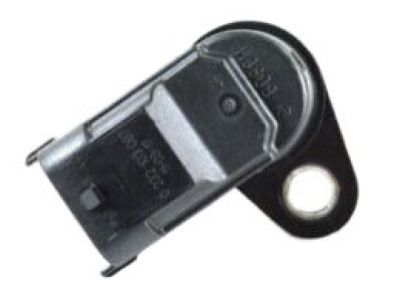

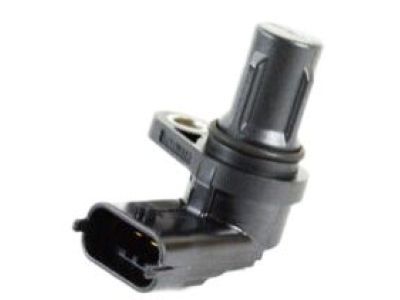

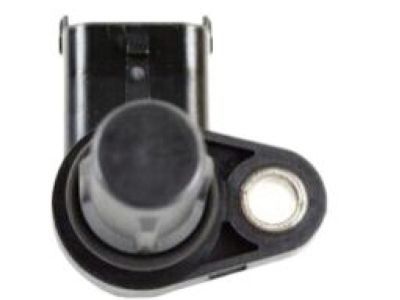

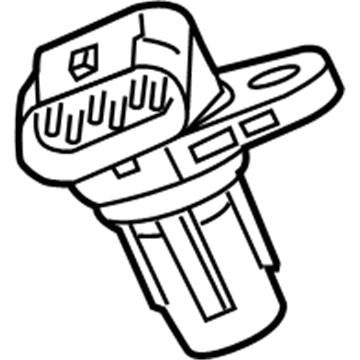

Jeep Camshaft Position Sensor Part Number: 68070491AB
$72.92 MSRP: $109.00
You Save: $36.08 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
- Replaces: 68097616AA, 68070491AA
Fits the following Jeep Models:
- Renegade | 2015-2018 | 75th Anniversary, Altitude, Latitude, Sport | 4 Cyl 1.4 L GAS
View related parts

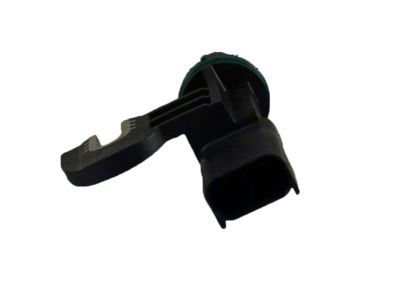

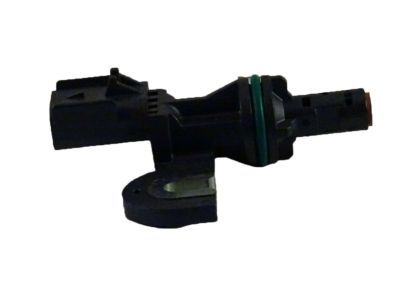

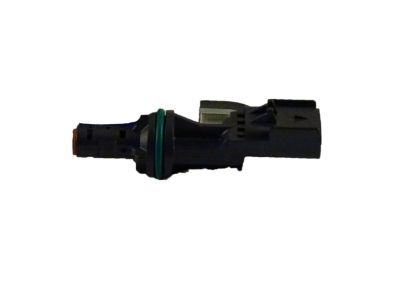

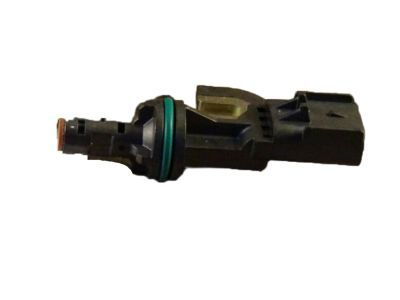

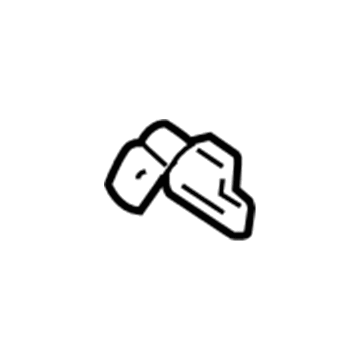

Jeep Camshaft Position Sensor Part Number: 5149078AD
$163.52 MSRP: $226.00
You Save: $62.48 (28%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
- Replaces: 5149078AB, 5149078AA, 5149078AC
Fits the following Jeep Models:
- Wrangler | 2008-2011 | 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X | 3.8L V6, 6 Cyl 3.8 L GAS
View related parts

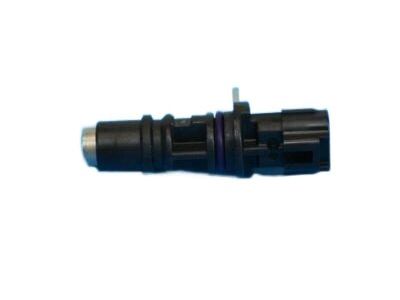

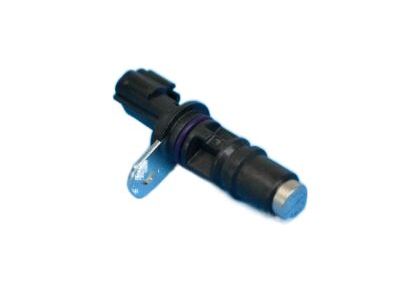

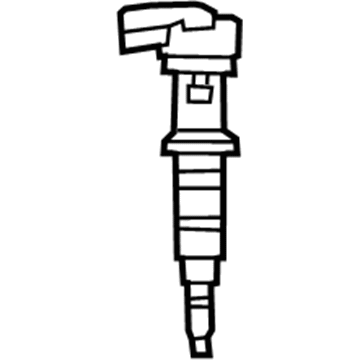

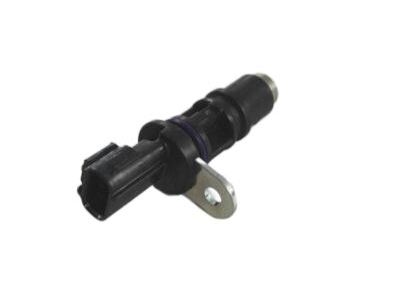

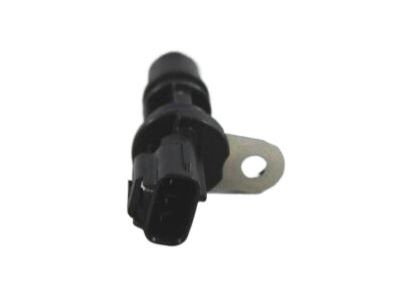

Jeep Camshaft Position Sensor Part Number: 56041584AF
$105.20 MSRP: $158.00
You Save: $52.80 (34%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Sensor; Sensor Camshaft
- Replaces: 56041584AE, 56028133AE, 56028133AD, 56041584AC
Fits the following Jeep Models:
- Commander | 2006-2007 | 65th Anniversary Edition, Base, Limited, Overland, Sport | 3.7L V6, 4.7L V8, 5.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
- Grand Cherokee | 1999-2007 | 65th Anniversary Edition, Laredo, Limited, Overland, SRT8, Special Edition, Sport | 3.7L V6, 4.7L V8, 5.7L V8, 6 Cyl 3.7 L GAS, 6.1L V8, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
- Liberty | 2002-2007 | 65th Anniversary Edition, Limited, Renegade, Rocky Mountain Edition, Sport | 3.7L V6, 6 Cyl 3.7 L GAS
View More
View related parts

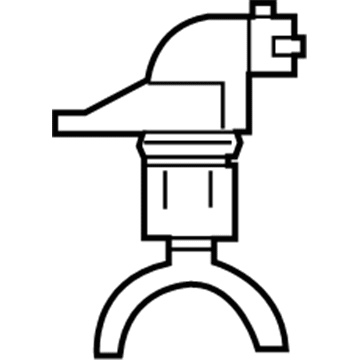

Jeep Camshaft Position Sensor Part Number: 5080346AA
$208.47 MSRP: $309.00
You Save: $100.53 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
- Replaced by: 68407876AA
Fits the following Jeep Models:
- Grand Cherokee | 2008-2009 | Laredo, Limited, Overland | 6 Cyl 3.0 L DIESEL
View related parts

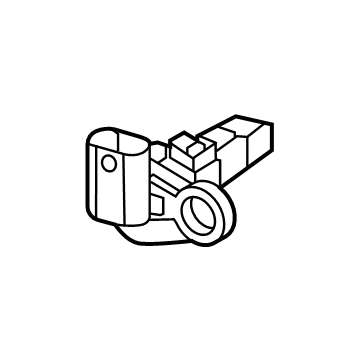

Jeep Camshaft Position Sensor Part Number: 68357700AA
$23.15 MSRP: $34.30
You Save: $11.15 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Camshaft Sensor
Fits the following Jeep Models:
- Grand Wagoneer | 2022-2025 | Base, Obsidian, Series I, Series II, Series III, Series III Obsidian | 6 Cyl 3.0 L GAS
- Grand Wagoneer L | 2023-2025 | Base, Obsidian, Series II, Series III, Series III Obsidian | 6 Cyl 3.0 L GAS
- Wagoneer | 2023-2025 | Base, Carbide, Series II, Series III | 6 Cyl 3.0 L GAS
- Wagoneer L | 2023-2025 | Base, Carbide, Series II, Series III | 6 Cyl 3.0 L GAS
View More
View related parts
Jeep Camshaft Sensor Part Number: 68407876AA
$206.63 MSRP: $309.00
You Save: $102.37 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Sensor, Camshaft Positionition
- Replaces: 5080346AA
Fits the following Jeep Models:
- Grand Cherokee | 2008-2009 | Laredo, Limited, Overland | 6 Cyl 3.0 L DIESEL
View related parts

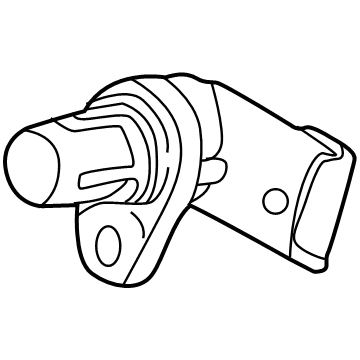

Jeep Crankshaft Position Sensor Part Number: 68590359AA
$34.48 MSRP: $51.45
You Save: $16.97 (33%)
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Camshaft Position Sensor; Camshaft Sensor
- Replaces: 68439853AA, 68503107AA
Fits the following Jeep Models:
- Renegade | 2019-2022 | 80th Anniversary, Altitude, High Altitude, Latitude, Limited, Red, Sport, Trailhawk | 1.3L L4, 4 Cyl 1.3 L GAS
View related parts
Jeep Camshaft Position Sensor Part Number: 68080819AD
$50.63 MSRP: $75.40
You Save: $24.77 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor - Camshaft; Camshaft Sensor
- Replaces: 5033308AB, 68080819AB, 68080819AC
Fits the following Jeep Models:
- Cherokee | 2014-2023 | 75th Anniversary, 80th Anniversary, Altitude, Altitude Lux, High Altitude, Latitude, Latitude Lux, Latitude Plus, Limited, Overland, Sport, Trailhawk, Trailhawk Elite | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Compass | 2007-2025 | 75th Anniversary, 80th Anniversary, Altitude, Base, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Grand Cherokee | 2022-2025 | 30th Anniversary 4xe, 4xe, Anniversary Edition 4xe | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- Patriot | 2007-2017 | 75th Anniversary, Latitude, Latitude X, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Renegade | 2015-2021 | 75th Anniversary, 80th Anniversary, Altitude, Dawn Of Justice, Islander, Jeepster, Latitude, Limited, Sport, Trailhawk, Upland | 2.4L L4, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
- Wrangler | 2018-2025 | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited Islander, Unlimited Rubicon, Unlimited Rubicon 4xe, Unlimited Rubicon X, Unlimited Rubicon X 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Sport S 4xe, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 2.0L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View More
View related parts

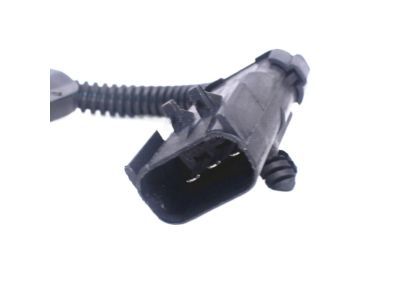

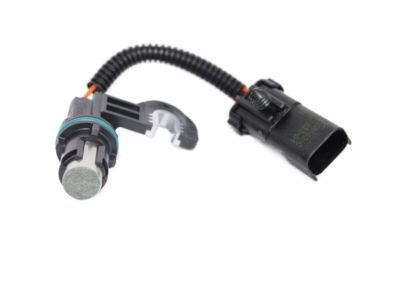

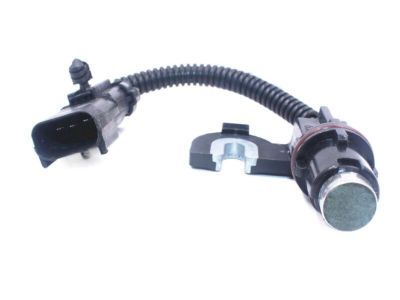

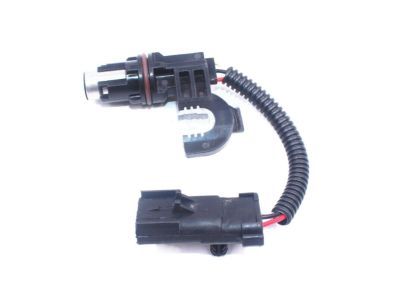

Jeep Camshaft Position Sensor Part Number: 4686353
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Positioni Sensor; Camshaft Sensor; Cam Sensor; Sensor D.I.S. Camshaft Reference; Sensor Camshaft
Fits the following Jeep Models:
- Wrangler | 2007 | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X | 6 Cyl 3.8 L GAS
View related parts

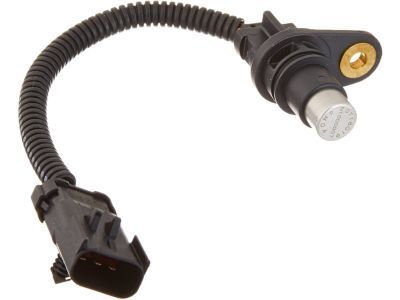

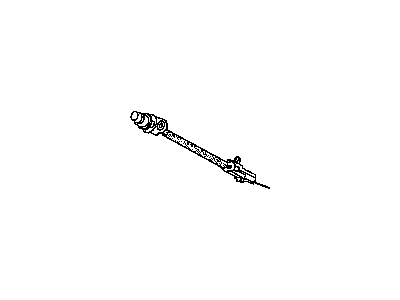

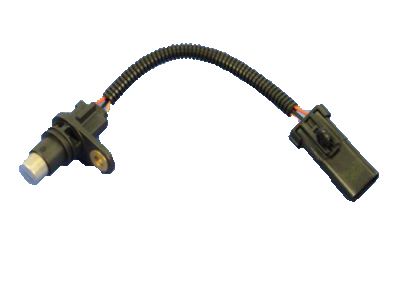

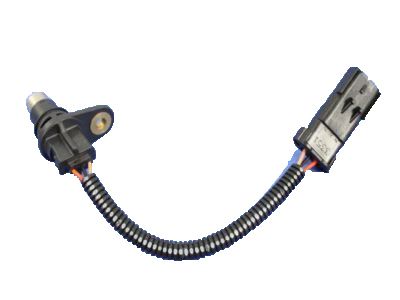

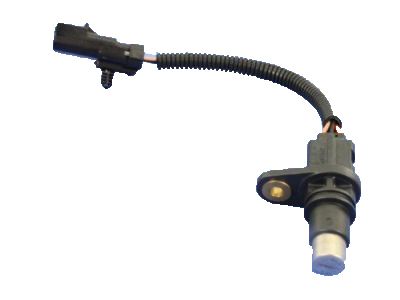

Jeep Camshaft Position Sensor Part Number: 5149034AA
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Positioni Sensor; Camshaft Sensor; Cam Sensor; Sensor Camshaft
Fits the following Jeep Models:
- Wrangler | 2005-2006 | 65th Anniversary Edition, Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | 6 Cyl 4.0 L GAS
View related parts

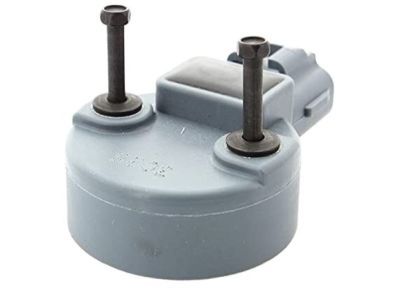

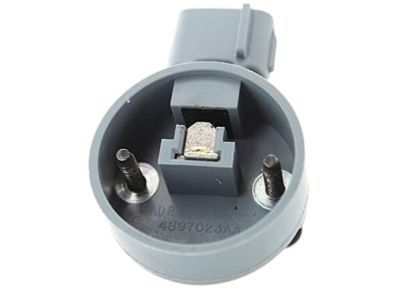

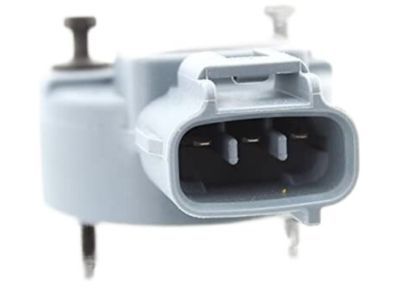

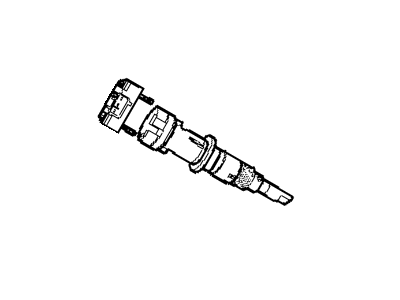

Jeep Camshaft Position Sensor Part Number: 4897023AA
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Cam Sensor; Sensor Camshaft
Fits the following Jeep Models:
- Grand Cherokee | 2000-2004 | Laredo, Limited, Special Edition, Sport | 6 Cyl 4.0 L GAS
- Wrangler | 2000-2004 | Rubicon, Sahara, Sport, Unlimited, X | 6 Cyl 4.0 L GAS
View related parts

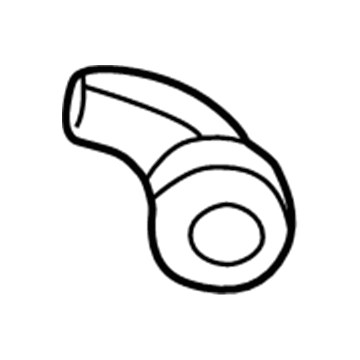

Jeep Camshaft Position Sensor Part Number: 5072759AB
Product Specifications
- Other Name: Sensor - Camshaft; Engine Camshaft Position Sensor; Camshaft Positioni Sensor; Camshaft Sensor; Cam Sensor
- Replaces: 5072759AA
Fits the following Jeep Models:
- Liberty | 2002-2005 | Sport | 2.4L L4, 4 Cyl 2.4 L GAS
- Wrangler | 2003-2006 | SE | 2.4L L4, 4 Cyl 2.4 L GAS

Jeep Camshaft Position Sensor

OEM parts sourced directly from Jeep deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Jeep Camshaft Position Sensor for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Jeep Camshaft Position Sensor Parts and Q&A

Camshaft Position Sensor
56041584AF
Q: How to Remove and Install a Camshaft Position Sensor on Jeep Grand Cherokee?
A:
The camshaft position sensor is fastened above the oil pump drive shaft on the street car's right side and just beside the oil filter and it only manages fuel synchronization-not the ignition timing. To pull out the sensor, unplug the electric connector, loosen the two bolts and remove it from the oil pump drive. To place the sensor effectively, attach it to the oil pump drive, tighten the two bolts to 2 Nm (15 in. lbs.) and reconnect its electrical wire. If you remove both the Cmp and the oil pump drive, be sure not to let the engine crankshaft or camshaft spin while the Cmp sensor is unattached. First, take out the sensor's electrical connector, loosen the two bolts and take off the sensor from the oil pump drive. First, find the angle of the oil pump drive as it relates to the engine housing before you unbolt and release the clamp. Be sure to observe where the pulse ring and the slot at the top of the oil pump gear point when the assembly comes out of the engine. Get rid of the oil pump drive-to-engine block gasket that is now old. For mounting, clean the hole where the oil pump drive hook fits, insert a new gasket and temporarily put a toothpick through the access hole until it fits the pulse ring. Slide the oil pump drive into the engine, checking that it fits with the oil pump slot and fasten the hold-down clamp bolt only snugly, without tightening fully. Should the engine crankshaft or camshaft rotate, take out the ignition coil rail assembly and the spark plug from cylinder number 1 and rotate the engine until both the timing index mark and the Tdc mark are in alignment. Replace the oil pump drive, checking that it touches the engine block as you slide it and then fit the sensor at the back of the engine, tighten both bolts to 2 Nm (15 in. lbs.) and restart the electrical connection. After removing the spark plug and coil rail, install them again. To make sure the oil pump drive is in the right position, mount the Drb scan tool to the data link connector in the passenger area, select Set Sync, start the engine and let it warm up. With the engine running in idle, In Range will show up on the screen, along with the 00 indicating the oil pump is in place. When you see a plus (+) or minus (-) by the degree number, release the hold-down clamp bolt and turn the oil pump drive until In Range is displayed and it is close to 0. After that, tighten the hold-down clamp bolt to 23 Nm (17 ft. lbs.).
Camshaft Position Sensor
5149078AD
Q: How to Install a Camshaft Position Sensor on Jeep Wrangler?
A:
Make sure to check the sleeve for any damage first and if you see anything wrong, replace it with a new one, lubed with clean engine oil, before putting in the new sensor. To avoid any problems, clean the old spacer from the sensor, put a New Spacer in its place and observe the instructions for sensor installation, since this helps set the proper distance of the sensor from the gear ring on the camshaft. After putting the camshaft position sensor into the chain case cover, turn it into place and push it down until it touches the camshaft gear. When the sensor is secured in position, put the retaining bolt in and tighten it to 14 Nm (125 in. lbs.). After connecting the electrical connector to the Cmp sensor, join the negative battery cable and tighten the attaching nut to 5 Nm. Performing the Cam/Crank Variation Relearn process is required after changing or replacing the flywheel, valvetrain, camshaft or crankshaft sensors.
