What Are the Best Practices for Servicing and Repairing Wheel Cylinders on Jeep Wrangler?

When repairing or servicing wheel cylinders, clean them and the pistons using only clean brake fluid or brake cleaner. Air dry the parts using an air can, as rags or shop towels can leave lint on the cylinder bores and pistons. If the bore has light scratches or black stains, that's OK and will not impact how the engine functions; however, if it is pitted, scored or heavily corroded, it needs replacement and a honing treatment should not be attempted. Examine the condition of the piston surfaces; if they are scratched, scored or corroded, remove and replace them instead of attempting to fix them. Throw away the piston cups, spring and expander because they cannot be used again, but you can wash and reuse your original dust boots if they're undamaged.

How to Effectively Service and Repair a Wheel Cylinder on Jeep Cherokee?

After removing the push rods and boots, press the pistons, cups and spring and expander out of the cylinder bore, then take out the bleed screw. To set up, lubricate the wheel cylinder bore, pistons, piston cups and spring and expander with clean brake fluid before use. Sing the first piston into the cylinder bore and put the first cup on, with the cup's lip toward the spring and expander and the flat side touching the piston. After that, attach the spring and expander and finish the installation with the last piston cup and piston. Next, set the boots onto the ends of the cylinder, pass the push rods through the boots and restore the cylinder bleed screw.

OEM Jeep Wheel Cylinder

Brake Wheel Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Wheel Cylinders found

View related parts
Jeep Wheel Cylinder Part Number: 4761749AB
$64.01 MSRP: $91.80
You Save: $27.79 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder - Wheel; Wheel Cylinder Repair Kit
Fits the following Jeep Models:
- Cherokee | 1992-1996, 1984-1990 | Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Comanche | 1986-1992 | Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Grand Cherokee | 1993-1994 | Base, Laredo, Limited, SE | 6 Cyl 4.0 L GAS, 8 Cyl 5.2 L GAS
- Wrangler | 1987-1990 | Base, Islander, Laredo, S, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
View More
View related parts
Jeep Wheel Cylinder Part Number: 4761748AB
$65.63 MSRP: $112.00
You Save: $46.37 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder - Wheel; Wheel Cylinder Repair Kit
Fits the following Jeep Models:
- Cherokee | 1992-1996, 1984-1990 | Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Comanche | 1986-1992 | Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS | 4 Cyl 2.1 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.0 L GAS
- Grand Cherokee | 1993-1994 | Base, Laredo, Limited, SE | 6 Cyl 4.0 L GAS, 8 Cyl 5.2 L GAS
- Wrangler | 1987-1990 | Base, Islander, Laredo, S, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
View More
View related parts

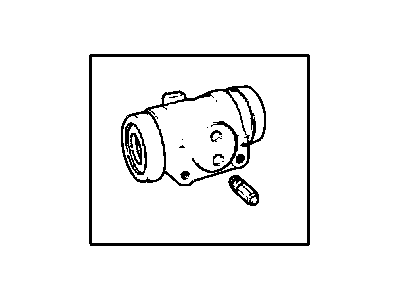

Jeep Wheel Cylinder Part Number: 5066158AA
$57.27 MSRP: $72.60
You Save: $15.33 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Cylinder - Wheel; Wheel Cylinder Repair Kit; Cylinder Wheel
Fits the following Jeep Models:
- Liberty | 2002 | Limited, Renegade, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.7 L GAS
View related parts
Jeep Wheel Cylinder, Rear Part Number: 5191305AA
$71.08 MSRP: $108.00
You Save: $36.92 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder - Wheel; Drum Brake Wheel Cylinder, Rear; Wheel Cylinder Repair Kit; Cylinder Assembly Wheel; Cylinder Wheel
- Position: Rear
Fits the following Jeep Models:
- Compass | 2007-2017 | 75th Anniversary, Altitude, Base, High Altitude, Latitude, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Patriot | 2009-2017 | 75th Anniversary, Latitude, Latitude X, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Jeep Wheel Cylinder Part Number: 4313056
Product Specifications
- Other Name: Wheel Cylinder - Wheel; Wheel Cylinder Repair Kit; Cylinder, Wheel, W/9 X 2 1/2" Brake, H.D. Drum; Complete Wheel Brake; W/9" Brakes.
Fits the following Jeep Models:
- Cherokee | 1990-1996 | Base, Briarwood, Classic, Country, Laredo, Limited, SE, Sport | 2.1L L4, 2.5L L4, 4 Cyl 2.5 L GAS, 4.0L L6, 6 Cyl 4.0 L GAS
- Comanche | 1990-1992 | Base, Eliminator, Pioneer | 2.5L L4, 4 Cyl 2.5 L GAS, 4.0L L6, 6 Cyl 4.0 L GAS
- Wagoneer | 1990 | 2.1L L4, 2.5L L4, 4.0L L6
- Wrangler | 1997-2006 | 65th Anniversary Edition, Rubicon, SE, Sahara, Sport, Unlimited, Unlimited Rubicon, X | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
View More
View related parts
Jeep Wheel Cylinder Part Number: J8126715
Product Specifications
- Other Name: Cylinder Wheel; Wheel Cylinder Repair Kit
Fits the following Jeep Models:
- CJ7 | 1984-1986 | Base, Laredo, Renegade | 4 Cyl 2.5 L GAS, 6 Cyl 4.2 L GAS
View related parts
Jeep Wheel Cylinder Part Number: 4423601
Product Specifications
- Other Name: Wheel Cylinder - Wheel; Wheel Cylinder Repair Kit; Cylinder, Wheel Brake, Complete; Cylinder, Rear Wheel Brake; Cylinder, Wheel; Cylinder Wheel
Fits the following Jeep Models:
- Cherokee | 1991-2001 | Base, Briarwood, Classic, Country, Laredo, Limited, SE, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
- Comanche | 1991-1992 | Base, Eliminator, Pioneer | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
- Wrangler | 1997-2000, 1991-1995 | Base, Islander, Renegade, Rio Grande, S, SE, Sahara, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 4.0 L GAS
View More

Jeep Wheel Cylinder

OEM parts sourced directly from Jeep deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Jeep Wheel Cylinder for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Jeep Wheel Cylinder provides the ability to stop confidently by converting pressure on the pedals into high-quality strong drum brake force. It has its legend back to 1945 when a rugged road manor crashed in civilian driveways. Jeep has created a tradition of anywhere toughness, open skies and friendship that stretches across dusty roads to urban grids. Jeep supports that soul with Selec-Terrain to make drivers switch a dial and dig through snow, sand or mud without a second thought. Jeep also equips cabins with easy touch screens, voice prompts and wireless updates that make dashboards fresh during long ownership trips. Jeep has remained differentiated as a combination of hardcore off-road equipment with everyday comfort allowing the weekenders to get their daily chores done on weekdays. The drum brake has a cover shaped like a wheel that holds a piston with two sealed cylinders awaiting hydraulic pressure. Wheel Cylinder forces the said pistons outward to squeeze the shoes against the rotating drum and cut speed rapidly. The Wheel Cylinder is generally made with lightweight rust-resistant aluminum that shakes off corrosion and seals off without any leakage every mile. The Wheel Cylinder requires periodic inspection since abrasion by the braking bite may occur long before the pads appear low.

Jeep Wheel Cylinder Parts and Q&A

Wheel Cylinder
4313056
Q: What Are the Best Practices for Servicing and Repairing Wheel Cylinders on Jeep Wrangler?
A:
When repairing or servicing wheel cylinders, clean them and the pistons using only clean brake fluid or brake cleaner. Air dry the parts using an air can, as rags or shop towels can leave lint on the cylinder bores and pistons. If the bore has light scratches or black stains, that's OK and will not impact how the engine functions; however, if it is pitted, scored or heavily corroded, it needs replacement and a honing treatment should not be attempted. Examine the condition of the piston surfaces; if they are scratched, scored or corroded, remove and replace them instead of attempting to fix them. Throw away the piston cups, spring and expander because they cannot be used again, but you can wash and reuse your original dust boots if they're undamaged.
Wheel Cylinder
4423601
Q: How to Effectively Service and Repair a Wheel Cylinder on Jeep Cherokee?
A:
After removing the push rods and boots, press the pistons, cups and spring and expander out of the cylinder bore, then take out the bleed screw. To set up, lubricate the wheel cylinder bore, pistons, piston cups and spring and expander with clean brake fluid before use. Sing the first piston into the cylinder bore and put the first cup on, with the cup's lip toward the spring and expander and the flat side touching the piston. After that, attach the spring and expander and finish the installation with the last piston cup and piston. Next, set the boots onto the ends of the cylinder, pass the push rods through the boots and restore the cylinder bleed screw.
