How to Replace and Maintain a Camshaft Seal on the Right Cylinder Head on Chrysler Pacifica?

Before servicing or repairing the camshaft oil seal of the right cylinder head, take off the negative battery cable first. Open the upper timing cover and set the camshaft gear and crankshaft gear timing marks to true top dead center. Second, pull out the timing belt and the right camshaft sprocket, remove the camshaft thrust plate from the cylinder head back, take off the cylinder head cover and undo the rocker arm assembly. Slide the camshaft slowly backward about 3.5 inches out of the cylinder head to avoid damaging the sealing surfaces there or on the camshaft. Use a suitable driver to remove the camshaft oil seal without any damage. Set the seal into the cylinder head for installation and strike it in place with special tool MD-998306. Apply a little clean engine oil to the lip of the camshaft oil seal and also to Special Tool 6788 Seal Protector Sleeve. Put the Special Tool 6788 Seal Protector Sleeve onto the camshaft, then move the camshaft forward so the protector passes through the seal into place. With Special Tool 6788 out, place the camshaft thrust plate at the rear end of the cylinder head and attach the camshaft sprocket and timing belt afterward.

How to Service and Repair a Camshaft Seal on Chrysler Sebring?

It is necessary to remove the timing belt first to access the camshaft oil seal. Use Special Tool 6847 to secure each camshaft sprocket as you remove the bolt in the middle. After that, remove the camshaft sprockets and take out the rear timing belt cover. Take out the camshaft seal with Special Tool C-4679-A, making sure you don't damage the seal or seal bore. Prior to fitting the seal, clean the shaft seal surface from varnish, dirt or scratches, using a piece of 400 grit paper if needed. Insert the camshaft seals into the cylinder head using Special Tool MD-998306 so that they sit exactly flush at the edge of the head. Replace the timing belt rear cover and camshaft sprockets, supporting each sprocket with Special Tool 6847. When tightening the center bolt, bring it up to 101 Nm (75 ft. lbs.). Afterward, fit the timing belt and the front covers on the motor.

OEM Chrysler Camshaft Seal

Cam Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Camshaft Seals found

View related parts

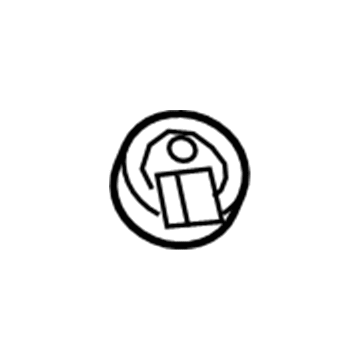

Chrysler Valve Cover Seal, Inner Part Number: 5184772AB
$19.92 MSRP: $29.25
You Save: $9.33 (32%)
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft Sensor; Engine Valve Cover Washer Seal, Inner; Valve Cover Grommet; Gasket Inner Seal; Seal Camshaft Sensor (Right/Left Side, Camshaft Phaser)
- Position: Inner
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, Limited, S | 6 Cyl 3.6 L FLEX
- 300 | 2011-2023 | Base, C, C Luxury, C Platinum, Limited, S, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Oil Seal Part Number: MD372536
$7.81 MSRP: $12.70
You Save: $4.89 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft; Multi-Purpose Seal; Camshaft Seal; Front Seal; Seal; Seal Camshaft
- Replaces: 1052A366, MD153103
Fits the following Chrysler Models:
- Cirrus | 1995-2000 | LX, LXi | 2.5L V6, 6 Cyl 2.5 L GAS
- Grand Voyager | 2000 | Base, SE | 6 Cyl 3.0 L GAS
- LeBaron | 1992-1995 | Base, GTC, LE, LX, Landau | 3.0L V6, 6 Cyl 3.0 L GAS
- New Yorker | 1989 | Base, Landau | 6 Cyl 3.0 L GAS
- Sebring | 1995-2005 | Base | 2.4L L4, 2.5L V6, 3.0L V6, 4 Cyl 2.4 L GAS
- TC Maserati | 1990-1991 | Base | 6 Cyl 3.0 L GAS
- Town & Country | 1998-1999, 1994-1996, 1990 | Base | 6 Cyl 3.0 L GAS
- Voyager | 2000 | Base | 6 Cyl 3.0 L GAS
View More
View related parts
Chrysler Thrust Plate Seal Part Number: 4536492AB
$8.12 MSRP: $11.90
You Save: $3.78 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft Thrust; Seal Camshaft Thrust
Fits the following Chrysler Models:
- 300 | 2006-2010 | Limited, S, Signature Series, Touring | 6 Cyl 3.5 L GAS
- Pacifica | 2006-2008 | Base, LX, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 4.0 L GAS
- Sebring | 2007-2010 | Limited | 6 Cyl 3.5 L GAS
- Town & Country | 2008-2010 | Limited, Touring, Touring Plus | 6 Cyl 4.0 L GAS
View More
View related parts

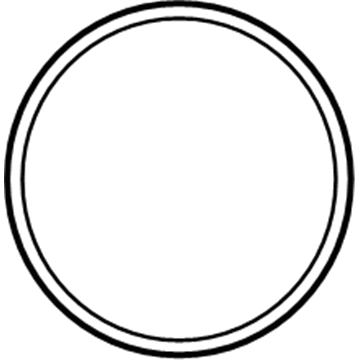

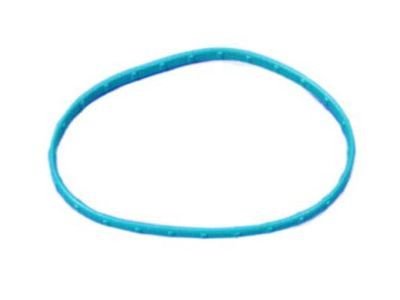

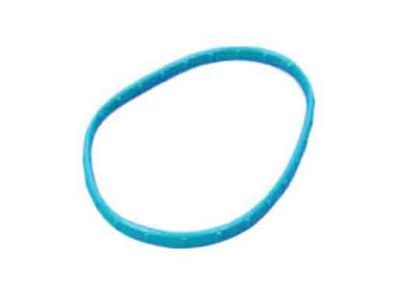

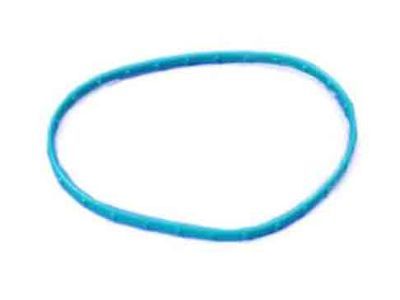

Chrysler Rear Seal Part Number: 4884111AA
$8.27 MSRP: $12.35
You Save: $4.08 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft Sensor; Engine Camshaft Position Sensor O-Ring; Engine Crankshaft Position Sensor Seal; Camshaft Seal; Camshaft Sensor Seal; Seal Camshaft Sensor; Engine Camshaft Position Sensor; Camshaft Sensor
Fits the following Chrysler Models:
- PT Cruiser | 2001-2010 | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
- Voyager | 2000-2003 | Base, Ec, LX | 4 Cyl 2.4 L GAS
View related parts

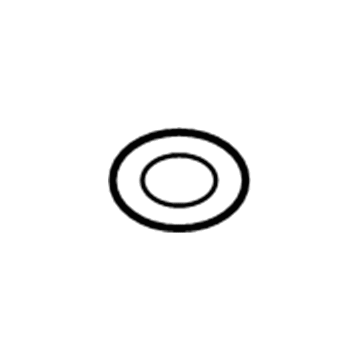

Chrysler Gasket O-Ring Part Number: 5184855AB
$10.10 MSRP: $15.05
You Save: $4.95 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal; Engine Valve Cover Bolt O-Ring; Engine Valve Cover Washer Seal; O-Ring; Seal Not Included With Long Block Engine Install Kit; Seal Camshaft Phaser
- Replaces: 5184855AA
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, Limited, S | 6 Cyl 3.6 L FLEX
- 300 | 2011-2023 | Base, C, C Luxury, C Platinum, Limited, S, Touring, Touring L | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Oil Seal Part Number: 4777086
$10.73 MSRP: $15.95
You Save: $5.22 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft; Engine Camshaft Seal; Camshaft Seal; Front Seal; Camshaft Front Oil, Order 5016733Aa Per Tsb 09-008-00.
Fits the following Chrysler Models:
- Cirrus | 1999-2000, 1995-1997 | LX, LXi | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- PT Cruiser | 2001-2010 | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
- Sebring | 2001-2006, 1996-1998 | Base, JX, JXi, LX | 4 Cyl 2.4 L GAS
- Voyager | 2000-2003 | Base, Ec, LX | 4 Cyl 2.4 L GAS
View More
View related parts
Chrysler Oil Seal Part Number: 4105395
$9.34 MSRP: $11.84
You Save: $2.50 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft Front Oil; Timing Cover Gasket; Multi-Purpose Seal; Timing Cover Seal; Crankshaft Seal; Camshaft Seal; Front Crank Seal; Front Seal; Intermediate Shaft Seal; Camshaft Front Oil Seal; Oil Seal.
Fits the following Chrysler Models:
- E Class | 1984 | Base | 4 Cyl 2.2 L GAS
- Laser | 1984-1986 | Base, XE | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- LeBaron | 1984-1993 | Base, GT, GTC, GTS, High Line, LE, Landau, Mark Cross, Premium | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- New Yorker | 1984-1988 | Base, Turbo | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- TC Maserati | 1989-1990 | Base | 4 Cyl 2.2 L GAS
- Town & Country | 1984-1988 | Base, Mark Cross | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
View More
View related parts
Chrysler Rear Seal Part Number: 4343903
$14.57 MSRP: $18.75
You Save: $4.18 (23%)
ADD TO CART
Product Specifications
- Other Name: Plug - Camshaft - Rear; Camshaft Plug; Camshaft Seal; Rear Cam Plug; Seal, Camshaft Front Oil; Seal, Camshaft, Front; Seal, Camshaft Front
- Position: Rear
Fits the following Chrysler Models:
- Laser | 1986 | Base, XE | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- LeBaron | 1986-1993 | Base, GT, GTC, GTS, High Line, LE, Landau, Mark Cross, Premium | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- New Yorker | 1986-1988 | Base, Turbo | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
- Town & Country | 1986-1988 | Base | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS
View More
View related parts
Chrysler Camshaft Seal Part Number: MD180183
$5.42 MSRP: $17.20
You Save: $11.78 (69%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Cylinder Head Camshaft End; Rear Seal; Rear Cam Plug; Seal, Cylinder Head Cam End (Rubber)
- Replaces: MD090761
Fits the following Chrysler Models:
- Grand Voyager | 2000 | Base, SE | 6 Cyl 3.0 L GAS
- LeBaron | 1992-1994 | Base, GTC, LE, LX, Landau | 6 Cyl 3.0 L GAS
- New Yorker | 1989 | Base, Landau | 6 Cyl 3.0 L GAS
- TC Maserati | 1990-1991 | Base | 6 Cyl 3.0 L GAS
- Town & Country | 1990 | Base | 6 Cyl 3.0 L GAS
- Voyager | 2000 | Base | 6 Cyl 3.0 L GAS
View More
View related parts
Chrysler Oil Seal Part Number: 4792318AB
$21.96 MSRP: $32.55
You Save: $10.59 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal - Camshaft; Engine Camshaft Seal; Camshaft Seal; Seal Camshaft
- Replaces: 4792318
Fits the following Chrysler Models:
- 300 | 2005-2010 | Limited, S, Signature Series, Touring | 3.5L V6, 6 Cyl 3.5 L GAS
- 300M | 1999-2004 | Base, Pro-Am, Special | 3.5L V6, 6 Cyl 3.5 L GAS
- Concorde | 1993-2004 | Base, LX, LXi, Limited | 3.2L V6, 3.5L V6, 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
- LHS | 1999-2001, 1994-1997 | Base | 3.5L V6, 6 Cyl 3.5 L GAS
- New Yorker | 1994-1996 | Base | 6 Cyl 3.5 L GAS
- Pacifica | 2004-2008 | Base, LX, Limited, Touring | 3.5L V6, 4.0L V6, 6 Cyl 3.5 L GAS, 6 Cyl 4.0 L GAS
- Prowler | 2001-2002 | Base | 3.5L V6, 6 Cyl 3.5 L GAS
- Sebring | 2007-2010 | Limited | 3.5L V6, 6 Cyl 3.5 L GAS
- Town & Country | 2008-2010 | Limited, Touring, Touring Plus | 4.0L V6, 6 Cyl 4.0 L GAS
View More
View related parts

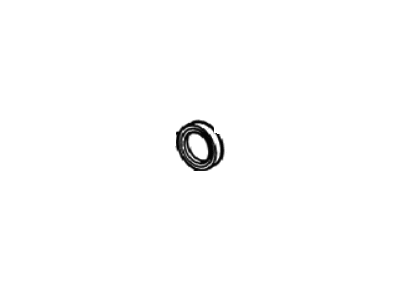

Chrysler Cylinder Head Part Number: 4105396
Product Specifications
- Other Name: Seal; Rear Cam Plug; Seal, Camshaft Front (Timing Belt End); Seal, Camshaft Front Oil; Seal, Camshaft Front
Fits the following Chrysler Models:
- E Class | 1984 | Base | 4 Cyl 2.2 L GAS
- Laser | 1984-1985 | Base, XE | 4 Cyl 2.2 L GAS
- LeBaron | 1984-1985 | Base, GTS | 4 Cyl 2.2 L GAS
- New Yorker | 1984-1985 | Base | 4 Cyl 2.2 L GAS
- Town & Country | 1984-1985 | Base | 4 Cyl 2.2 L GAS
View More
View related parts
Chrysler Rear Cam Plug Part Number: 4105397
Product Specifications
- Other Name: Seal - Camshaft Rear Oil; Engine Camshaft Seal; Camshaft Seal; Seal, Camshaft Front (Timing Belt End); Seal, Camshaft Front Oil; Seal, Camshaft Front
- Position: Rear
Fits the following Chrysler Models:
- E Class | 1984 | Base | 4 Cyl 2.2 L GAS
- Laser | 1984-1986 | Base, XE | 4 Cyl 2.2 L GAS
- LeBaron | 1984-1988 | Base, GTS, Mark Cross, Premium | 4 Cyl 2.2 L GAS
- New Yorker | 1984-1988 | Base, Turbo | 4 Cyl 2.2 L GAS
- Town & Country | 1984-1988 | Base | 4 Cyl 2.2 L GAS
View More

Chrysler Camshaft Seal

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler Camshaft Seal for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler Camshaft Seal Parts and Q&A

Thrust Plate Seal
4536492AB
Q: How to Replace and Maintain a Camshaft Seal on the Right Cylinder Head on Chrysler Pacifica?
A:
Before servicing or repairing the camshaft oil seal of the right cylinder head, take off the negative battery cable first. Open the upper timing cover and set the camshaft gear and crankshaft gear timing marks to true top dead center. Second, pull out the timing belt and the right camshaft sprocket, remove the camshaft thrust plate from the cylinder head back, take off the cylinder head cover and undo the rocker arm assembly. Slide the camshaft slowly backward about 3.5 inches out of the cylinder head to avoid damaging the sealing surfaces there or on the camshaft. Use a suitable driver to remove the camshaft oil seal without any damage. Set the seal into the cylinder head for installation and strike it in place with special tool MD-998306. Apply a little clean engine oil to the lip of the camshaft oil seal and also to Special Tool 6788 Seal Protector Sleeve. Put the Special Tool 6788 Seal Protector Sleeve onto the camshaft, then move the camshaft forward so the protector passes through the seal into place. With Special Tool 6788 out, place the camshaft thrust plate at the rear end of the cylinder head and attach the camshaft sprocket and timing belt afterward.
Oil Seal
4777086
Q: How to Service and Repair a Camshaft Seal on Chrysler Sebring?
A:
It is necessary to remove the timing belt first to access the camshaft oil seal. Use Special Tool 6847 to secure each camshaft sprocket as you remove the bolt in the middle. After that, remove the camshaft sprockets and take out the rear timing belt cover. Take out the camshaft seal with Special Tool C-4679-A, making sure you don't damage the seal or seal bore. Prior to fitting the seal, clean the shaft seal surface from varnish, dirt or scratches, using a piece of 400 grit paper if needed. Insert the camshaft seals into the cylinder head using Special Tool MD-998306 so that they sit exactly flush at the edge of the head. Replace the timing belt rear cover and camshaft sprockets, supporting each sprocket with Special Tool 6847. When tightening the center bolt, bring it up to 101 Nm (75 ft. lbs.). Afterward, fit the timing belt and the front covers on the motor.
