How to remove and inspect camshafts in 3.5L V6 engine on Chrysler 300?

To remove the camshafts, one must first take off the cylinder head(s). Remove the camshaft thrust plate, O-ring seal and camshaft oil seal being careful not to damage the cams bearings or journals. After removal, clean and look for any uneven wear patterns on the lobe besides pitting or seizure on the camshaft. Check whether there is excessive wear or out of round conditions in bearing journals by measuring with a micrometer and comparing these measurements with specifications. Measure each of intake and exhaust camshafts' lobe height to check if there is excessive variation in measurements. Inspect all lobes of a camshaft if they have heat discoloration, score marks, chipped areas, pits or an uneven wear. In case lobes are in good condition and lobe lift variation measurements fall within limits, the cams can be reused. The procedure does not end until after installing lubricated camshafts bearing journals using mineral oil. Then gently insert a new seal at front of head when placing cylindrical head on top of it again. At last mount back side appendage using another O-ring onto head itself where it belonged before then reverse steps as described earlier.

How to remove and install the camshaft in four cylinder engine on Chrysler Cirrus?

Camshaft of 2.0L engine can be removed after the cylinder head has been removed and the camshaft position sensor has been taken out. Sliding the camshaft out of the rear opening of the cylinder head taking extra care not to scratch the lobes or bearing journals and then take the front seal out. Until a 2.4L engine a sequence of operations includes the removal of the timing belt and the camshaft sprockets and the rear timing belt cover. The camshaft bearing caps are also marked so that they can be fitted in the right order; start by removing the outermost caps on both ends then ease off the rest of the caps to prevent bending. After that they must be lifted out and the camshafts marked to distinguish between INTAKE and EXHAUST. Take off the front seal of each camshaft, check the conditions of rocker arms and lash adjusters. Clean the camshaft(s) and gasket surface and check it for wear or damage as required. The diameter of the camshaft bearing journals should also be measured and the oil clearance compared to standards, and wear out parts should be replaced. Dip in clean engine oil the camshaft(s) and cylinder head bearing journals to evenly cover all the lobes and then, for the 2.0L engine, fit the camshaft and the position sensor on it before positioning it in the cylinder head hole; for the 2.4L engine, merely place the camshaft into the cylinder head hole in the car but don't install the rocker arms as they had been earlier. Camshaft end play should be check using a dial indicator by force the camshaft backward and forward and then compare it with the tolerance. When installing, the camshaft and the bearing journals should be cleaned before applying assembly lube or oil for its placement. Fit a new camshaft oil seal and the camshaft position sensor as well as the cylinder head and rocker arm shaft for the 2.0 liter engines. Camshafts of the 2.4L engine should be cleaned and its bearing journals as well as the valve lash adjusters and rocker arms lost in their correct positions if removed. Again fit the camshaft sprockets for the time being to align the timing marks and then fit the bearing caps and tighten the bolts in sequence. Apply the anaerobic sealant on the end bearing cap, fasten them and torque the bolts. Last replace camshaft oil seals, timing belt, covers, others associated parts and test run the engine for any sign of oil leakage.

OEM Chrysler Camshaft

Cam

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

68 Camshafts found

View related parts

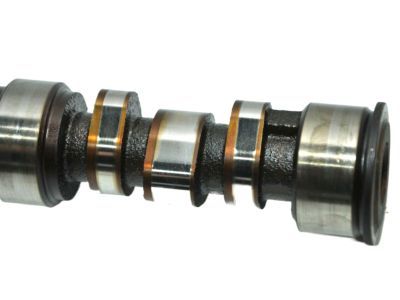

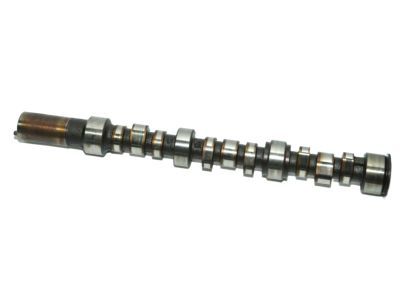

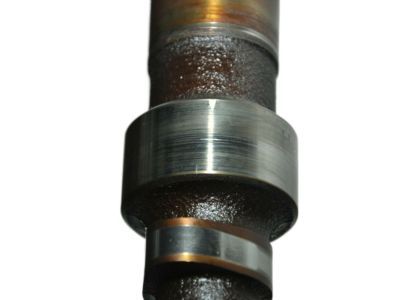

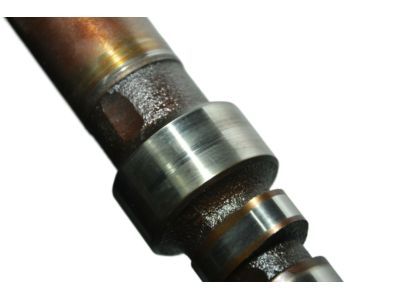

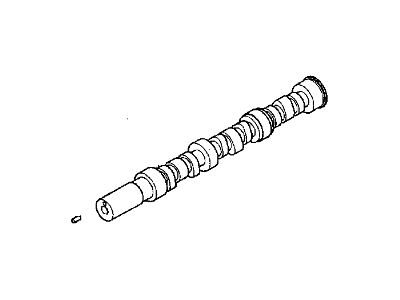

Chrysler Camshaft Part Number: MD350234
$30.09 MSRP: $38.14
You Save: $8.05 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft Engine Left
Fits the following Chrysler Models:
- Sebring | 2001-2005 | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Camshaft Part Number: 53022065AB
$396.17 MSRP: $582.00
You Save: $185.83 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft Engine
- Replaces: 53021731AD, 53021731AE
Fits the following Chrysler Models:
- 300 | 2005-2008 | C | 5.7L V8, 8 Cyl 5.7 L GAS
- Aspen | 2008 | Limited | 5.7L V8, 8 Cyl 5.7 L GAS
View related parts
Chrysler Camshaft Part Number: 4792063AB
$377.41 MSRP: $500.00
You Save: $122.59 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Intake; Camshaft Intake
Fits the following Chrysler Models:
- 300 | 2009-2010 | LX, Touring | 6 Cyl 2.7 L GAS
- Sebring | 2009-2010 | LX, Limited, Touring | 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS
View related parts
Chrysler Camshaft Part Number: 53021159AE
$815.24 MSRP: $1190.00
You Save: $374.76 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft Engine Left
- Replaced by: 53021159AG
Fits the following Chrysler Models:
- Aspen | 2007 | Limited | 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Chrysler Camshaft Part Number: 4781061AA
$333.60 MSRP: $506.00
You Save: $172.40 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft Engine
Fits the following Chrysler Models:
- Pacifica | 2005-2008 | Base, LX | 6 Cyl 3.8 L GAS
- Town & Country | 2001-2010 | EL, EX, LX, LXi, Limited, Touring, Touring Plus, Walter P. Chrysler Signature Series | 6 Cyl 3.8 L GAS
View related parts
Chrysler Exhaust Camshaft Part Number: 4884736AC
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Exhaust; Camshaft; Camshaft Exhaust
- Replaces: 4884736AB
Fits the following Chrysler Models:
- 200 | 2011-2014 | LX, Limited, Touring | 4 Cyl 2.4 L GAS
- Sebring | 2007-2010 | Base, LX, Limited, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Camshaft Part Number: 4663887
$380.01 MSRP: $481.73
You Save: $101.72 (22%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Chrysler Models:
- 300M | 1999-2004 | Base, Pro-Am, Special | 6 Cyl 3.5 L GAS
- Concorde | 2002-2004 | LXi, Limited | 6 Cyl 3.5 L GAS
- LHS | 1999-2001 | Base | 6 Cyl 3.5 L GAS
- Prowler | 2001-2002 | Base | 6 Cyl 3.5 L GAS
View More
View related parts
Chrysler Camshaft Part Number: 4781681AB
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
ADD TO CART
Product Specifications
- Other Name: Camshaft - Intake; Camshaft Intake
Fits the following Chrysler Models:
- PT Cruiser | 2003-2010 | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
- Sebring | 2003-2006 | Base, LX | 4 Cyl 2.4 L GAS
- Voyager | 2003 | LX | 4 Cyl 2.4 L GAS
View More
View related parts

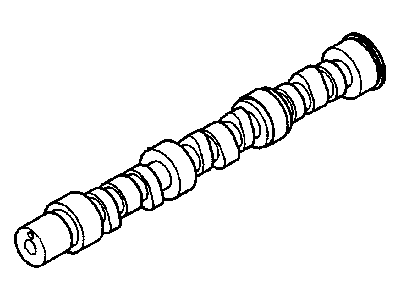

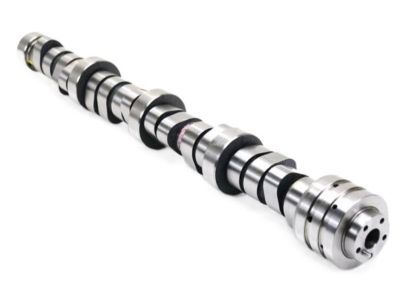

Chrysler Camshaft Part Number: MD350233
$26.98 MSRP: $34.21
You Save: $7.23 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft Engine Right
Fits the following Chrysler Models:
- Sebring | 2001-2005 | LX, LXi, Limited | 6 Cyl 3.0 L GAS
View related parts
Chrysler Right Side Intake Camshaft Part Number: 5184380AH
$340.34 MSRP: $520.00
You Save: $179.66 (35%)
ADD TO CART
Product Specifications
- Other Name: Intake Camshaft, Intake
- Replaces: 5184380AE, 5184380AD, 5184380AG, 5184380AF
Fits the following Chrysler Models:
- 200 | 2011-2017 | C, LX, Limited, S, Touring | 3.6L V6, 6 Cyl 3.6 L FLEX
- 300 | 2011-2023 | Base, C, C Luxury, C Platinum, Limited, S, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Town & Country | 2011-2016 | 30th Anniversary Edition, LX, Limited, Limited Platinum, S, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View More
View related parts
Chrysler Exhaust Camshaft Part Number: 5048029AC
$153.85 MSRP: $231.00
You Save: $77.15 (34%)
ADD TO CART
Product Specifications
- Other Name: Camshaft - Exhaust
- Replaces: 5048029AB
Fits the following Chrysler Models:
- Pacifica | 2017-2024 | AWD Launch Edition, L, LX, Limited, Pinnacle, Touring, Touring L, Touring L Plus, Touring Plus | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Voyager | 2020-2024 | L, LX, LXi | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chrysler Camshaft - Intake Part Number: 68234970AB
$225.47 MSRP: $335.00
You Save: $109.53 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: INTAKE
- Replaces: 68234970AA
Fits the following Chrysler Models:
- Pacifica | 2017-2024 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus, Limited, Pinnacle, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Camshaft Intake Part Number: 68234969AA
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Intake
Fits the following Chrysler Models:
- Pacifica | 2017-2022 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Valve Seals Part Number: 53021984AD
$677.23 MSRP: $894.00
You Save: $216.77 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Engine; Camshaft
Fits the following Chrysler Models:
- Aspen | 2008-2009 | Limited | 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Chrysler Camshaft Part Number: 4777128
$270.97 MSRP: $343.50
You Save: $72.53 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft, Machined
Fits the following Chrysler Models:
- Cirrus | 2000 | LX | 4 Cyl 2.0 L GAS
View related parts
Chrysler Camshaft Part Number: 4792743AB
$731.40 MSRP: $1075.00
You Save: $343.60 (32%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Chrysler Models:
- 300 | 2005-2010 | Limited, S, Signature Series, Touring | 6 Cyl 3.5 L GAS
- Pacifica | 2004-2006 | Base, Limited, Touring | 6 Cyl 3.5 L GAS
- Sebring | 2009-2010 | Limited | 6 Cyl 3.5 L GAS
View More
View related parts
Chrysler Camshaft Exhaust Part Number: 68234968AA
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Exhaust
Fits the following Chrysler Models:
- Pacifica | 2017-2022 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Camshaft Exhaust Part Number: 68234965AA
$307.04 MSRP: $457.00
You Save: $149.96 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Camshaft - Exhaust
Fits the following Chrysler Models:
- Pacifica | 2017-2022 | Hybrid Limited, Hybrid Pinnacle, Hybrid Platinum, Hybrid Premium, Hybrid Touring, Hybrid Touring L, Hybrid Touring Plus | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Chrysler Camshaft Part Number: 4777629AA
Product Specifications
- Other Name: Camshaft Intake
Fits the following Chrysler Models:
- Sebring | 1995-1999 | LX | 4 Cyl 2.0 L GAS
View related parts
Chrysler Exhaust Camshaft Part Number: 68234965AB
$225.47 MSRP: $335.00
You Save: $109.53 (33%)
Product Specifications
- Other Name: Camshaft - Exhaust
Fits the following Chrysler Models:
- Pacifica | 2023-2024 | Hybrid Limited, Hybrid Pinnacle, Hybrid Premium S Appearance, Hybrid Road Tripper, Hybrid S Appearance, Hybrid Select, Hybrid Touring L | 6 Cyl 3.6 L PLUG-IN HYBRID EV-GAS (PHEV)

| Page 1 of 4 |Next >

1-20 of 68 Results

Chrysler Camshaft

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler Camshaft for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler Camshaft keeps valves in sync, providing more efficient power and increased engine life throughout the line. Chrysler developed its name based upon quality construction, intelligent Floating Power mounts, and airflow styling, which decreased cabin tremor and kept the occupants calm on lengthy drives. Chrysler was also the first with roomy minivans, showing that family hauling was not necessarily the sacrifice of ride comfort, cargo flexibility, and the nimble steering that everyday commuters require. Buyers of Chrysler preferred a straightforward buying experience, open pricing, and cabinets that are cut down to be useful rather than shiny and contain easy-to-understand layouts, huge windows, and seats that fold down. Chrysler is also enhancing the excellence of ride and utility with gradual modifications in tuning of the suspension and sound deadening, clever packaging that now makes routine errands just feel smoother. The Camshaft lobe timing synchronizes the timing of the intake and exhaust strokes in a manner that allows the engine to breathe freely, burn the fuel efficiently, develop torque when needed, and transform the possible rattles into useful propulsion throughout the rev range. The Camshaft is matched with timing chains or timing belts, which fix the piston motion on valve motion to ensure reliable harmony even after 150,000 miles of abuse from heat, load, and traffic from stop-start. The opening of the Camshaft with different lobe separation values allows tuners to pursue husky low-end torque, sharp midrange punch, or high-rpm rush without changing an entire powerplant. Strong billet steel construction is tough and avoids scuffing and flex, which keeps lift predictable and the oil film intact despite thousands of heat cycles on everyday roads or highway hauls.

Chrysler Camshaft Parts and Q&A

Camshaft
53022065AB
Q: How to remove and inspect camshafts in 3.5L V6 engine on Chrysler 300?
A:
To remove the camshafts, one must first take off the cylinder head(s). Remove the camshaft thrust plate, O-ring seal and camshaft oil seal being careful not to damage the cams bearings or journals. After removal, clean and look for any uneven wear patterns on the lobe besides pitting or seizure on the camshaft. Check whether there is excessive wear or out of round conditions in bearing journals by measuring with a micrometer and comparing these measurements with specifications. Measure each of intake and exhaust camshafts' lobe height to check if there is excessive variation in measurements. Inspect all lobes of a camshaft if they have heat discoloration, score marks, chipped areas, pits or an uneven wear. In case lobes are in good condition and lobe lift variation measurements fall within limits, the cams can be reused. The procedure does not end until after installing lubricated camshafts bearing journals using mineral oil. Then gently insert a new seal at front of head when placing cylindrical head on top of it again. At last mount back side appendage using another O-ring onto head itself where it belonged before then reverse steps as described earlier.
Camshaft
4777128
Q: How to remove and install the camshaft in four cylinder engine on Chrysler Cirrus?
A:
Camshaft of 2.0L engine can be removed after the cylinder head has been removed and the camshaft position sensor has been taken out. Sliding the camshaft out of the rear opening of the cylinder head taking extra care not to scratch the lobes or bearing journals and then take the front seal out. Until a 2.4L engine a sequence of operations includes the removal of the timing belt and the camshaft sprockets and the rear timing belt cover. The camshaft bearing caps are also marked so that they can be fitted in the right order; start by removing the outermost caps on both ends then ease off the rest of the caps to prevent bending. After that they must be lifted out and the camshafts marked to distinguish between INTAKE and EXHAUST. Take off the front seal of each camshaft, check the conditions of rocker arms and lash adjusters. Clean the camshaft(s) and gasket surface and check it for wear or damage as required. The diameter of the camshaft bearing journals should also be measured and the oil clearance compared to standards, and wear out parts should be replaced. Dip in clean engine oil the camshaft(s) and cylinder head bearing journals to evenly cover all the lobes and then, for the 2.0L engine, fit the camshaft and the position sensor on it before positioning it in the cylinder head hole; for the 2.4L engine, merely place the camshaft into the cylinder head hole in the car but don't install the rocker arms as they had been earlier. Camshaft end play should be check using a dial indicator by force the camshaft backward and forward and then compare it with the tolerance. When installing, the camshaft and the bearing journals should be cleaned before applying assembly lube or oil for its placement. Fit a new camshaft oil seal and the camshaft position sensor as well as the cylinder head and rocker arm shaft for the 2.0 liter engines. Camshafts of the 2.4L engine should be cleaned and its bearing journals as well as the valve lash adjusters and rocker arms lost in their correct positions if removed. Again fit the camshaft sprockets for the time being to align the timing marks and then fit the bearing caps and tighten the bolts in sequence. Apply the anaerobic sealant on the end bearing cap, fasten them and torque the bolts. Last replace camshaft oil seals, timing belt, covers, others associated parts and test run the engine for any sign of oil leakage.
