How to Install a Timing Cover and Its Related Components on Dodge Ram 3500?

Before you install, wash the inside of the timing cover and engine block wall and always set a new gasket in place. Check the installation of the slide bushings in the timing cover, after which the cover and gasket are installed together and fastened using 28 Nm (250 in. lbs.); meanwhile, fasten the large lifting stud to 55 Nm (40 ft. lbs.). After that, set up the oil pan and pick-up tube and then add in the A/C compressor, generator, power steering pump, dipstick support bolt and thermostat housing. Process of installing the crankshaft damper, the accessory drive belt tensioner assembly, both idler pulleys, the radiator lower hose, both heater hoses and the cooling module. Following that, add the accessory drive belt, coolant bottle, washer bottle, upper radiator hose and air cleaner assembly. Next, add coolant to the system, top up the oil and link the negative end of the battery cable.

How to Remove the Timing Cover on Dodge Ram 3500?

Put the battery cable out of the way first, then remove the engine cover and the air cleaner assembly. After draining the cooling system, get rid of the accessory drive belt, fan and fan drive assembly, coolant bottle and washer bottle. After that, pull out the fan shroud and do not interrupt the A/C lines or Freon, then remove the A/C compressor and put it aside, next remove the generator. Take the upper radiator hose off, remove both heater hoses from the timing cover and take out the lower radiator hose from the engine. Next, remove the accessory drive belt tensioner and both idler pulleys, take off the crankshaft damper (2) without removing the hoses from the power steering pump and set the power steering pump out of the way. Take out the dipstick support bolt, drain the oil, remove the oil pan and collect the pick up tube. The water pump can be left in place when the timing cover is being taken off. After that, remove the screws holding the timing cover and remove the cover, so that the timing cover slide bushings (1) remain inside.

OEM Dodge Ram 3500 Timing Cover

Engine Timing Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Timing Covers found

View related parts
Dodge Ram 3500 Timing Cover Part Number: 53021323AJ
$485.10 MSRP: $740.00
You Save: $254.90 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Front Cover; Cover Timing Case See Notes; Cover Timing Case See Note; Cover Timing Case
- Replaces: 53021323AH
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2008 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport | 5.7L V8, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Timing Cover, Front Inner Part Number: 5011788AB
$856.99 MSRP: $1675.00
You Save: $818.01 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Front; Engine Timing Cover, Inner; Inner Cover
- Position: Front Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2001 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
View related parts
Dodge Ram 3500 Timing Cover, Outer Part Number: 5014190AA
$345.87 MSRP: $525.00
You Save: $179.13 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover, Outer; Outer Cover; Cover Timing Belt
- Position: Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2002 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
View related parts
Dodge Ram 3500 Timing Cover, Outer Part Number: 68038178AA
$296.85 MSRP: $436.00
You Save: $139.15 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover, Outer; Outer Cover; Outer Timing Cover; Cover Timing Case See Note
- Position: Outer
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 6 Cyl 6.7 L DIESEL
View related parts

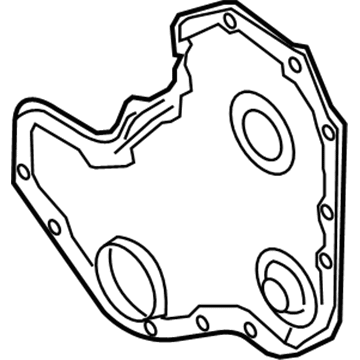

Dodge Ram 3500 Inner Cover Part Number: 68005078AA
$497.41 MSRP: $748.00
You Save: $250.59 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover, Inner; Inner Timing Cover; Outer Timing Cover; Cover Timing Case See Note; Cover Timing Case; Timing Cover
- Position: Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2010 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport | 6 Cyl 6.7 L DIESEL
View related parts
Dodge Ram 3500 Timing Cover Part Number: 53022195AM
$325.17 MSRP: $484.00
You Save: $158.83 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Front Cover; Cover Timing Case
- Replaces: 53022195AK, 53022195AL, 53022195AH, 53022195AI, 53022195AJ, 53022195AF, 53022195AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 5.7L V8, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Timing Cover Part Number: 53021323AG
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Cover Timing Case
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | Laramie, SLT, ST | 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Timing Cover Part Number: 4761240
Product Specifications
- Other Name: Cover - Timing Belt; Engine Timing Cover; Outer Cover; Cover Timing Belt; Cover, Gear
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1999 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
View related parts
Dodge Ram 3500 Timing Cover, Front Inner Part Number: 5017752AB
Product Specifications
- Other Name: Case - Front; Engine Timing Cover, Inner
- Position: Front Inner
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
View related parts
Dodge Ram 3500 Timing Cover Part Number: 53020971AF
Product Specifications
- Other Name: Cover - Timing Case; Engine Timing Cover; Front Cover
- Replaces: 53020971AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2003 Dodge Ram 3500 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS, 8.0L V10
View related parts
Dodge Ram 3500 Timing Cover, Front Part Number: 4761241AB
Product Specifications
- Other Name: Case - Front; Engine Timing Cover; Inner Cover
- Position: Front
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1999 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL

Dodge Ram 3500 Timing Cover

Choose OEM Timing Cover that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Timing Cover follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

The Timing Cover of Dodge Ram 3500 is important for the guardian of the engine timing which can use timing belt or timing chain or cam belt. Made of a strong material including aluminum, plastic or steel, it shields the other fragile parts within from being affected by any debris. Timing belt covers for Dodge Ram 3500 models have gaskets to boost the safety of the belt for the necessary operations. Many styles of Timing Covers have been used in Dodge Ram 3500 over the years, the purpose of each being to offer protection and long life to the engine. However, even the most resistant Timing Covers can wear out and require replacement during operation and time and again, they should be replaced to ensure that vehicles are safe.

Dodge Ram 3500 Timing Cover Parts and Q&A

Timing Cover
53022195AM
Q: How to Install a Timing Cover and Its Related Components on Dodge Ram 3500?
A:
Before you install, wash the inside of the timing cover and engine block wall and always set a new gasket in place. Check the installation of the slide bushings in the timing cover, after which the cover and gasket are installed together and fastened using 28 Nm (250 in. lbs.); meanwhile, fasten the large lifting stud to 55 Nm (40 ft. lbs.). After that, set up the Oil Pan and pick-up tube and then add in the A/C Compressor, generator, Power Steering Pump, dipstick support bolt and thermostat housing. Process of installing the crankshaft damper, the accessory drive Belt Tensioner assembly, both idler pulleys, the radiator lower hose, both heater hoses and the cooling module. Following that, add the accessory Drive Belt, coolant bottle, washer bottle, upper radiator hose and air cleaner assembly. Next, add coolant to the system, top up the oil and link the negative end of the Battery Cable.
Timing Cover
53021323AJ
Q: How to Remove the Timing Cover on Dodge Ram 3500?
A:
Put the Battery Cable out of the way first, then remove the engine cover and the air cleaner assembly. After draining the cooling system, get rid of the accessory Drive Belt, fan and fan drive assembly, coolant bottle and washer bottle. After that, pull out the fan shroud and do not interrupt the A/C lines or Freon, then remove the A/C Compressor and put it aside, next remove the generator. Take the upper radiator hose off, remove both heater hoses from the timing cover and take out the lower radiator hose from the engine. Next, remove the accessory drive Belt Tensioner and both idler pulleys, take off the crankshaft damper (2) without removing the hoses from the Power Steering Pump and set the power steering pump out of the way. Take out the dipstick support bolt, drain the oil, remove the Oil Pan and collect the pick up tube. The water pump can be left in place when the timing cover is being taken off. After that, remove the screws holding the timing cover and remove the cover, so that the timing cover slide bushings (1) remain inside.
