How to Service and Repair an Air Bag Control Module Safely on Dodge Ram 3500?

Disconnect and isolate the battery negative cable to first turn off the supplemental restraint system and after two minutes, the system capacitor will release the stored energy. While changing on manual transmission, go up to the control panel along the transmission tunnel and uninstall the shade, but on automatic transmission cars, simply lift up the cover atop the instrument panel to remove it. To find the ACM instrument panel wire harness connector, first open the rearward facing hole beneath the instrument panel center stack support bracket. After finding the red lock on the connector, slide it to the side and pull the connector straight to disconnect it. Take out the screws on the right air conditioning control mount and floor panel transmission tunnel by about 7 millimeters and afterwards remove the left side screws. Lift the ACM, allowing the locating pins to clear the bracket on top and then slide it toward the left so the slotted holes release from the right screws. For installation, slide the ACM to the left of the floor panel tunnel with the label arrow facing ahead, then tilt it rightwards to place the slotted holes under the loosened screws and engage the locating pins. Tighten each left screw fitting the mounting bracket to 14 Nm and repeat with the right ones. Carefully attach the instrument panel wire harness connector to the ACM and make sure the latch and red lock are both activated. Place the ACM cover back on automatic transmission cars, but use the floor console for manual transmission models. Do not link the negative end of the battery until you have finished the verification test procedure after repairing or servicing any part of the supplemental restraint system.

How to Safely Remove and Install an Air Bag Control Module for Side Impact Airbags on Dodge Ram 3500?

Before working on the Siacm, you must first disconnect the battery's negative cable, isolate it by placing it back and wait two minutes for the system capacitor to discharge. Pull the front seat forward far enough to make the B-pillar trim easier to get to. In Standard Cab, get rid of the front outboard seat belt and retractor beside the B-pillar, then take out the four screws joining the Siacm to the B-pillar. Put your finger through the retractor hole to reach the plastic push-in fasteners, disconnect them and pull both the Siacm and the mounting bracket out, freeing the body wire harness connector from the module. To access the Quad Cab's wire harness, first, do what you did for the Single Cab and then lift the Siacm to ease the mounting hook away from the B-pillar. For installing, keep the Siacm and its bracket together, attach the body wire harness back and fasten them into place. Secure the Siacm mounting bracket with four, partly tight screws then, tighten them in the order of upper left, lower right, lower left and upper right to 12 Nm (105 in. lbs.). Install the front outboard seat belt and its retractor and wait to link the battery's negative cable until the supplemental restraint system verification test is carried out after any service on the vehicle. Should the Siacm fall out during driving, it must be thrown away and replaced by a new unit because the air bag could function improperly.

OEM Dodge Ram 3500 Air Bag Control Module

SRS Airbag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Air Bag Control Modules found

View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043703AG
$184.31 MSRP: $433.00
You Save: $248.69 (58%)
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Occupant Module; Module Occupant Restraint
- Replaces: 56043703AD, 56043703AE, 56043703AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Dodge Ram 3500 | Laramie, SLT, ST | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Control Module Part Number: 56054625AF
$331.97 MSRP: $495.00
You Save: $163.03 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Replaces: 4896188AD, 56054625AE, 56054625AC, 4896188AB, 4896188AE, 56054625AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Laramie, SLT, ST | 6 Cyl 6.7 L DIESEL
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043706AH
$114.55 MSRP: $171.00
You Save: $56.45 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Passenger Presence Module; Occupant Module; Module Occupant Restraint
- Replaces: 56043706AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 6.7L L6, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Control Module Part Number: 56054624AF
$56.38 MSRP: $130.00
You Save: $73.62 (57%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Replaces: 56054624AD, 56054624AB, 56054624AE, 56054089AD, 56054624AC, 56054089AC, 56054089AE, 56054089AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | SLT, ST | 6 Cyl 6.7 L DIESEL
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043128AE
Product Specifications
- Other Name: Module - Air Bag Control; Diagnostic Unit; Module Air Bag Control
- Replaces: 56043128AC, 56043128AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2000 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS, 5.9L L6, 5.9L V8, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS, 8.0L V10
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043700AA
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Unit; Module Air Bag Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | Laramie, SLT, ST | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts

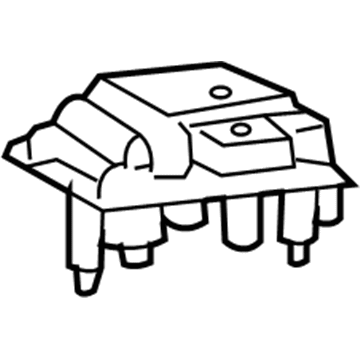

Dodge Ram 3500 Diagnostic Module Part Number: 56043132AD
Product Specifications
- Other Name: Module - Air Bag Control; Diagnostic Unit
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | Laramie, SLT, ST | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043128AF
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Unit; Module Air Bag Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View related parts

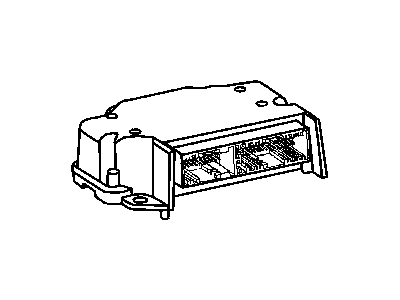

Dodge Ram 3500 Diagnostic Module Part Number: 56043704AH
Product Specifications
- Other Name: Module - Occupant Restraint; Occupant Module; Module Occupant Restraint
- Replaces: 56043704AD, 56043704AE, 56043704AG, 56043704AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Dodge Ram 3500 | Laramie, SLT, ST | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Side Impact Sensor Part Number: 56043167AB
Product Specifications
- Other Name: Sensor - Impact; Air Bag Impact Sensor; Air Bag Sensor; Diagnostic Module; Side Sensor
- Replaces: 56043167AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT, Sport, TRX4 | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 6.7L L6, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043702AH
Product Specifications
- Other Name: Module - Occupant Restraint; Occupant Module; Module Occupant Restraint
- Replaces: 56043702AE, 56043702AF, 56043702AD, 56043702AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Dodge Ram 3500 | Laramie, SLT, ST | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts

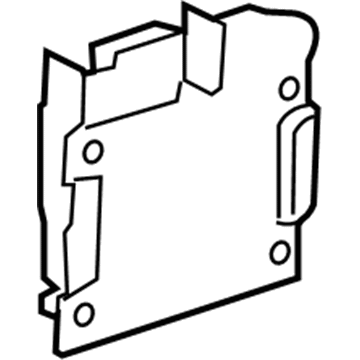

Dodge Ram 3500 Diagnostic Module Part Number: 56043135AE
Product Specifications
- Other Name: Module - Air Bag Control; Diagnostic Unit
- Replaces: 56043135AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | Laramie, SLT, ST | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043706AF
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Passenger Presence Module; Occupant Module
- Replaces: 56043706AD, 56043706AC, 56043706AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2007 Dodge Ram 3500 | Laramie, SLT, ST, Sport, TRX4 | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 6.7L L6, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043701AG
Product Specifications
- Other Name: Module - Occupant Restraint; Occupant Module; Module Occupant Restraint
- Replaces: 56043701AD, 56043701AF, 56043701AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Dodge Ram 3500 | Laramie, SLT, ST | 6 Cyl 5.9 L DIESEL, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043708AH
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Passenger Presence Module; Occupant Module; Module Occupant Restraint
- Replaces: 56043708AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Ram 3500 | Laramie, SLT, ST, SXT | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 6.7L L6, 8 Cyl 5.7 L GAS
View related parts
Dodge Ram 3500 Diagnostic Module Part Number: 56043708AF
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Passenger Presence Module; Occupant Module
- Replaces: 56043708AE, 56043708AC, 56043708AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006-2007 Dodge Ram 3500 | Laramie, SLT, ST, Sport, TRX4 | 5.7L V8, 5.9L L6, 6 Cyl 5.9 L DIESEL, 6 Cyl 6.7 L DIESEL, 6.7L L6, 8 Cyl 5.7 L GAS

Dodge Ram 3500 Air Bag Control Module

Choose OEM Air Bag Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Air Bag Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Ram 3500 matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Ram 3500 parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Ram 3500 Air Bag Control Module Parts and Q&A

Diagnostic Module
56043132AD
Q: How to Service and Repair an Air Bag Control Module Safely on Dodge Ram 3500?
A:
Disconnect and isolate the battery negative cable to first turn off the supplemental restraint system and after two minutes, the system capacitor will release the stored energy. While changing on manual transmission, go up to the control panel along the transmission tunnel and uninstall the shade, but on automatic transmission cars, simply lift up the cover atop the instrument panel to remove it. To find the ACM instrument panel wire harness connector, first open the rearward facing hole beneath the instrument panel center stack support bracket. After finding the red lock on the connector, slide it to the side and pull the connector straight to disconnect it. Take out the screws on the right air conditioning control mount and floor panel transmission tunnel by about 7 millimeters and afterwards remove the left side screws. Lift the ACM, allowing the locating pins to clear the bracket on top and then slide it toward the left so the slotted holes release from the right screws. For installation, slide the ACM to the left of the floor panel tunnel with the label arrow facing ahead, then tilt it rightwards to place the slotted holes under the loosened screws and engage the locating pins. Tighten each left screw fitting the mounting bracket to 14 Nm and repeat with the right ones. Carefully attach the instrument panel wire harness connector to the ACM and make sure the latch and red lock are both activated. Place the ACM cover back on automatic transmission cars, but use the floor console for manual transmission models. Do not link the negative end of the battery until you have finished the verification test procedure after repairing or servicing any part of the supplemental restraint system.
Diagnostic Module
56043703AG
Q: How to Safely Remove and Install an Air Bag Control Module for Side Impact Airbags on Dodge Ram 3500?
A:
Before working on the Siacm, you must first disconnect the battery's negative cable, isolate it by placing it back and wait two minutes for the system capacitor to discharge. Pull the front seat forward far enough to make the B-pillar trim easier to get to. In Standard Cab, get rid of the front outboard Seat Belt and retractor beside the B-pillar, then take out the four screws joining the Siacm to the B-pillar. Put your finger through the retractor hole to reach the plastic push-in fasteners, disconnect them and pull both the Siacm and the mounting bracket out, freeing the body wire harness connector from the module. To access the Quad Cab's wire harness, first, do what you did for the Single Cab and then lift the Siacm to ease the mounting hook away from the B-pillar. For installing, keep the Siacm and its bracket together, attach the body wire harness back and fasten them into place. Secure the Siacm mounting bracket with four, partly tight screws then, tighten them in the order of upper left, lower right, lower left and upper right to 12 Nm (105 in. lbs.). Install the front outboard seat belt and its retractor and wait to link the battery's negative cable until the supplemental restraint system verification test is carried out after any service on the vehicle. Should the Siacm fall out during driving, it must be thrown away and replaced by a new unit because the air bag could function improperly.
