How to Install the Air Bag Control Module on Dodge Dakota?

The first step for installing the ORC is to disconnect the negative battery cable while SRS is off; then, let the system capacitor discharge for about two minutes. Fix the ORC onto the mount so that the arrow shows forward and the connector receptacles are on the left side of the vehicle transmission tunnel. Secure the ORC by using the included three Nm (90 in. lbs.) nuts. Remake the connections between all of the instrument panel and body wire harnesses and the ORC connector receptacles by clipping them all the way in and engaging the locks. Fit the floor distribution duct under the heater-air conditioner housing on the bottom. Do not attach the battery's negative cable back until the SRS verification test has been done after any SRS work is completed.

How to Service an Air Bag Control Module on Dodge Dakota?

The first step to service the air bag Control Module is to cut off the air bag system by removing and isolating the battery negative cable. Allow the system capacitor to discharge by stopping for two minutes. The air bag Control Module hosts the impact sensor used to set off the air bag; do not hit or kick this module and if it is dropped, it must be replaced. Take out the screw connecting the floor duct adapter to the heater-air conditioner housing and afterwards remove the adapter. Pull the carpets from each side of the floorboard, moving the tunnel back to see the air bag Control Module. Unscrew the two screws at the top and bottom locations on the mounting bracket just above the driver's seat. Lift the module up enough to remove it from the locator pins and pull out the module far enough to get to the wire harness connector. To disconnect the instrument panel wire harness, first slide the red Connector Position Assurance lock to the right, press the latch tab and pull the connector free. For installing the module, set it up beneath the instrument panel and plug the wire harness connector back in. Make sure the latch and the CPA lock are both engaged during this step. Set the module over the mounting bracket, using the locator pins to make sure the arrow on its label is pointing forward. Mount the floormount in place using 12 Nm (105 in. lbs.) for both screws that fasten it to the floor bracket, restore the carpeting, fit the floor duct adapter onto the heater-air conditioner housing, then secure it with a screw tightened to 2 Nm (17 in. lbs.). Do not reattach the negative battery cable before the air bag system verification test is done.

OEM Dodge Dakota Air Bag Control Module

SRS Airbag Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Air Bag Control Modules found

View related parts
Dodge Dakota Control Module, Passenger Side Part Number: 56043195AZ
$374.94 MSRP: $548.00
You Save: $173.06 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Classification; Air Bag Passenger Presence Module, Right; SDM Module; Diagnostic Module; Passenger Sensor; Occupant Module; Module; Module Occupant Classification
- Position: Passenger Side
- Replaces: 56043195AX, 56043195AS, 56043195AR, 56043195AT, 56043195AP
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2007 Dodge Dakota | Laramie, SLT, ST, Sport | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Dodge Dakota Occupant Module Part Number: 68003925AA
$200.91 MSRP: $254.68
You Save: $53.77 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Seat Sensor Mat; Module Occupant Restraint
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Dakota | Laramie, SLT, ST | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Dodge Dakota Control Module Part Number: 56043138AC
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Module; Module Air Bag Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Dodge Dakota | SLT, SLT Plus, Sport, Sport Plus | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Dakota Control Module Part Number: 56043252AA
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Module; Passenger Inflator Module; Module Air Bag Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2004 Dodge Dakota | Base, R/T, SLT, SLT Plus, SXT, Sport, Sport Plus | 4 Cyl 2.5 L GAS, 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
View related parts

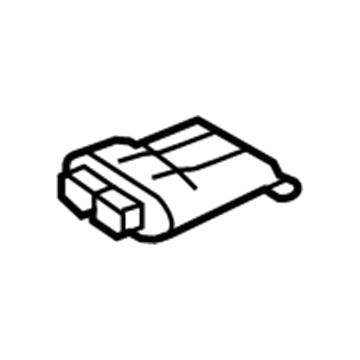

Dodge Dakota Control Module, Passenger Side Part Number: 56043195BD
Product Specifications
- Other Name: Module - Occupant Classification; Air Bag Passenger Presence Module, Right; Occupant Module; Module Occupant Classification
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2006 Dodge Dakota | Laramie, SLT, ST, Sport | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L GAS
View related parts
Dodge Dakota Control Module Part Number: 56043138AB
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Module; Module Air Bag Control
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2001-2002 Dodge Dakota | Base, R/T, SLT, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
View related parts

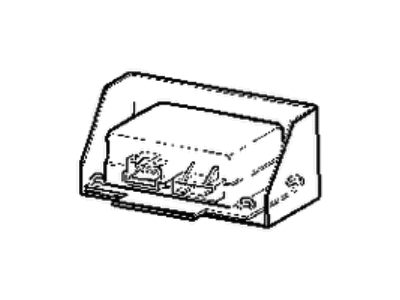

Dodge Dakota Diagnostic Module Part Number: 56020211
Product Specifications
- Other Name: Module Diagnostic W/Bracket; Diagnostic Unit; Module, Airbag Diagnostic W/Bracket
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1996 Dodge Dakota | Base, SLT, Sport, WS | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS
View related parts
Dodge Dakota Control Module Part Number: 56007420AD
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Module
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-1999 Dodge Dakota | Base, R/T, SLT, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts

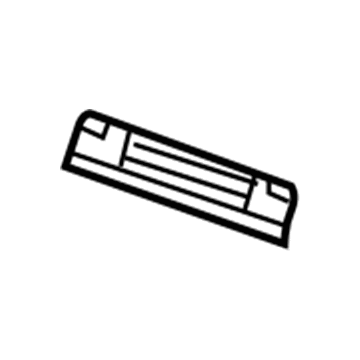

Dodge Dakota Diagnostic Module Part Number: 56043274AL
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Seat Sensor Mat; Occupant Module
- Replaces: 56043274AG, 56043274AI, 56043274AH, 56043274AF, 56043274AJ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2007 Dodge Dakota | Laramie, SLT, ST, Sport | 3.7L V6, 4.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Dodge Dakota Passenger Discriminating Sensor Part Number: 4896176AF
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Replaces: 4896176AE, 4896176AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Dodge Dakota | Big Horn, Laramie, Lone Star, SLT, ST, SXT, Sport, TRX, TRX4 | 3.7L V6, 4.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX
View related parts
Dodge Dakota Occupant Module Part Number: 68003814AB
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Seat Sensor Mat
- Replaces: 68003814AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Dakota | Laramie, SLT, ST | 3.7L V6, 4.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS
View related parts
Dodge Dakota Passenger Discriminating Sensor Part Number: 4896125AF
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Control Module; Diagnostic Unit; Module Occupant Restraint
- Replaces: 4896125AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2010 Dodge Dakota | Big Horn, Laramie, Lone Star, SLT, ST, SXT, Sport, TRX, TRX4 | 3.7L V6, 4.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX
View related parts
Dodge Dakota Control Module Part Number: 56043866AB
Product Specifications
- Other Name: Module - Air Bag Control; Air Bag Control Module; Diagnostic Module; Module Air Bag Control
- Replaces: 56043866AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1999-2000 Dodge Dakota | Base, R/T, SLT, Sport | 2.5L L4, 3.9L V6, 4 Cyl 2.5 L GAS, 5.2L V8, 5.9L V8, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
View related parts
Dodge Dakota Diagnostic Module Part Number: 56043275AK
Product Specifications
- Other Name: Module - Occupant Restraint; Air Bag Seat Sensor Mat; Occupant Module
- Replaces: 56043275AJ, 56043275AG, 56043275AF, 56043275AH, 56043275AI
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2007 Dodge Dakota | Laramie, SLT, ST, Sport | 3.7L V6, 4.7L V8, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS

Dodge Dakota Air Bag Control Module

Choose OEM Air Bag Control Module that meet Dodge factory standards. Dodge designs and tests every component for precision and durability. Each Air Bag Control Module follows strict manufacturing steps to lock in quality and fit. If your Dodge Dakota matters to you, OEM parts make the smart choice. You'll get the exact look, feel, and performance you expect. Shop genuine Dakota parts at the highly competitive prices online. Enjoy a manufacturer's warranty, a hassle-free return policy, and rapid delivery. No more guesswork with off brands. Get genuine parts with exact fit and true factory performance. Shop with confidence today at JeepPartsDeal.com.

Dodge Dakota Air Bag Control Module Parts and Q&A

Passenger Discriminating Sensor
4896176AF
Q: How to Install the Air Bag Control Module on Dodge Dakota?
A:
The first step for installing the ORC is to disconnect the negative Battery Cable while SRS is off; then, let the system capacitor discharge for about two minutes. Fix the ORC onto the mount so that the arrow shows forward and the connector receptacles are on the left side of the vehicle transmission tunnel. Secure the ORC by using the included three Nm (90 in. lbs.) nuts. Remake the connections between all of the instrument panel and body wire harnesses and the ORC connector receptacles by clipping them all the way in and engaging the locks. Fit the floor distribution duct under the heater-air conditioner housing on the bottom. Do not attach the battery's negative cable back until the SRS verification test has been done after any SRS work is completed.
Control Module
56043138AB
Q: How to Service an Air Bag Control Module on Dodge Dakota?
A:
The first step to service the air bag Control Module is to cut off the air bag system by removing and isolating the battery negative cable. Allow the system capacitor to discharge by stopping for two minutes. The air bag Control Module hosts the impact sensor used to set off the air bag; do not hit or kick this module and if it is dropped, it must be replaced. Take out the screw connecting the floor duct adapter to the heater-air conditioner housing and afterwards remove the adapter. Pull the carpets from each side of the floorboard, moving the tunnel back to see the air bag Control Module. Unscrew the two screws at the top and bottom locations on the mounting bracket just above the driver's seat. Lift the module up enough to remove it from the locator pins and pull out the module far enough to get to the wire harness connector. To disconnect the instrument panel wire harness, first slide the red Connector Position Assurance lock to the right, press the latch tab and pull the connector free. For installing the module, set it up beneath the instrument panel and plug the wire harness connector back in. Make sure the latch and the CPA lock are both engaged during this step. Set the module over the mounting bracket, using the locator pins to make sure the arrow on its label is pointing forward. Mount the floormount in place using 12 Nm (105 in. lbs.) for both screws that fasten it to the floor bracket, restore the carpeting, fit the floor duct adapter onto the heater-air conditioner housing, then secure it with a screw tightened to 2 Nm (17 in. lbs.). Do not reattach the negative Battery Cable before the air bag system verification test is done.
