How to remove and install an Axle Shaft on Jeep Grand Cherokee?

For front axleshafts on 4WD models, begin by loosening the wheel lug nuts, raising the vehicle, and securely supporting it on jackstands before removing the wheel(s). Next, remove the caliper and brake disc, disconnect the ABS sensor, and set the sensor and wire harness aside. Remove the axleshaft/hub nut, using a prybar between two wheel studs to prevent the hub from turning while loosening the nut. Detach the stabilizer bar link from the lower control arm and the tie-rod end from the steering knuckle, then separate the upper control arm balljoint from the steering knuckle and the shock clevis from the lower control arm. Swing the steering knuckle outward and push the end of the axleshaft out and away from the knuckle. Using a prybar or slide hammer with a CV joint adapter, pry the inner CV joint assembly from the front differential, taking care not to damage it, and guide the axleshaft out from under the vehicle. For rear axleshafts on 2011 and later models, loosen the rear wheel lug nuts, raise the rear of the vehicle, and support it securely on jackstands before removing the wheels. Remove the axleshaft/hub nut, again using a prybar to prevent the hub from turning. Remove the rear brake caliper and hang it out of the way with wire, then remove the wheel speed sensor and wire clips. Detach the tension link, camber link, and toe link, then swing the knuckle outward and push the end of the axleshaft out and away from the knuckle. Pry the inner CV joint assembly from the rear differential with a prybar or slide hammer, being careful not to damage it, and guide the axleshaft out from the vehicle. Installation follows the reverse of removal, ensuring to clean the splines and bearing shield on the outer CV joint, as well as the wheel bearing area of the steering knuckle or rear knuckle. Clean the splines and oil seal sealing surface on the inner tripod CV joint, applying a film of multi-purpose grease around the oil seal contact surface. When installing the axleshaft, hold it straight out and push it in sharply to seat the set-ring on the splines of the inner CV joint, checking that the inner joint does not move out when pulled by hand. Finally, tighten the suspension mounting bolts and the axleshaft/hub nut to the specified torque, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the correct torque.

How to remove, replace, and reinstall an axle shaft on Jeep Wrangler?

Two types of axleshaft retaining methods are used on the models discussed. The first type involves the axle bearing being pressed onto the axleshaft, retained in the tube by a bearing retaining plate, while the second type has the axle bearing pressed into the axle tube, with the axleshaft retained by C-clip locks in the differential. To identify the type, remove the brake drum and inspect the end of the axle tube behind the axleshaft flange; a visible bearing retaining plate indicates the first type. For models with a bearing retainer, begin by loosening the wheel lug nuts, raising the rear of the vehicle, and removing the wheel and brake drum or disc. Remove the nuts attaching the bearing retainer to the axle tube flange, then use a slide hammer to pull the axleshaft assembly from the axle housing. If the bearing needs replacement, take the assembly to a service department for the old bearing and outer seal to be removed and new ones installed, ensuring the inner seal is also replaced. If the brake backing plate shows signs of leaking differential lubricant, replace the inner axleshaft seal using a slide hammer with an internal puller jaw attachment, and install the new seal with a seal driver or a piece of pipe. Clean the bearing bore in the axle housing, pack the bearing with grease, and apply a thin coat to its outer surface. Smear grease on the lips of the inner seal, guide the axleshaft into the axle housing, and install the retaining nuts for the brake backing plate and bearing retainer, tightening them to the specified torque before sliding the brake drum over the axle flange. For models with C-clips, clean the area where the differential housing cover meets the housing, loosen the cover bolts, and drain the differential lubricant. Remove the housing cover, rotate the axleshaft to access the lock bolt for the differential pinion shaft, and remove it along with the pinion shaft. Push in on the axleshaft to remove the C-clip lock from its groove, then slide the axleshaft out of the axle tube, inspecting the bearing contact surface for wear. If necessary, replace the outer axleshaft seal. To install a new bearing, use a bearing removal tool set, ensuring the new axleshaft bearing is properly seated in the axle tube bore without damaging the new axleshaft seal. Install the new seal using a seal installation tool, clean the bearing bore in the axle housing, pack the bearing with grease, and guide the axleshaft into the axle tube, engaging its splines with the differential side gear. Install the C-clip lock in the recessed groove on the axleshaft, insert the pinion shaft into the differential carrier, and secure it with the lock bolt. Reinstall the differential housing cover, brake drum, wheel, and lug nuts, tightening them securely. Refill the differential housing with the specified lubricant and test drive the vehicle to ensure proper operation of the brakes and axle, making several slow figure-eight turns if equipped with Trac-Lok to ensure the new lubricant circulates through the clutch discs.

OEM Jeep Axle Shaft

Car Axle Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

270 Axle Shafts found

View related parts

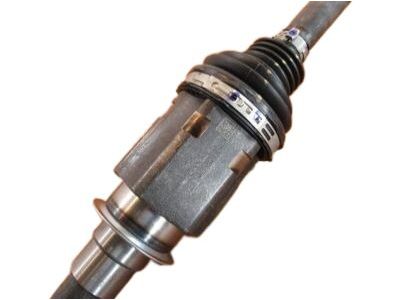

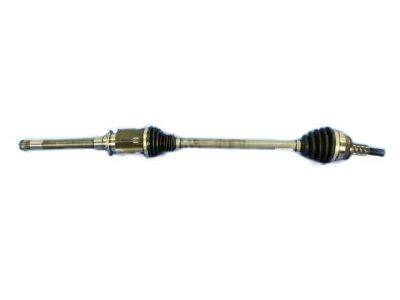

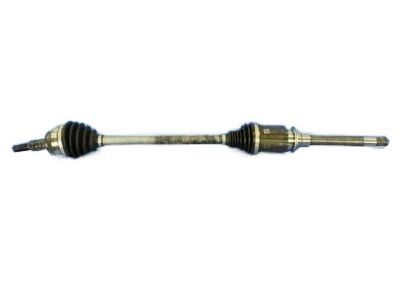

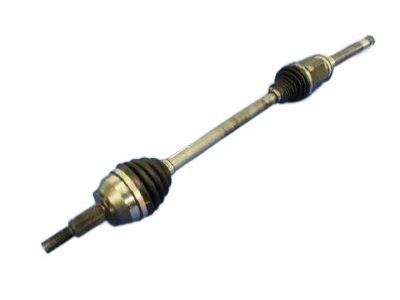

Jeep Axle Assembly, Front Passenger Side Part Number: 4578884AC
$315.54 MSRP: $708.00
You Save: $392.46 (56%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Passenger Side
- Replaces: 4578884AB
Fits the following Jeep Models:
- Grand Cherokee | 2011-2022 | 4xe, 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, Overland Summit, SRT, SRT8, Summit, Summit Reserve, Trackhawk, Trailhawk, Upland | 3.6L V6, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 5.7L V8, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
- Grand Cherokee WK | 2022 | Laredo E, Laredo X, Limited | 6 Cyl 3.6 L FLEX
View related parts

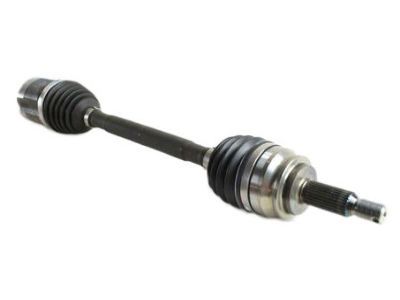

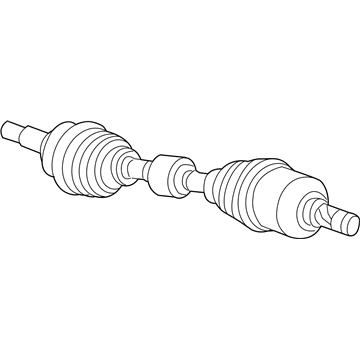

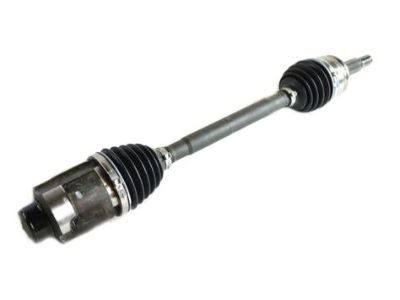

Jeep Axle Assembly, Front Passenger Side Part Number: 52123873AC
$349.15 MSRP: $781.00
You Save: $431.85 (56%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Axle Shaft; Shaft Axle Half
- Position: Front Passenger Side
- Replaces: 52123873AB, 52123873AA
Fits the following Jeep Models:
- Compass | 2014 | 2.4L L4
- Patriot | 2016-2017, 2014 | 75th Anniversary, Latitude, Sport | 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Jeep Axle Assembly, Front Driver Side Part Number: 68193661AB
$327.03 MSRP: $497.00
You Save: $169.97 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Axle Shaft; Shaft Axle Half
- Position: Front Driver Side
- Replaces: 68193661AA
Fits the following Jeep Models:
- Grand Cherokee | 2018-2021 | Trackhawk | 8 Cyl 6.2 L GAS
View related parts

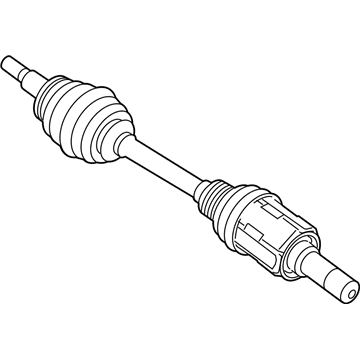

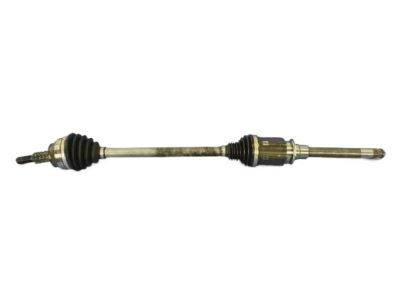

Jeep Axle Assembly, Front Passenger Side Part Number: 68193660AB
$345.81 MSRP: $526.00
You Save: $180.19 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Axle Shaft; Shaft Axle Half
- Position: Front Passenger Side
- Replaces: 68193660AA
Fits the following Jeep Models:
- Grand Cherokee | 2018-2021 | Trackhawk | 8 Cyl 6.2 L GAS
View related parts

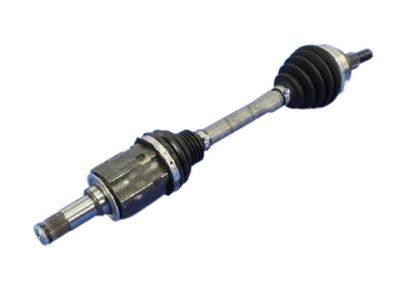

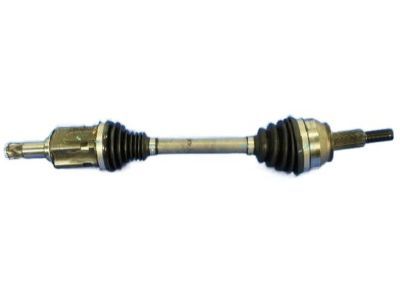

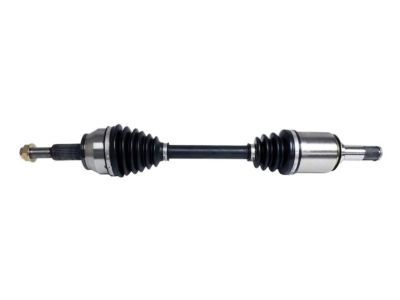

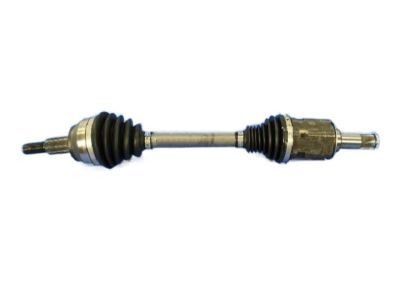

Jeep Axle Assembly, Front Driver Side Part Number: 4578885AC
$376.75 MSRP: $571.00
You Save: $194.25 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 4578885AB
Fits the following Jeep Models:
- Grand Cherokee | 2011-2022 | 4xe, 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, Overland Summit, SRT, SRT8, Summit, Summit Reserve, Trackhawk, Trailhawk, Upland | 3.6L V6, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 5.7L V8, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
- Grand Cherokee WK | 2022 | Laredo E, Laredo X, Limited | 6 Cyl 3.6 L FLEX
View related parts

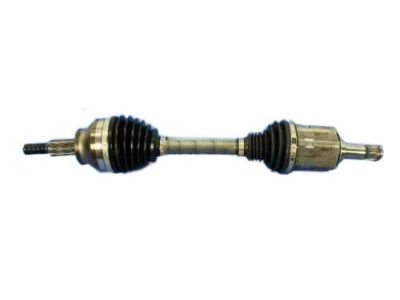

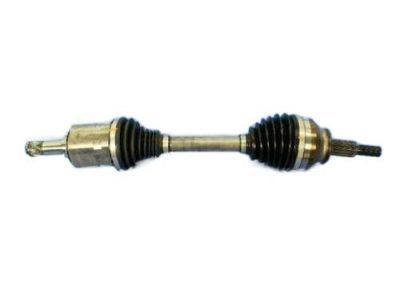

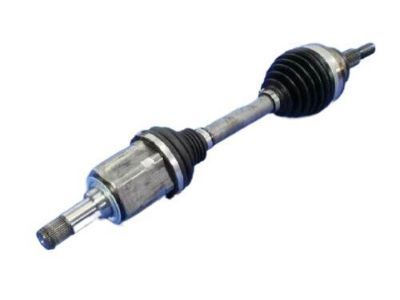

Jeep Axle Assembly, Front Driver Side Part Number: 52124713AD
$405.48 MSRP: $617.00
You Save: $211.52 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 52124713AB, 52124713AC
Fits the following Jeep Models:
- Grand Cherokee | 2011-2022 | 4xe, 75th Anniversary, 80th Anniversary, Altitude, High Altitude, Laredo, Laredo E, Laredo X, Limited, Limited X, Overland, Overland Summit, SRT, SRT8, Summit, Summit Reserve, Trackhawk, Trailhawk, Upland | 3.0L V6, 3.6L V6, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 5.7L V8, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L FLEX, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 6.4 L GAS
View related parts

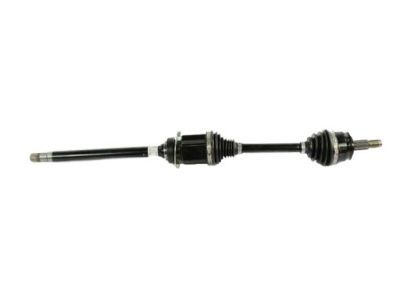

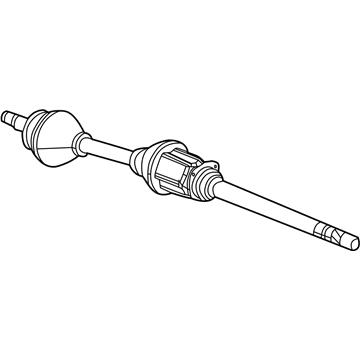

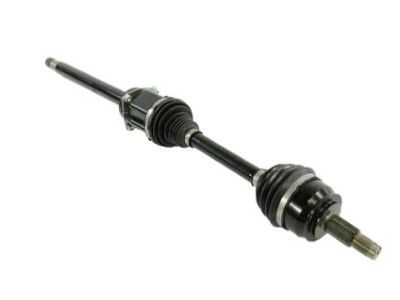

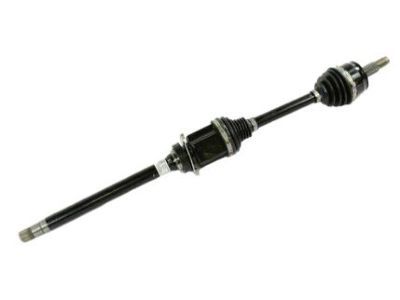

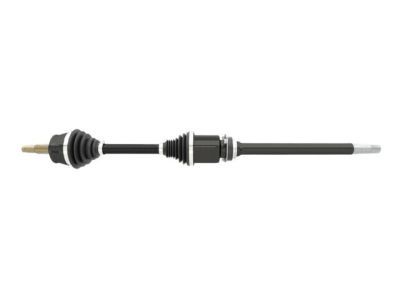

Jeep Axle Assembly, Front Passenger Side Part Number: 68293938AA
$409.90 MSRP: $623.00
You Save: $213.10 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Axle Shaft; Shaft Axle Half
- Position: Front Passenger Side
Fits the following Jeep Models:
- Compass | 2017-2022 | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Lux, Limited, Red, Sport, Trailhawk, Upland | 4 Cyl 2.4 L GAS
View related parts
Jeep Axle Assembly, Front Passenger Side Part Number: 52104590AA
$420.95 MSRP: $639.00
You Save: $218.05 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Passenger Side
Fits the following Jeep Models:
- Commander | 2006-2010 | 65th Anniversary Edition, Base, Limited, Overland, Sport | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
- Grand Cherokee | 2005-2010 | 65th Anniversary Edition, Laredo, Limited, Overland, SRT8 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts
Jeep Axle Assembly, Front Driver Side Part Number: 52104701AB
$429.79 MSRP: $653.00
You Save: $223.21 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Driver Side
- Replaces: RL104701AB
Fits the following Jeep Models:
- Commander | 2006-2010 | 65th Anniversary Edition, Base, Limited, Overland, Sport | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
- Grand Cherokee | 2005-2010 | 65th Anniversary Edition, Laredo, Limited, Overland, SRT8 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts

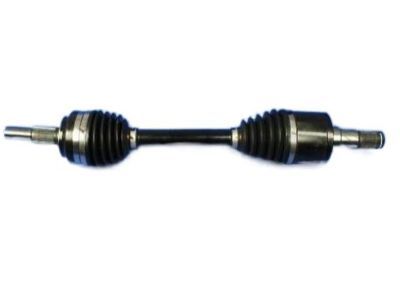

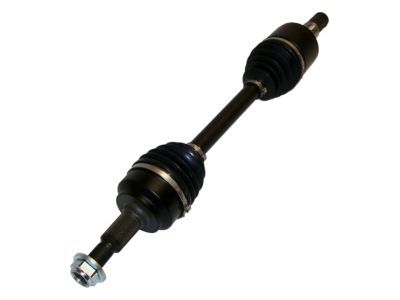

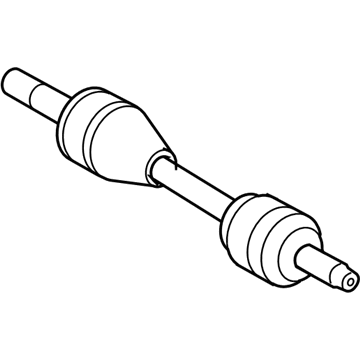

Jeep Axle Assembly, Front Driver Side Part Number: 52104591AB
$439.74 MSRP: $668.00
You Save: $228.26 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 52104591AA
Fits the following Jeep Models:
- Commander | 2006-2010 | 65th Anniversary Edition, Base, Limited, Overland, Sport | 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS
- Grand Cherokee | 2005-2010 | 65th Anniversary Edition, Laredo, Limited, Overland, SRT8 | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.7 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts
Jeep Axle Assembly, Front Passenger Side Part Number: 68292304AA
$503.83 MSRP: $759.00
You Save: $255.17 (34%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Axle Shaft; Shaft Axle Half
- Position: Front Passenger Side
Fits the following Jeep Models:
- Cherokee | 2019-2022 | 80th Anniversary, Altitude, High Altitude, Latitude, Latitude Plus, Limited | 4 Cyl 2.4 L GAS
View related parts
Jeep Front CV Axle Shaft, Right Part Number: 68394142AA
$730.41 MSRP: $1115.00
You Save: $384.59 (35%)
ADD TO CART
Product Specifications
- Other Name: Axle Shaft; Drive Axle; Axle Assembly; Shaft Axle
Fits the following Jeep Models:
- Gladiator | 2021-2023 | 80th Anniversary, Altitude, Freedom, High Altitude, Mojave, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS
- Wrangler | 2018-2025 | 80th Anniversary, Freedom, Islander, Rubicon, Rubicon X, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon 392, Unlimited Rubicon 4xe, Unlimited Rubicon X, Unlimited Rubicon X 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Sport S 4xe, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.4 L GAS
View related parts

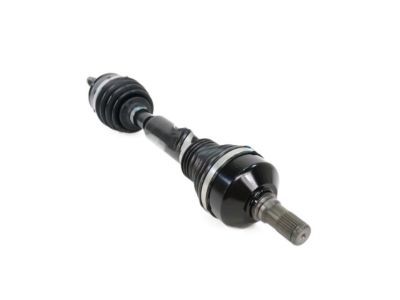

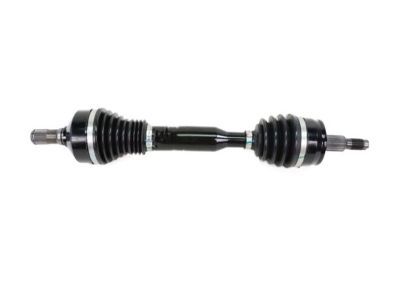

Jeep Axle Assembly, Front Part Number: 52123739AF
$833.12 MSRP: $1280.00
You Save: $446.88 (35%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front; Axle Shaft; Shaft Axle Half
- Position: Front
- Replaces: 52123739AE, 52123739AD, 52123739AC, 52123739AB
Fits the following Jeep Models:
- Cherokee | 2014-2018 | 75th Anniversary, Latitude, Latitude Plus, Limited, Overland, Sport, Trailhawk | 2.4L L4, 3.2L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.2 L GAS
View related parts

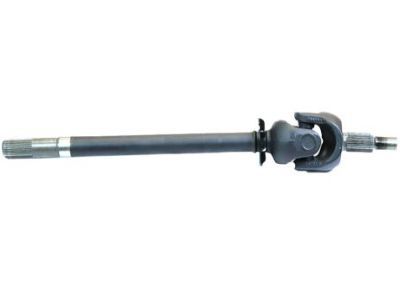

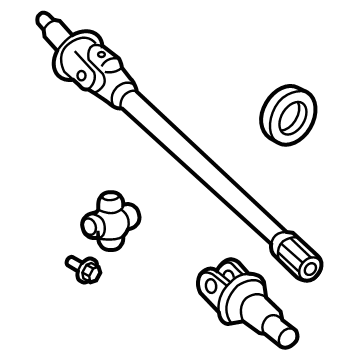

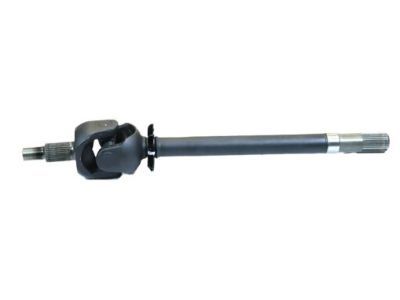

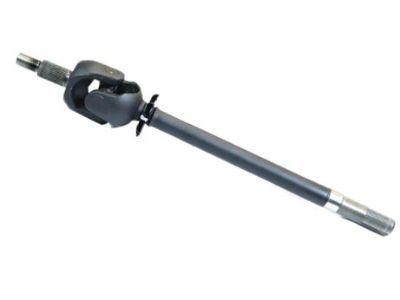

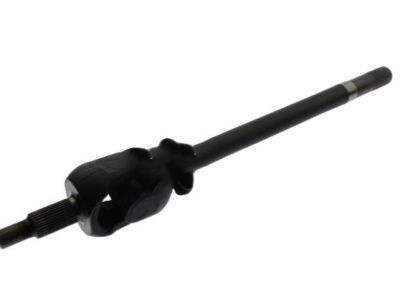

Jeep Axle Shaft, Front Driver Side Part Number: 68477137AA
$381.23 MSRP: $575.00
You Save: $193.77 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle; Drive Axle Shaft, Front Left; Drive Axle; Axle; Shaft Axle
- Position: Front Driver Side
- Replaces: 68400739AA
Fits the following Jeep Models:
- Gladiator | 2020-2023 | 80th Anniversary, Altitude, Freedom, High Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport | 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS
- Wrangler | 2018-2023 | 80th Anniversary, Freedom, Islander, Rubicon, Sport, Sport S, Unlimited 80th Anniversary, Unlimited Freedom, Unlimited High Altitude, Unlimited High Altitude 4xe, Unlimited High Tide, Unlimited Islander, Unlimited Moab, Unlimited Rubicon, Unlimited Rubicon 392, Unlimited Rubicon 4xe, Unlimited Sahara, Unlimited Sahara 4xe, Unlimited Sahara Altitude, Unlimited Sport, Unlimited Sport Altitude, Unlimited Sport S, Unlimited Willys, Unlimited Willys 4xe, Unlimited Willys Sport, Willys, Willys Sport | 2.0L L4, 3.0L V6, 3.6L V6, 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L DIESEL, 6 Cyl 3.6 L GAS, 6 Cyl 3.6 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.4 L GAS
View related parts

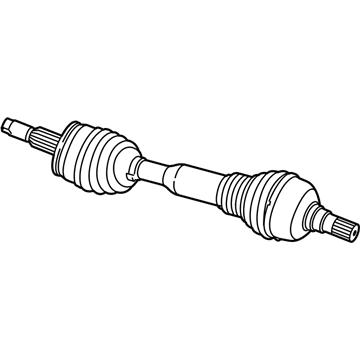

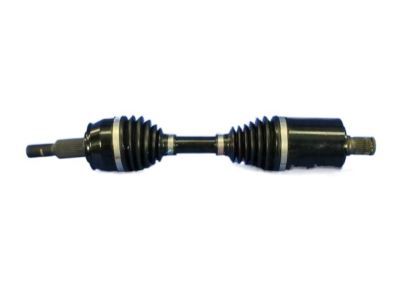

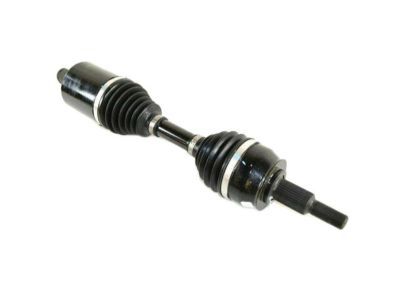

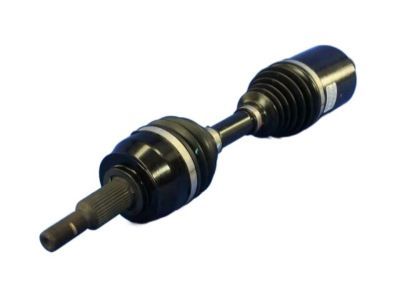

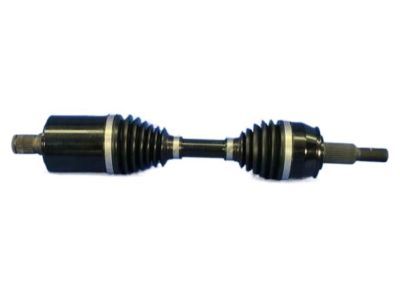

Jeep Axle Assembly Part Number: 52123661AE
$581.78 MSRP: $909.00
You Save: $327.22 (36%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; Axle Shaft; Shaft Axle Half

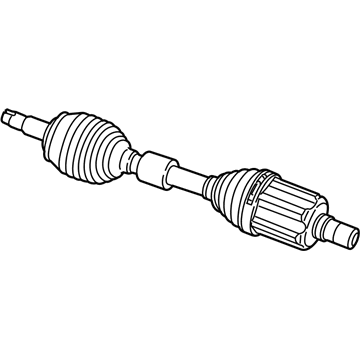

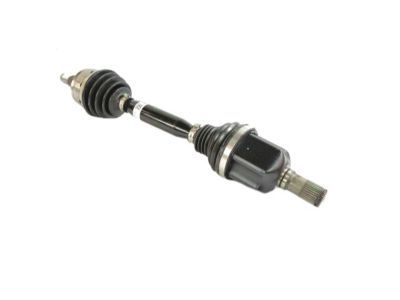

- Replaced by: 68342138AA
- Replaces: 52123661AC, 52123661AD
Fits the following Jeep Models:
- Cherokee | 2015-2018 | 75th Anniversary, Latitude, Latitude Plus, Limited, Overland, Sport, Trailhawk | 4 Cyl 2.4 L GAS, 6 Cyl 3.2 L GAS
View related parts

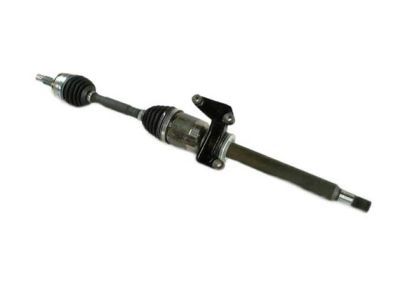

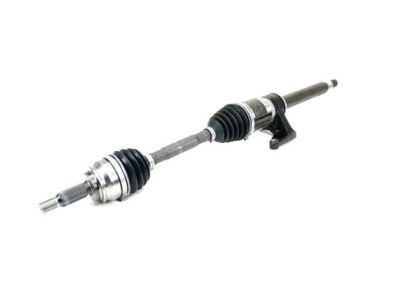

Jeep Axle Assembly, Front Passenger Side Part Number: 52123872AB
$585.60 MSRP: $886.00
You Save: $300.40 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Passenger Side
- Replaces: 52123872AA
Fits the following Jeep Models:
- Compass | 2013-2017 | 75th Anniversary, Altitude, High Altitude, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Patriot | 2014 | 2.0L L4, 2.4L L4
View related parts

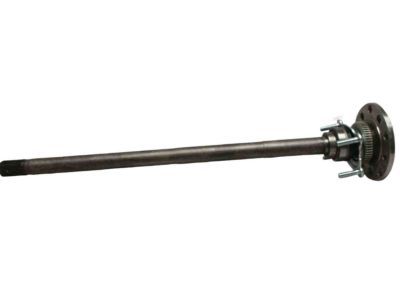

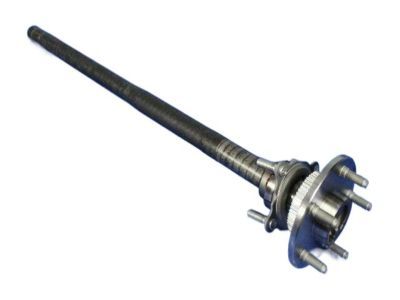

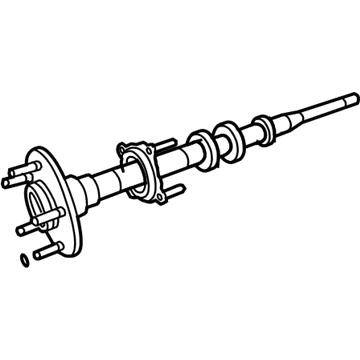

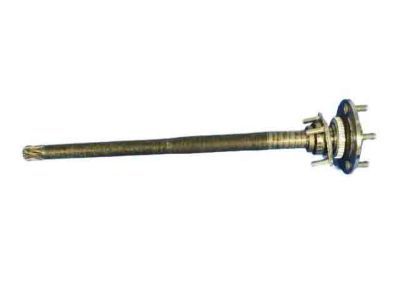

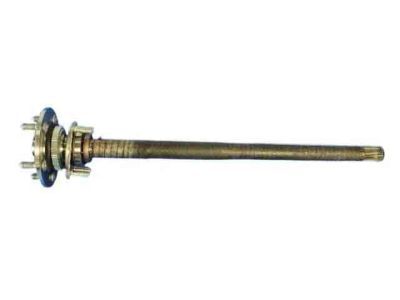

Jeep Axle Shaft, Rear Part Number: 68003272AA
$1076.74 MSRP: $1630.00
You Save: $553.26 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Rear; Drive Axle Shaft, Rear; Axle Seal; Axle Shafts; Shaft Axle Rear
- Position: Rear
Fits the following Jeep Models:
- Wrangler | 2007-2017 | 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X, X-S | 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS
- Wrangler JK | 2018 | Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | 6 Cyl 3.6 L GAS
View related parts

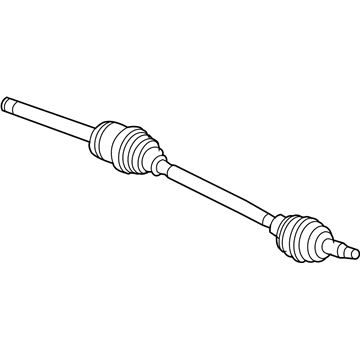

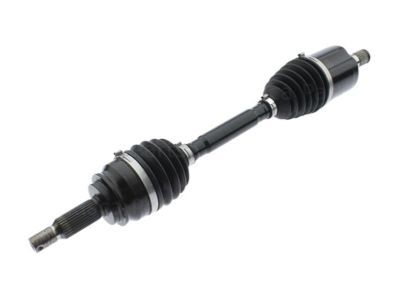

Jeep Axle Assembly Part Number: 52123899AB
$238.98 MSRP: $351.00
You Save: $112.02 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; Axle Shaft
- Replaces: 52123899AA
Fits the following Jeep Models:
- Compass | 2014-2017 | 75th Anniversary, Latitude, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts

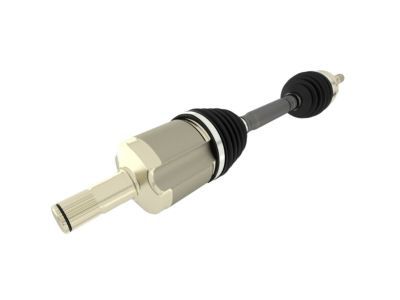

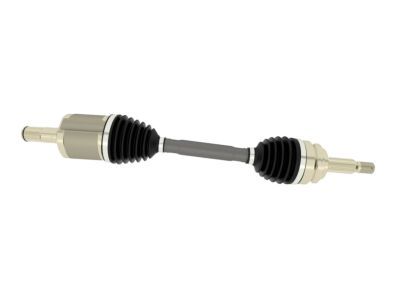

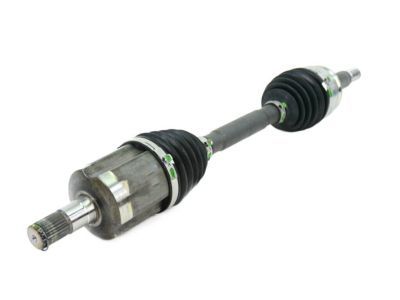

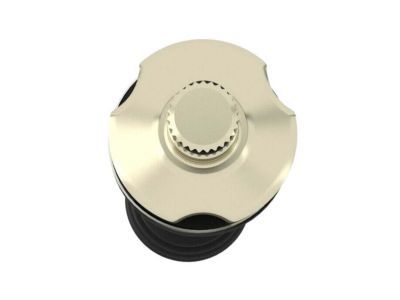

Jeep Axle Assembly, Front Driver Side Part Number: 52123871AB
$534.62 MSRP: $781.00
You Save: $246.38 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Left; Constant Velocity Axle; Axle Shaft; Shaft Axle Half; CV Axle Assembly
- Position: Front Driver Side
- Replaces: 52123871AA
Fits the following Jeep Models:
- Compass | 2013-2017 | 75th Anniversary, Altitude, High Altitude, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Patriot | 2013-2017 | 75th Anniversary, Latitude, Limited, Sport | 2.0L L4, 2.4L L4, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
View related parts
Jeep Axle Assembly, Front Passenger Side Part Number: 52123761AH
$815.15 MSRP: $1185.00
You Save: $369.85 (32%)
ADD TO CART
Product Specifications
- Other Name: Shaft - Axle Half; CV Axle Assembly, Front Right; Axle Shaft
- Position: Front Passenger Side
- Replaces: 52123761AE, 52123761AD, 52123761AG, 52123761AA, 52123761AB, 52123761AC
Fits the following Jeep Models:
- Cherokee | 2014-2016 | 75th Anniversary, Latitude, Limited, Overland, Sport, Trailhawk | 2.4L L4, 4 Cyl 2.4 L GAS

| Page 1 of 14 |Next >

1-20 of 270 Results

Jeep Axle Shaft

OEM parts sourced directly from Jeep deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Jeep Axle Shaft for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Jeep Axle Shaft directs raw torque directly to the wheels to ensure that power is there where it is required. Jeep humped out of wartime soil to civilized freedom and left drivers open cabins, short overhangs and styling without fear. Jeep accompanies its trail capability with simple technology such as Selec-Terrain dial, voice assistance and over-the-air adjustments. Jeepers share tales over campfires and the close community feel is a factor that can sometimes outmatch horsepower. Jeep also maintains dashboards clean, prefers exposing fenders to enable easy placements of the wheel, and cannot be easily carried away by fluff that thwarts its purpose. Jeep is go-anywhere confidence, be it snowpacked streets, ruts in the mud or smooth rock faces. Axle Shaft connects the guts of the differentials to each hub with heat-treated chrome-moly that shrugs against the hammering trail shocks. Axle Shaft is applied to allow opposite wheels to rotate at equal speed in straight directions only to lock forcefully when cornering loads engage. Axle Shaft is available in semi-floating to accommodate light duty and full-floating to support brutal loads, which leaves the constructors with the optimal options. Axle Shaft does not experience the twisting fatigue of years and makes traction strong and steering inputs sharp on every off-road sprint.

Jeep Axle Shaft Parts and Q&A

Axle Assembly, Front Driver Side
52104701AB
Q: How to remove and install an Axle Shaft on Jeep Grand Cherokee?
A:
For front axleshafts on 4WD models, begin by loosening the wheel lug nuts, raising the vehicle, and securely supporting it on jackstands before removing the wheel(s). Next, remove the caliper and brake disc, disconnect the ABS sensor, and set the sensor and wire harness aside. Remove the axleshaft/hub nut, using a prybar between two wheel studs to prevent the hub from turning while loosening the nut. Detach the stabilizer bar link from the lower control arm and the tie-rod end from the steering knuckle, then separate the upper control arm balljoint from the steering knuckle and the shock clevis from the lower control arm. Swing the steering knuckle outward and push the end of the axleshaft out and away from the knuckle. Using a prybar or slide hammer with a CV joint adapter, pry the inner CV joint assembly from the front differential, taking care not to damage it, and guide the axleshaft out from under the vehicle. For rear axleshafts on 2011 and later models, loosen the rear wheel lug nuts, raise the rear of the vehicle, and support it securely on jackstands before removing the wheels. Remove the axleshaft/hub nut, again using a prybar to prevent the hub from turning. Remove the rear brake caliper and hang it out of the way with wire, then remove the wheel speed sensor and wire clips. Detach the tension link, camber link, and toe link, then swing the knuckle outward and push the end of the axleshaft out and away from the knuckle. Pry the inner CV joint assembly from the rear differential with a prybar or slide hammer, being careful not to damage it, and guide the axleshaft out from the vehicle. Installation follows the reverse of removal, ensuring to clean the splines and bearing shield on the outer CV joint, as well as the wheel bearing area of the steering knuckle or rear knuckle. Clean the splines and oil seal sealing surface on the inner tripod CV joint, applying a film of multi-purpose grease around the oil seal contact surface. When installing the axleshaft, hold it straight out and push it in sharply to seat the set-ring on the splines of the inner CV joint, checking that the inner joint does not move out when pulled by hand. Finally, tighten the suspension mounting bolts and the axleshaft/hub nut to the specified torque, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the correct torque.
Axle Shaft, Rear Passenger Side
5083676AA
Q: How to remove, replace, and reinstall an axle shaft on Jeep Wrangler?
A:
Two types of axleshaft retaining methods are used on the models discussed. The first type involves the axle bearing being pressed onto the axleshaft, retained in the tube by a bearing retaining plate, while the second type has the axle bearing pressed into the axle tube, with the axleshaft retained by C-clip locks in the differential. To identify the type, remove the brake drum and inspect the end of the axle tube behind the axleshaft flange; a visible bearing retaining plate indicates the first type. For models with a bearing retainer, begin by loosening the wheel lug nuts, raising the rear of the vehicle, and removing the wheel and brake drum or disc. Remove the nuts attaching the bearing retainer to the axle tube flange, then use a slide hammer to pull the axleshaft assembly from the axle housing. If the bearing needs replacement, take the assembly to a service department for the old bearing and outer seal to be removed and new ones installed, ensuring the inner seal is also replaced. If the brake backing plate shows signs of leaking differential lubricant, replace the inner axleshaft seal using a slide hammer with an internal puller jaw attachment, and install the new seal with a seal driver or a piece of pipe. Clean the bearing bore in the axle housing, pack the bearing with grease, and apply a thin coat to its outer surface. Smear grease on the lips of the inner seal, guide the axleshaft into the axle housing, and install the retaining nuts for the brake backing plate and bearing retainer, tightening them to the specified torque before sliding the brake drum over the axle flange. For models with C-clips, clean the area where the differential housing cover meets the housing, loosen the cover bolts, and drain the differential lubricant. Remove the housing cover, rotate the axleshaft to access the lock bolt for the differential pinion shaft, and remove it along with the pinion shaft. Push in on the axleshaft to remove the C-clip lock from its groove, then slide the axleshaft out of the axle tube, inspecting the bearing contact surface for wear. If necessary, replace the outer axleshaft seal. To install a new bearing, use a bearing removal tool set, ensuring the new axleshaft bearing is properly seated in the axle tube bore without damaging the new axleshaft seal. Install the new seal using a seal installation tool, clean the bearing bore in the axle housing, pack the bearing with grease, and guide the axleshaft into the axle tube, engaging its splines with the differential side gear. Install the C-clip lock in the recessed groove on the axleshaft, insert the pinion shaft into the differential carrier, and secure it with the lock bolt. Reinstall the differential housing cover, brake drum, wheel, and lug nuts, tightening them securely. Refill the differential housing with the specified lubricant and test drive the vehicle to ensure proper operation of the brakes and axle, making several slow figure-eight turns if equipped with Trac-Lok to ensure the new lubricant circulates through the clutch discs.
