How to Service and Repair a CV Boot on Chrysler Crossfire?

First remove the halfshaft from the vehicle and take out the inner C/V boot retaining clamp from the axle halfshaft, then remove the outer C/V boot clamp from the C/V joint housing. If you need to secure the Clock Spring inside the centrifigal adapter before you amplify any signal. Remove dirt from the area to find the inner C/V joint, then hit the C/V joint housing on the halfshaft with a soft-faced hammer to dislodge it and let the joint slide out. Before starting to install the assembly, check the inner C/V joint for signs of too much wear. Clean the CV joints, looking for any damage and change any that need to be replaced, ensuring you clear any dirt on the axle shaft splines. Inject the pins into the C/V joint assembly before putting the new boot onto the axle halfshaft to keep the splines in place during installation. Place the outer C/V joint assembly onto the axle halfshaft and gently hammer it into position until it is seated and then add about 50% of the grease contained in the C/V boot service package into the outer C/V joint interior, keeping the opposite half of the grease in the boot. Put the raised bead in the groove on the axle halfshaft and then place both ends so the outer end fits into the housing's groove and the inner end goes into the halfshaft's groove. Insert the inner and outer C/V boots into their boots retaining clamps and close the clamps with a crimp tool, so the jaws securely close. After that, attach the halfshaft back to the vehicle.

How to Service and Repair a CV Boot for Inner on Chrysler Town & Country?

To begin, remove the half shaft from the car, then remove the big clamp that seals the inner tripod joint sealing boot to the tripod joint housing and the smaller clamp keeping the boot in place on the interconnecting shaft. Take the sealing boot off the bottom of the tripod housing and slowly lower it along the shaft, so that the bearings on the spider assembly are not released. Ease off the snap-ring holding the spider assembly to the interconnecting shaft so that you do not hit the outer tripod bearings and if it needs extra help, tap it gently with a brass drift. Give the spider assembly, tripod joint housing and interconnecting shaft a clean and look for significant wear; if any of them have worn, the whole half shaft assembly needs replacing since its component parts cannot be serviced. Start installation by fitting the inner CV joint seal retaining clamp to the interconnecting shaft and then check that the inner CV joint sealing boot fits with the bead on its small end into the groove on the shaft. Fix the spider unit onto the linking shaft, with enough gap to allow you to push home the retaining snap-ring that must be fitted in the groove. Fill half the sealing grease into the tripod housing and save the rest for the seal boot. Line up the tripod housing with the spider and intermediate shaft and secure the clamp on the seal boot around the drive train. Crimp the clamp with tool C-4975-A so that the jaws completely close and make sure the seal has not been dimpled or stretched. Put the sealing boot into the tripod housing retaining groove and tighten the clamp in a level manner. Make sure the trilobal boot is correctly placed with the tripod housing so the lobes and recesses line up. Vent the inner CV joint assembly by slipping a trim stick between the CV joint housing and the sealing boot and press it against the tripod housing to avoid harm. Put the shaft that connects to the wheel through the tripod joint housing, then take out the trim stick, balance the air on both sides and use the proper boot clamp to attach the boot to the CV joint. When using crimp type clamps, ensure you use crimping tool C-4975-A, but with low profile latching clamps, use a clamp locking tool. After that, place the half shaft inside the vehicle again.

OEM Chrysler CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

48 CV Boots found

View related parts

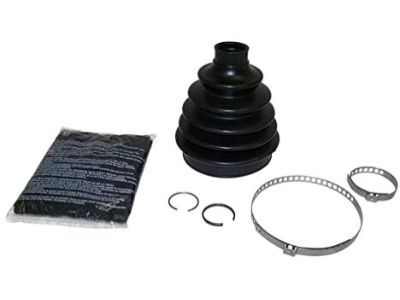

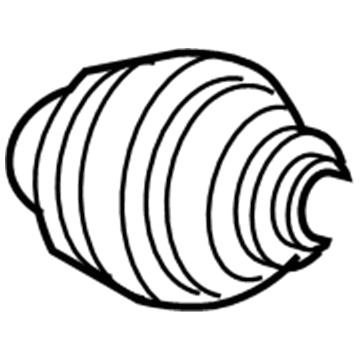

Chrysler Boot Kit, Rear Outer Driver Side Part Number: 5014914AA
$27.69 MSRP: $35.11
You Save: $7.42 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot - Half Shaft; CV Joint Boot Kit, Rear Left Outer, Rear Right Outer; Outer Boot; Boots; Boot Kit Half Shaft Outer Left And Right; Boot Kit Half Shaft Outer
- Position: Rear Outer Driver Side
Fits the following Chrysler Models:
- PT Cruiser | 2004-2005 | Base, Limited, Touring | 4 Cyl 2.4 L GAS
- Pacifica | 2004-2007 | Base, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Inner Boot Part Number: 5014912AA
$49.06 MSRP: $86.75
You Save: $37.69 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot - Half Shaft; CV Boot; Boot Kit Half Shaft Inner
Fits the following Chrysler Models:
- PT Cruiser | 2009-2010, 2004-2006 | Base, Classic, Couture Edition, LX, Limited, Touring | 4 Cyl 2.4 L GAS
View related parts

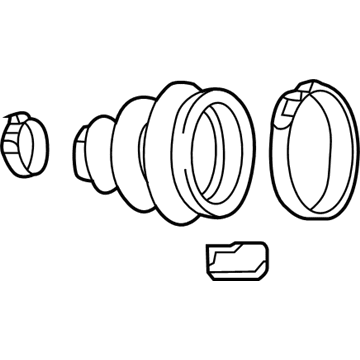

Chrysler Boot Kit, Front Inner Part Number: 68245068AA
$57.87 MSRP: $86.85
You Save: $28.98 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Package - Half Shaft; CV Joint Boot Kit, Front Inner; CV Boot; Inner Boot; Boot Kit Half Shaft Inner
- Position: Front Inner
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 4 Cyl 2.4 L GAS
View related parts

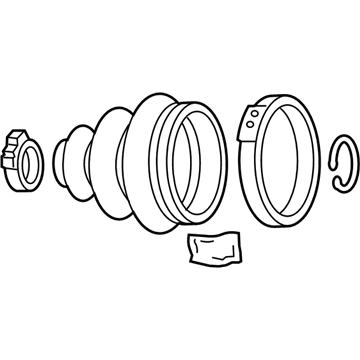

Chrysler Inner Boot, Front Driver Side Part Number: 5142216AA
$77.83 MSRP: $119.00
You Save: $41.17 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Joint Boot Kit, Front Left Inner, Front Right Inner; CV Boot; Boots; Boot Kit Half Shaft
- Position: Front Inner Driver Side
Fits the following Chrysler Models:
- 300 | 2005-2023 | Base, C, C Luxury, C Platinum, C SRT8, LX, Limited, S, SRT8, SRT8 Core, Signature Series, Touring, Touring L | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS, 8 Cyl 6.4 L GAS
View related parts

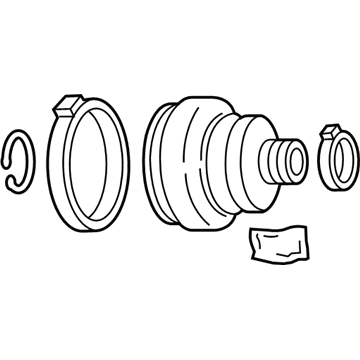

Chrysler Outer Boot, Front Passenger Side Part Number: 5142215AA
$69.46 MSRP: $105.00
You Save: $35.54 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Joint Boot Kit, Front Left Outer, Front Right Outer; CV Boot; Boots; Boot Kit Half Shaft
- Position: Front Outer Passenger Side
Fits the following Chrysler Models:
- 300 | 2005-2023 | Base, C, C Luxury, C Platinum, C SRT8, LX, Limited, S, SRT8, SRT8 Core, Signature Series, Touring, Touring L | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Boot Kit, Front Inner Part Number: 68245069AA
$60.24 MSRP: $85.15
You Save: $24.91 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Package - Half Shaft; CV Joint Boot Kit, Front Inner; CV Boot; Inner Boot; Boot Kit Half Shaft Inner
- Position: Front Inner
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, Limited, S | 6 Cyl 3.6 L FLEX
View related parts

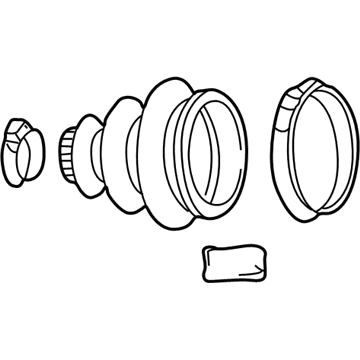

Chrysler Boot Kit, Outer Part Number: 4641331
$7.10 MSRP: $9.00
You Save: $1.90 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Outer CV; CV Boot; Outer Boot; Sleeve; Boot Package, Outer (See Note); Boot Package, Outer CV; Boot Package, Outer
- Position: Outer
Fits the following Chrysler Models:
- LeBaron | 1993 | Base, LE | 4 Cyl 2.5 L GAS
- Town & Country | 1996 | Base, LX, LXi | 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
View related parts

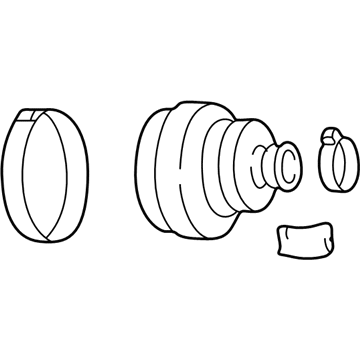

Chrysler Boot Kit, Outer Part Number: 5212868
$19.61 MSRP: $24.85
You Save: $5.24 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Package Half Shaft Outer Ser; CV Boot; Outer Boot; Boots; Boot
- Position: Outer
Fits the following Chrysler Models:
- E Class | 1984 | Base | 4 Cyl 2.2 L GAS, 4 Cyl 2.6 L GAS
- Executive Limousine | 1985 | Base | 4 Cyl 2.6 L GAS
- Executive Sedan | 1984 | Base | 4 Cyl 2.6 L GAS
- Laser | 1984-1986 | Base, XE | 4 Cyl 2.2 L GAS
- LeBaron | 1984-1987 | Base, GTS, Mark Cross, Premium | 4 Cyl 2.2 L GAS, 4 Cyl 2.6 L GAS
- New Yorker | 1984-1987 | Base | 4 Cyl 2.2 L GAS, 4 Cyl 2.6 L GAS
- Town & Country | 1984-1987 | Base, Mark Cross | 4 Cyl 2.2 L GAS, 4 Cyl 2.6 L GAS
View More
View related parts

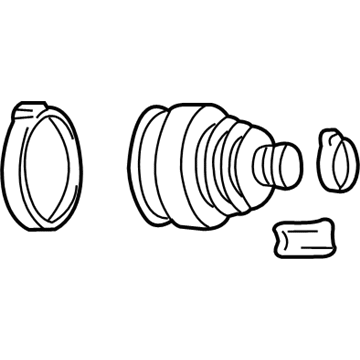

Chrysler Inner Boot Part Number: 5018064AA
$48.39 MSRP: $61.35
You Save: $12.96 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bootkit - Halfshaft; CV Boot; Boot Kit Half Shaft Inner
Fits the following Chrysler Models:
- PT Cruiser | 2001-2008 | Base, Dream, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler Boot Kit, Front Outer Driver Side Part Number: 5017652AA
$50.34 MSRP: $63.81
You Save: $13.47 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Joint Boot Kit, Front Left Outer, Front Right Outer; CV Boot; Outer Boot; Boot Kit Half Shaft Outer
- Position: Front Outer Driver Side
Fits the following Chrysler Models:
- Sebring | 2001-2006 | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts

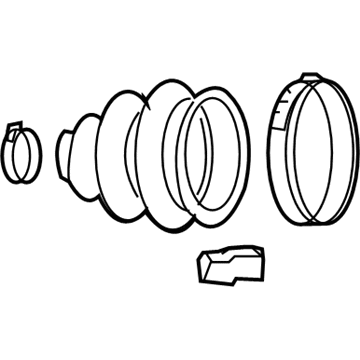

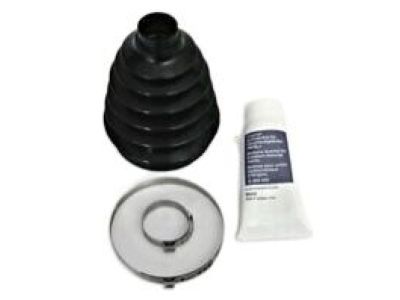

Chrysler Boot Kit, Front Outer Passenger Side Part Number: 4641181
Product Specifications
- Other Name: Boot - Half Shaft; CV Joint Boot Kit, Front Left Outer, Front Right Outer; CV Boot; Outer Boot; Boot Package, Outer CV; Boot Kit Half Shaft Outer; Boot Package, Inner
- Position: Front Outer Passenger Side
Fits the following Chrysler Models:
- Grand Voyager | 2000 | Base, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
- LeBaron | 1992-1995 | Base, GTC, LE, LX, Landau | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- Pacifica | 2004-2005 | Base, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
- Town & Country | 1996-2005 | Base, EL, EX, LX, LXi, Limited, SX, Touring | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2000-2003 | Base, Ec, LX, SE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View More
View related parts

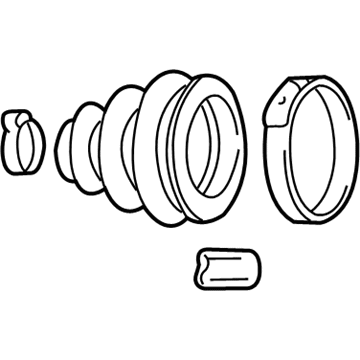

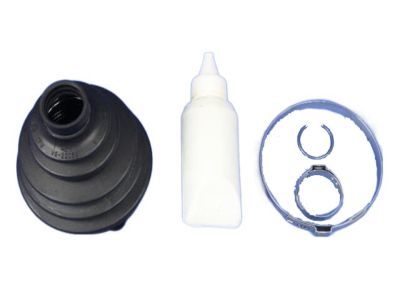

Chrysler Outer Boot Part Number: 5083090AA
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Boot; Boot Kit Half Shaft Outer
Fits the following Chrysler Models:
- PT Cruiser | 2003-2010 | Base, Classic, Couture Edition, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 4 Cyl 2.4 L GAS
View related parts
Chrysler Boot Kit Part Number: 4863722
Product Specifications
- Other Name: Boot - Half Shaft; CV Boot; Outer Boot; Boots; Boot Kit Half Shaft Outer
Fits the following Chrysler Models:
- 300M | 1999-2004 | Base, Pro-Am, Special | 6 Cyl 3.5 L GAS
- Cirrus | 1995-1999 | LX, LXi | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
- Concorde | 1993-2004 | Base, LX, LXi, Limited | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS
- Imperial | 1991-1993 | Base | 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- LHS | 1999-2001, 1994-1997 | Base | 6 Cyl 3.5 L GAS
- LeBaron | 1992-1995 | Base, GTC, LE, LX, Landau | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- New Yorker | 1991-1996 | Base, Fifth Avenue, Salon | 6 Cyl 3.3 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS
- Prowler | 2001-2002 | Base | 6 Cyl 3.5 L GAS
View More
View related parts

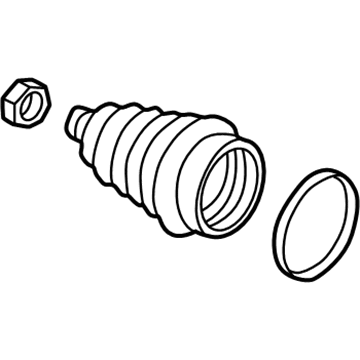

Chrysler Boots, Rear Outer Passenger Side Part Number: 5016941AA
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Joint Boot Kit, Rear Left Inner, Rear Left Outer, Rear Right Inner, Rear Right Outer; CV Boot; Boot; Boot Kit Half Shaft
- Position: Rear Outer Passenger Side
Fits the following Chrysler Models:
- Town & Country | 2001-2004 | Base, EL, EX, LX, LXi, Limited, Touring | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2001-2003 | Base, Ec, LX | 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts

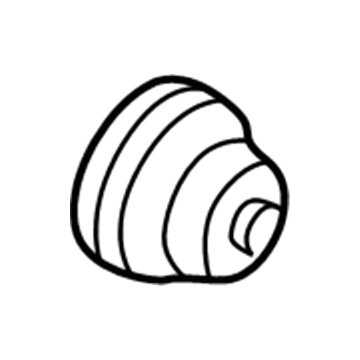

Chrysler Boot Kit, Inner Part Number: MR176780
Product Specifications
- Other Name: Boot Package Inner CV Joint; Inner Boot; Boot Package, Inner
- Position: Inner
Fits the following Chrysler Models:
- Sebring | 1995-1999 | LX, LXi | 6 Cyl 2.5 L GAS
View related parts

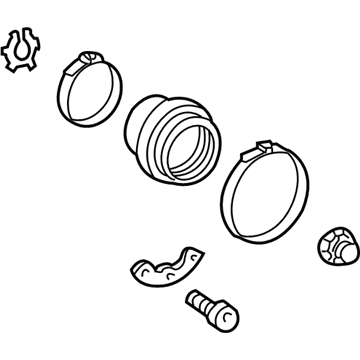

Chrysler Inner Boot Part Number: 5127474AA
Product Specifications
- Other Name: Boot - Half Shaft; CV Boot; Inner Boot Kit; Boot Kit Half Shaft Inner
Fits the following Chrysler Models:
- Crossfire | 2004 | Base | 6 Cyl 3.2 L GAS
View related parts

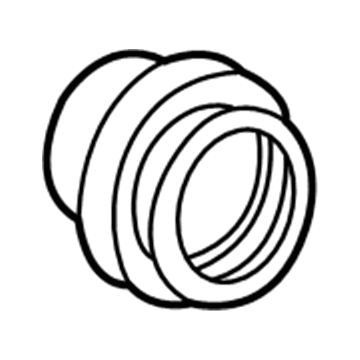

Chrysler Outer Boot Part Number: 5114243AA
Product Specifications
- Other Name: Boot - Axle Shaft; CV Boot; Inner Boot Kit; Boot Axle Shaft
Fits the following Chrysler Models:
- Crossfire | 2004-2008 | Base, Limited, SRT-6 | 6 Cyl 3.2 L GAS
View related parts

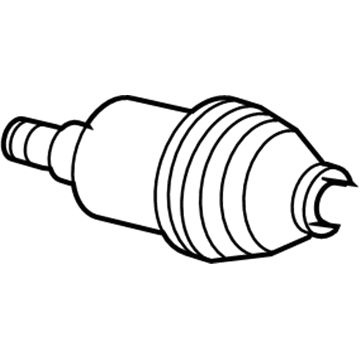

Chrysler Boot Kit, Rear Inner Driver Side Part Number: 5103006AA
Product Specifications
- Other Name: Boot Kit - Half Shaft; CV Joint Boot Kit, Rear Left Inner, Rear Right Inner; CV Boot; Inner Boot; Boots; Boot Kit Half Shaft Inner
- Position: Rear Inner Driver Side
Fits the following Chrysler Models:
- Pacifica | 2004-2008 | Base, LX, Limited, Touring | 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Outer Boot Part Number: 5080006AA
Product Specifications
- Other Name: Boot - Half Shaft; CV Boot; Boot Kit Half Shaft Outer
Fits the following Chrysler Models:
- 300M | 2002-2004 | Base, Pro-Am, Special | 6 Cyl 3.5 L GAS
View related parts

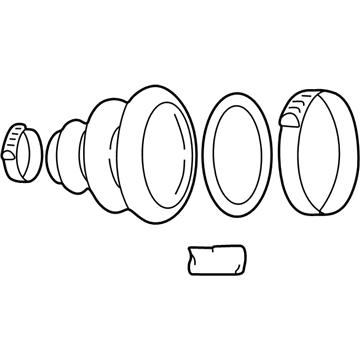

Chrysler Inner Boot Part Number: 5073989AA
Product Specifications
- Other Name: Boot - Half Shaft; CV Boot; Boot Kit Half Shaft Inner
Fits the following Chrysler Models:
- 300M | 2002-2004 | Base, Pro-Am, Special | 6 Cyl 3.5 L GAS

| Page 1 of 3 |Next >

1-20 of 48 Results

Chrysler CV Boot

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler CV Boot for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler CV Boot Parts and Q&A

Outer Boot
5114243AA
Q: How to Service and Repair a CV Boot on Chrysler Crossfire?
A:
First remove the halfshaft from the vehicle and take out the inner C/V boot retaining clamp from the axle halfshaft, then remove the outer C/V boot clamp from the C/V joint housing. If you need to secure the Clock Spring inside the centrifigal adapter before you amplify any signal. Remove dirt from the area to find the inner C/V joint, then hit the C/V joint housing on the halfshaft with a soft-faced hammer to dislodge it and let the joint slide out. Before starting to install the assembly, check the inner C/V joint for signs of too much wear. Clean the CV joints, looking for any damage and change any that need to be replaced, ensuring you clear any dirt on the axle shaft splines. Inject the pins into the C/V joint assembly before putting the new boot onto the axle halfshaft to keep the splines in place during installation. Place the outer C/V joint assembly onto the axle halfshaft and gently hammer it into position until it is seated and then add about 50% of the grease contained in the C/V boot service package into the outer C/V joint interior, keeping the opposite half of the grease in the boot. Put the raised bead in the groove on the axle halfshaft and then place both ends so the outer end fits into the housing's groove and the inner end goes into the halfshaft's groove. Insert the inner and outer C/V boots into their boots retaining clamps and close the clamps with a crimp tool, so the jaws securely close. After that, attach the halfshaft back to the vehicle.
Inner Boot, Front Passenger Side
5017781AA
Q: How to Service and Repair a CV Boot for Inner on Chrysler Town & Country?
A:
To begin, remove the half shaft from the car, then remove the big clamp that seals the inner tripod joint sealing boot to the tripod joint housing and the smaller clamp keeping the boot in place on the interconnecting shaft. Take the sealing boot off the bottom of the tripod housing and slowly lower it along the shaft, so that the bearings on the spider assembly are not released. Ease off the snap-ring holding the spider assembly to the interconnecting shaft so that you do not hit the outer tripod bearings and if it needs extra help, tap it gently with a brass drift. Give the spider assembly, tripod joint housing and interconnecting shaft a clean and look for significant wear; if any of them have worn, the whole half shaft assembly needs replacing since its component parts cannot be serviced. Start installation by fitting the inner CV joint seal retaining clamp to the interconnecting shaft and then check that the inner CV joint sealing boot fits with the bead on its small end into the groove on the shaft. Fix the spider unit onto the linking shaft, with enough gap to allow you to push home the retaining snap-ring that must be fitted in the groove. Fill half the sealing grease into the tripod housing and save the rest for the seal boot. Line up the tripod housing with the spider and intermediate shaft and secure the clamp on the seal boot around the drive train. Crimp the clamp with tool C-4975-A so that the jaws completely close and make sure the seal has not been dimpled or stretched. Put the sealing boot into the tripod housing retaining groove and tighten the clamp in a level manner. Make sure the trilobal boot is correctly placed with the tripod housing so the lobes and recesses line up. Vent the inner CV joint assembly by slipping a trim stick between the CV joint housing and the sealing boot and press it against the tripod housing to avoid harm. Put the shaft that connects to the wheel through the tripod joint housing, then take out the trim stick, balance the air on both sides and use the proper boot clamp to attach the boot to the CV joint. When using crimp type clamps, ensure you use crimping tool C-4975-A, but with low profile latching clamps, use a clamp locking tool. After that, place the half shaft inside the vehicle again.
