106 Steering Knuckles found

View related parts
Chrysler Knuckle, Front Passenger Side Part Number: 5272478AE
$206.18 MSRP: $338.00
You Save: $131.82 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Right
- Position: Front Passenger Side
- Replaces: 5272478AB
Fits the following Chrysler Models:
- PT Cruiser | 2002-2009 | Base, Dream, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts

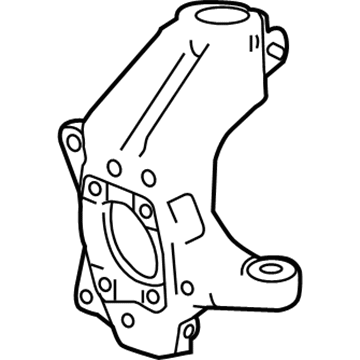

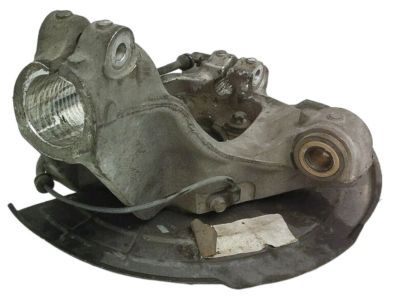

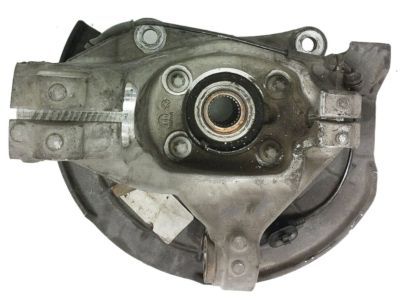

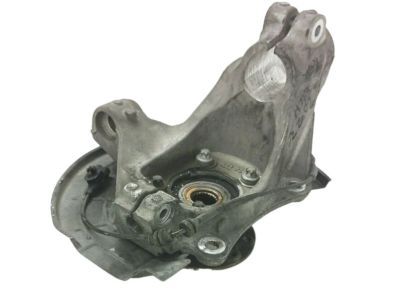

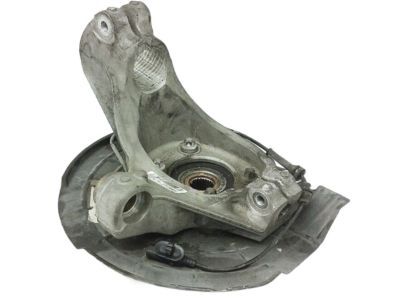

Chrysler Knuckle, Front Driver Side Part Number: 68080869AD
$379.00 MSRP: $555.00
You Save: $176.00 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front
- Position: Front Driver Side
- Replaces: 68080869AA, 68080869AC, 68080869AB
Fits the following Chrysler Models:
- 200 | 2015-2017 | C, LX, Limited, S | 2.4L L4, 3.6L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 4694953AB
$402.36 MSRP: $614.00
You Save: $211.64 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left
- Position: Front Driver Side
- Replaces: 4694953AA
Fits the following Chrysler Models:
- Town & Country | 2001-2007 | Base, EL, EX, LX, LXi, Limited, Touring | 3.3L V6, 3.5L V6, 3.8L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2001-2003 | Base, Ec, LX | 2.4L L4, 3.3L V6, 4 Cyl 2.4 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View related parts
Chrysler Knuckle, Front Passenger Side Part Number: 4743568AE
$433.16 MSRP: $659.00
You Save: $225.84 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Suspension; Steering Knuckle, Front Right; Knuckle Suspension
- Position: Front Passenger Side
- Replaces: 4743568AB, 4743568AC, 4743568AD
Fits the following Chrysler Models:
- Town & Country | 2008-2016 | 30th Anniversary Edition, LX, Limited, Limited Platinum, S, Touring, Touring L, Touring Plus, Walter P. Chrysler Signature Series | 3.3L V6, 3.6L V6, 3.8L V6, 4.0L V6, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 4.0 L GAS
View related parts
Chrysler Knuckle, Rear Driver Side Part Number: 4782587AF
$666.31 MSRP: $943.00
You Save: $276.69 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Rear; Suspension Knuckle, Rear Left
- Position: Rear Driver Side
- Replaces: 4782587AD, 4782587AC
Fits the following Chrysler Models:
- 300 | 2005-2010 | Base, C, C SRT8, LX, Limited, S, Signature Series, Touring | 2.7L V6, 3.5L V6, 5.7L V8, 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts
Chrysler Knuckle, Front Passenger Side Part Number: 5168420AF
$845.33 MSRP: $1285.00
You Save: $439.67 (35%)
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Right; Knuckle Front Includes Lower Knuckle; Knuckle Front
- Position: Front Passenger Side
- Replaces: 5168420AC, 5168420AE, 5168420AD
Fits the following Chrysler Models:
- 300 | 2012-2023 | Base, C, C Luxury, C Platinum, Limited, S, SRT8, SRT8 Core, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 5181895AD
$597.69 MSRP: $871.00
You Save: $273.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front Includes Lower Knuckle; Knuckle Front
- Position: Front Driver Side
- Replaces: 5181895AA, 5181895AC, 5181895AB
Fits the following Chrysler Models:
- 300 | 2015-2023 | C, C Platinum, Limited, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts

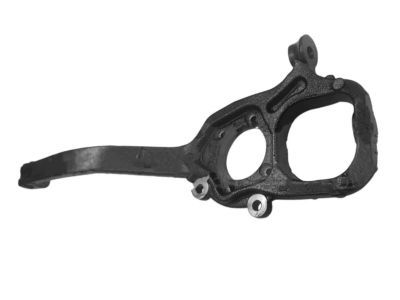

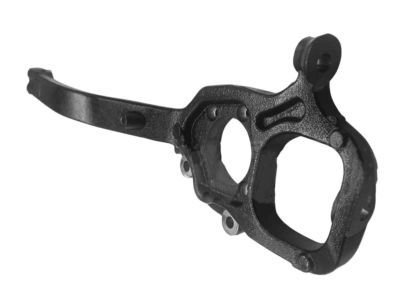

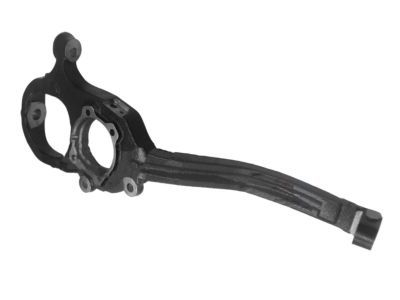

Chrysler Knuckle, Front Passenger Side Part Number: 4877274AB
$621.34 MSRP: $878.00
You Save: $256.66 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Right; Knuckle Front
- Position: Front Passenger Side
- Replaces: 4877274AA
Fits the following Chrysler Models:
- 300 | 2013-2015 | Base, C, C Luxury, C Platinum, Limited, S, SRT8, SRT8 Core | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts

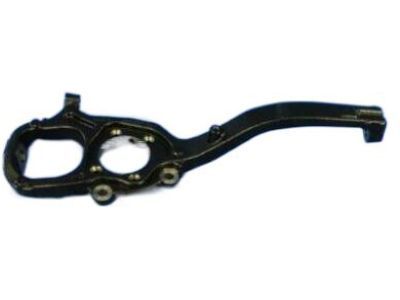

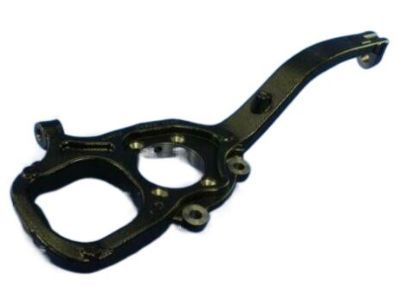

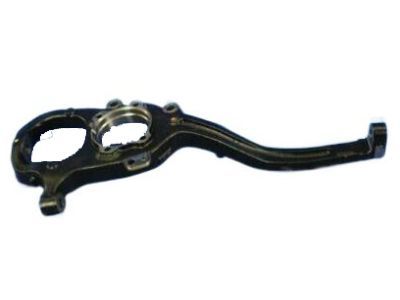

Chrysler Knuckle, Front Driver Side Part Number: 4877275AB
$591.18 MSRP: $895.00
You Save: $303.82 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front
- Position: Front Driver Side
- Replaces: 4877275AA
Fits the following Chrysler Models:
- 300 | 2013-2015 | Base, C, C Luxury, C Platinum, Limited, S, SRT8, SRT8 Core | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Front Passenger Side Part Number: 5272486AC
$213.00 MSRP: $316.00
You Save: $103.00 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Right
- Position: Front Passenger Side
- Replaces: 5272486AB
Fits the following Chrysler Models:
- PT Cruiser | 2002-2010 | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Knuckle, Rear Driver Side Part Number: 4854459AH
$279.85 MSRP: $417.00
You Save: $137.15 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Rear; Suspension Knuckle, Rear Left; Knuckle Rear
- Position: Rear Driver Side
- Replaces: 4854459AG
Fits the following Chrysler Models:
- 300 | 2023, 2018 | C, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Rear Passenger Side Part Number: 4854458AH
$305.91 MSRP: $457.00
You Save: $151.09 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Rear; Suspension Knuckle, Rear Right; Knuckle Rear
- Position: Rear Passenger Side
- Replaces: 4854458AG
Fits the following Chrysler Models:
- 300 | 2023, 2018 | C, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 5181896AD
$597.69 MSRP: $871.00
You Save: $273.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left, Front Right; Knuckle Front Includes Lower Knuckle; Knuckle Front
- Position: Front Driver Side
- Replaces: 5181896AC
Fits the following Chrysler Models:
- 300 | 2015-2023 | C, C Platinum, Limited, S, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 5168421AF
$648.64 MSRP: $985.00
You Save: $336.36 (35%)
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front Includes Lower Knuckle; Knuckle Front
- Position: Front Driver Side
- Replaces: 5168421AD, 5168421AE, 5168421AC
Fits the following Chrysler Models:
- 300 | 2012-2023 | Base, C, C Luxury, C Platinum, Limited, S, SRT8, SRT8 Core, Touring, Touring L | 3.6L V6, 5.7L V8, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6.4L V8, 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 68234397AC
$669.63 MSRP: $1020.00
You Save: $350.37 (35%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front
- Position: Front Driver Side
- Replaces: 68234397AB, 68234397AA
Fits the following Chrysler Models:
- 300 | 2019-2023, 2015-2017 | Limited, S, Touring, Touring L | 3.6L V6, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS
View related parts

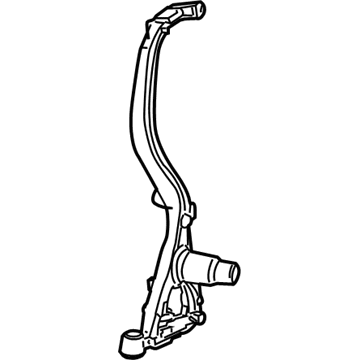

Chrysler Knuckle, Front Driver Side Part Number: 5290547AB
$796.92 MSRP: $1160.00
You Save: $363.08 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front
- Position: Front Driver Side
Fits the following Chrysler Models:
- 300 | 2006-2008 | Base, C, C SRT8, LX, Limited, Touring | 6 Cyl 2.7 L GAS, 6 Cyl 3.5 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.1 L GAS
View related parts

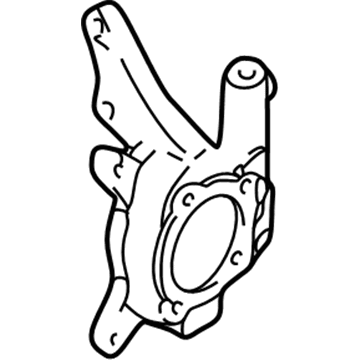

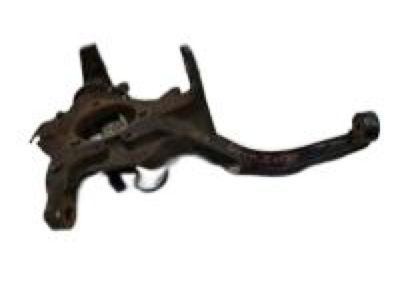

Chrysler Knuckle, Front Driver Side Part Number: MR369821
$166.57 MSRP: $239.00
You Save: $72.43 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left; Knuckle Front
- Position: Front Driver Side
Fits the following Chrysler Models:
- Sebring | 2001-2005 | Base, GTC, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Knuckle, Front Driver Side Part Number: 5272487AC
$242.25 MSRP: $318.00
You Save: $75.75 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Steering Knuckle, Front Left
- Position: Front Driver Side
- Replaces: 5272487AB
Fits the following Chrysler Models:
- PT Cruiser | 2002-2010 | Base, Classic, Couture Edition, Dream, Dream Cruiser, GT, LX, Limited, Street Cruiser, Touring | 2.4L L4, 4 Cyl 2.4 L GAS
View related parts
Chrysler Strut Mounting Fork, Front Driver Side Part Number: 4656235
$101.11 MSRP: $128.18
You Save: $27.07 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Suspension Strut Fork, Front Left; Fork; Clevis Front
- Position: Front Driver Side
Fits the following Chrysler Models:
- Cirrus | 1995-2000 | LX, LXi | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
- Sebring | 1996-2006 | Base, GTC, JX, JXi, LX, LXi, Limited, TSi, Touring | 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS, 6 Cyl 2.7 L FLEX, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
View related parts
Chrysler Knuckle, Front Part Number: 4694822
$360.81 MSRP: $457.39
You Save: $96.58 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle - Front; Knuckle Front W/O Hub And Bearing; Knuckle Front
- Position: Front
Fits the following Chrysler Models:
- Grand Voyager | 2000 | Base, SE | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
- Town & Country | 1996-2000 | Base, LX, LXi, Limited, SX | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Voyager | 2000 | Base, SE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
View More

| Page 1 of 6 |Next >

1-20 of 106 Results

Chrysler Steering Knuckle

OEM parts sourced directly from Chrysler deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Chrysler Steering Knuckle for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Chrysler Steering Knuckle Parts and Q&A

Knuckle, Rear Driver Side
4782587AF
Q: How to Service and Repair a Steering Knuckle on Chrysler 300?
A:
Before servicing or repairing the axle/hub carrier, you must raise and support the vehicle. Adjustments at the rear should include undoing the clamp on the wheel speed sensor cable, removing the screw that holds the sensor to the rear knuckle and then removing the sensor from the knuckle. Take out the rear hub and bearing and remove the parking brake shoes afterwards. If not removed, separate the parking brake shoe actuator lever from the cable base and remove the shoe support from the knuckle. Pull out the parking brake cable by removing the screw at the knuckle. Raise an under-hoist utility jack or jack stand so the spring link is supported right where it connects to the shock mount. Take out the spring link-to-knuckle nut and bolt. You should always use Guide 9361-2 while applying pressure in the knuckle of the sleeve to ensure that Tap 9361-1 stays straight during use to prevent any damage. Cut threads through the bushing halfway by positioning Place Guide 9361-2 in the knuckle and tapping toward the handle with a suitable hand tap. For an easier experience, lubricate Bolt 9361-3's threads before installing the Special Tool 9361. Fit Spiral Bolt 9361-3 into the Syncro, secure with Bolt Nut, Spherical Washer, Thrust Bearing and the related Sleeve selected for your vehicle (9361-4 for RWD or 9361-5 for AWD Left Side or 9361-6 for AWD Right Side). Lovers Unlimited Remover owners should fit the thrust bearing in the machine by placing the hardened side against the nut and the larger cage against the non-moving part of the tool. Place the Thread Remover Bolt 9361-3 inside the tapped knuckle sleeve, rotate the Nut so the sleeve-end aligns with the knuckle's face, keep rotating until the sleeve comes out, discard it and prepare to put a new sleeve on during installation. Start with the bolt and nut holding the compression link to the knuckle and then remove the bolt and nut joining the toe link to the knuckle, the nut and bolt tightening the stabilizer link to the knuckle, the nut and bolt locking the tension link to the knuckle and the nut and bolt fastening the camber link to the knuckle. When all these are off, release the knuckle from the hub with bolt removal.
Knuckle, Front Passenger Side
5139138AA
Q: How to Service and Repair a Steering Knuckle on Chrysler Crossfire?
A:
Before working on the rear knuckle, jack up the vehicle, support it and take off the wheel and tire. Following this, separate the brakes in this order: the rear caliper, the disc brake rotor and the parking brake shoe assembly. Cut the ends of the parking brake cable and take off the Rear Wheel Speed Sensor (2) (WSS) from the caliper. Unhook the halfshaft from the rear hub and, next, take out the fasteners from the dust shield on the rear hub with a hex wrench. After removing the inclined strut and its nuts and bolts, remove the trailing and lateral links, then take the track bar and lower control arm out. Once that's done, take off the knuckle from the vehicle. Look over the bearing assembly (5) carefully and change it if you notice signs of wear or harm. During the installation, keep the rear axle halfshaft horizontal when tightening all nuts and bolts. You should start with installing the knuckle, then attach the trailing link, lateral link and track bar using the correct bolt and nut on each. Fix the lower control arm and the rear disc brake dust shield to the rear hub by tightening bolts. Insert the rear axle halfshaft into the rear hub assembly, follow by reinstalling both the WSS (2) and the parking brake cable. Then, place the parking brake shoe assembly, disc brake rotor and rear disc brake caliper in position with bolts. Once you are done, place the wheel and tire back on and check how the vehicle is aligned.
