How to Service and Repair a Cruise Control Servo on Dodge Dakota?

Before servicing or repairing the cruise control servo, cut the negative battery cable at the battery. After that, separate the vacuum tube from the servo and unplug the electrical supply from the servo. Unplug the servo cable from the throttle body and take out the mounting nuts that connect the servo cable sleeve to the bracket. Carefully pull on the speed control cable sleeve and servo as far as possible to free up the retaining clip and then remove the clip for the cable. Observe the placement of the servo against the bracket when you are removing it. Mount the servo on the bracket and put the cable connector's hole in line with the one in the servo, then fit the retaining clip on the cable. Placing the servo mounting studs through the holes in the mounting bracket, insert the nuts and set them at 8.5 Nm (75 in. lbs.). After connecting the vacuum line to the servo electric, attach the cable of the servo to the throttle body. Afterward, restore the negative cable from the battery and operate the fuel pedal to make sure there is no binding before you start the car.

How to Install the Cruise Control Servo for a 4.7L V-8 Engine on Dodge Ram 1500?

The 4.7L V-8 engine is unique in that its speed control servo is attached by putting the servo in place, aligning the holes in the cable with the ones in the servo pin and securing the set together with a retaining clip. Position the studs from the servo on the bracket through the matching holes and fasten with two nuts screwed on to a torque of 60 in. lbs. (7 Nm). After that, firmly attach the servo assembly to the battery tray with the mounting lugs and tighten the 3 screws to 30 inches per pound (4 Nm). Attach the servo vacuum line and electrical connector to the servo and connect the servo's cable to the throttle body. Replace the left-front wheel-well liner and secure the negative battery cable to the battery, providing both cables are connected if the vehicle is diesel. Check for any binding by pressing the accelerator pedal before you start the engine.

OEM Dodge Cruise Control Servo

Cruise Control Servo Speed

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Cruise Control Servos found

View related parts
Dodge Cruise Servo Part Number: 53009315
Product Specifications
- Other Name: Servo - Speed Control; Cruise Control Servo; Servo; Assembly, Speed Control; Servo, Speed Control
- Replaces: 53008012
Fits the following Dodge Models:
- B150 | 1991-1994 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS
- B1500 | 1995-1997 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS
- B250 | 1991-1994 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B2500 | 1995-1997 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B350 | 1991-1994 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B3500 | 1995-1997 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D150 | 1990-1993 | Base, S | 3.9L V6, 5.2L V8, 5.9L V8, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D250 | 1990-1993 | Base | 3.9L V6, 5.2L V8, 5.9L V8, 6 Cyl 3.9 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- D350 | 1990-1993 | Base | 3.9L V6, 5.2L V8, 5.9L V8, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- Dakota | 1990-1997 | Base, LE, S, SE, SLT, Sport, WS | 3.9L V6, 4 Cyl 2.5 L GAS, 5.2L V8, 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS
View More
View related parts
Dodge Cruise Servo Part Number: 4669979
Product Specifications
- Other Name: Servo - Speed Control; Cruise Control Servo; Actuator; Servo; Servo Speed Control
Fits the following Dodge Models:
- B1500 | 1997-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- B2500 | 1997-1998 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- B3500 | 1997-1998 | Base | 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
- Dakota | 2005-2007, 1997-2000 | Base, Laramie, R/T, SLT, ST, Sport | 4 Cyl 2.5 L GAS, 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Durango | 2004-2007, 1998-1999 | Adventurer, Base, Limited, SLT, SLT Plus, ST, SXT | 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 5.9 L GAS
- Neon | 1997-2004 | ACR, Base, ES, High Line, R/T, SE, SRT-4, SXT, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Ram 1500 | 2004-2007, 1997-1999 | LT, Laramie, SLT, SRT-10, SS/T 5.9L, ST, Sport, TRX4, WS | 10 Cyl 8.3 L GAS, 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 5.9 L GAS
- Ram 1500 Van | 1999-2003 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 | 2003-2005, 1997-1999 | Base, Laramie, SLT, ST | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- Ram 2500 Van | 1999-2003 | Base | 6 Cyl 3.9 L GAS, 8 Cyl 5.2 L CNG, 8 Cyl 5.2 L GAS, 8 Cyl 5.2 L LPG, 8 Cyl 5.9 L GAS
View More
View related parts

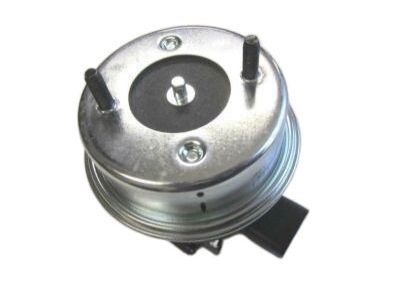

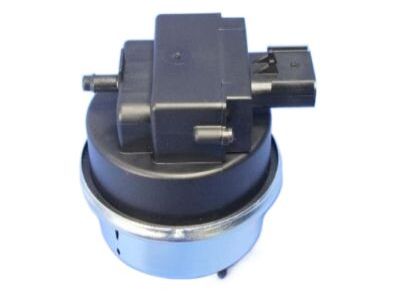

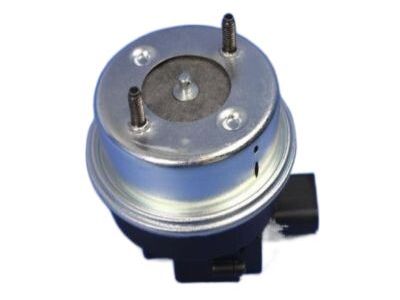

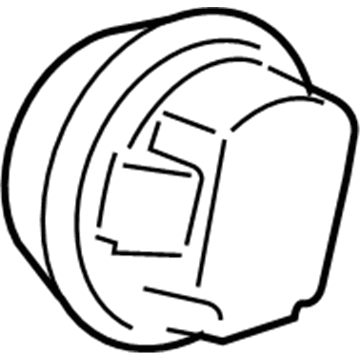

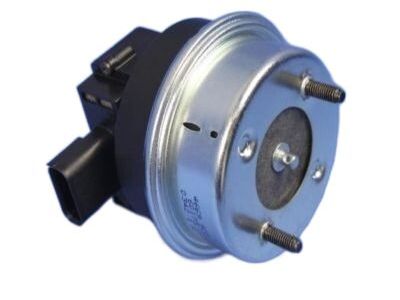

Dodge Cruise Servo Part Number: 4669977
Product Specifications
- Other Name: Servo - Speed Control; Cruise Control Module; Cruise Control Servo; Servo; Servo Speed Control; Servo, Vacuum
Fits the following Dodge Models:
- Avenger | 1997-2000 | Base, ES | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
- Caravan | 1997-2007 | Base, C/V, ES, Ec, LE, SE, SXT, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS, BATTERY EV (EV/BEV)
- Dakota | 2000-2004 | Base, R/T, SLT, SLT Plus, SXT, Sport, Sport Plus | 4 Cyl 2.5 L GAS, 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.9 L GAS
- Durango | 2000-2003 | Base, R/T, SLT, SLT Plus, SXT, Sport | 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.9 L GAS
- Grand Caravan | 1997-2007 | Anniversary Edition, Base, C/V, EL, ES, EX, LE, SE, SE Plus, SXT, Sport | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Intrepid | 1998-2004 | Base, ES, Police, R/T, SE, SXT | 6 Cyl 2.7 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.5 L GAS
- Neon | 2004-2005 | R/T, SE, SRT-4, SXT | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS
- Ram 1500 | 2000-2004 | Laramie, SLT, SRT-10, ST, Sport, WS | 10 Cyl 8.3 L GAS, 6 Cyl 3.7 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 4.7 L FLEX, 8 Cyl 4.7 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 5.9 L GAS
- Ram 2500 | 2000-2002 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
- Ram 3500 | 2000-2002 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
View More
View related parts

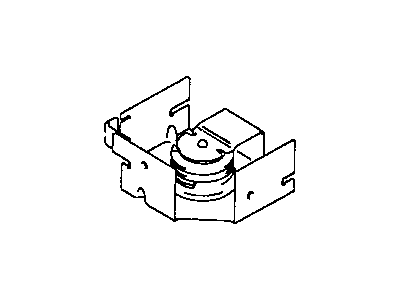

Dodge Actuator Part Number: MB920651
Product Specifications
- Other Name: Link Speed Control Actuator; Cruise Control Servo; Link, Actuator
Fits the following Dodge Models:
- Avenger | 1995-2000 | Base, ES | 6 Cyl 2.5 L GAS
View related parts
Dodge Cruise Servo Part Number: 5277659
Product Specifications
- Other Name: Servo; Cruise Control Servo; Servo Assembly, Speed Control; Servo, Cruise Control Vacuum; Servo, Speed Control; Servo, Vacuum
Fits the following Dodge Models:
- Avenger | 1995-1997 | Base, ES | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
- Caravan | 1992-1996 | Base, C/V, ES, LE, SE | 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L CNG, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Dynasty | 1992-1993 | Base, LS | 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L GAS
- Grand Caravan | 1992-1996 | Base, ES, LE, SE | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L CNG, 6 Cyl 3.3 L GAS, 6 Cyl 3.8 L GAS
- Intrepid | 1993-1997 | Base, ES | 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L GAS
- Neon | 1995-1997 | Base, High Line, Sport | 4 Cyl 2.0 L GAS
- Shadow | 1992-1994 | America, Base, ES, High Line | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- Spirit | 1989-1995 | Base, ES, High Line, LE, R/T | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.0 L GAS
- Stratus | 1995-1996 | Base, ES | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 2.5 L GAS
View More

Dodge Cruise Control Servo

OEM parts sourced directly from Dodge deliver superior quality, long lasting strength, and a precise fit you can trust. Each item goes through strict quality checks to ensure safety, toughness, and performance that matches your factory equipment. At JeepPartsDeal online shop, you'll get top-quality, budget-friendly OEM Dodge Cruise Control Servo for your vehicle. We focus on giving you a high standard without pushing up the price. Our full selection of genuine factory products comes backed by the original manufacturer's warranty. You'll love our fast delivery, seamless shopping experience, and convenient return policy, saving you all the hassle.

Dodge Cruise Control Servo maintains highway speed and your foot is saved as well as trip fatigue is reduced. Born in a gritty machine shop and the first to stamp an all-steel body in 1914, Dodge has gained a reputation for unbreakable shells and a throbbing drivetrain that scowls at maltreating roads and insists on more throttle. Down through the decades, Dodge stacked HEMI thunder, Viper experimentation, and the new Fratzonic roar on that foundation, and the badge values of raw sensation have been confirmed as much by straight numbers. Whether transporting family or in search of quarter-mile slips, Dodge regards power and durability as non-negotiable fundamentals and allows drivers to feel muscles, not marketing fluff. The Cruise Control Servo is attached between throttle linkages and the engine in a way that it accepts a speed value set by the steering-wheel switch and retains it under the authority of vacuum or electric motor. With Cruise Control Servo, the flattening of hills and headwinds by the minute makes sure the speed is constant and fuel applied is reasonable. Since it uses the same control bus that is present throughout the lineup, Cruise Control Servo can be installed in sedans, SUVs, and vans without any special tuning or special wiring. When the brakes tap or cancel buttons are discharged, Cruise Control Servo will back off immediately and will re-engage once commanded, allowing long hauls to remain calm as traffic remains in focus. Its very basic design results in fewer components to break, which also fits with Dodge demands for parts that pass the test of time. In cross-country marathons which previously exhausted ankles, the device mumbles in giving a relaxed cockpit and superior mileage.

Dodge Cruise Control Servo Parts and Q&A

Cruise Servo
4669977
Q: How to Service and Repair a Cruise Control Servo on Dodge Dakota?
A:
Before servicing or repairing the cruise control servo, cut the negative battery cable at the battery. After that, separate the vacuum tube from the servo and unplug the electrical supply from the servo. Unplug the servo cable from the throttle body and take out the mounting nuts that connect the servo cable sleeve to the bracket. Carefully pull on the speed control cable sleeve and servo as far as possible to free up the retaining clip and then remove the clip for the cable. Observe the placement of the servo against the bracket when you are removing it. Mount the servo on the bracket and put the cable connector's hole in line with the one in the servo, then fit the retaining clip on the cable. Placing the servo mounting studs through the holes in the mounting bracket, insert the nuts and set them at 8.5 Nm (75 in. lbs.). After connecting the vacuum line to the servo electric, attach the cable of the servo to the throttle body. Afterward, restore the negative cable from the battery and operate the fuel pedal to make sure there is no binding before you start the car.
Cruise Servo
4669979
Q: How to Install the Cruise Control Servo for a 4.7L V-8 Engine on Dodge Ram 1500?
A:
The 4.7L V-8 engine is unique in that its speed control servo is attached by putting the servo in place, aligning the holes in the cable with the ones in the servo pin and securing the set together with a retaining clip. Position the studs from the servo on the bracket through the matching holes and fasten with two nuts screwed on to a torque of 60 in. lbs. (7 Nm). After that, firmly attach the servo assembly to the battery tray with the mounting lugs and tighten the 3 screws to 30 inches per pound (4 Nm). Attach the servo vacuum line and electrical connector to the servo and connect the servo's cable to the throttle body. Replace the left-front wheel-well liner and secure the negative battery cable to the battery, providing both cables are connected if the vehicle is diesel. Check for any binding by pressing the accelerator pedal before you start the engine.
